S&M

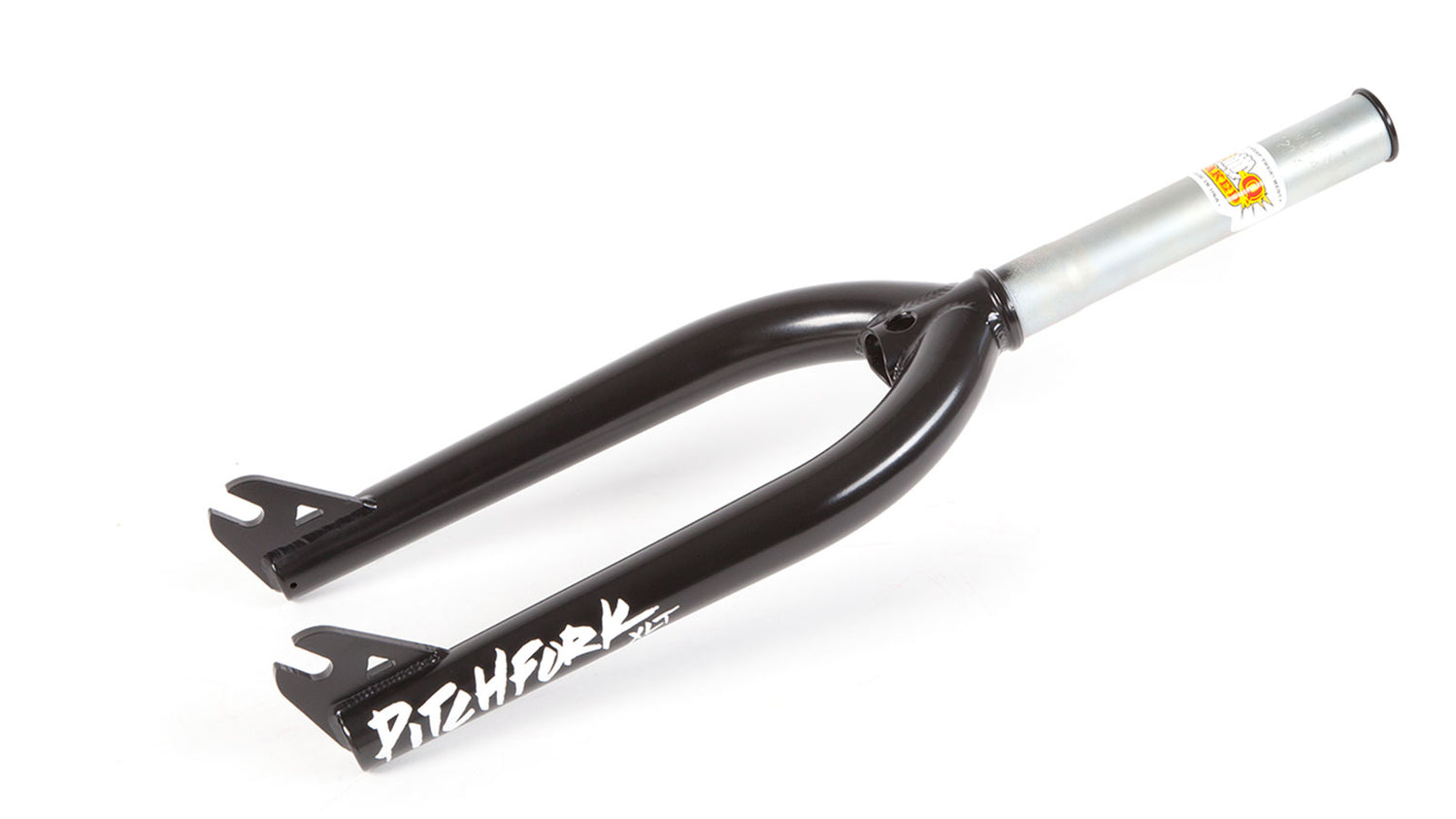

S&M Pitchfork XLT Fork (18″,20″,22″,24″)

$209.95
Shipping calculated at checkout.
Size
Color
{}

Final sale — this item can’t be returned or exchanged once it ships. Arrived damaged or wrong? We’ll make it right. Returns policy

Description

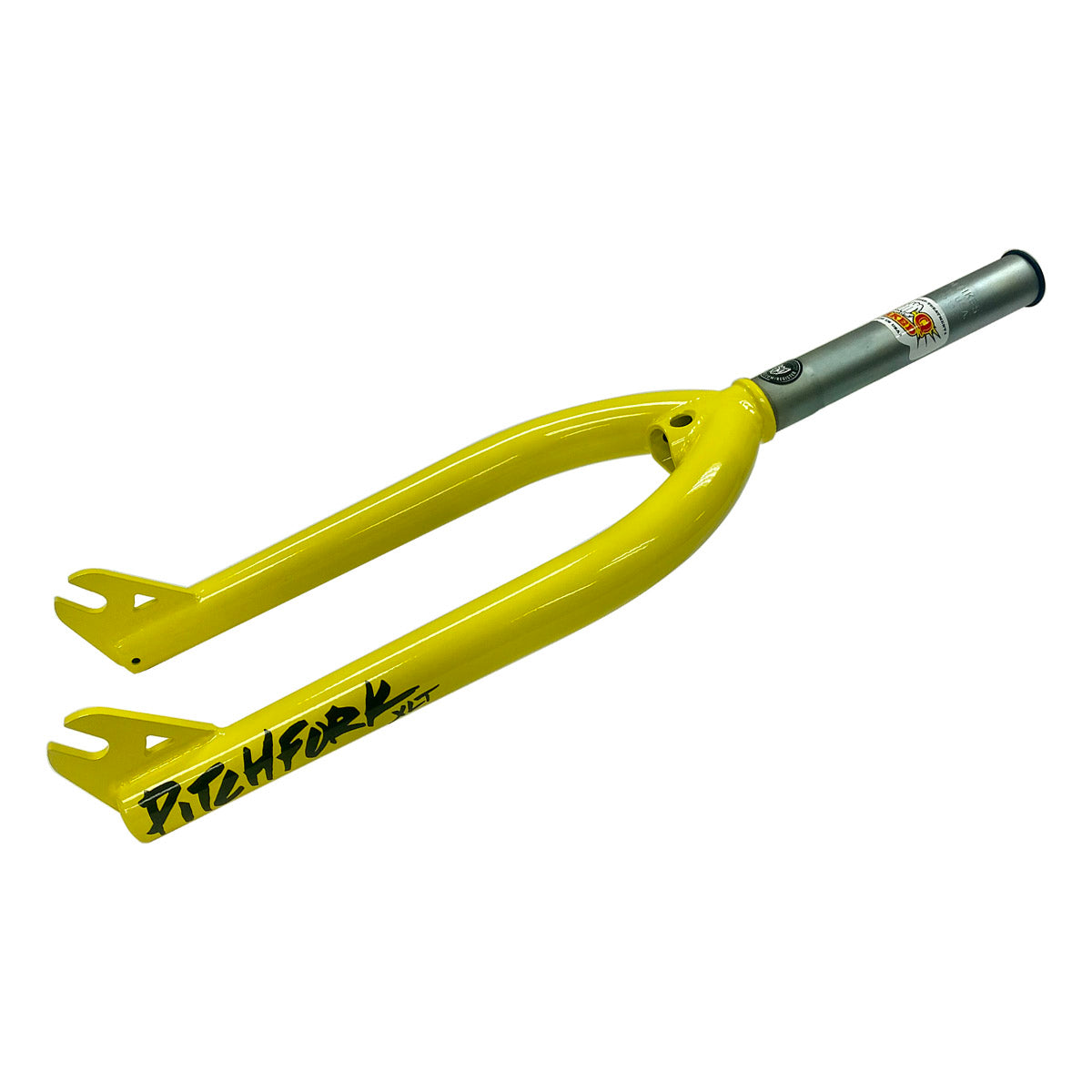

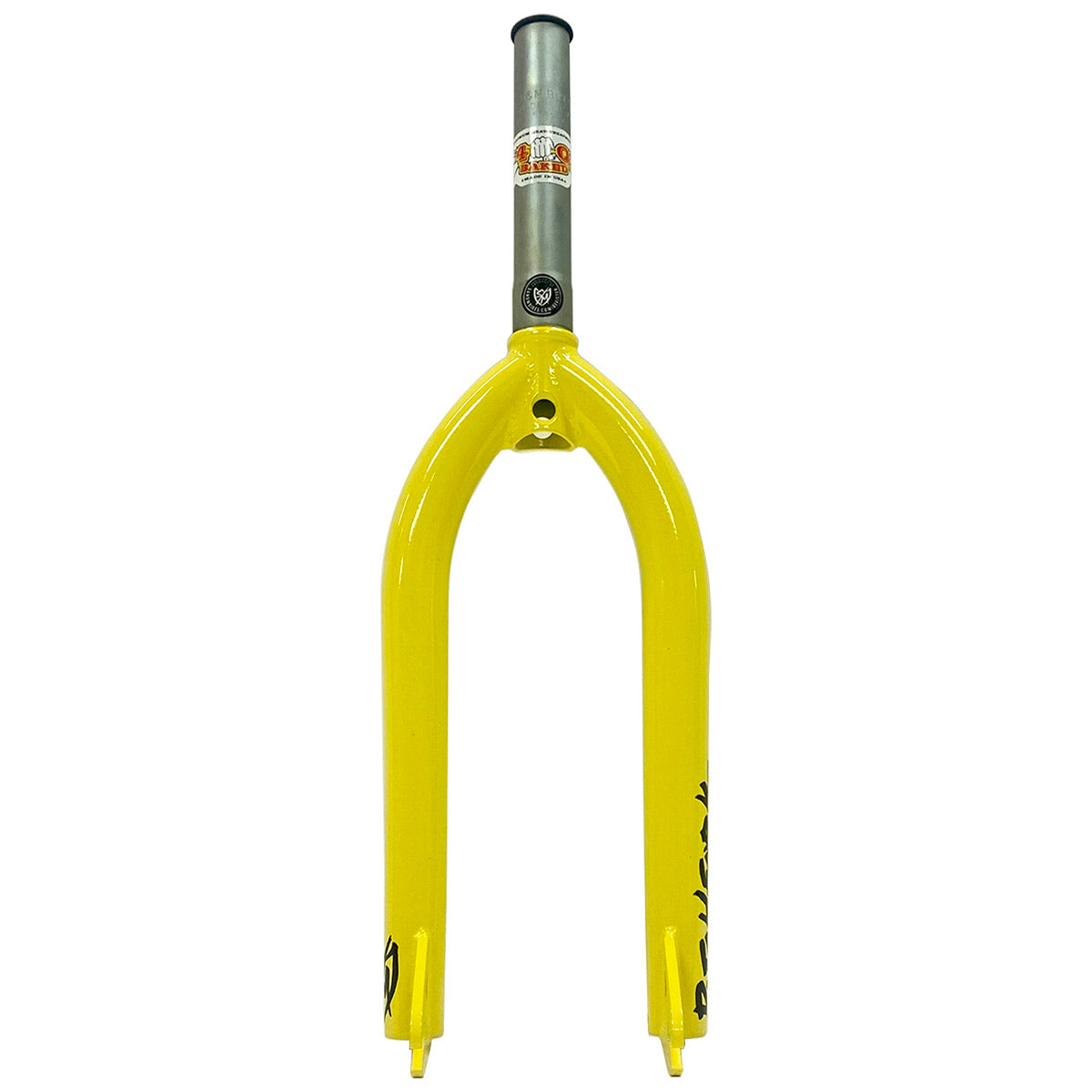

The S&M Pitchfork XLT is made in the USA from genuine 4130 chromoly, combining the trusted Pitchfork design with modern features: double-butted tapered legs, laser-cut dropouts, a CNC-machined one-piece steerer and an integrated headset race that eliminates the press-on race.

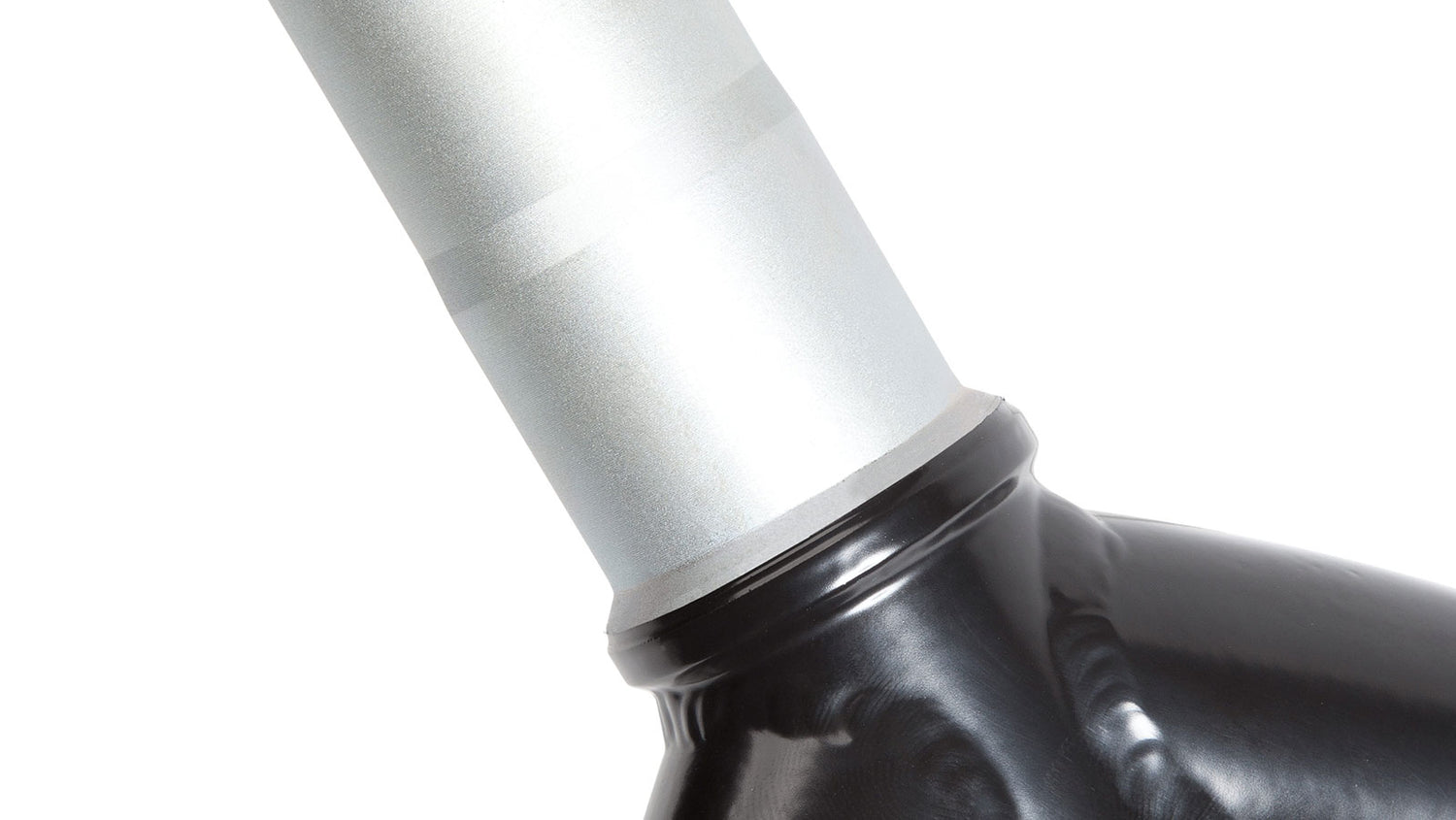

  • Legs: double-butted, tapered 4130 CrMo

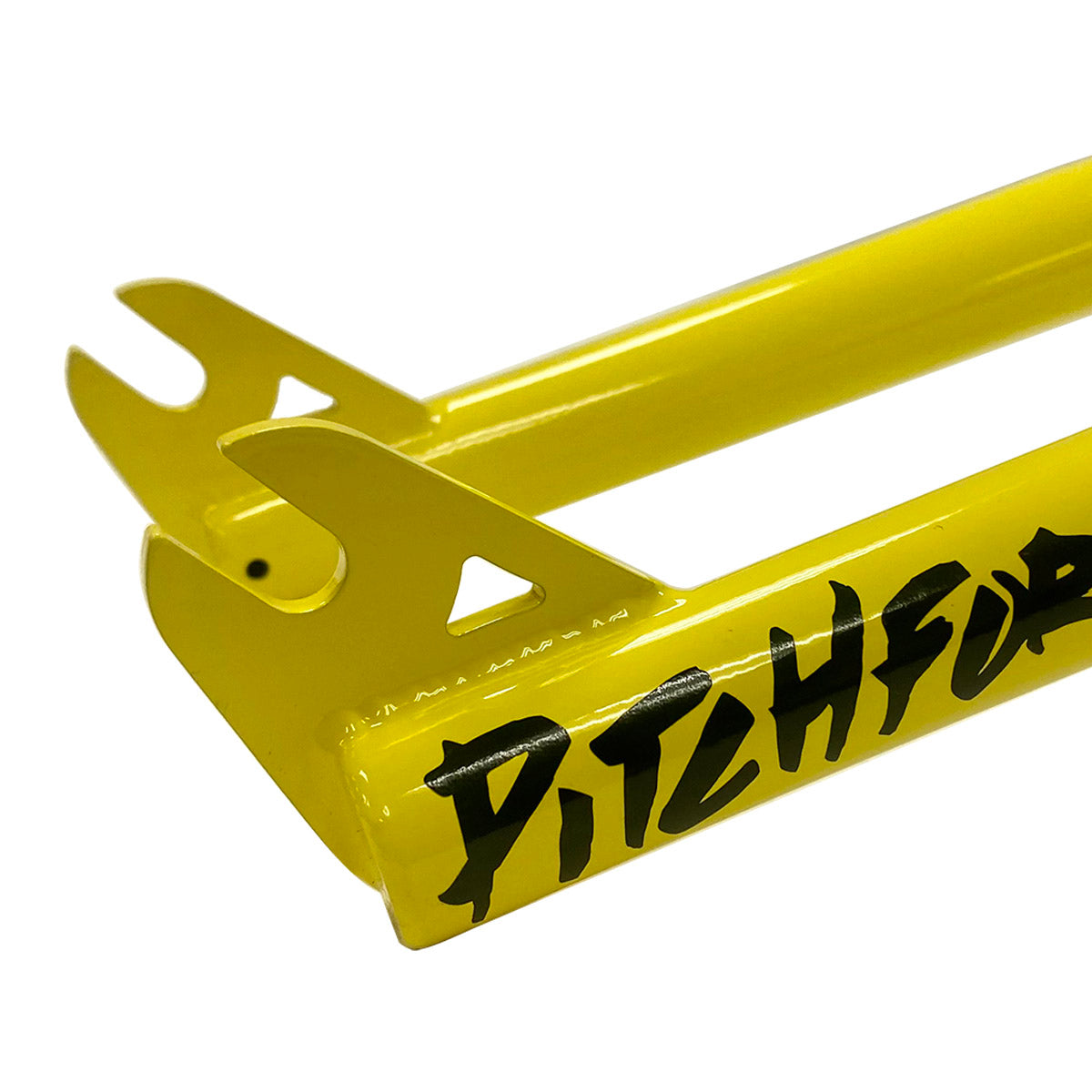

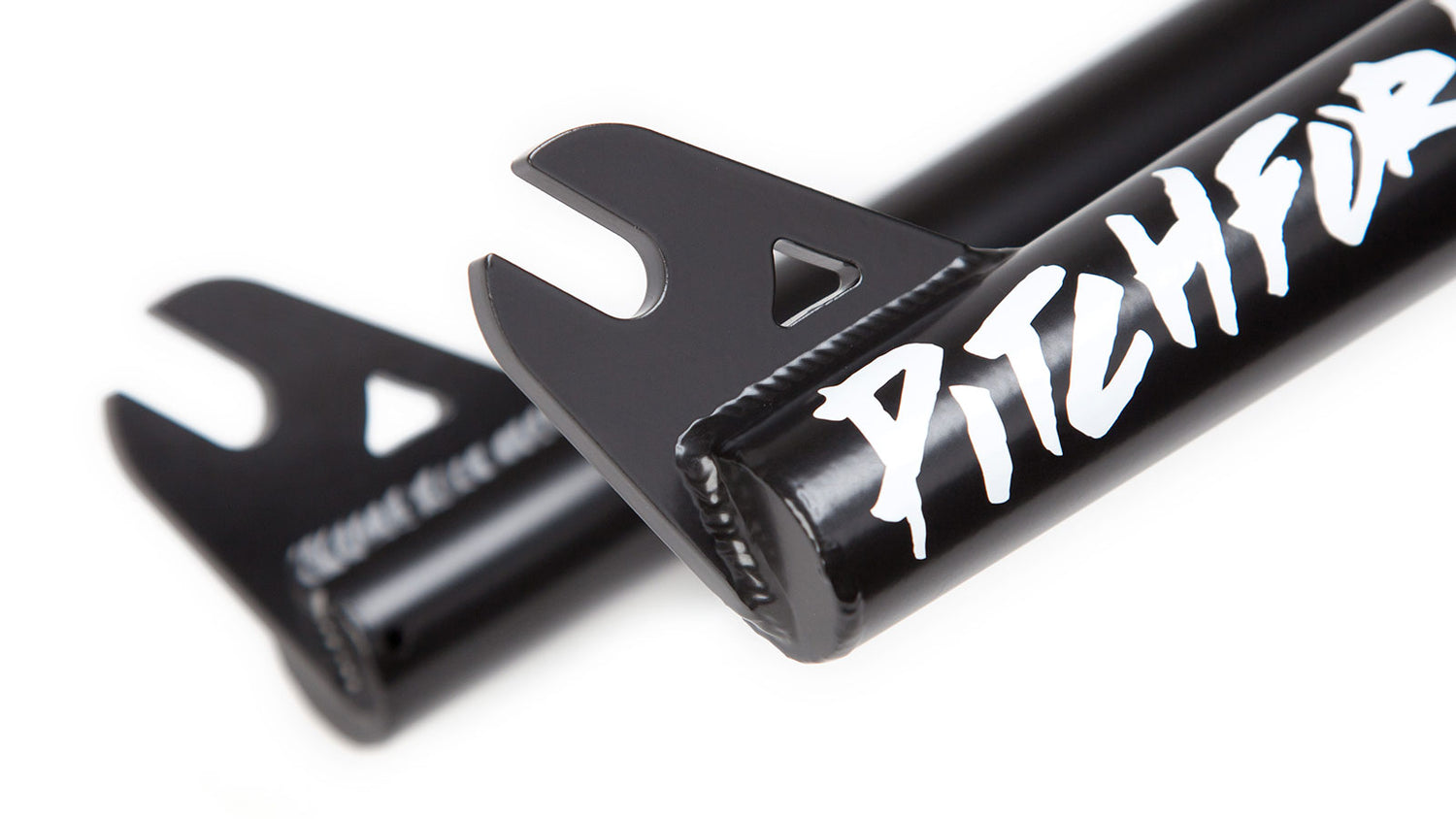

  • Dropouts: laser-cut 3/8″ slot

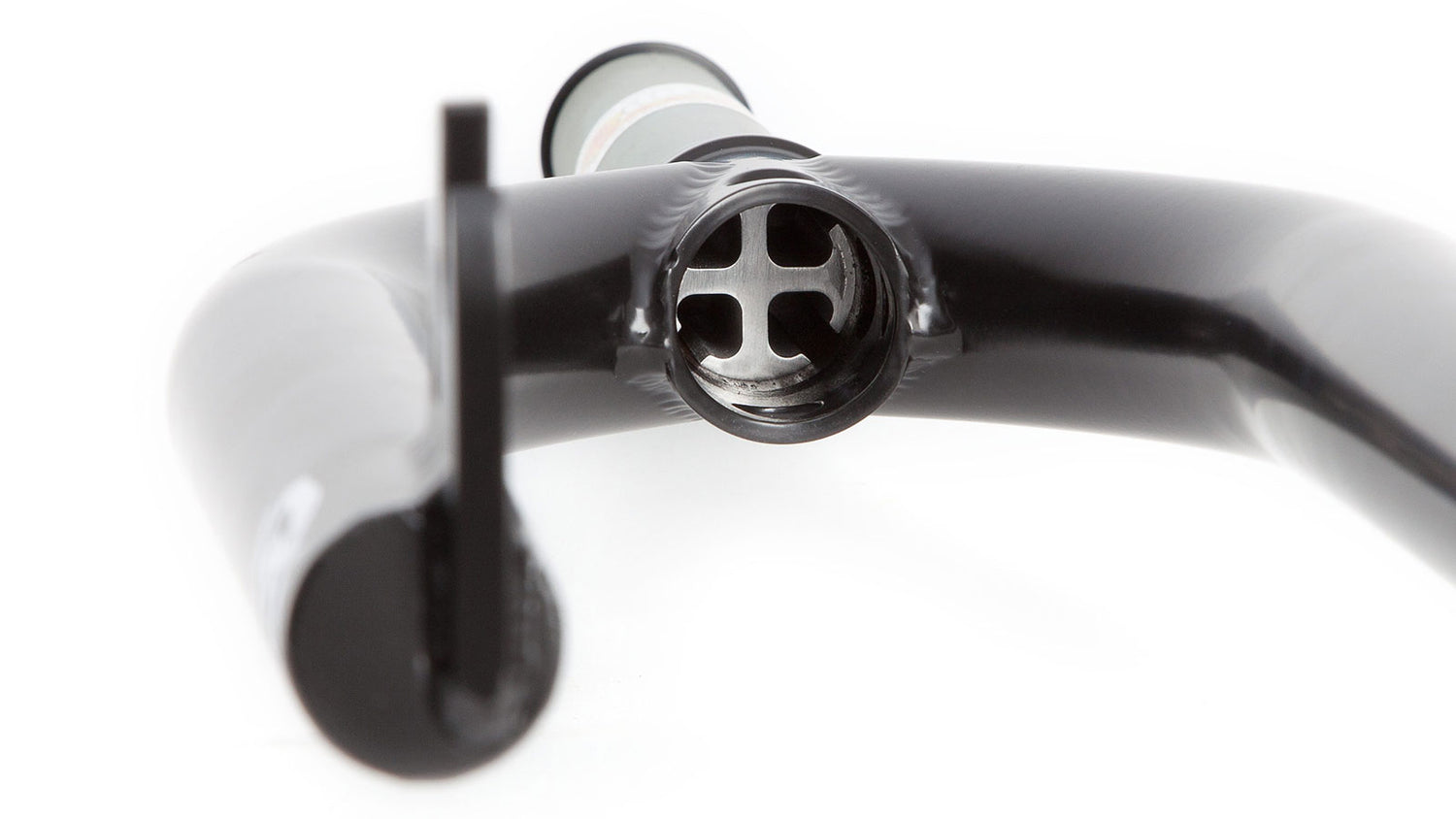

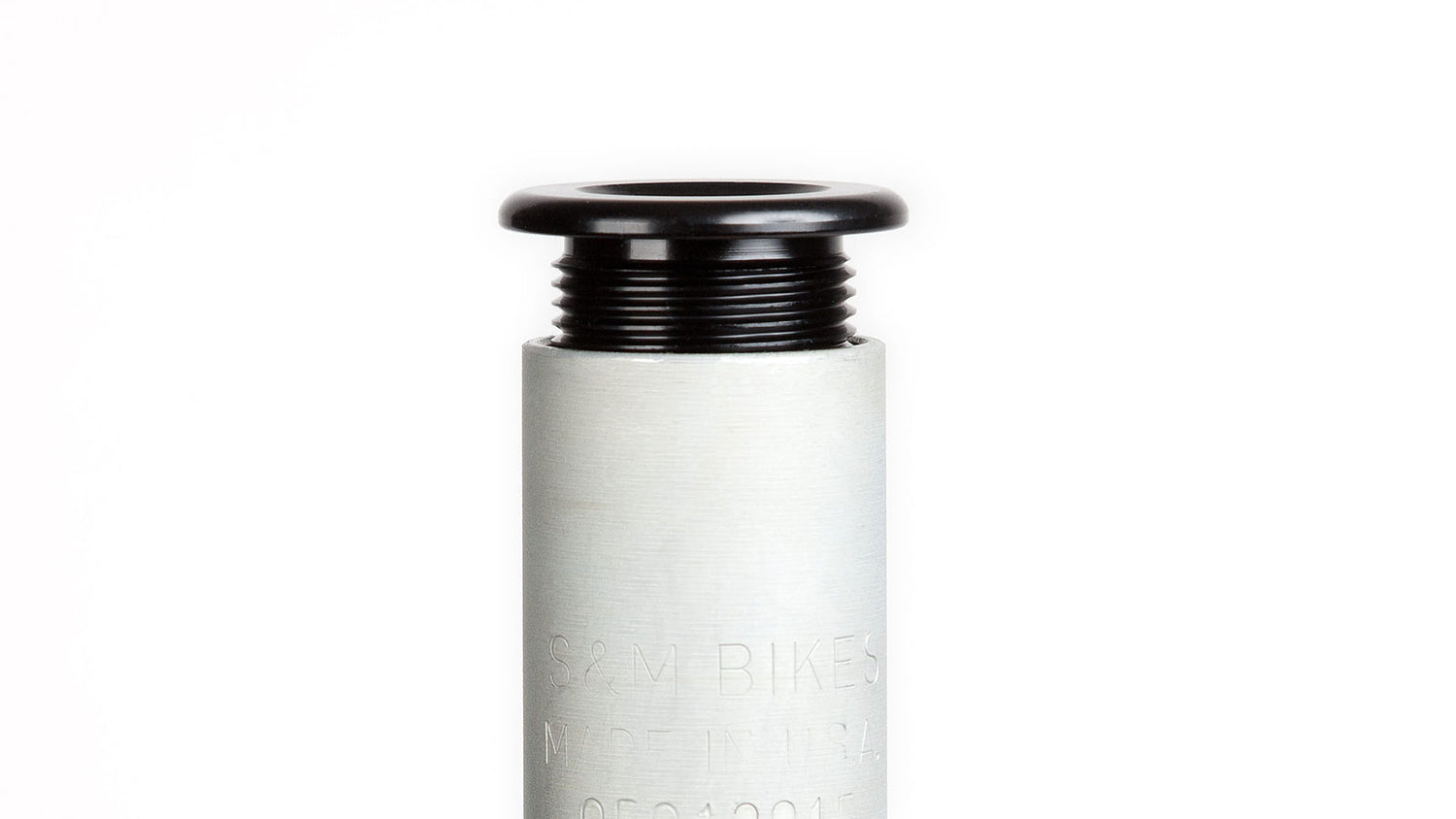

  • Steerer: integrated race, one-piece CNC-machined 4130 CrMo with extruded 6061 steerer insert, 166mm long

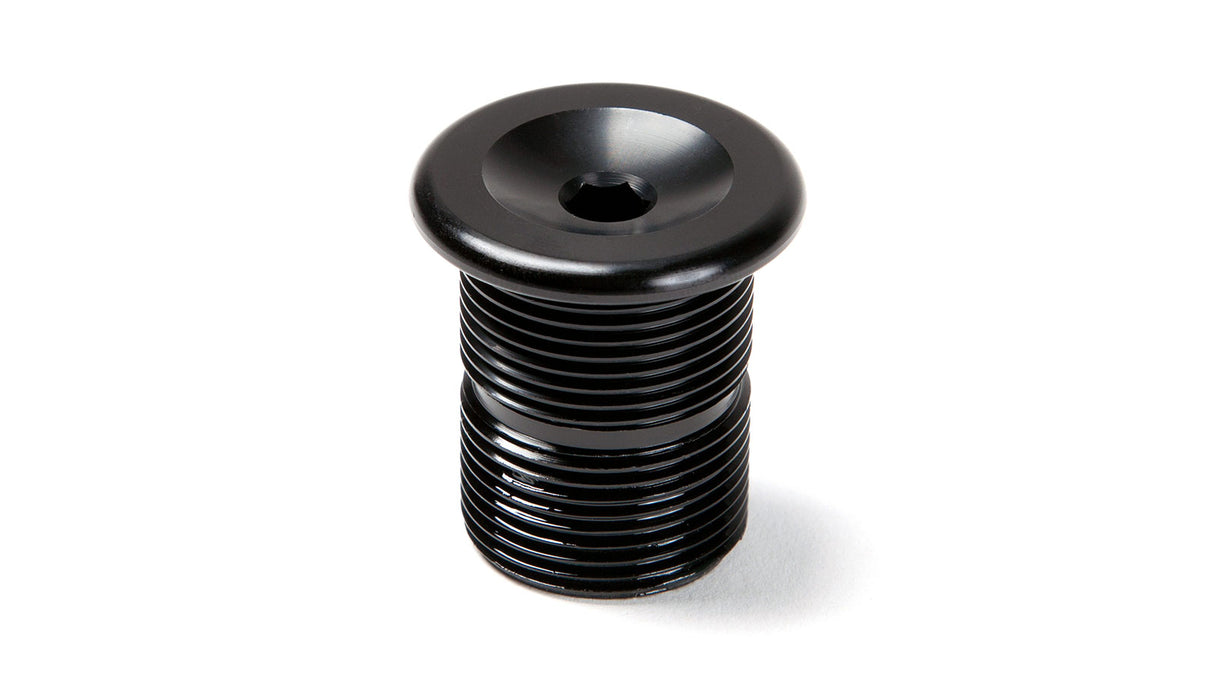

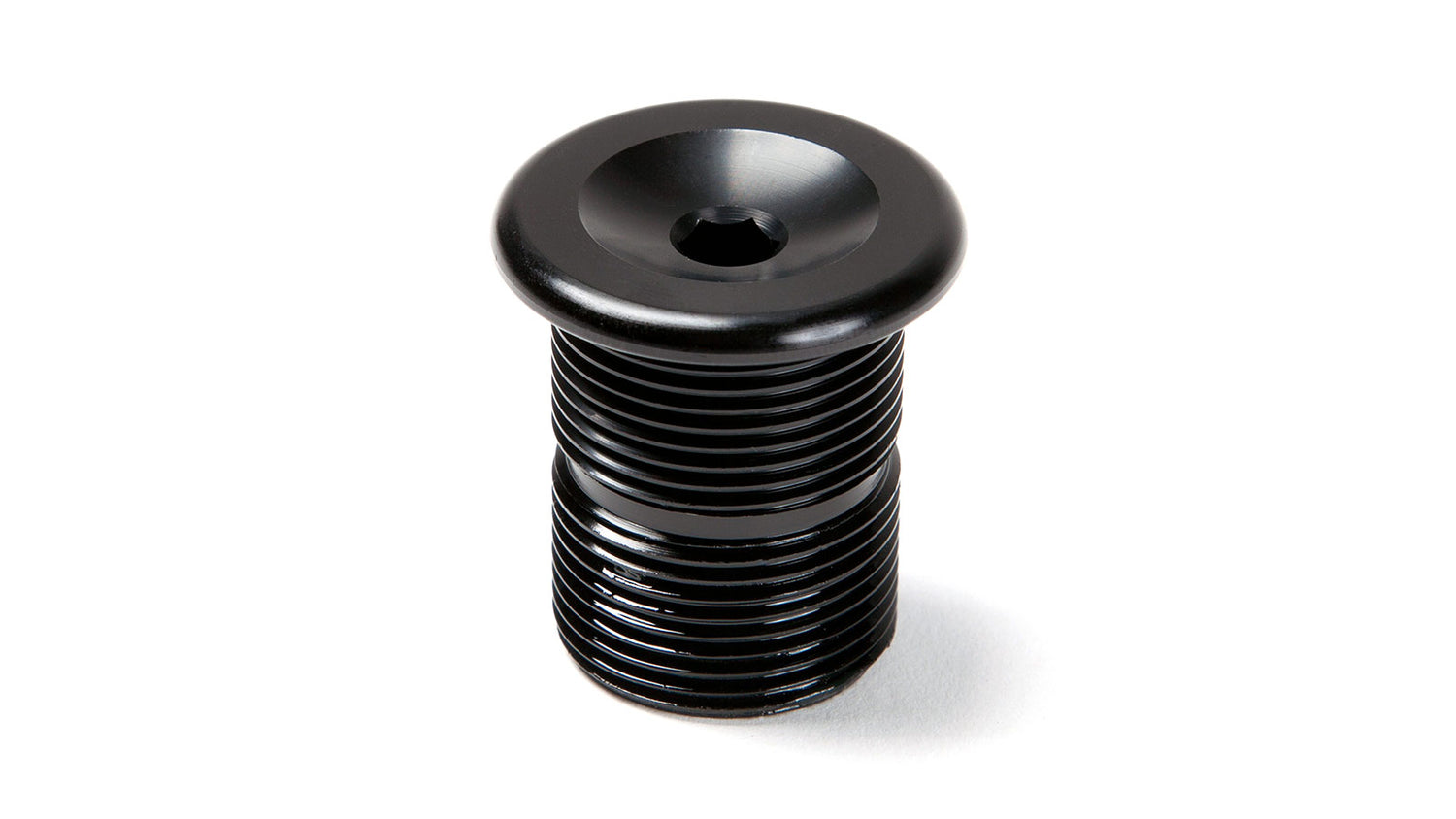

  • Compression: M24 x 1.5 thread, 6mm Allen slot
  • Offset: 33mm
  • Axle-to-crown: 18″ 290.4mm, 20″ 315.5mm, 22″ 340.9mm, 24″ 366mm
  • Weight: 2.16 lb (18″), 2.17 lb (20″), 2.25 lb (22″), 2.35 lb (24″)
  • Heat treat: 4Q baked post-weld
  • Max tire clearance: 2.4″ S&M tire

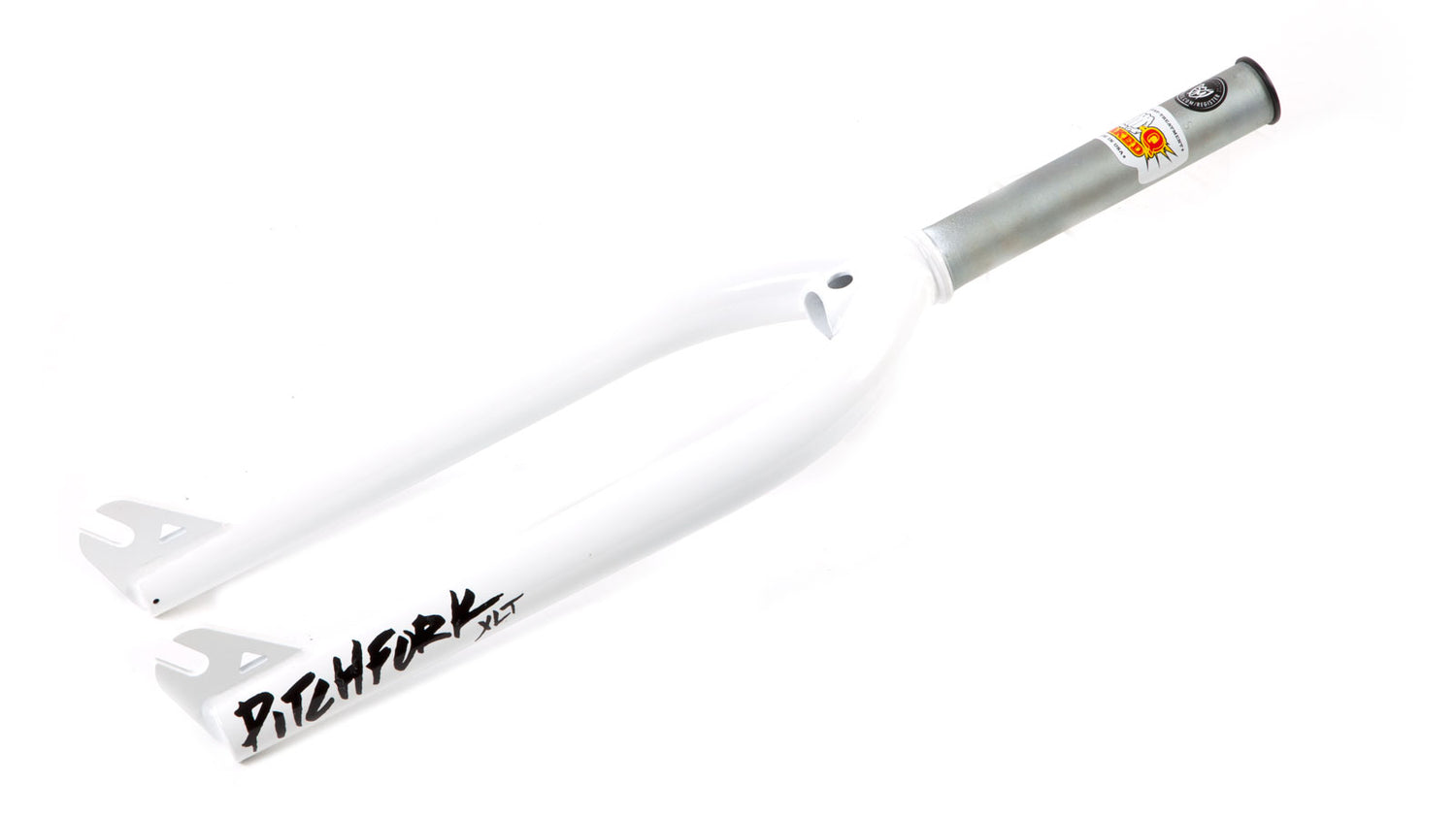

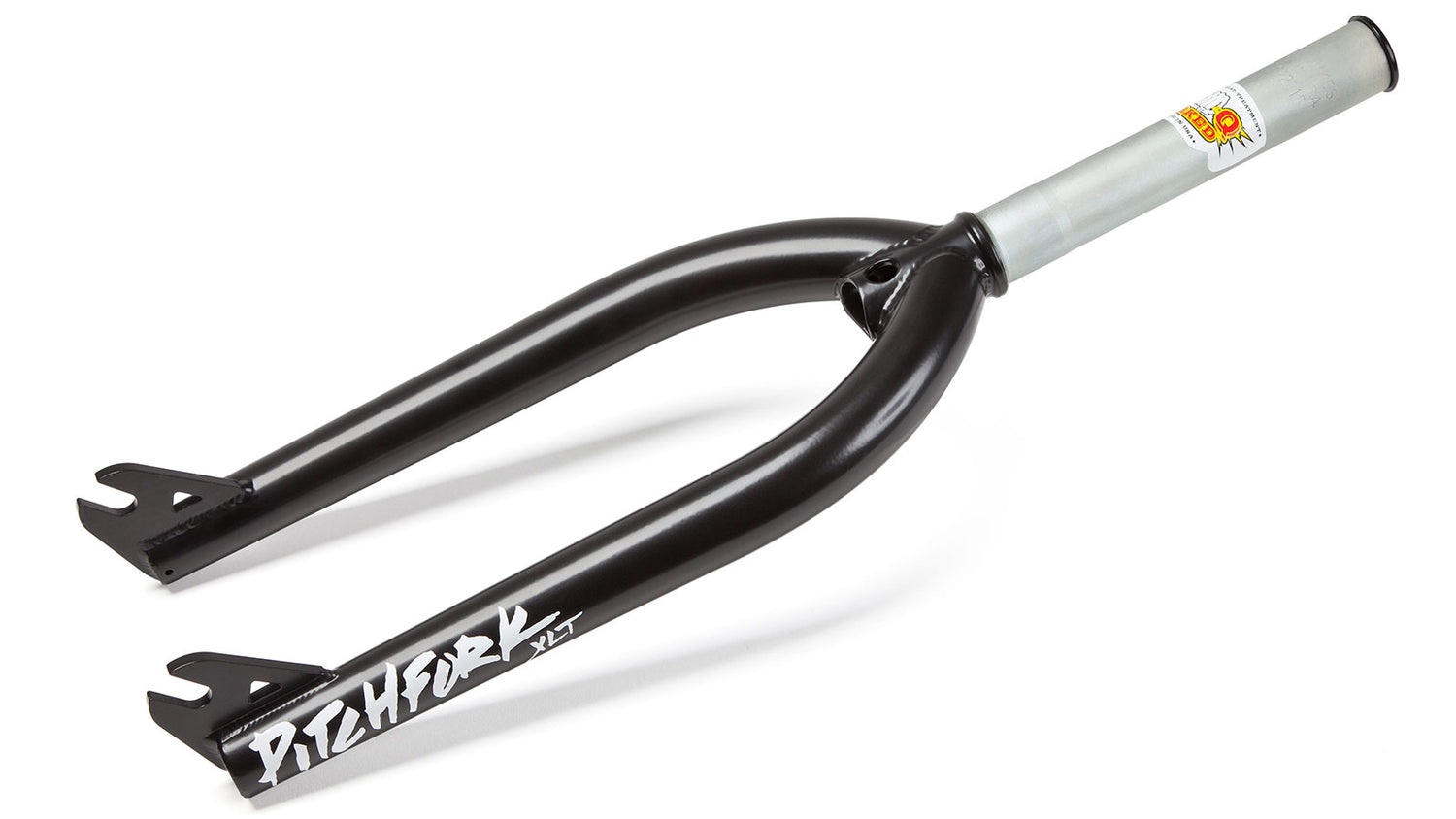

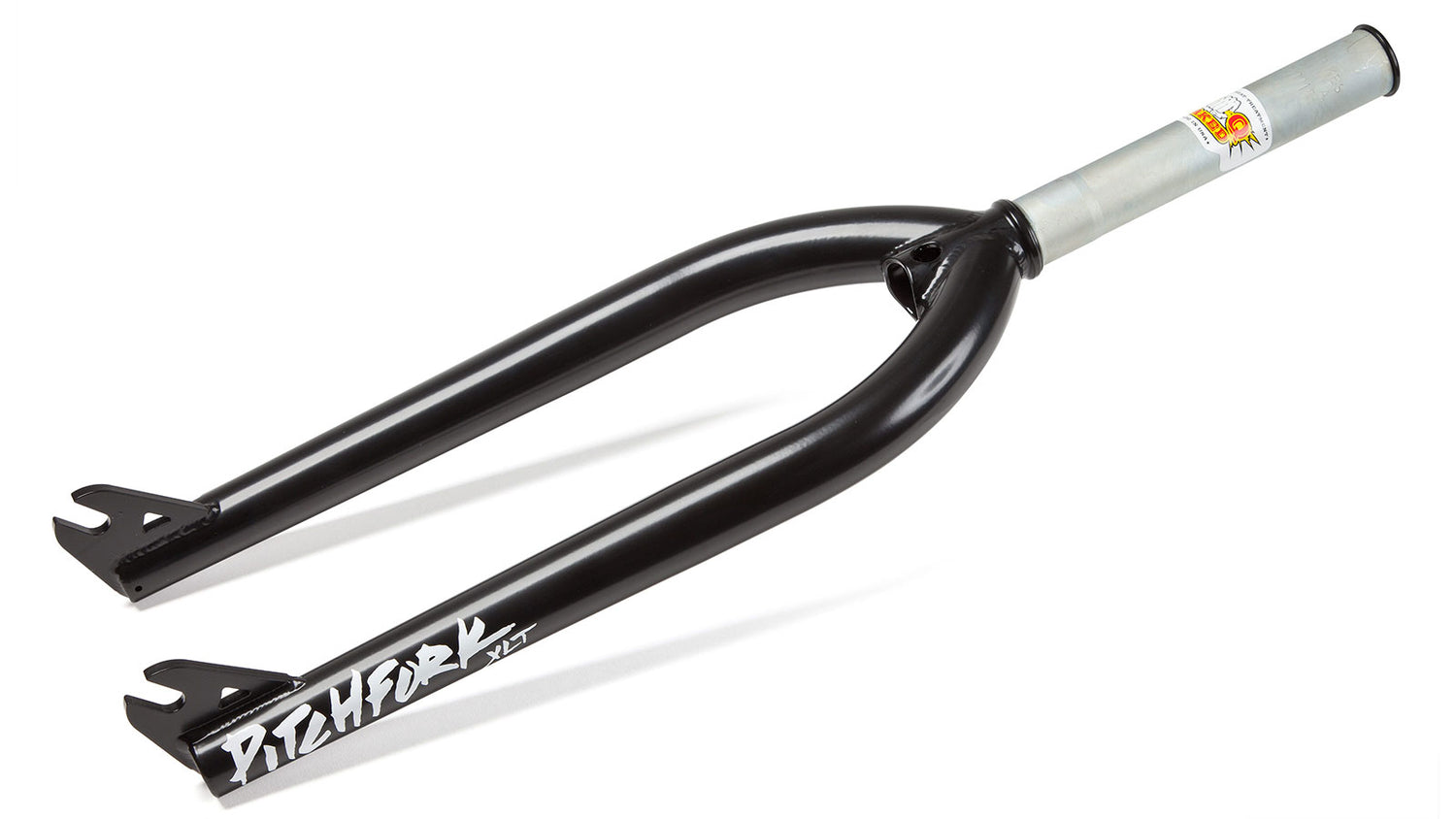

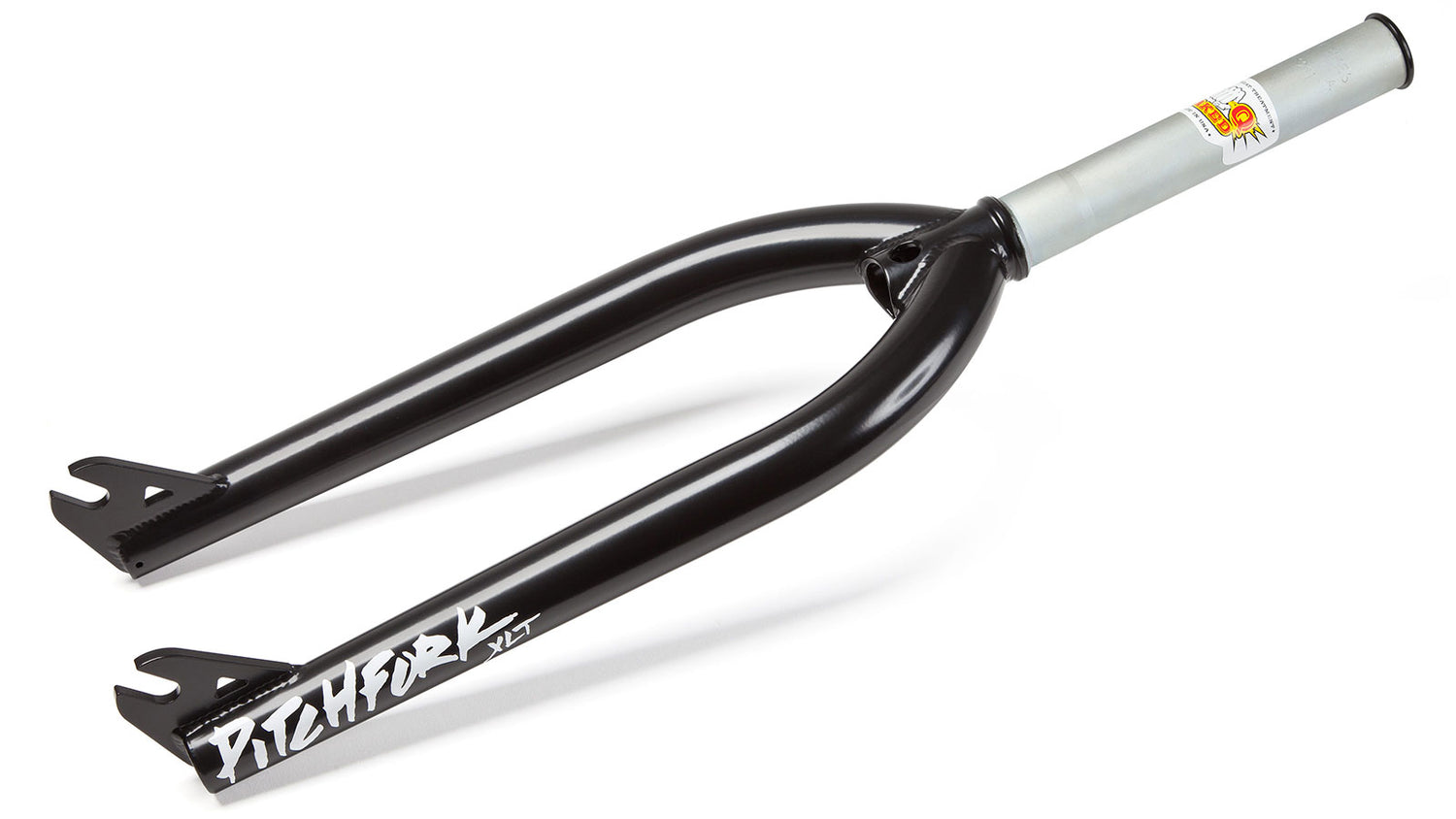

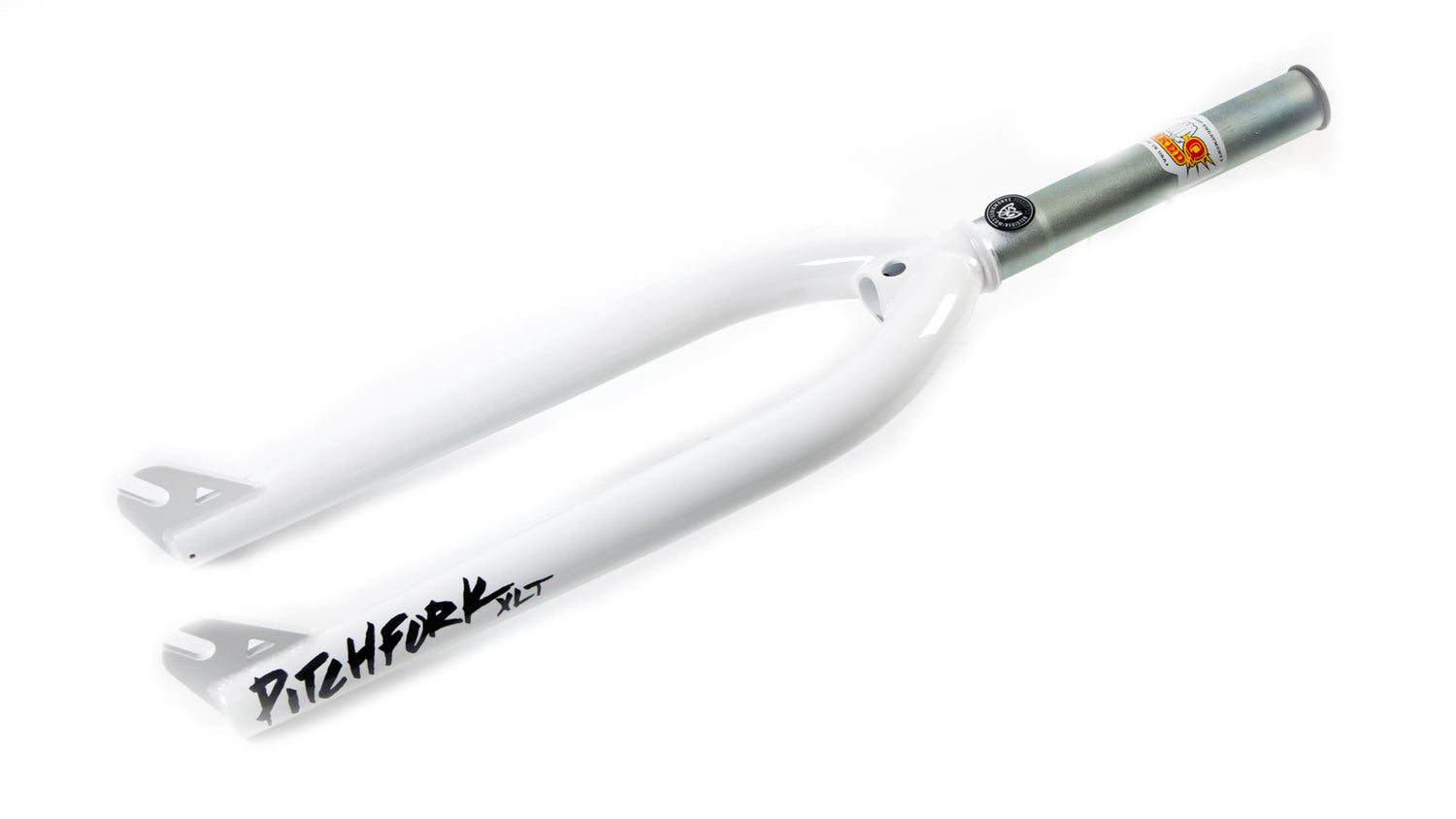

  • Options: 18″ Black; 20″ Black, Dirtbike Yellow or White; 22″ and 24″ Black or White
