S&M Pounding Beer Fork

Product Overview

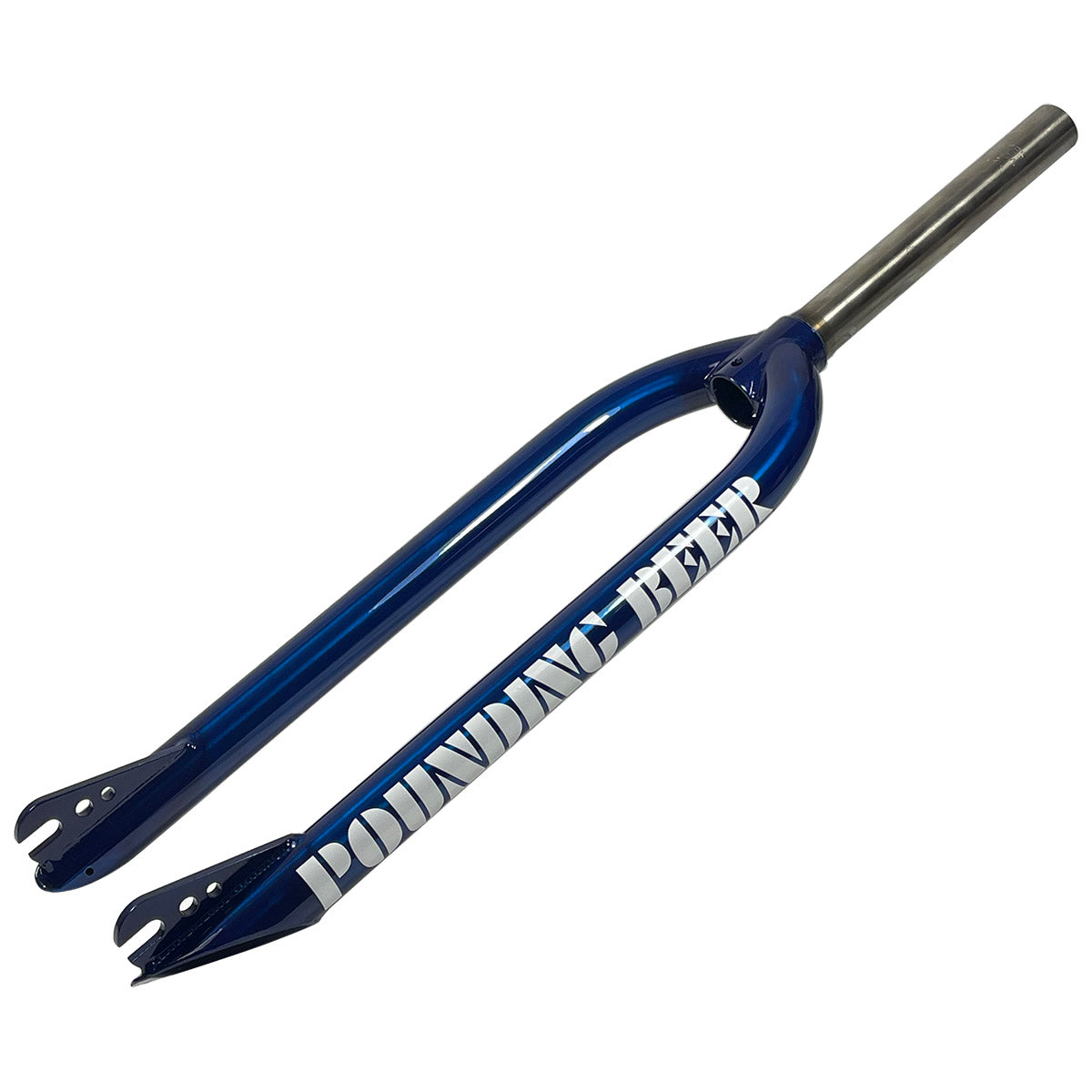

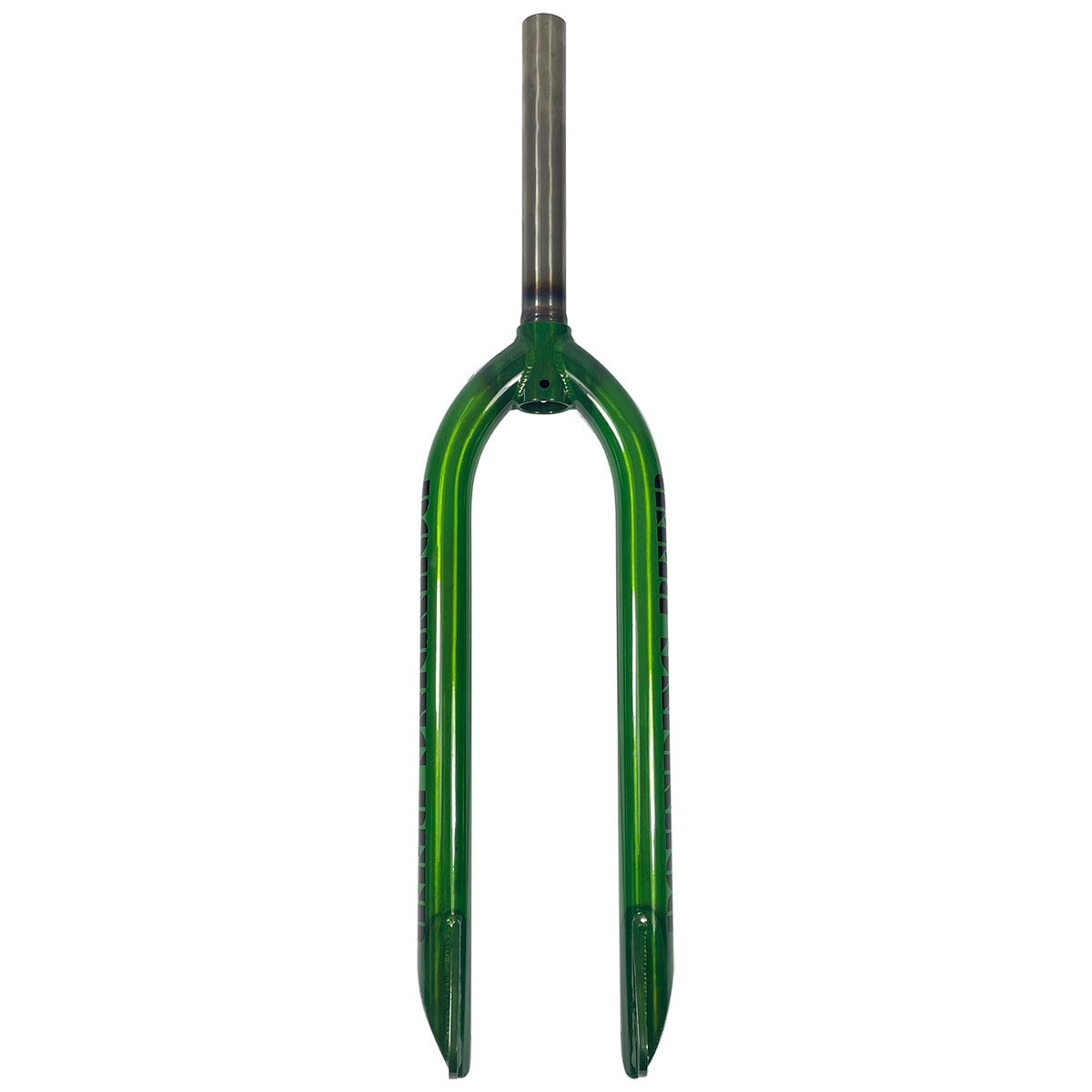

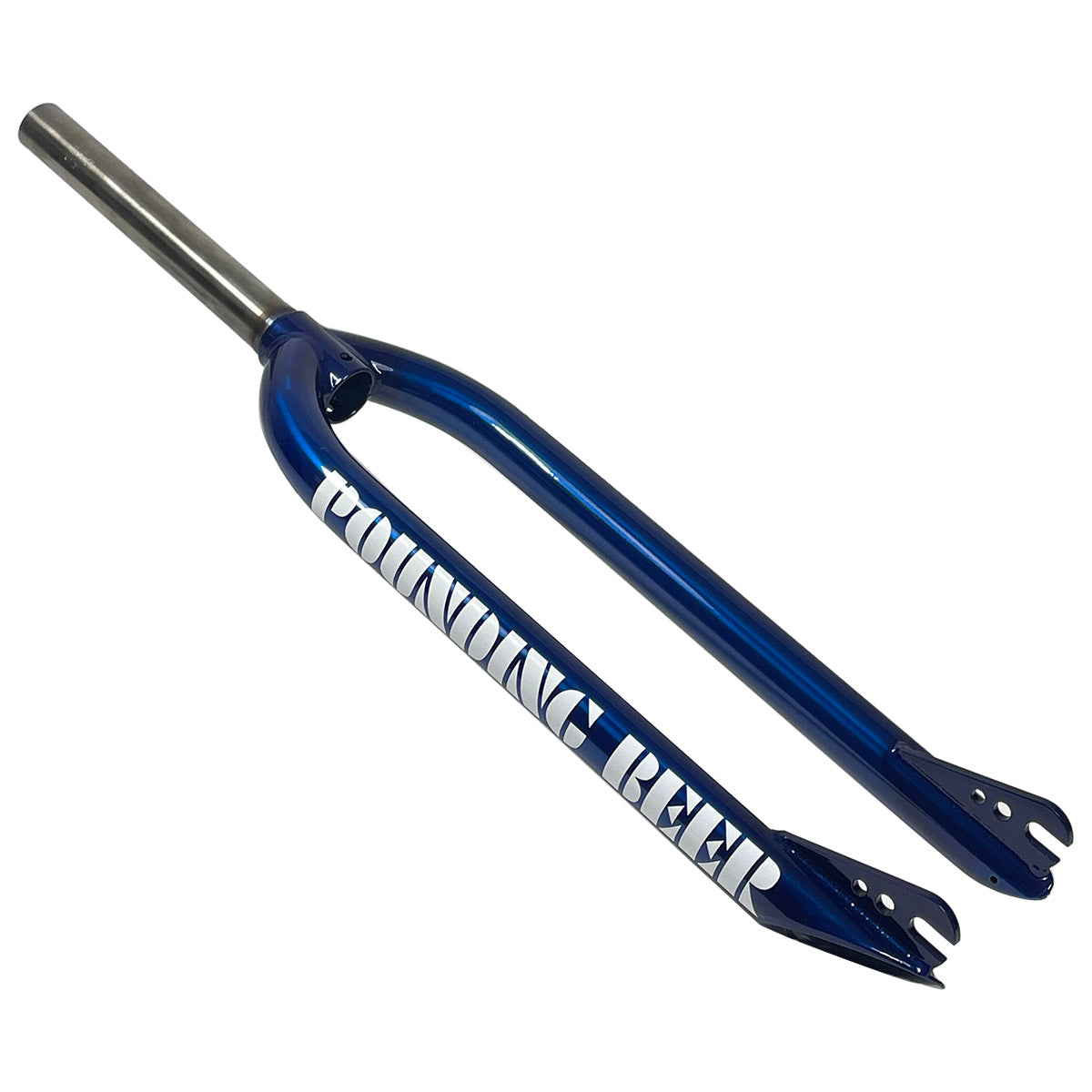

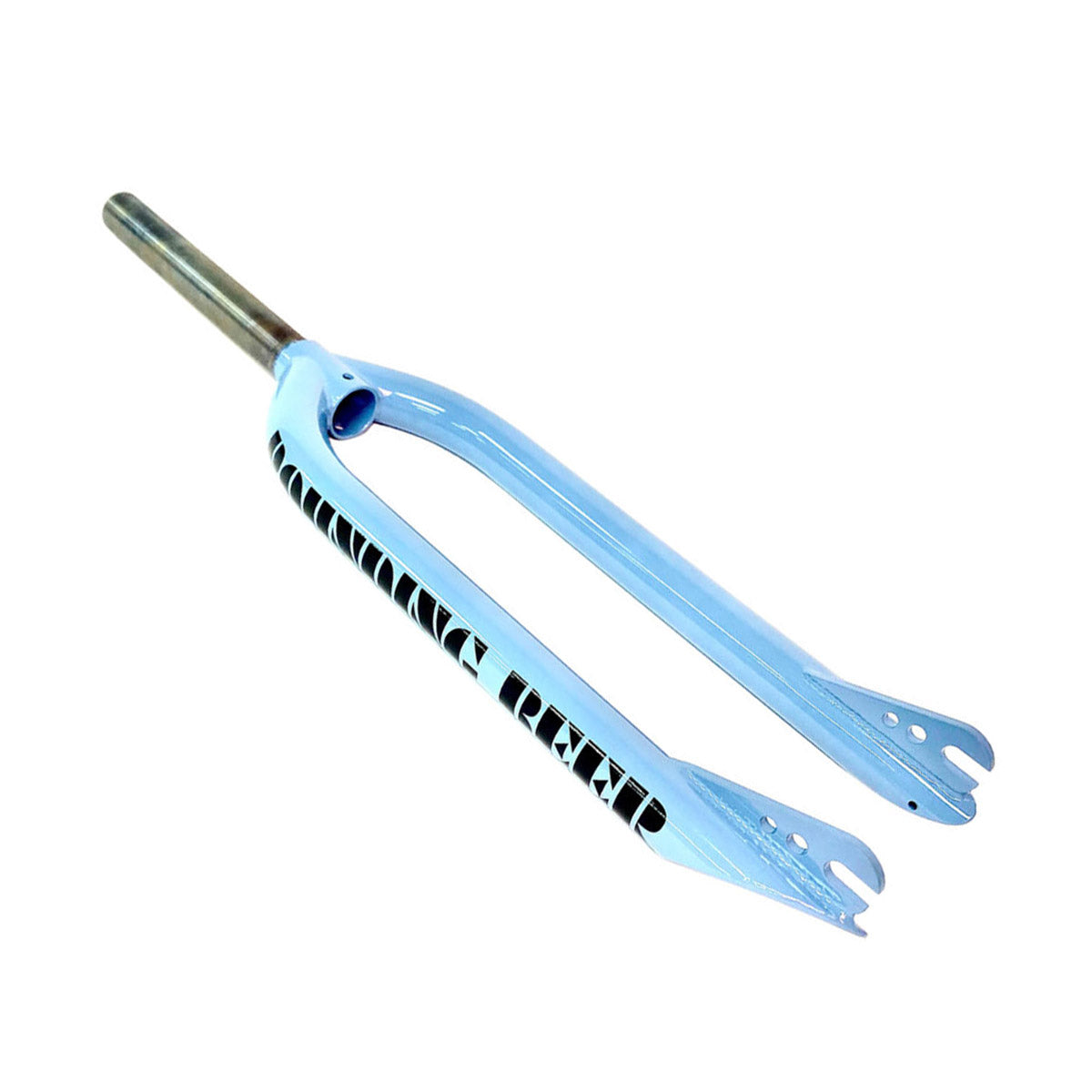

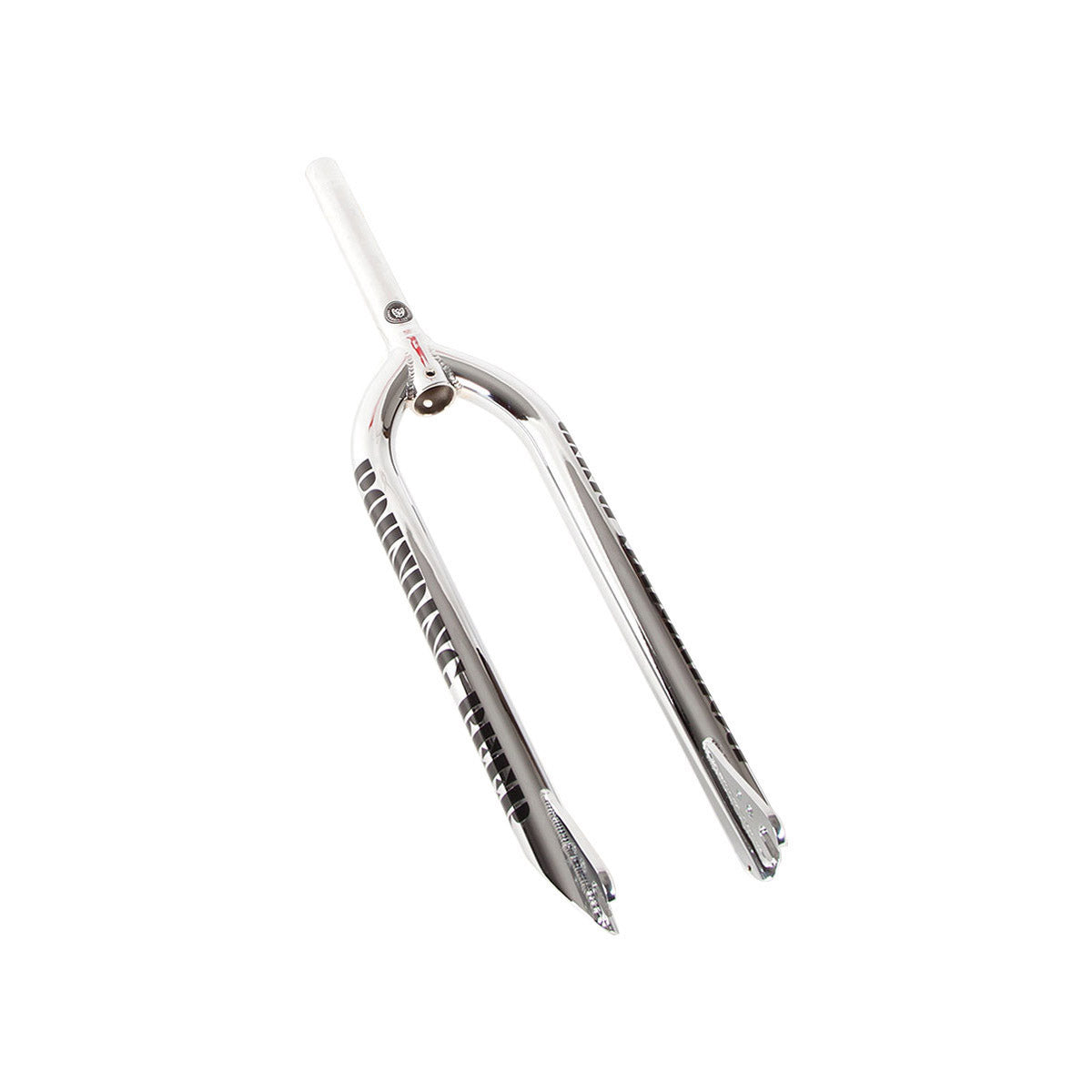

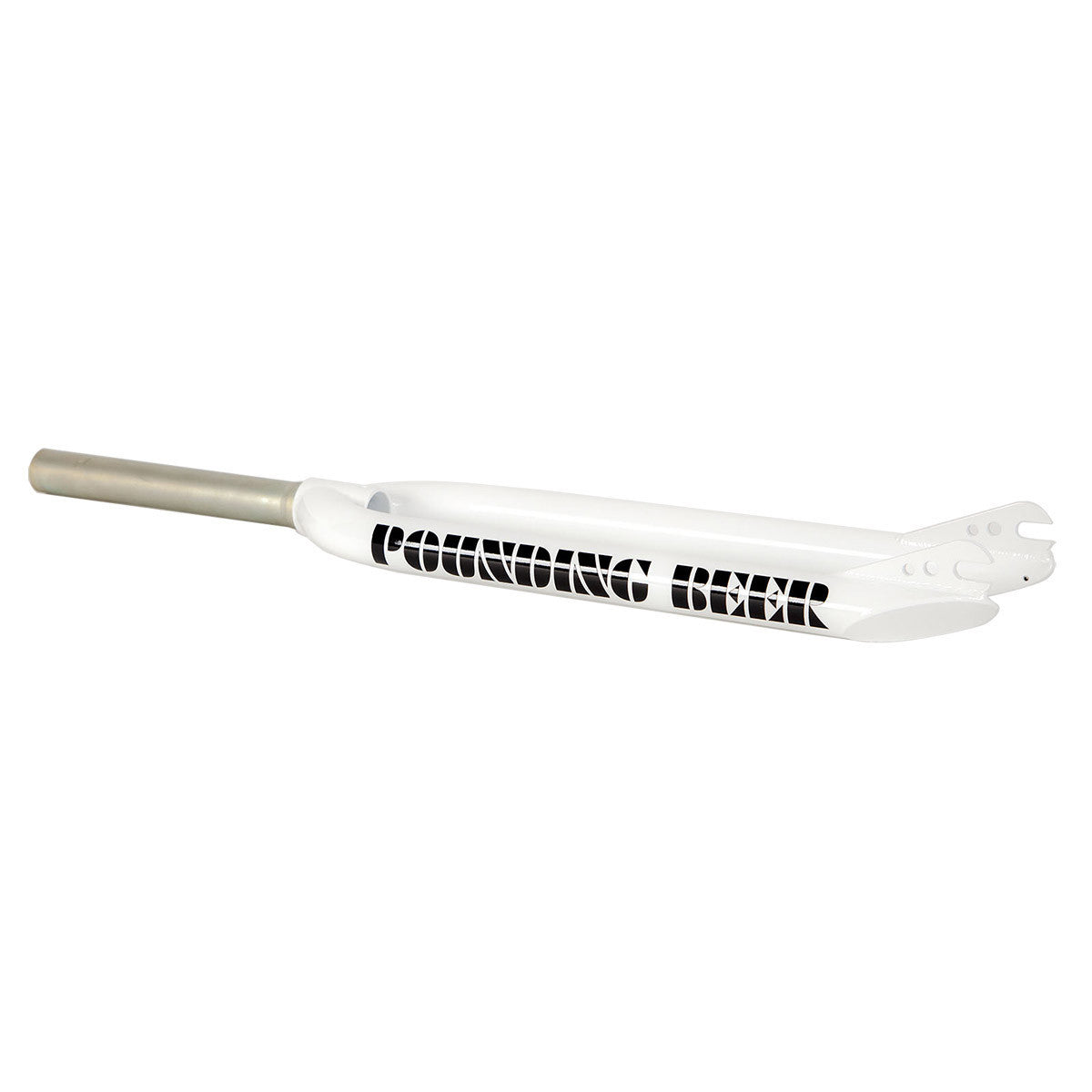

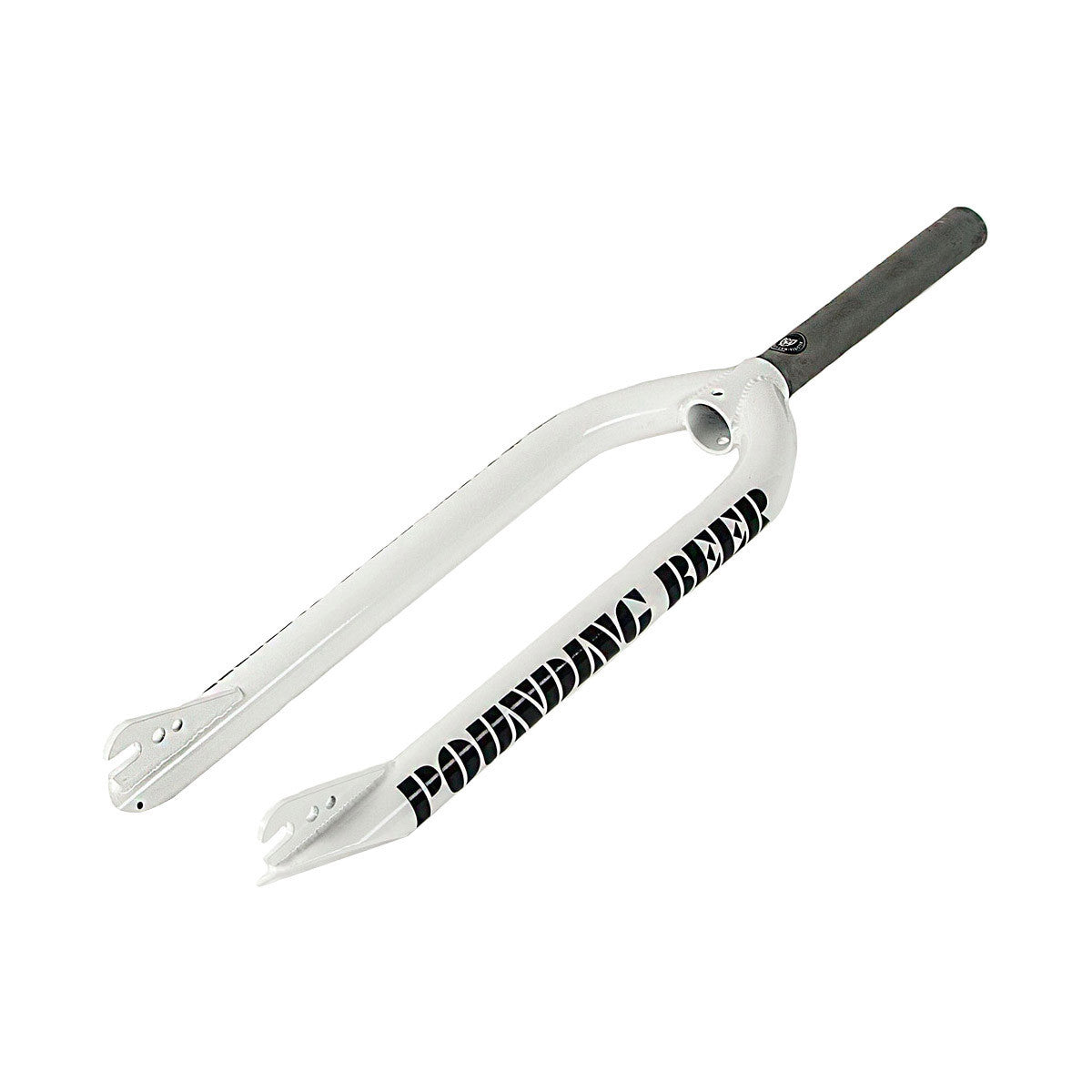

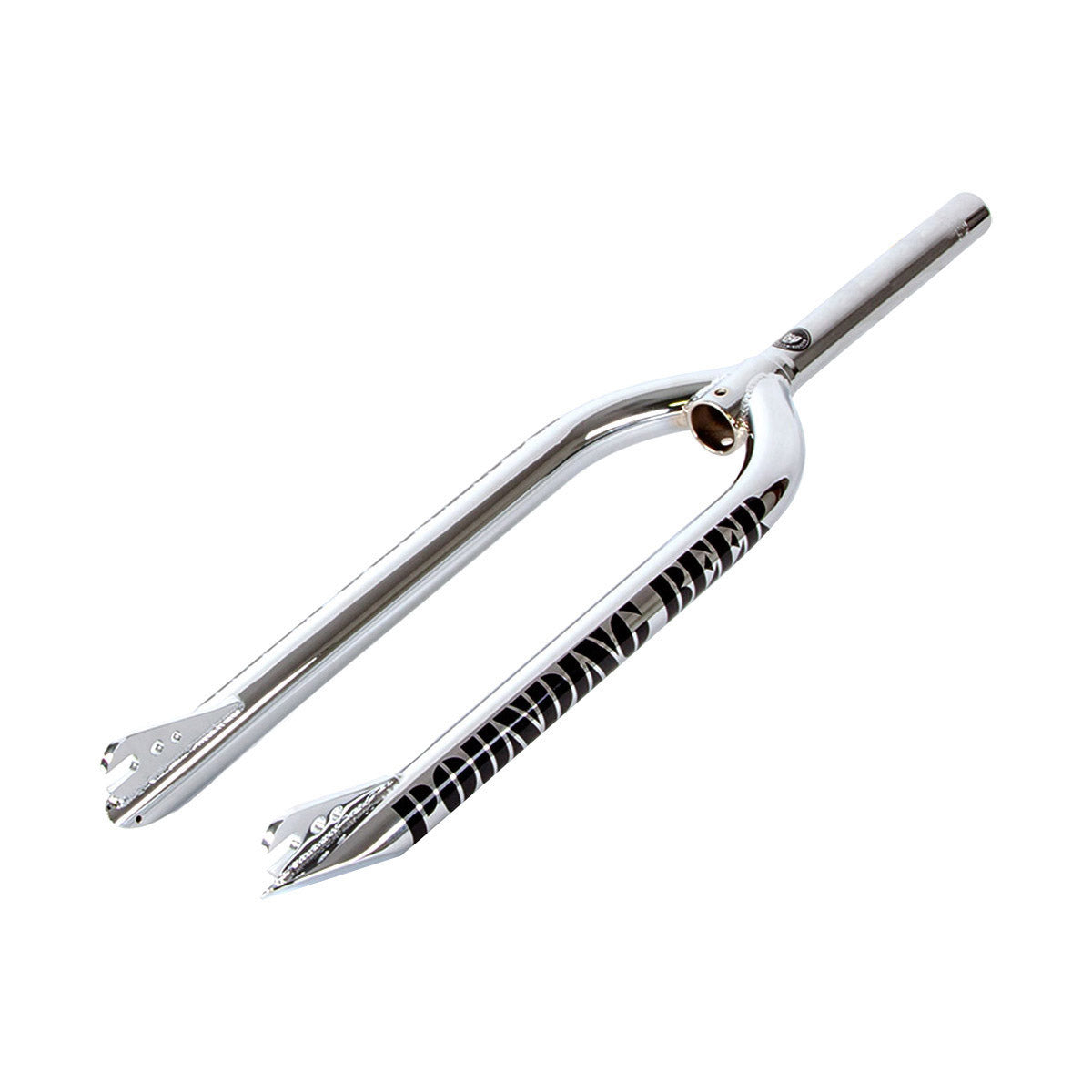

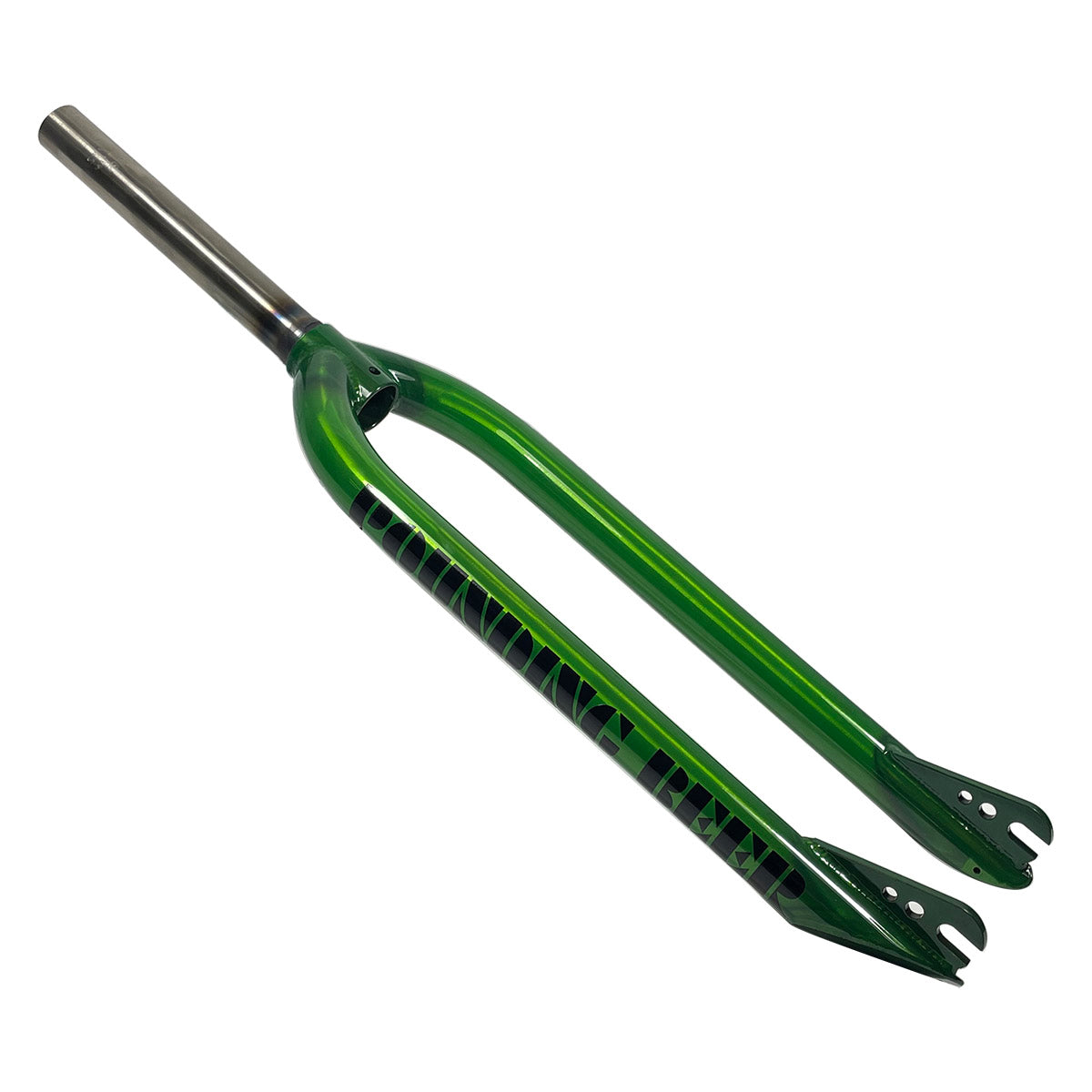

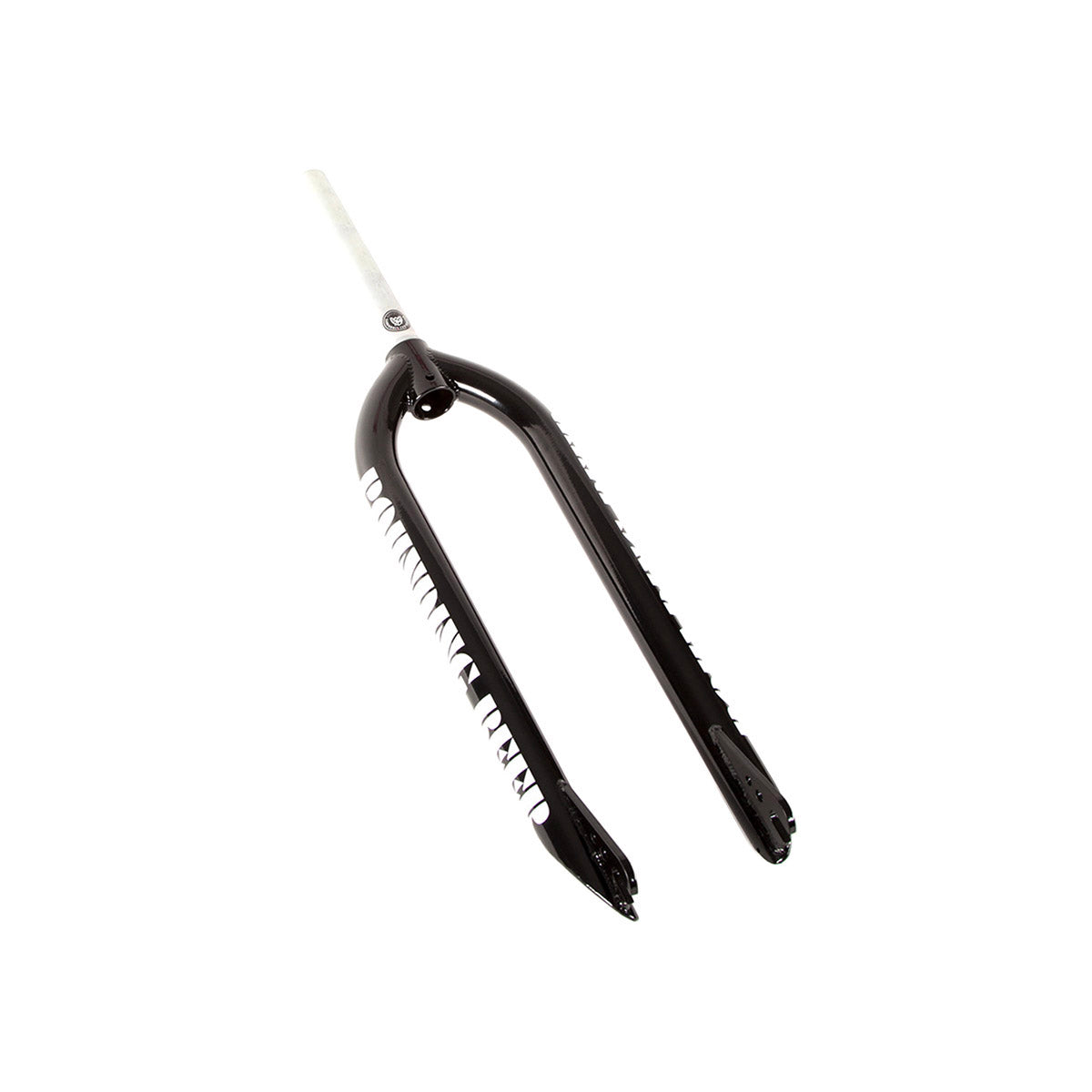

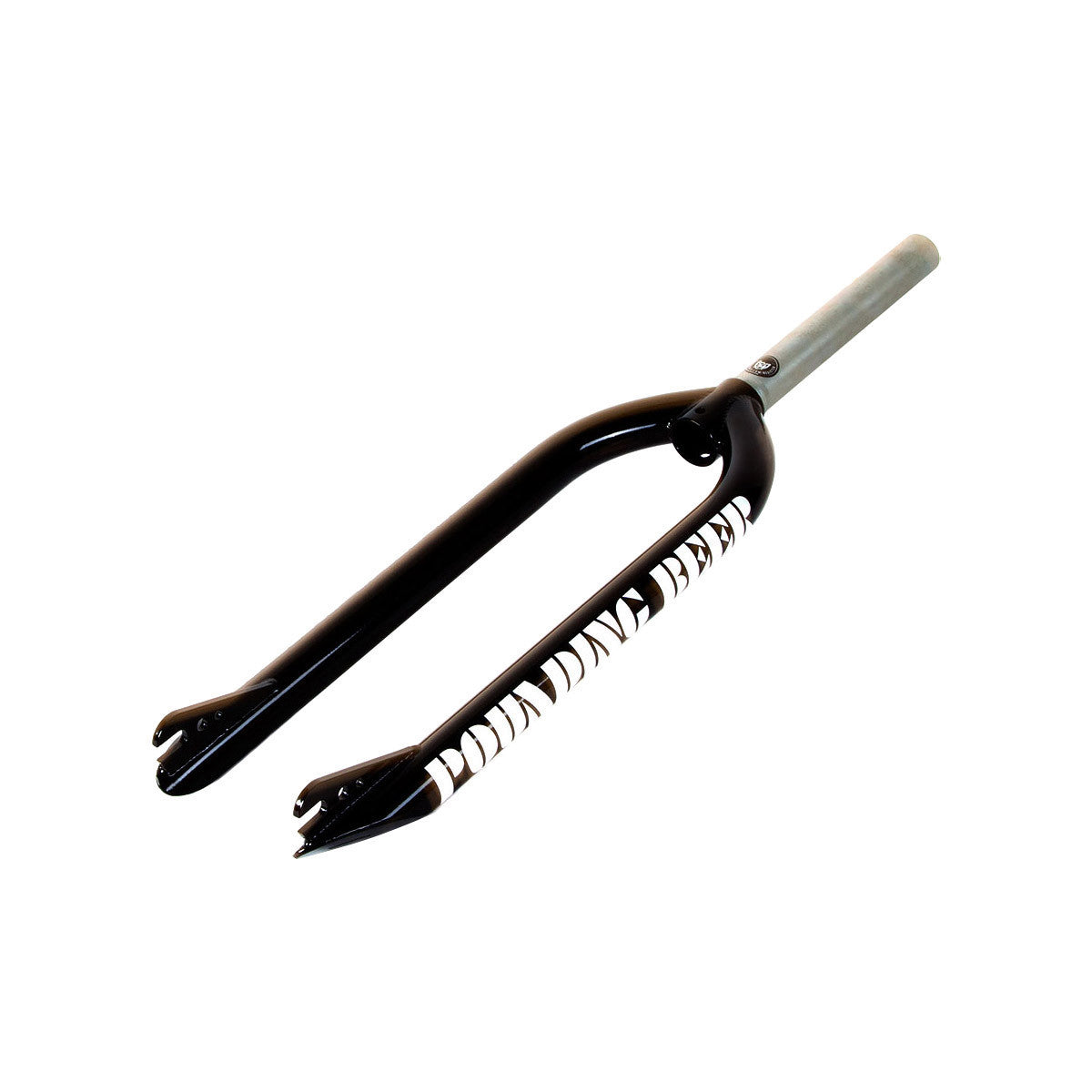

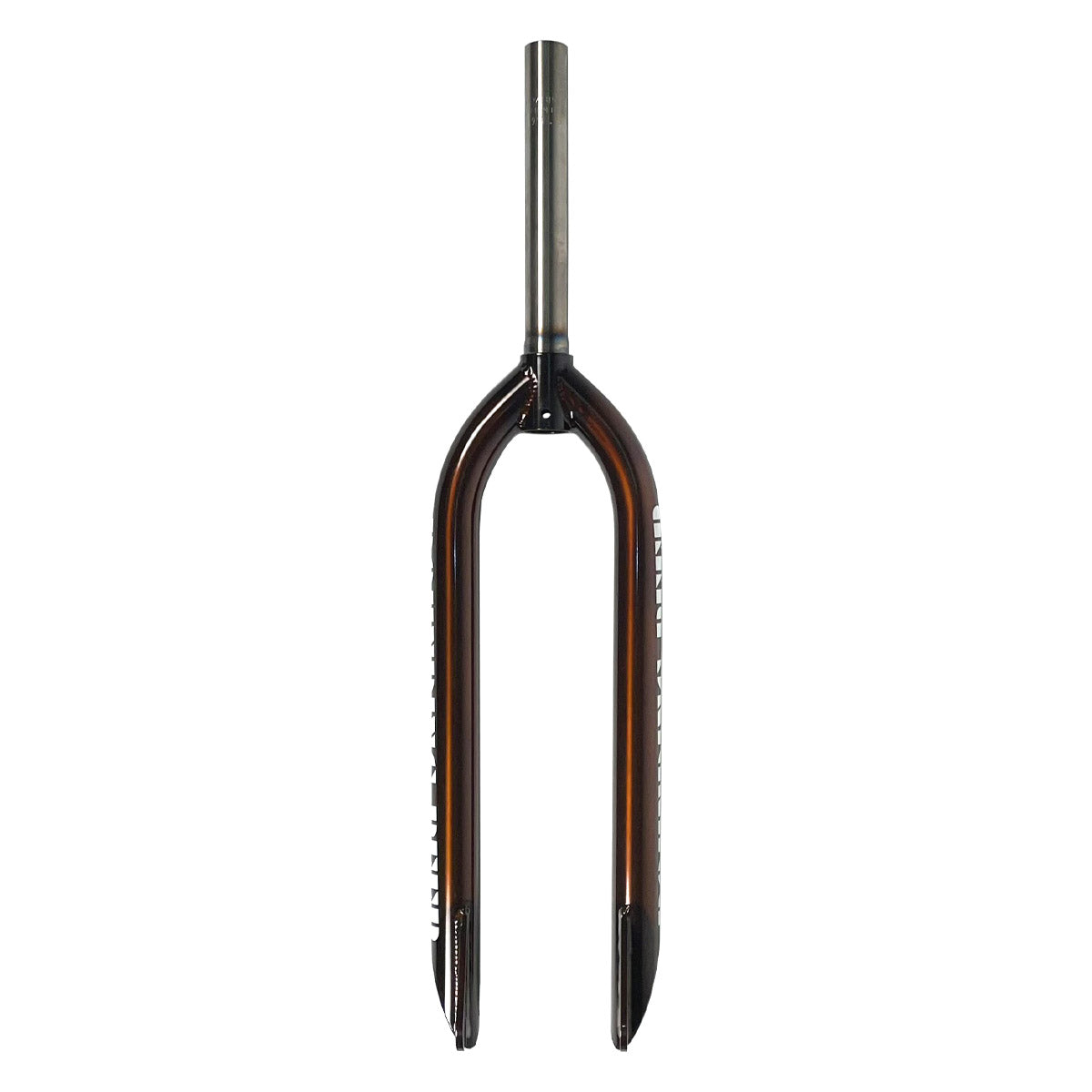

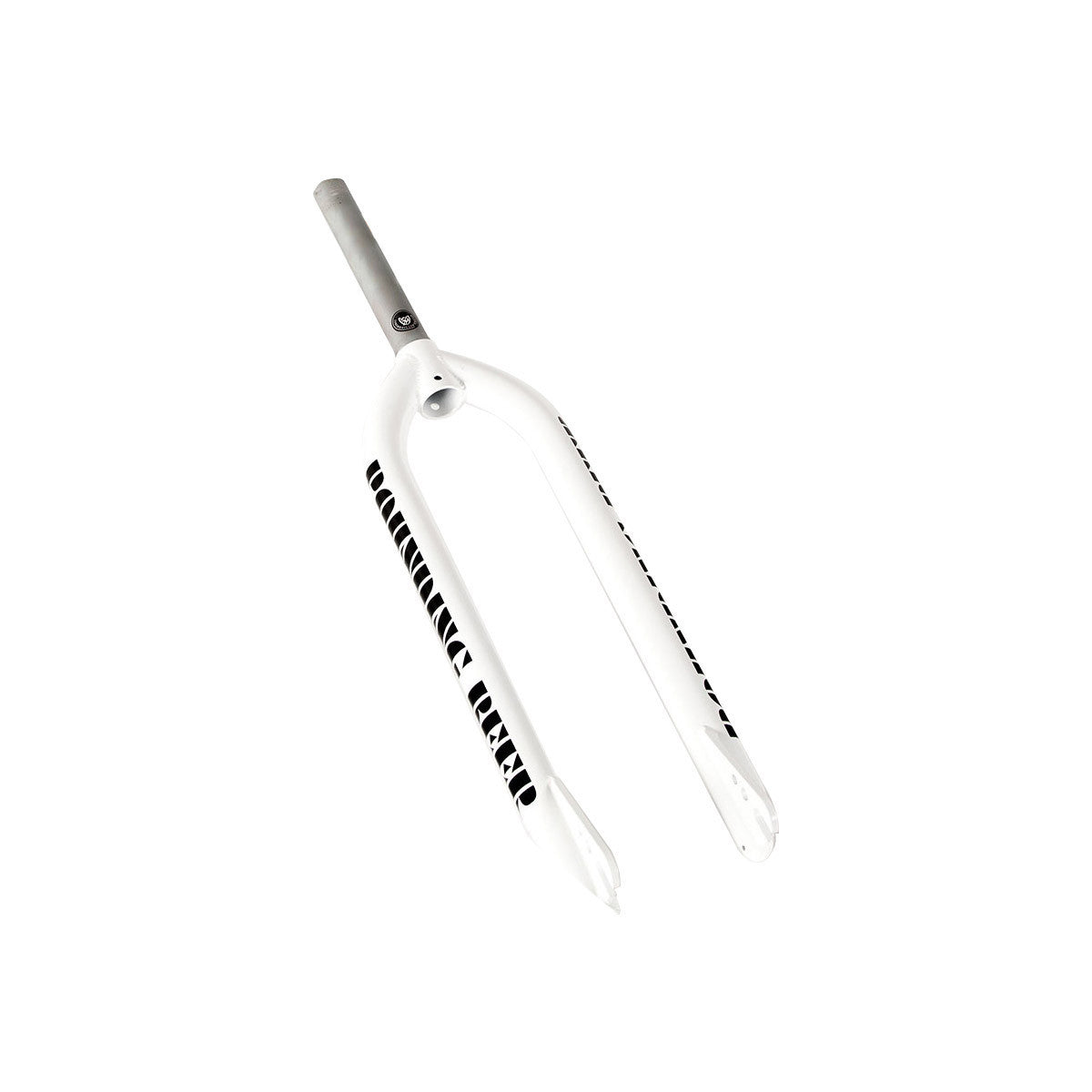

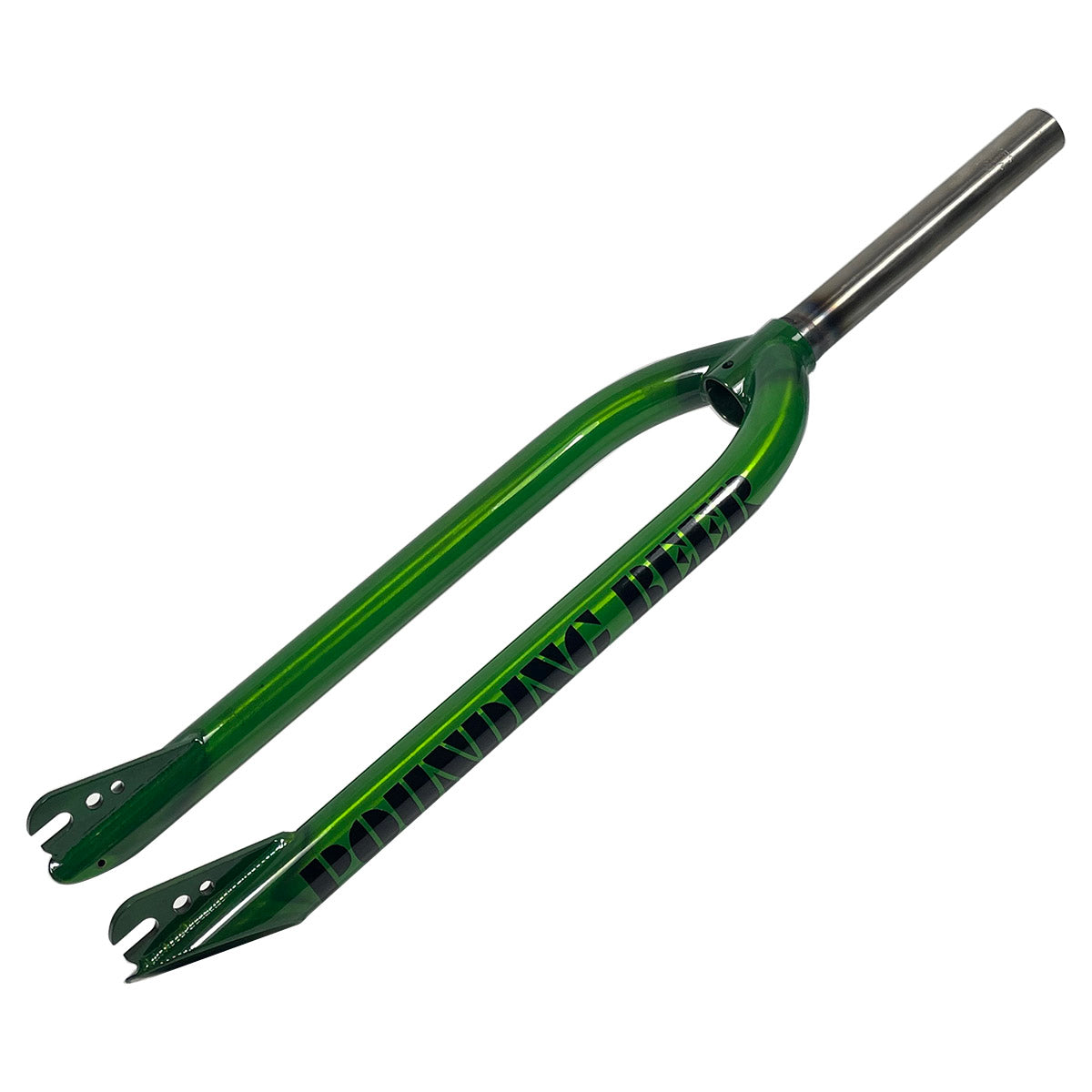

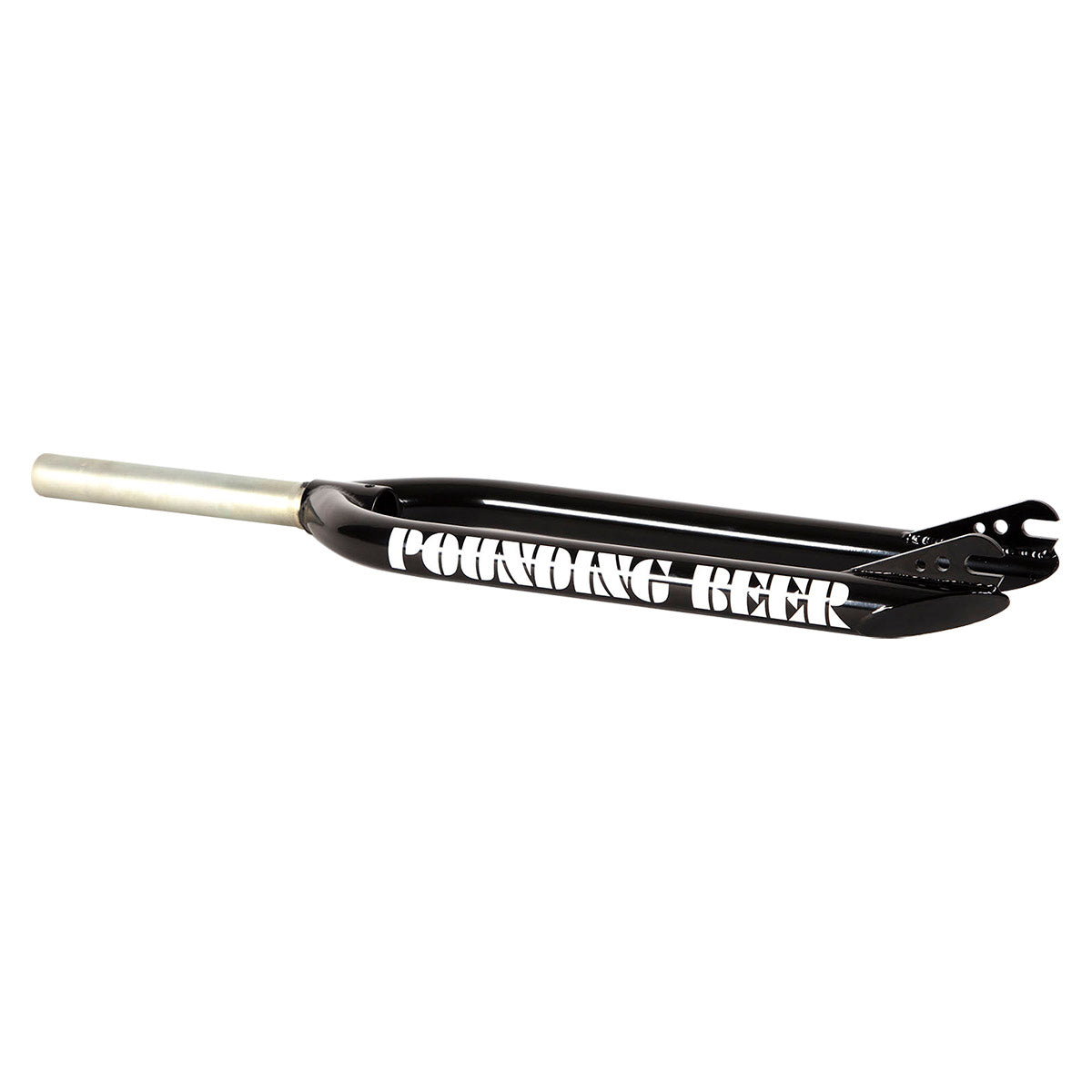

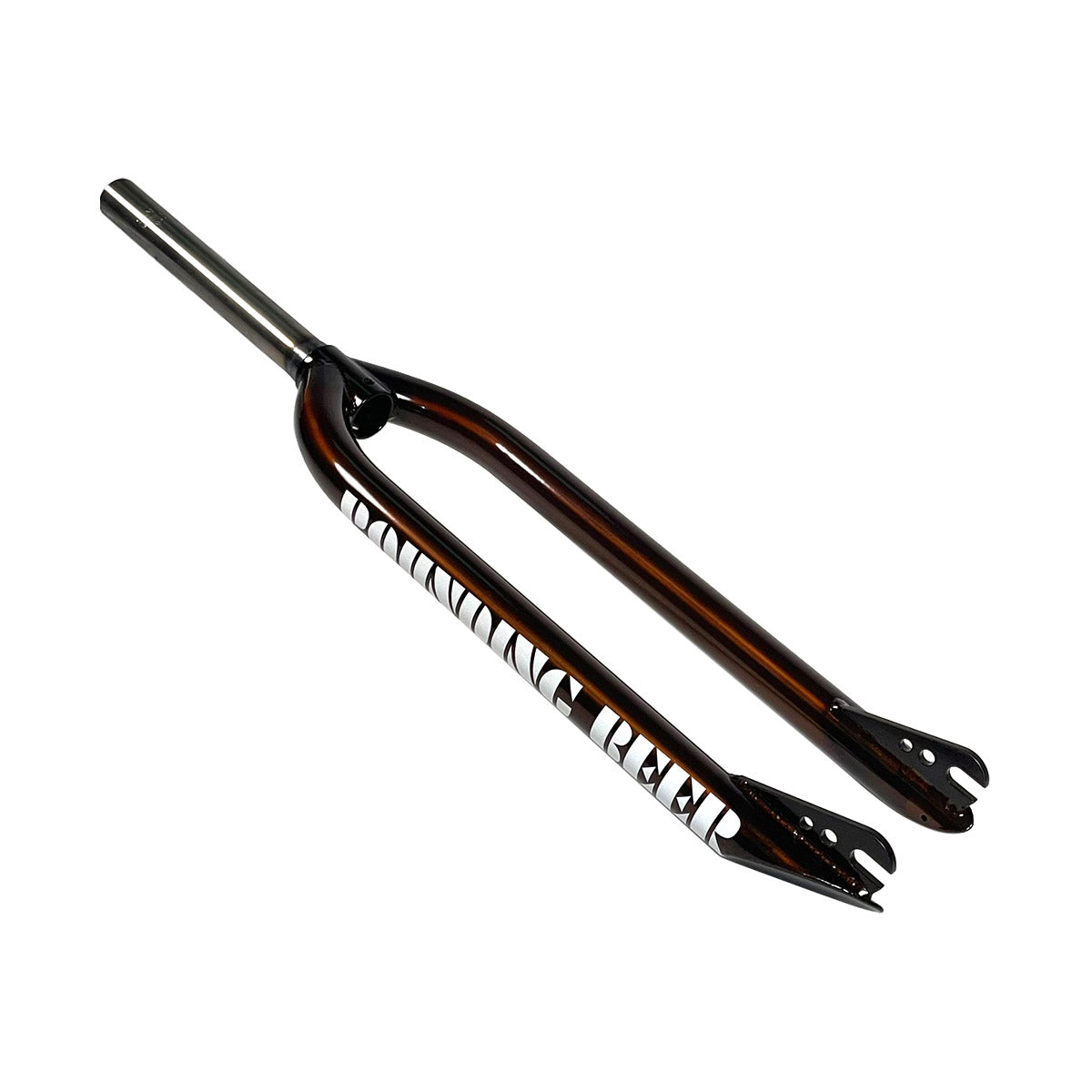

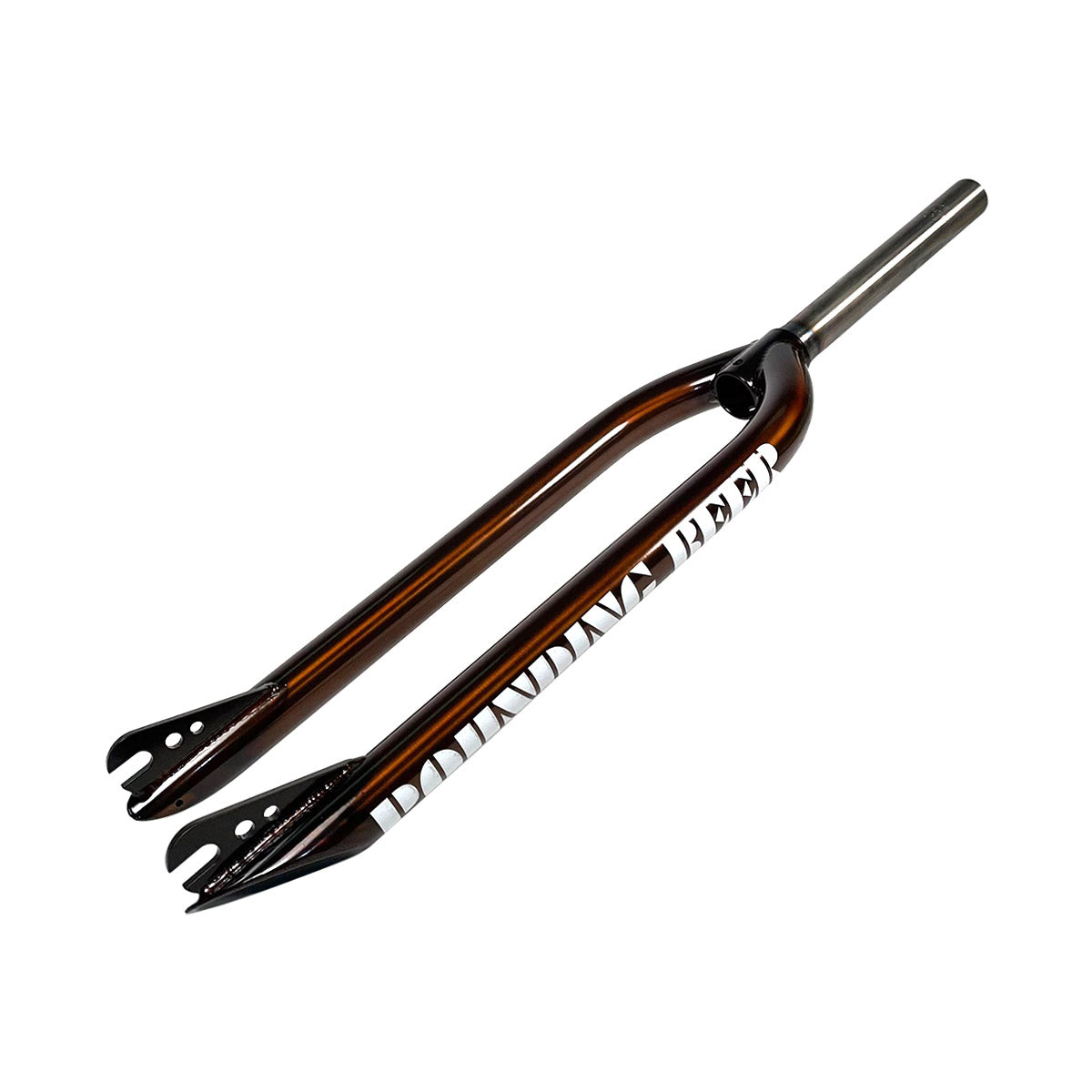

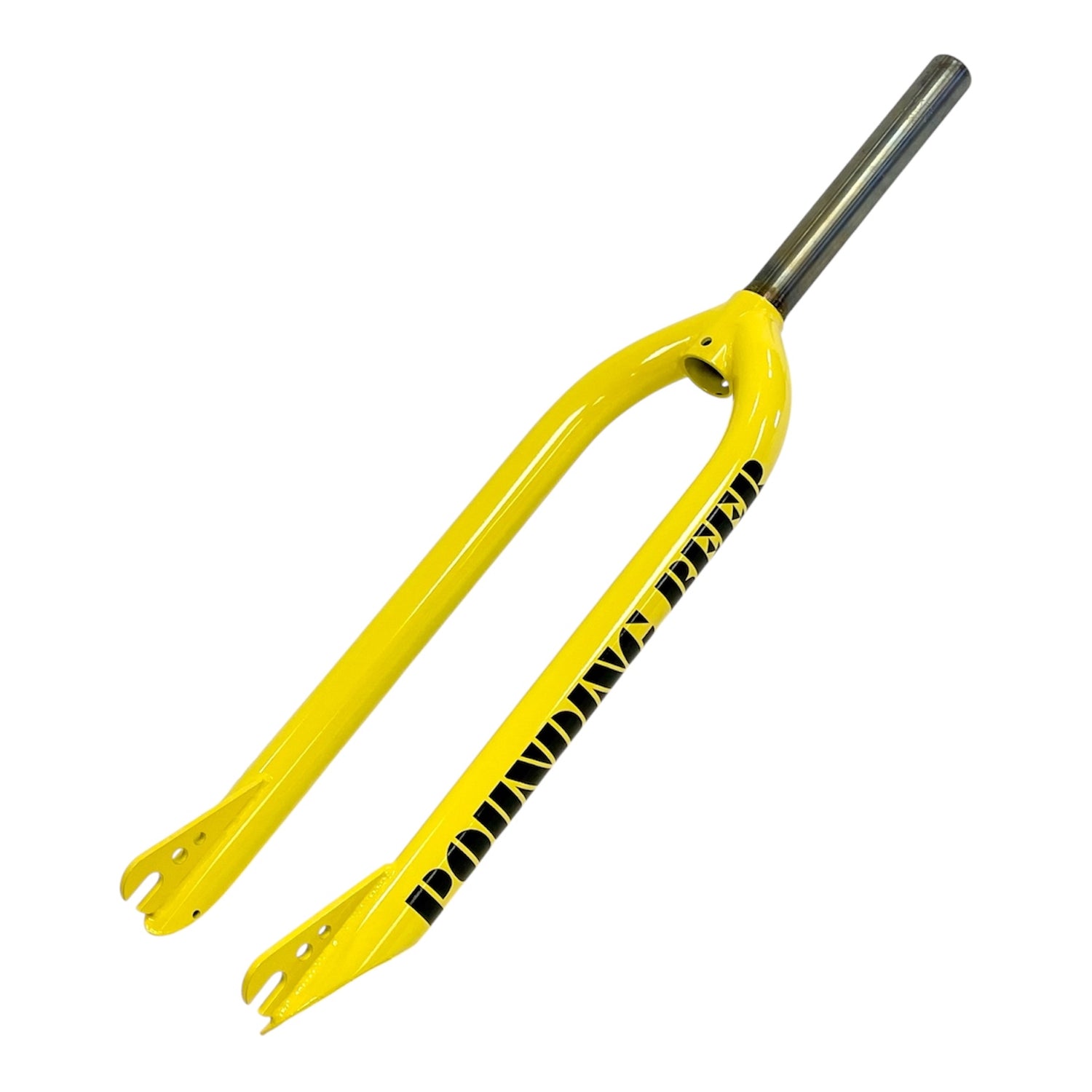

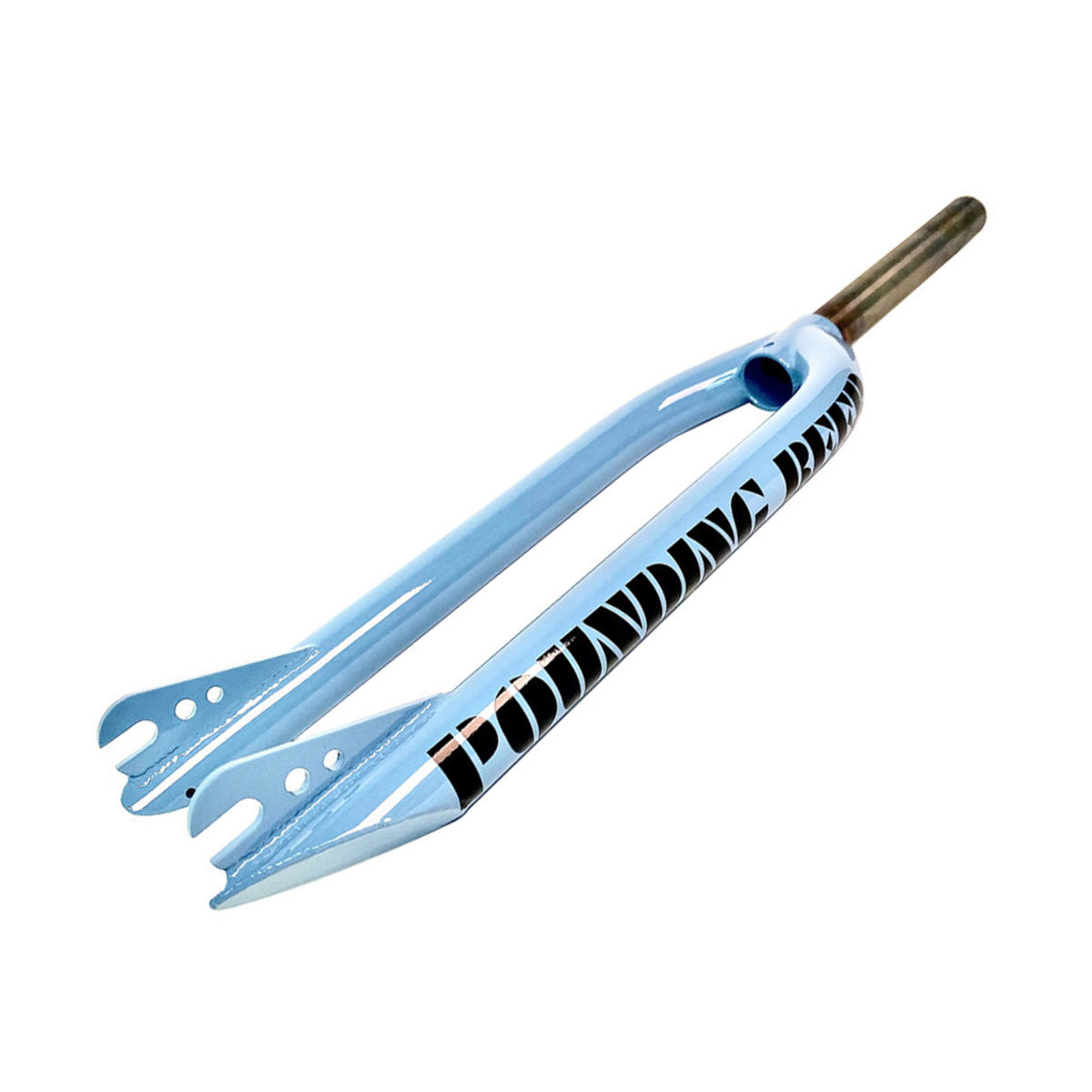

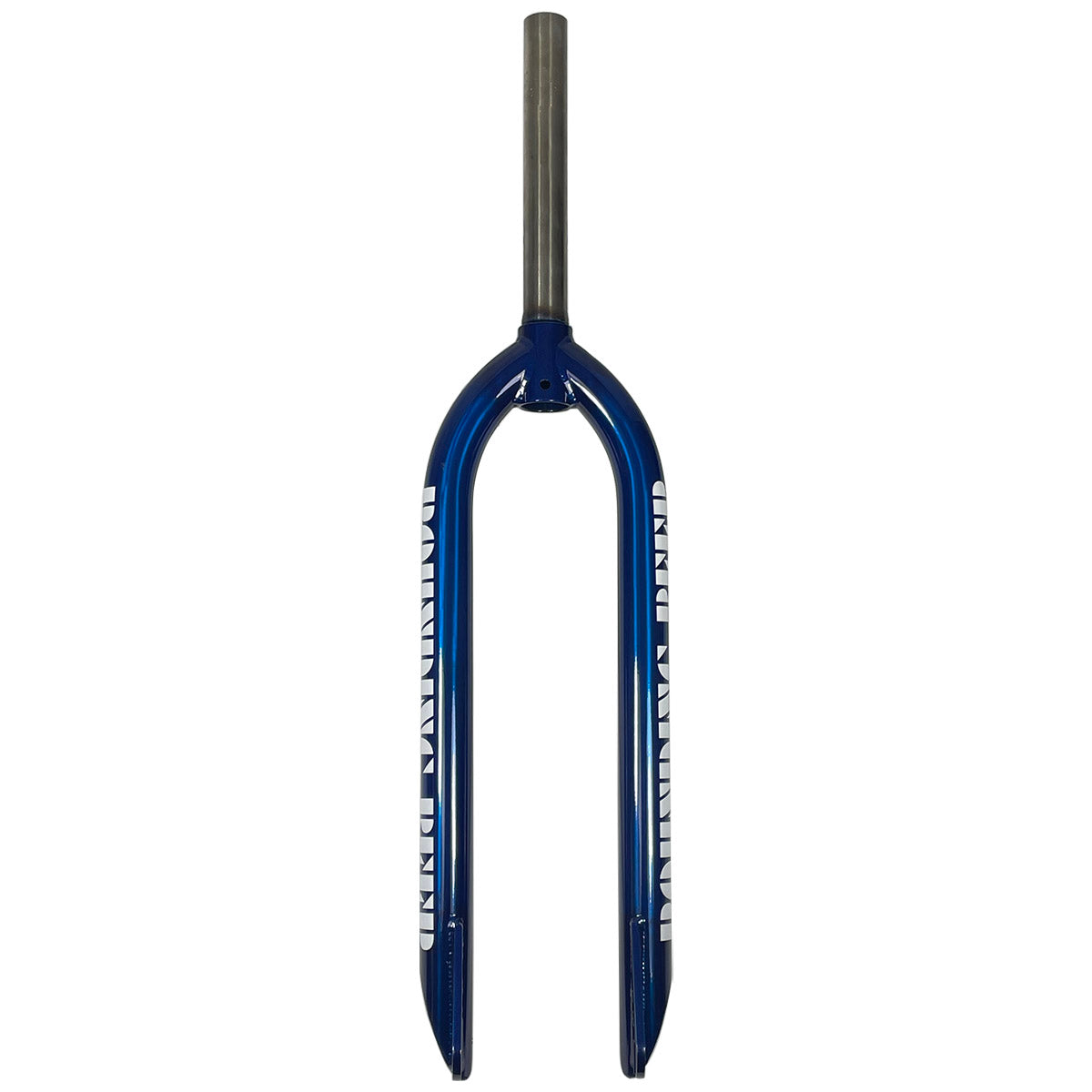

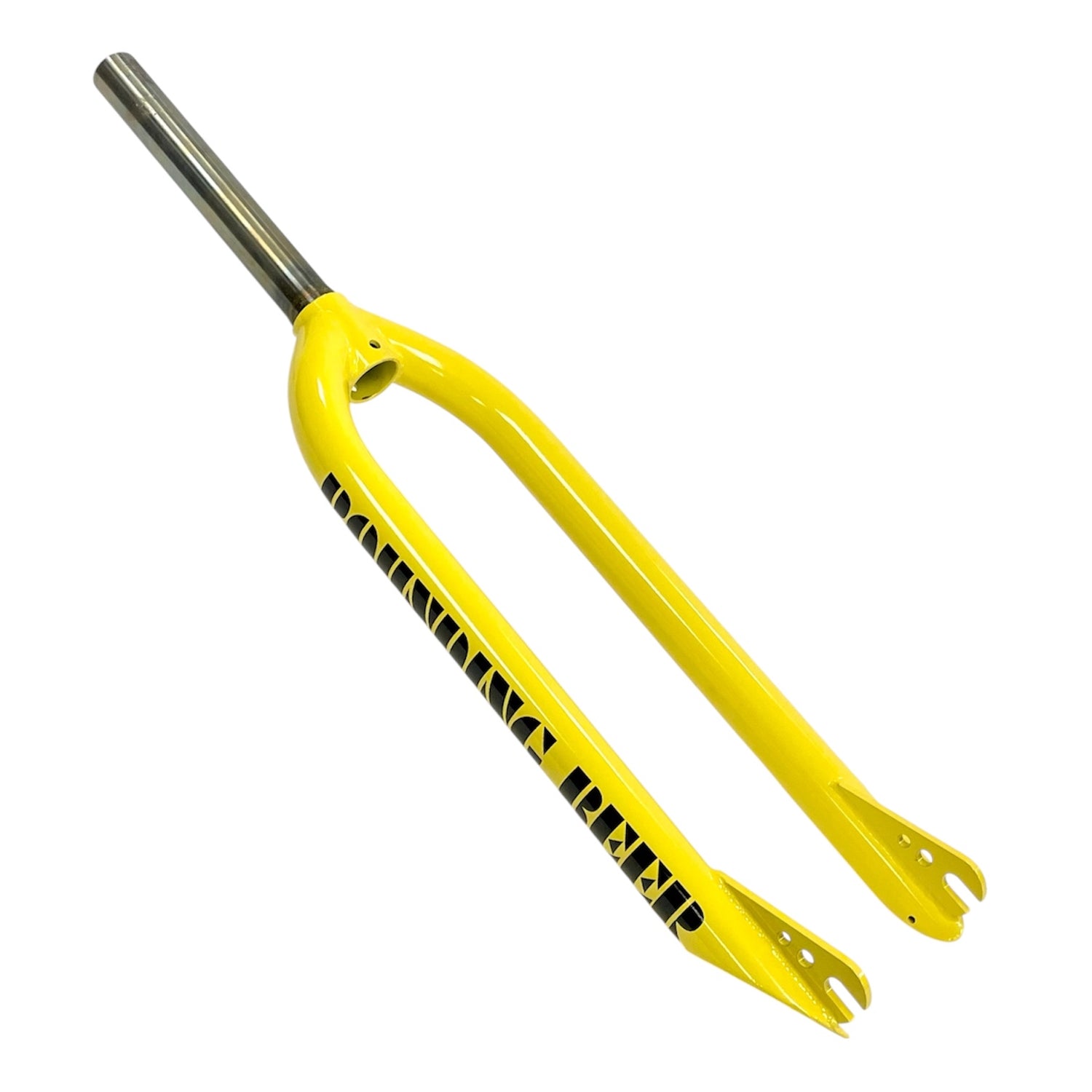

The S&M Pounding Beer is a straight-legged cruiser fork designed for 26" and 29" wheel setups with oversized tire clearance. Built from aircraft-grade 4130 chromoly with a one-piece CNC-machined steerer tube that accepts press-on bearing races for use with non-integrated headsets. Made in the USA for riders running larger wheel formats who need proven durability.

Key Features

• One-piece CNC-machined steerer tube – Machined from solid chromoly bar stock eliminates welded joints at the steerer-to-crown junction, the highest stress point on any fork, for increased fatigue resistance
• Extruded 6061 aluminum steerer tube insert – Internal reinforcement prevents compression and ovalization of the steerer tube under stem clamping force and impact loading
• Straight gauge 4130 chromoly legs – Uniform wall thickness tubing provides consistent strength throughout the fork blade without weight penalties of oversized diameters
• Laser-cut dropouts – Precision manufacturing ensures accurate wheel alignment and tight tolerances for 3/8" axle fitment with minimal play
• Non-integrated bearing race design – Accepts standard press-on races (26mm and 29mm sizes) included with most aftermarket headsets, allowing headset upgrades without fork replacement
• 28mm offset – Moderate rake balances stable straight-line tracking with responsive steering input for technical riding and pumping through transitions
• Oversized tire clearance – Accommodates 27.5" x 3" and most 29" x 3" tires for traction and impact absorption on rough terrain or dirt jumps

Technical Specifications

• Legs: Straight gauge, 4130 chromoly
• Dropouts: Laser-cut 3/8" slot
• Dropout Spacing: 100mm
• Steerer Tube: One-piece CNC-machined 4130 chromoly with extruded 6061 steerer tube insert
• Steerer Tube Length: 203mm
• Compression: N/A
• Axle to Crown Height: 26" – 395mm / 29" – 435mm
• Offset: 28mm
• Weight: 2.96 lb (1.34 kg)
• Max Tire Sizes: 27.5" x 3", most 29" x 3"
• Bearing Race: Non-integrated (accepts press-on race)

Compatibility and Ideal Use Cases

This fork requires a non-integrated headset with a press-on bearing race—verify your frame's head tube accepts external bearing cups before ordering. The 203mm steerer tube length fits most cruiser frames but may require cutting for proper fit depending on head tube length and spacer stack. Dropout spacing is standard 100mm hub width. The 3/8" slot dropouts work with traditional 3/8" axles only, not 14mm through-axles. Axle-to-crown height varies by wheel size: 395mm for 26" wheels and 435mm for 29" wheels, affecting overall geometry and handling when paired with your frame. Best suited for cruiser class racing, dirt jumping, and pump track riding where oversized tire volume improves grip and cushioning. The straight-leg design maintains stiffness for powerful pedaling and hard landings without the compliance or weight of curved or tapered fork designs.
