S&M Race XLT

Product Overview

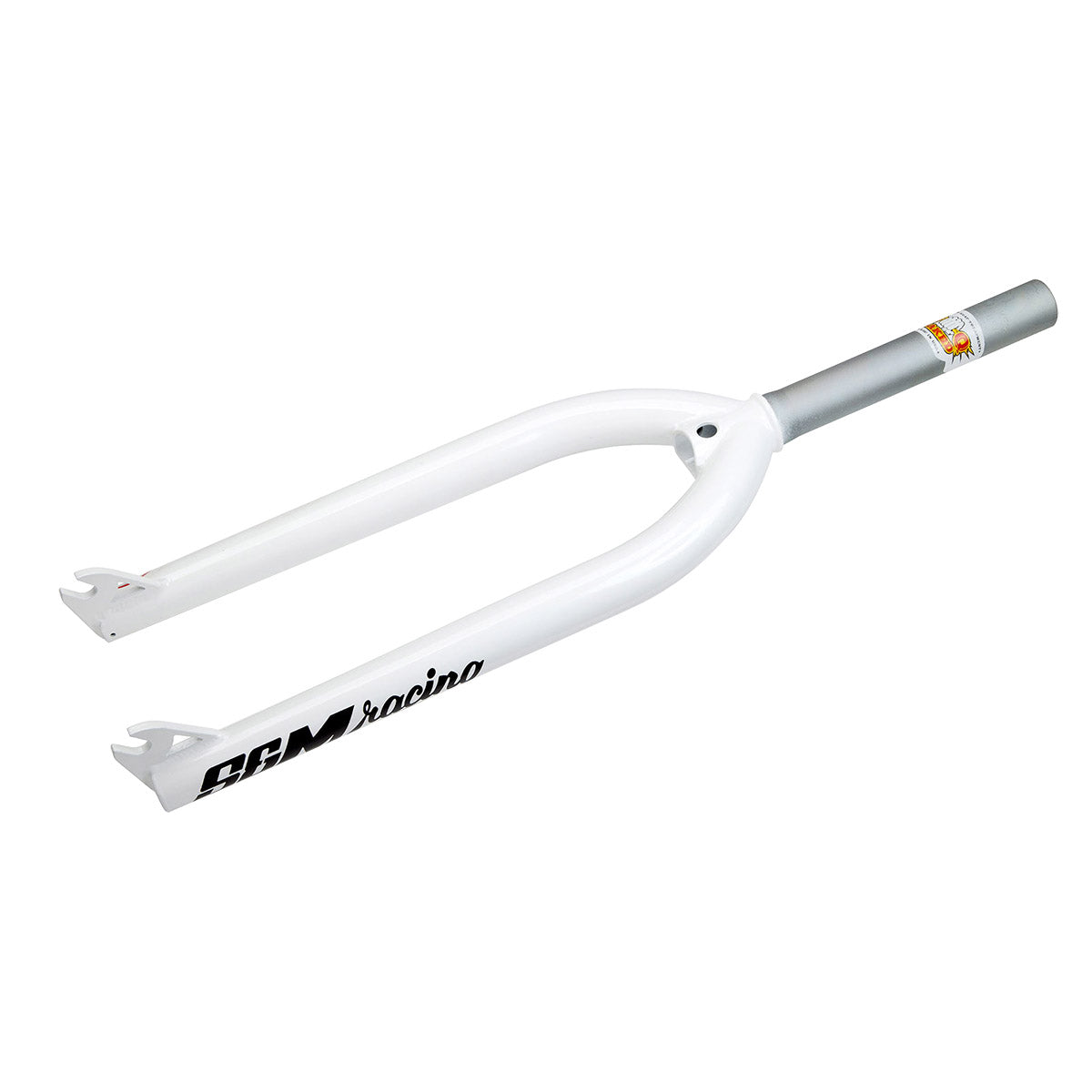

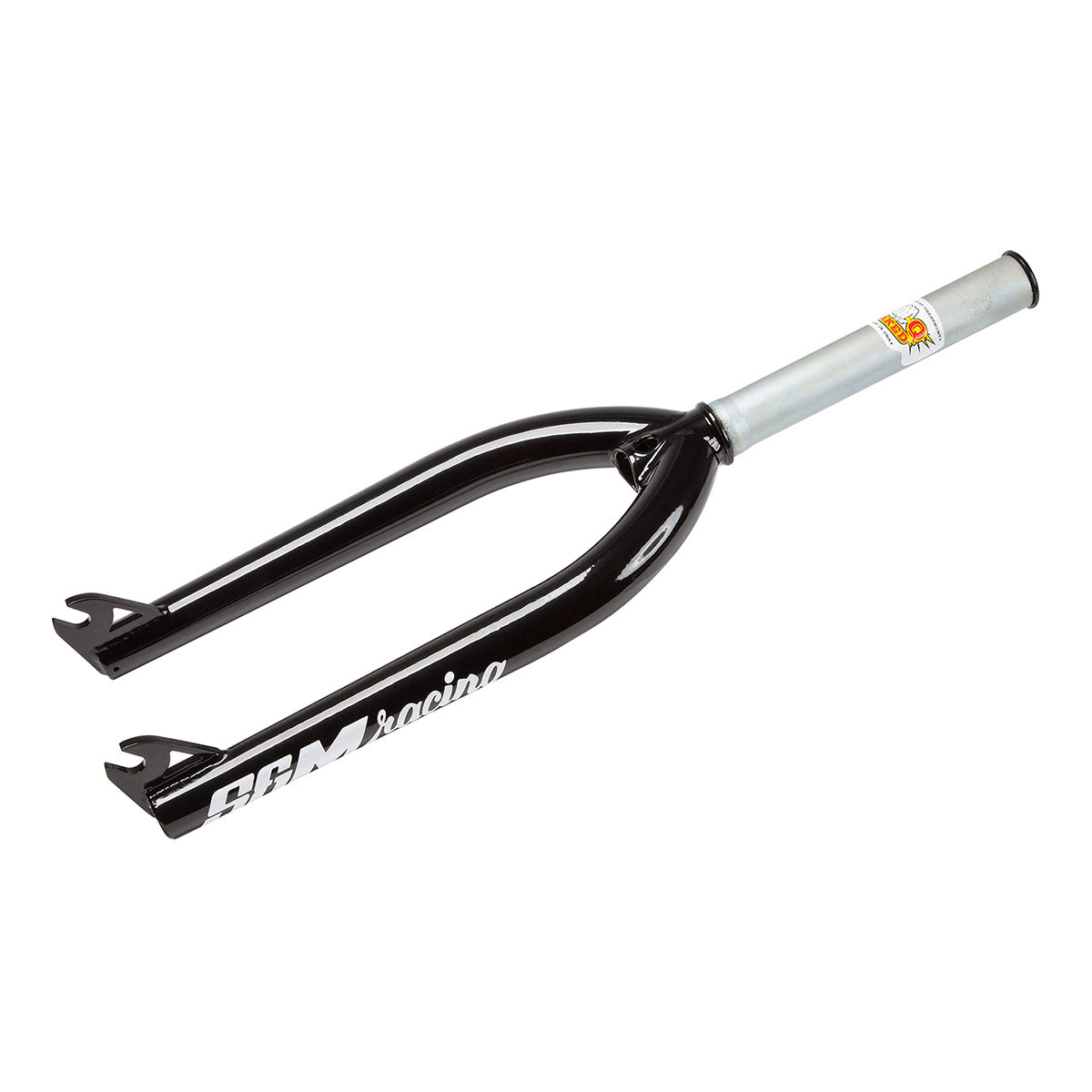

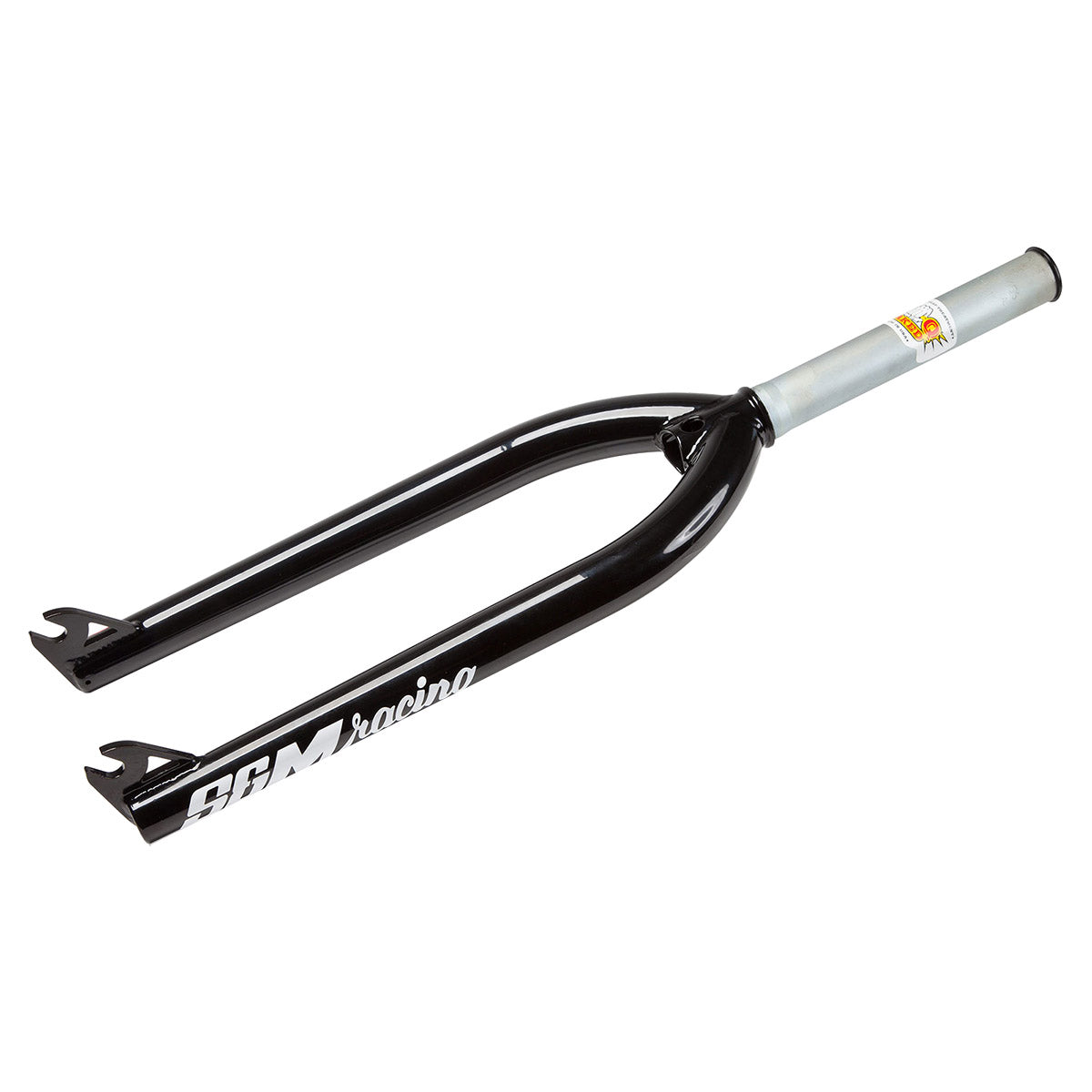

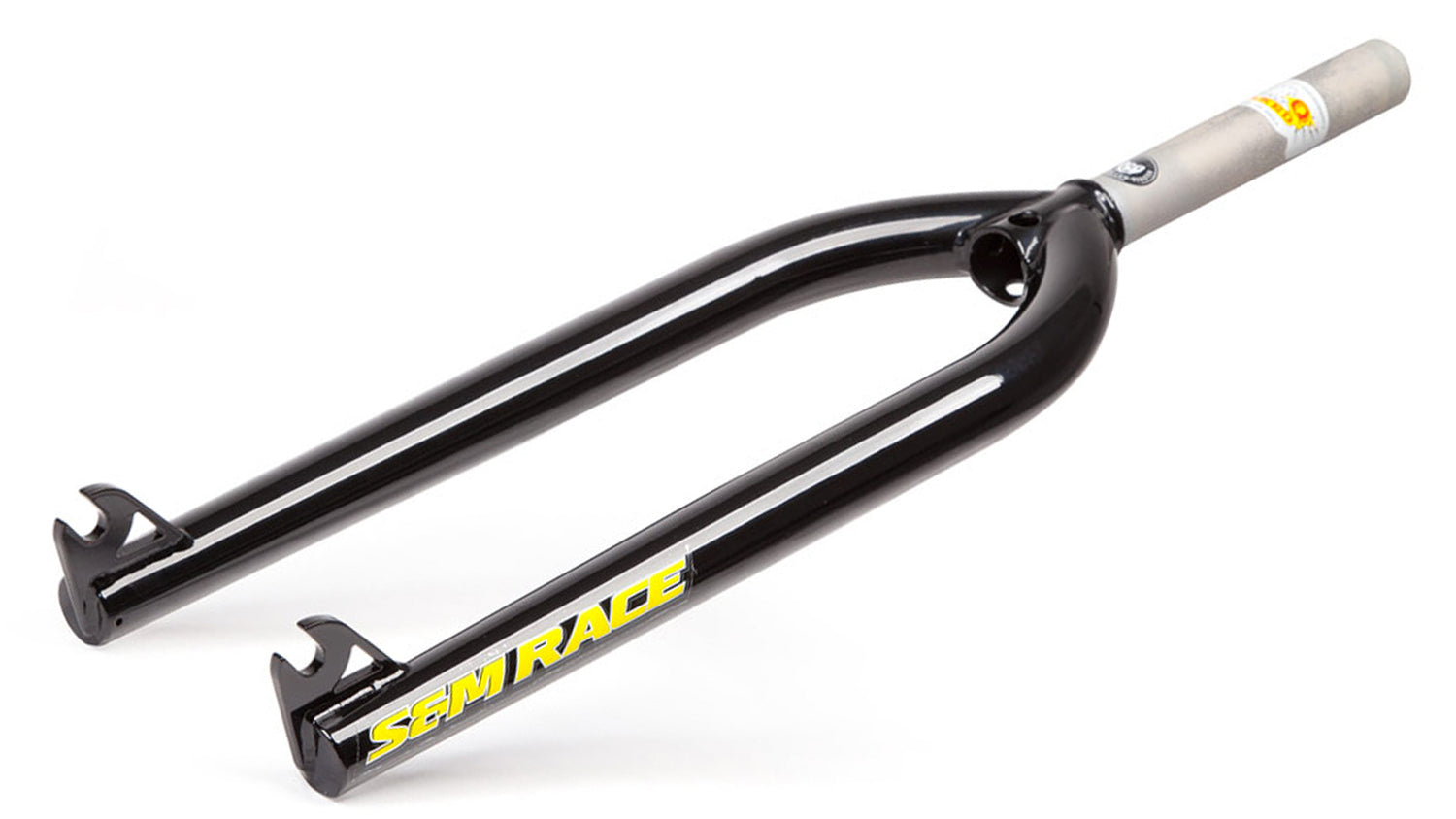

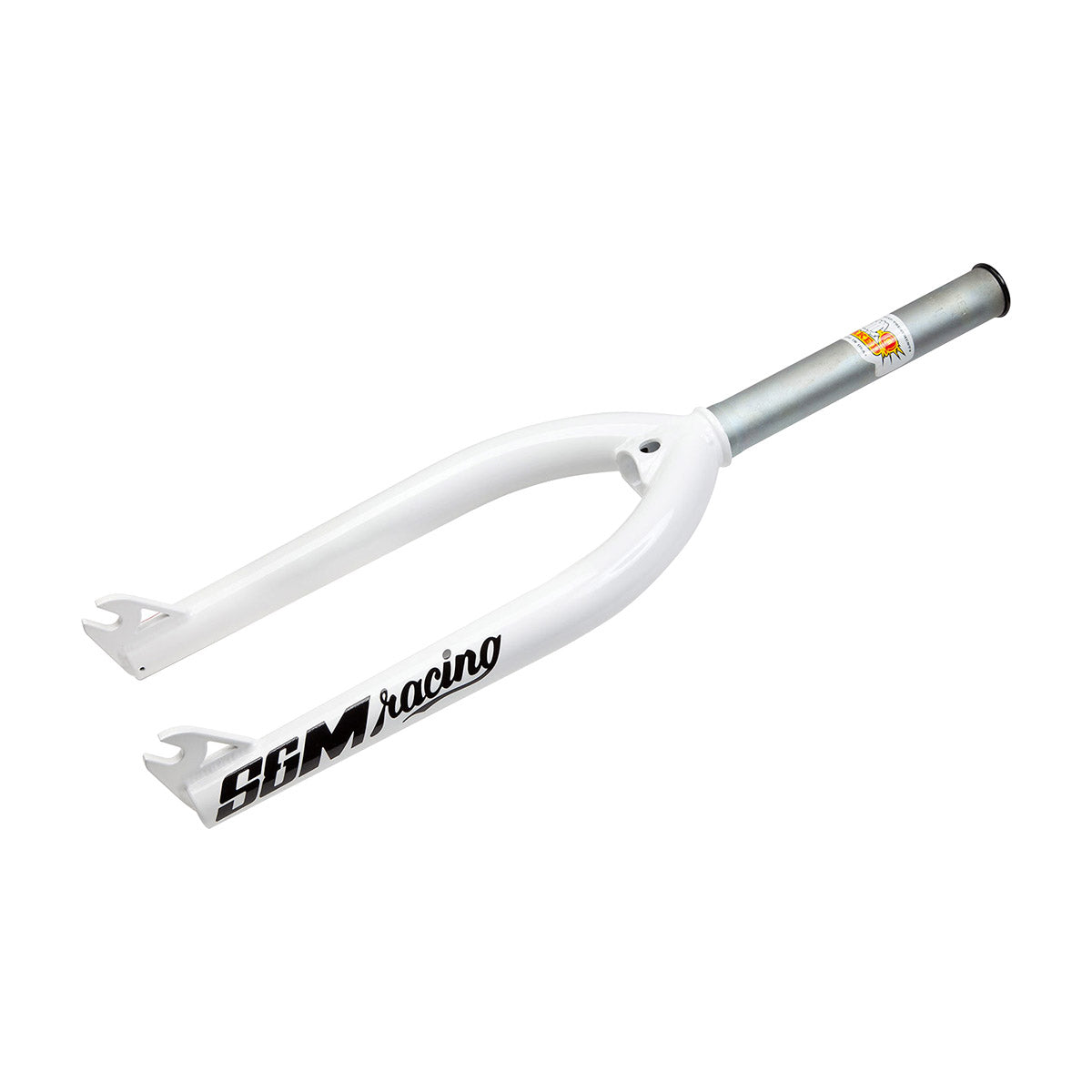

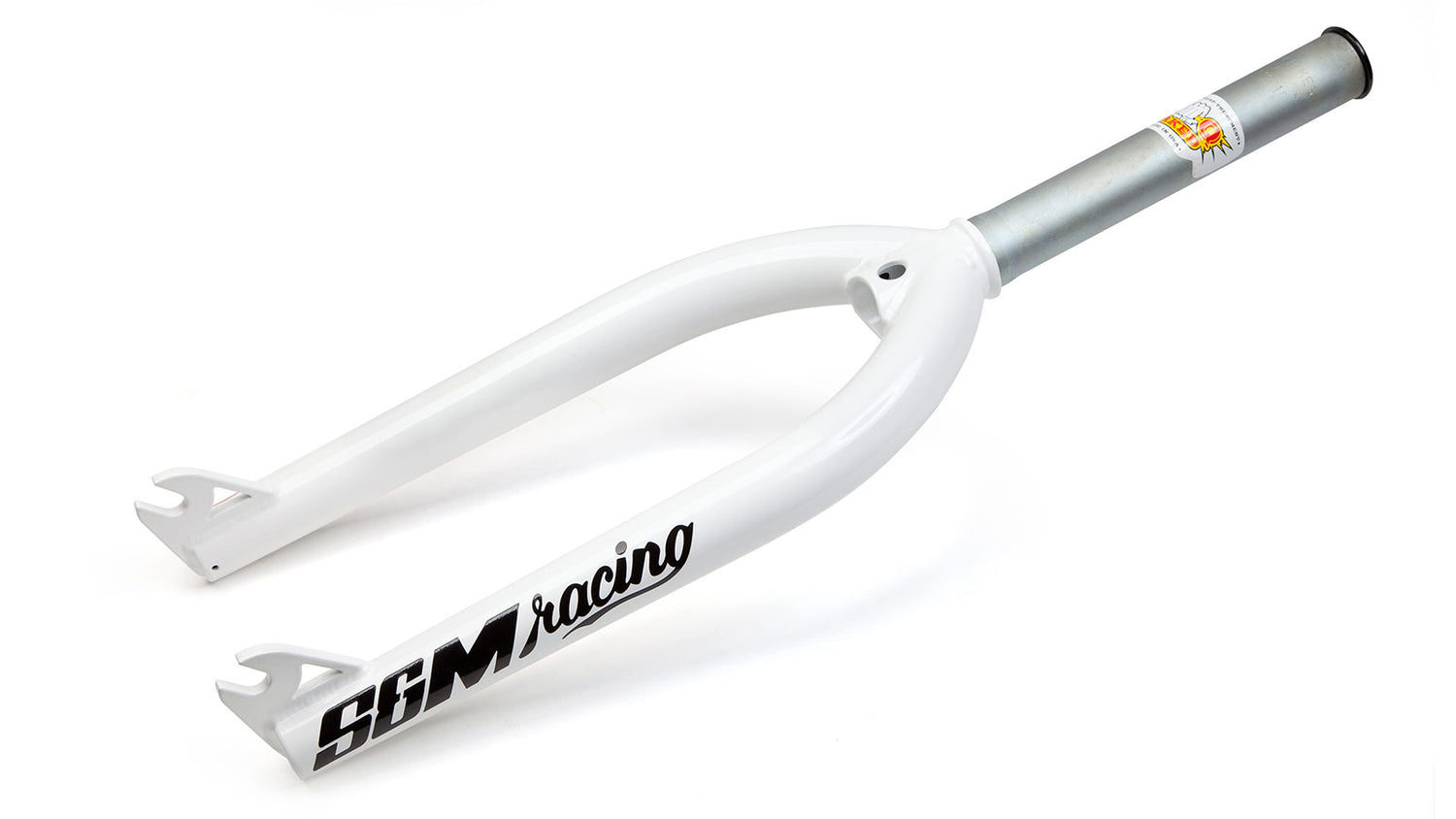

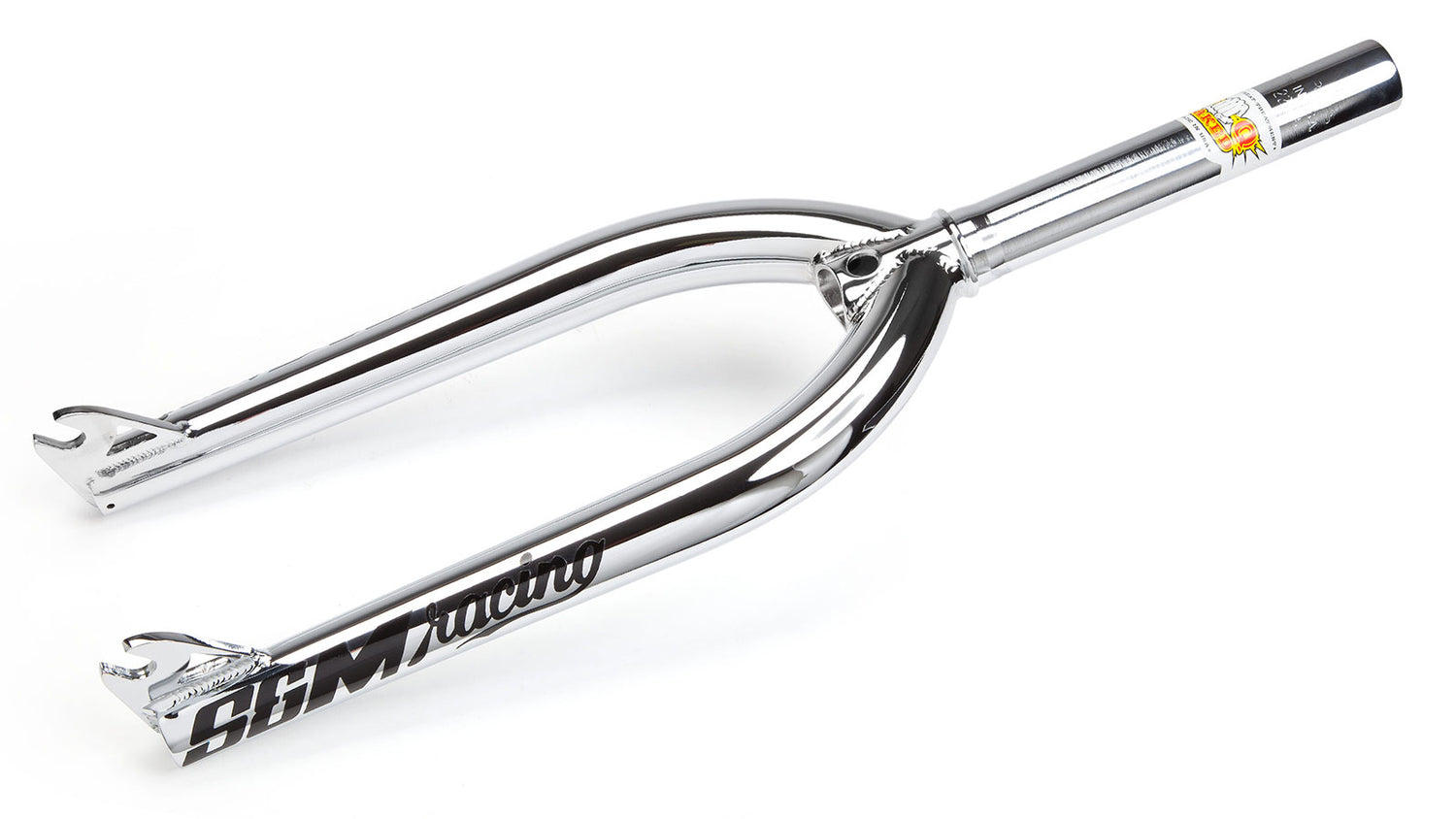

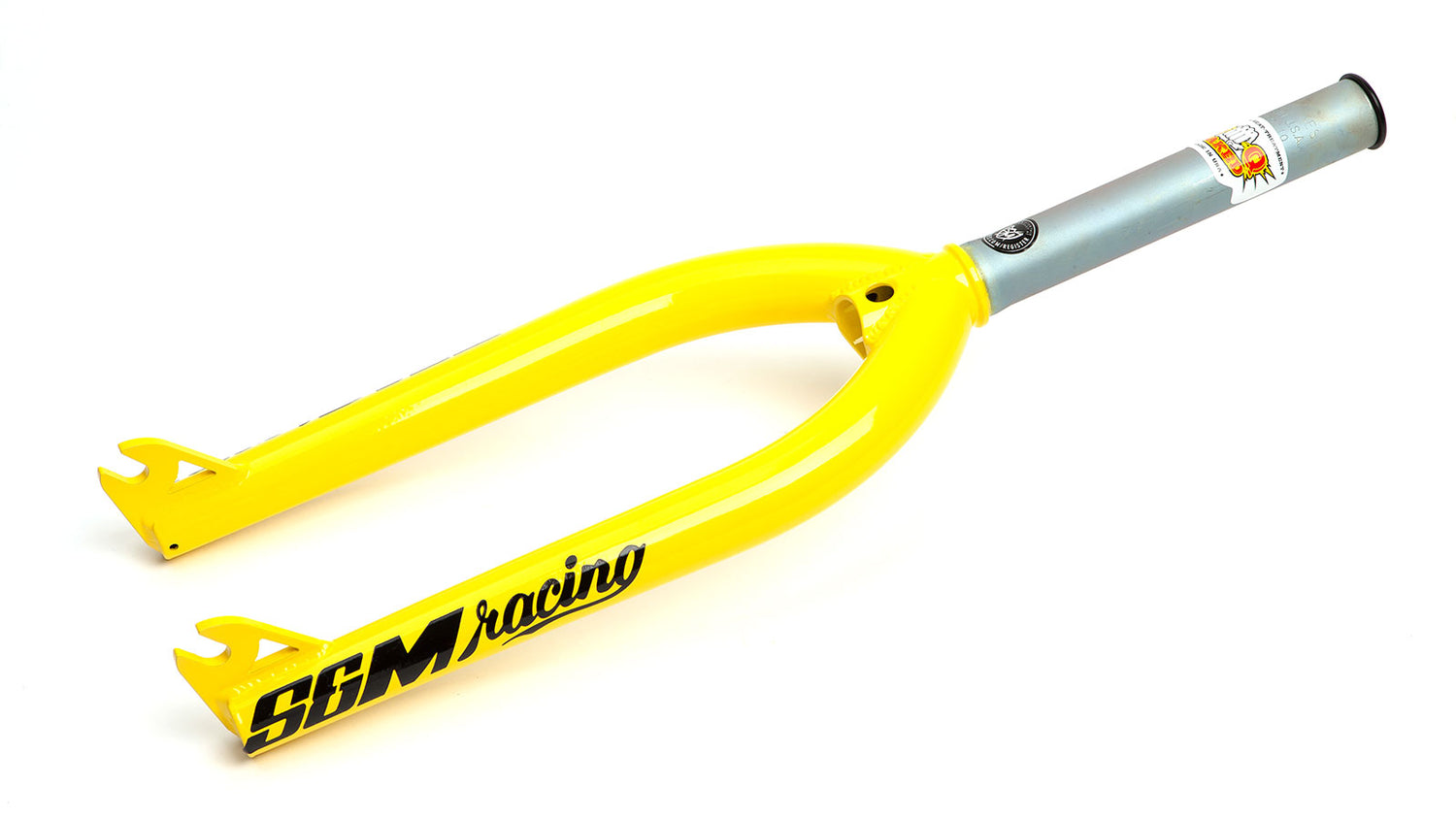

The S&M Race XLT is a high-performance racing fork made from double-butted, tapered 4130 chromoly steel with advanced heat treatment. Features a one-piece CNC-machined steerer tube, laser-cut 3/8-inch dropouts, and 33mm offset for responsive handling. Available in 20-inch, 24-inch, 26-inch, and 26-inch XL sizes to accommodate different wheel sizes and rider heights. Built for BMX racing with strength and weight optimization.

Key Features

• Double-butted, tapered chromoly legs – Variable wall thickness reduces weight in low-stress areas while maintaining strength where needed

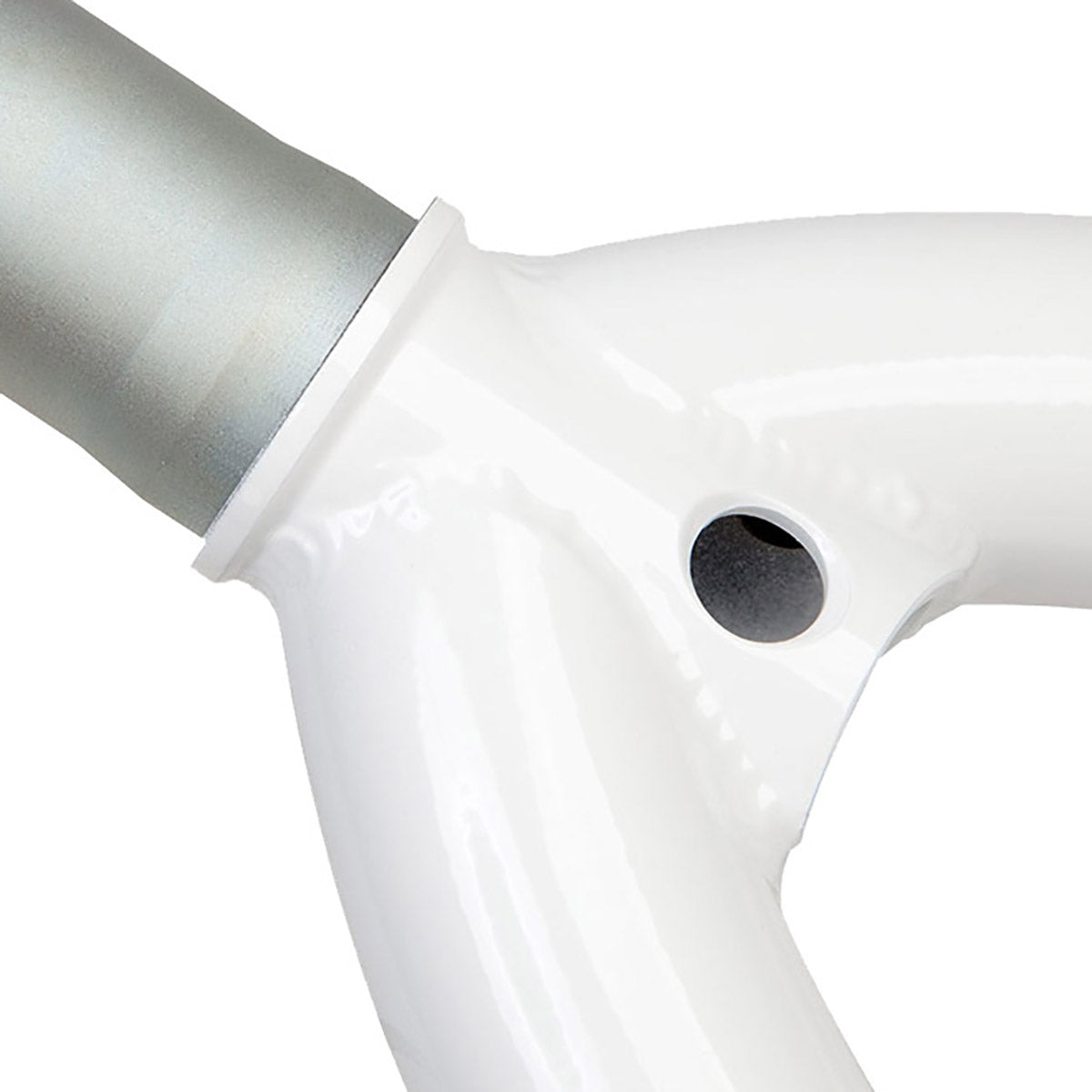

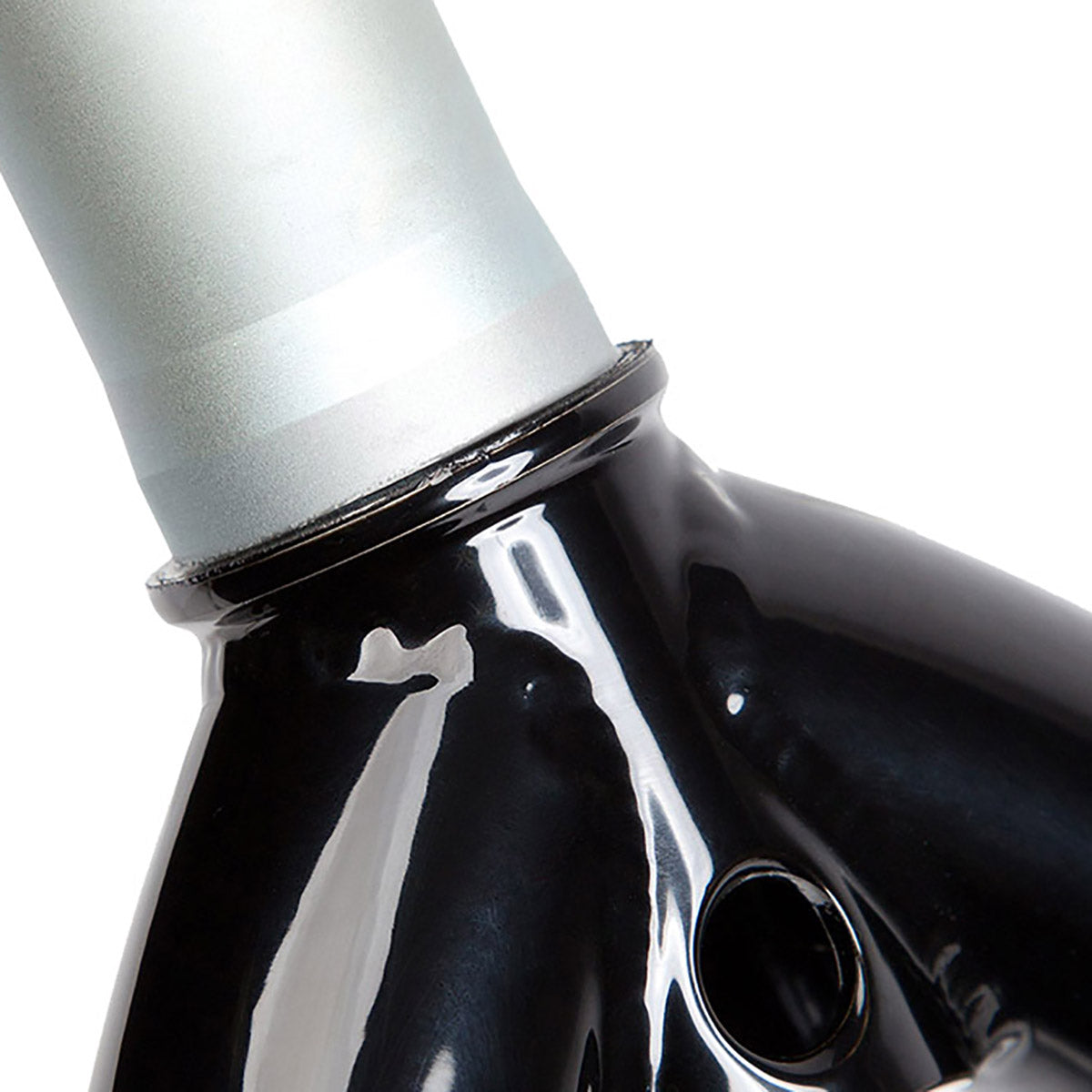

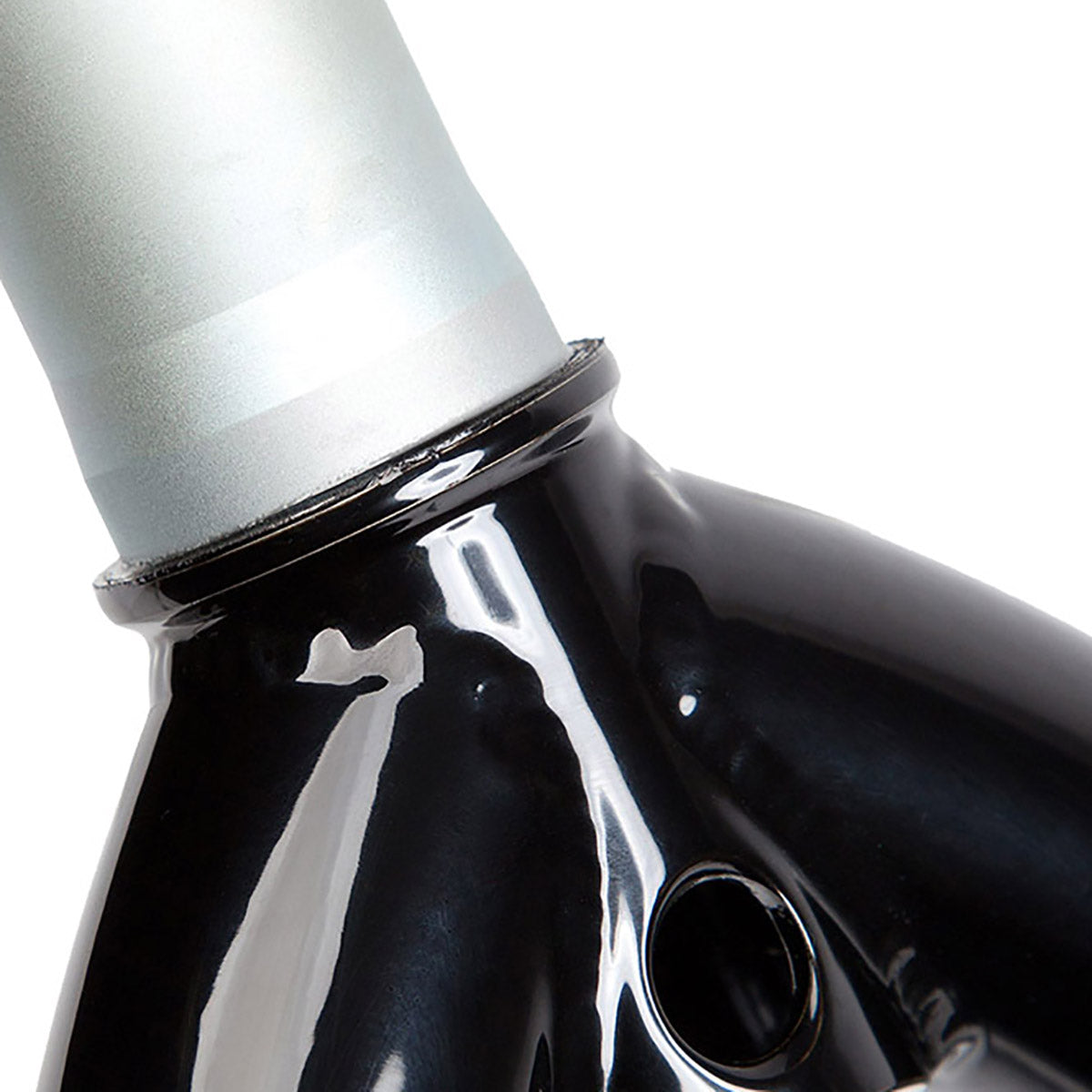

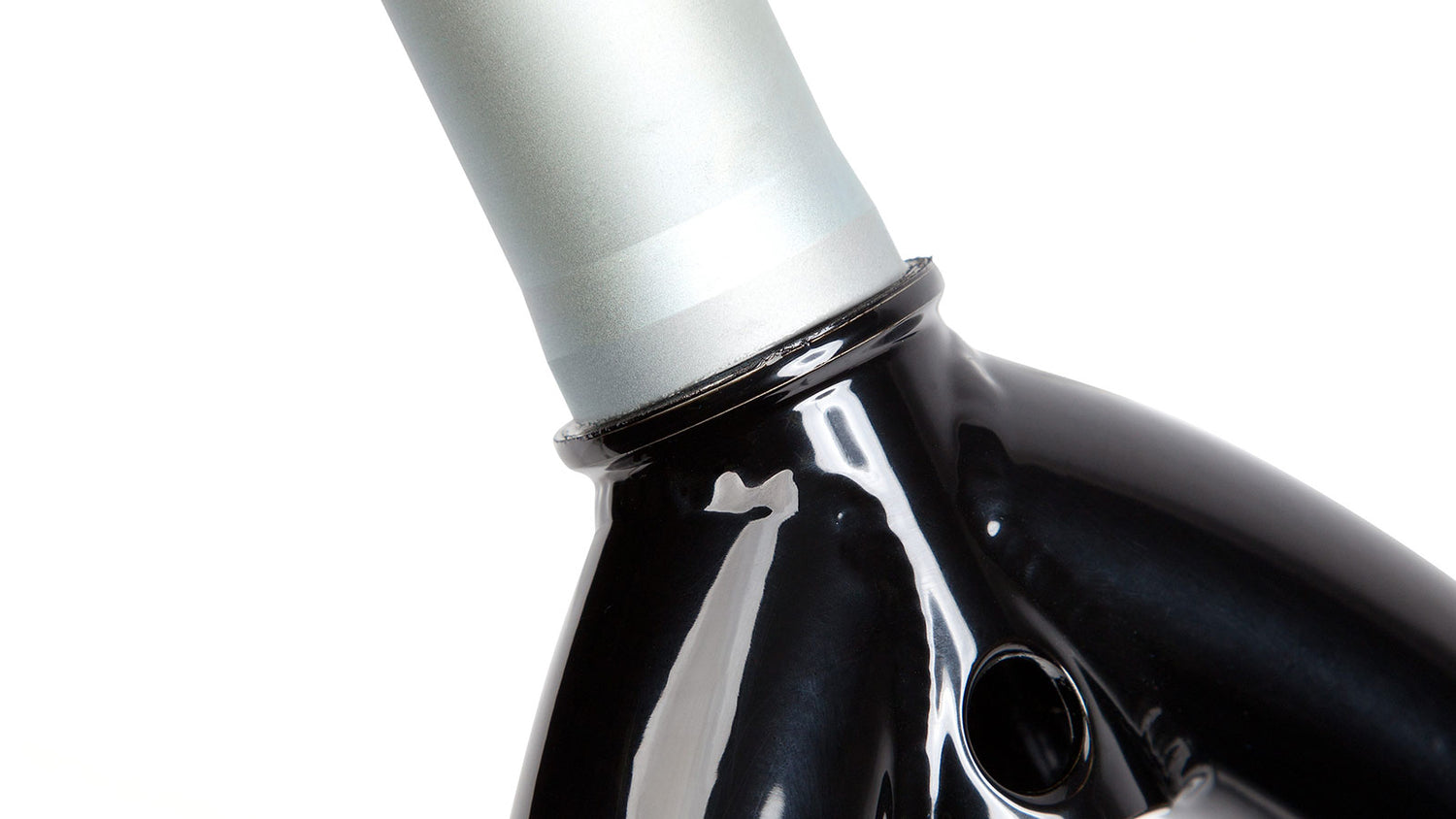

• One-piece CNC-machined 4130 chromoly steerer tube – Eliminates welds in critical stress area for improved durability and consistent alignment
• 4Q-Baked post-weld heat treatment – Advanced heat treatment process maximizes strength and prevents warping after welding

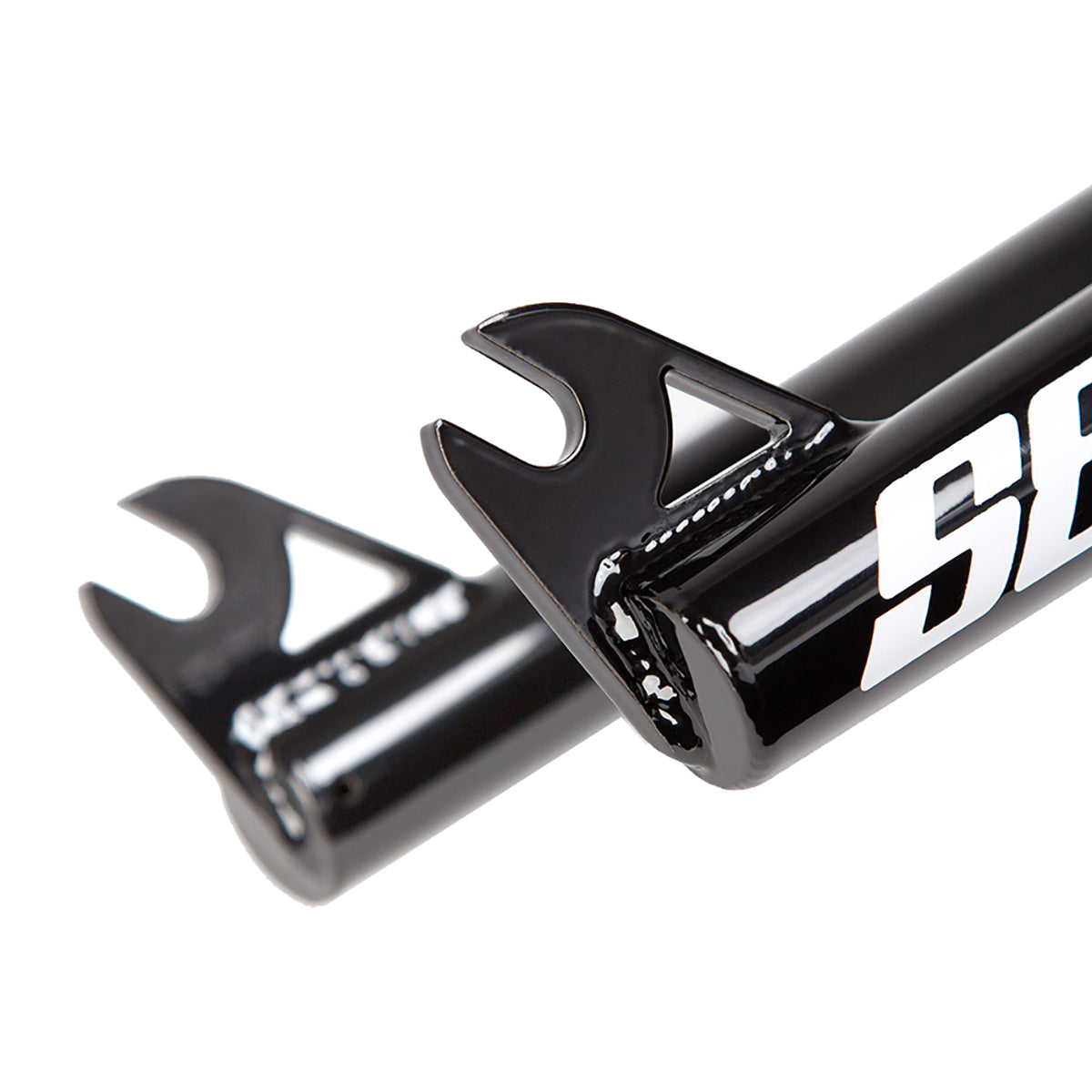

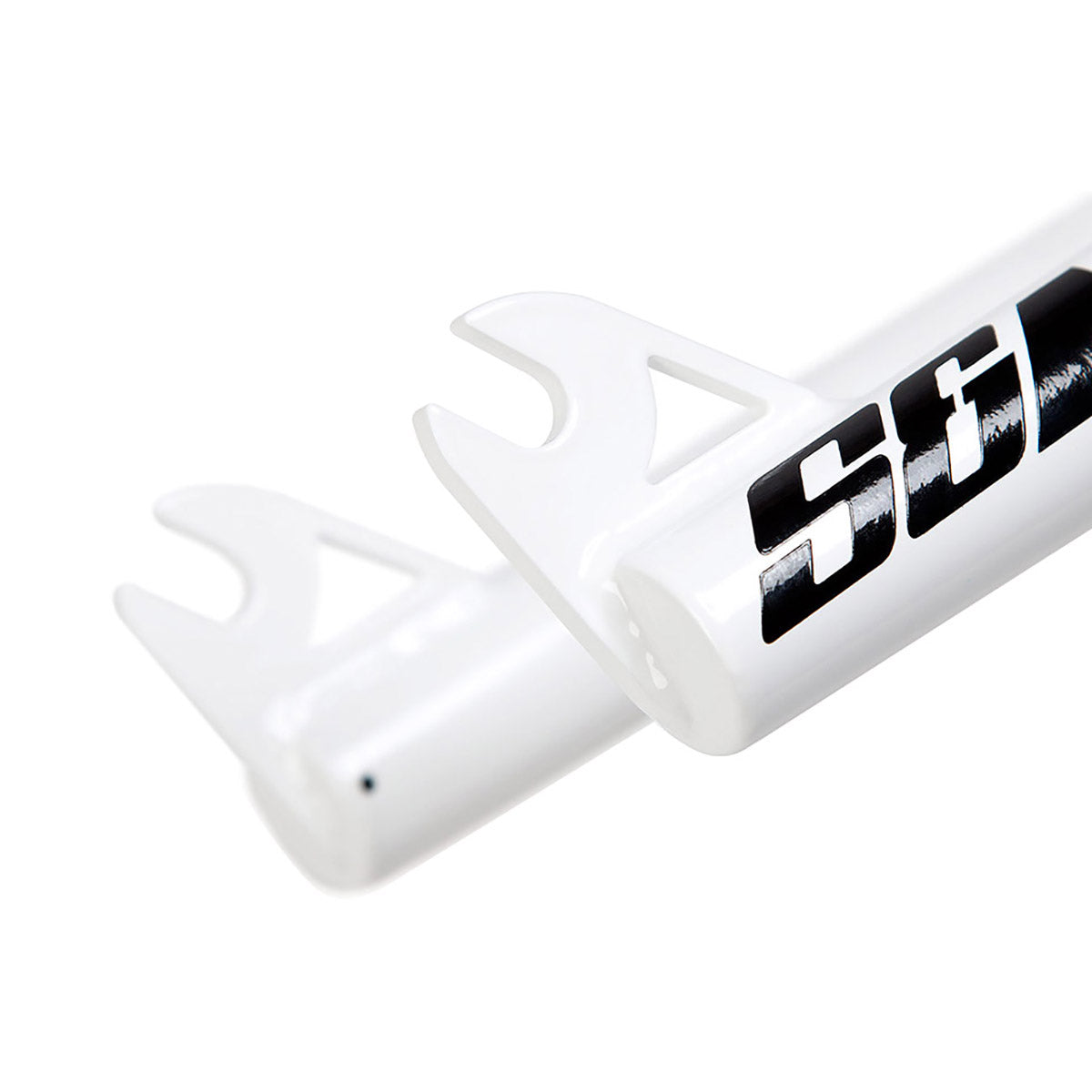

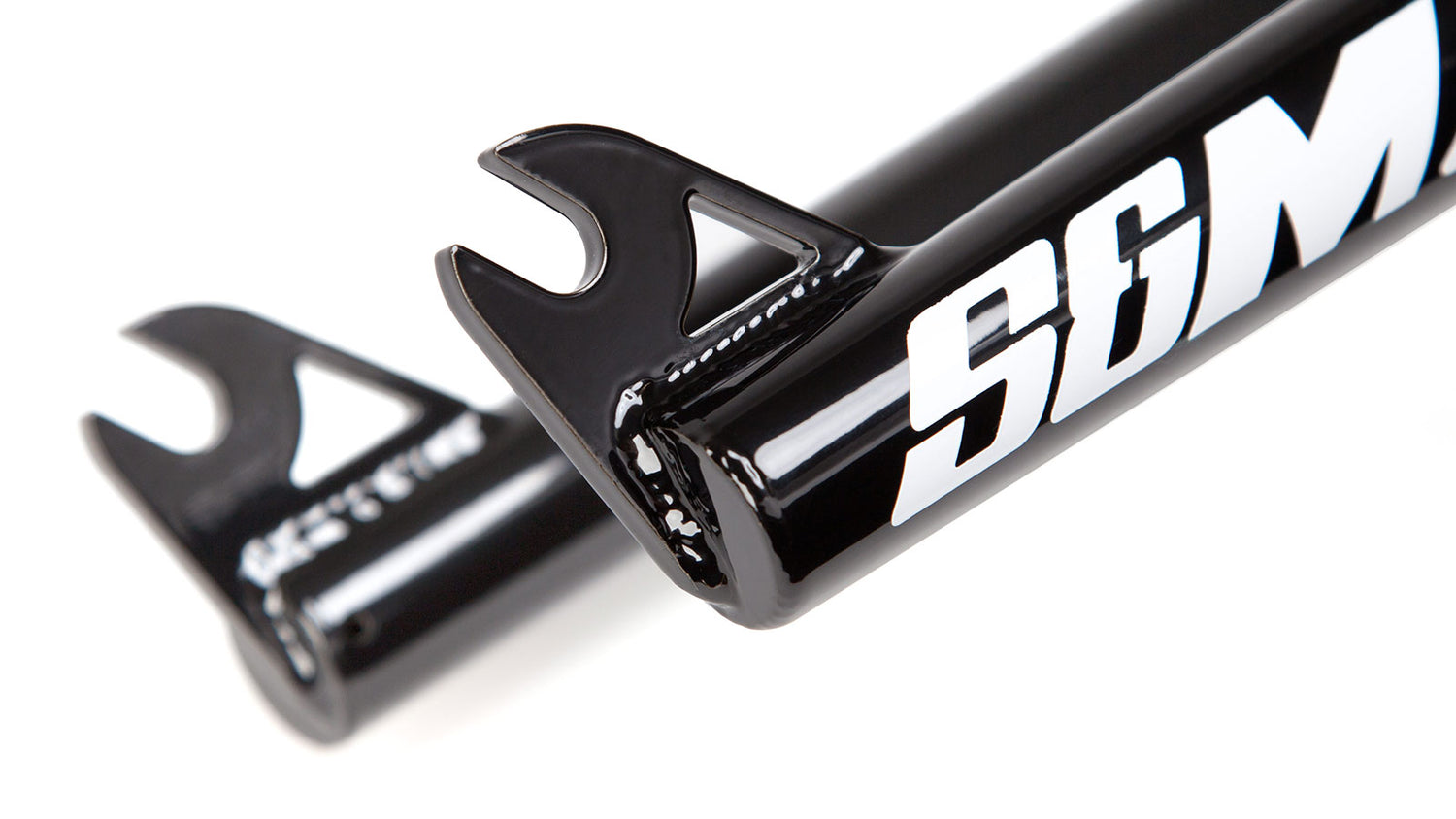

• Laser-cut 3/8-inch slot dropouts – Precision-cut dropouts ensure accurate alignment and reduce weight compared to forged dropouts
• 33mm offset – Race-proven rake provides quick steering response without instability
• Non-integrated steerer design – Uses standard bearing race included with headset for compatibility and easy maintenance

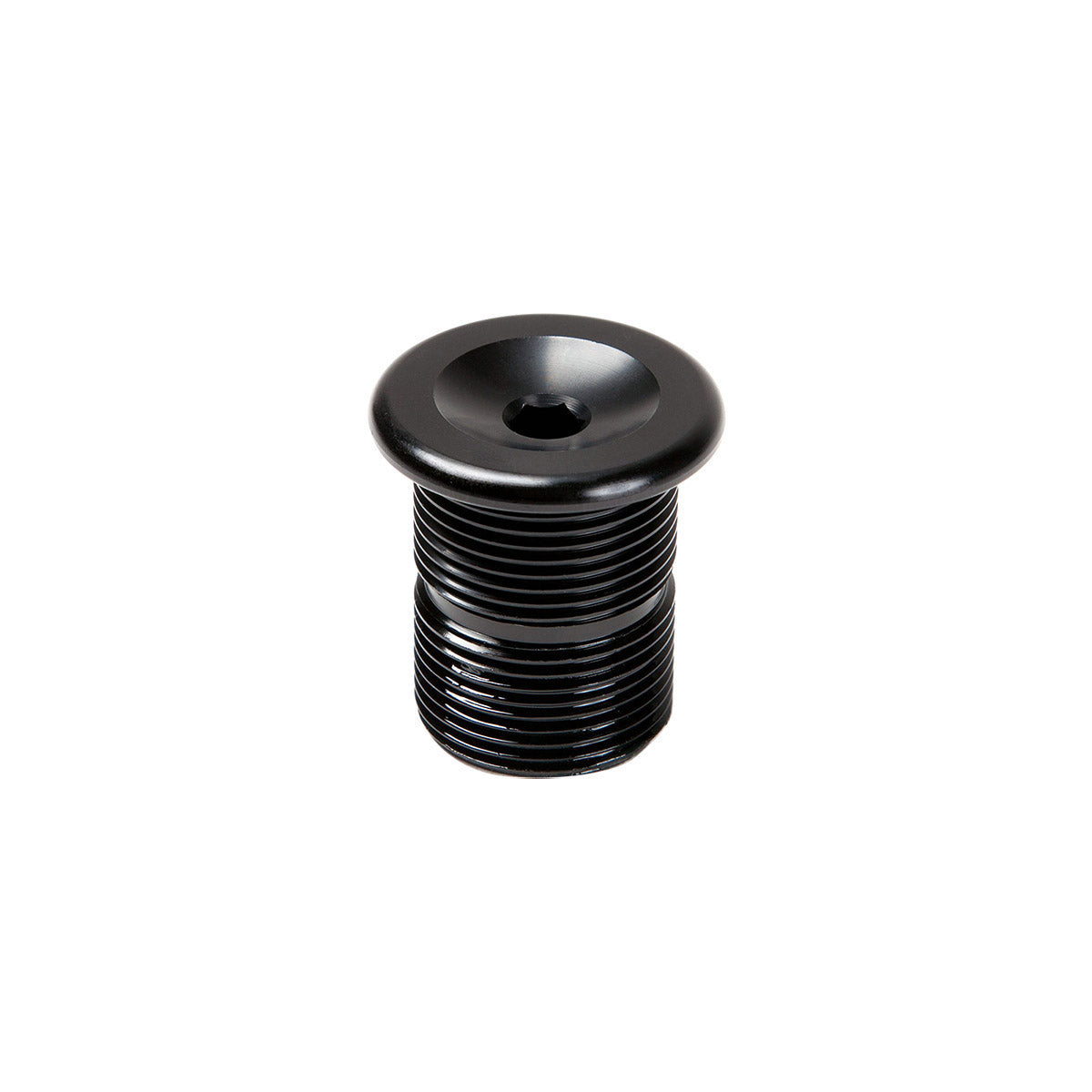

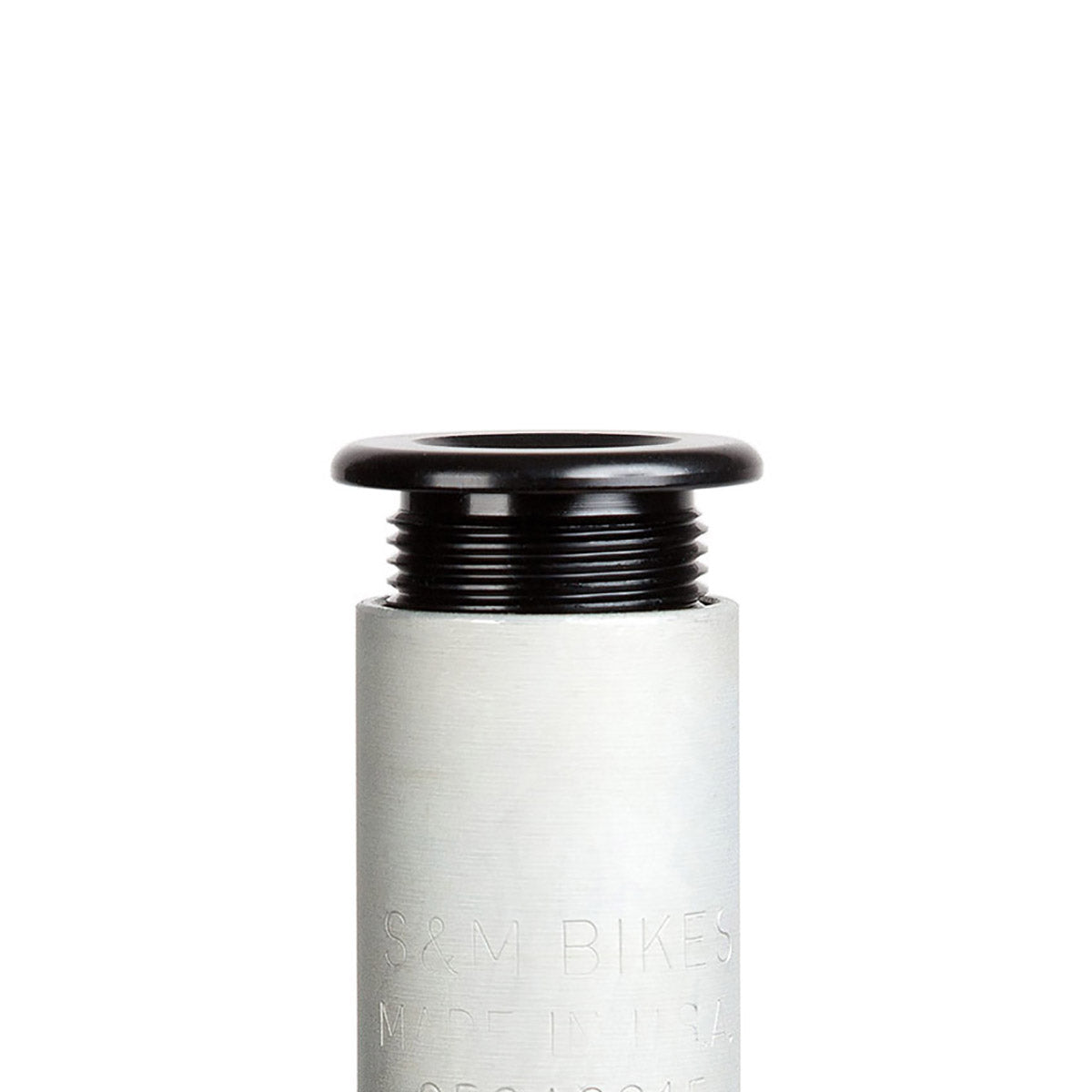

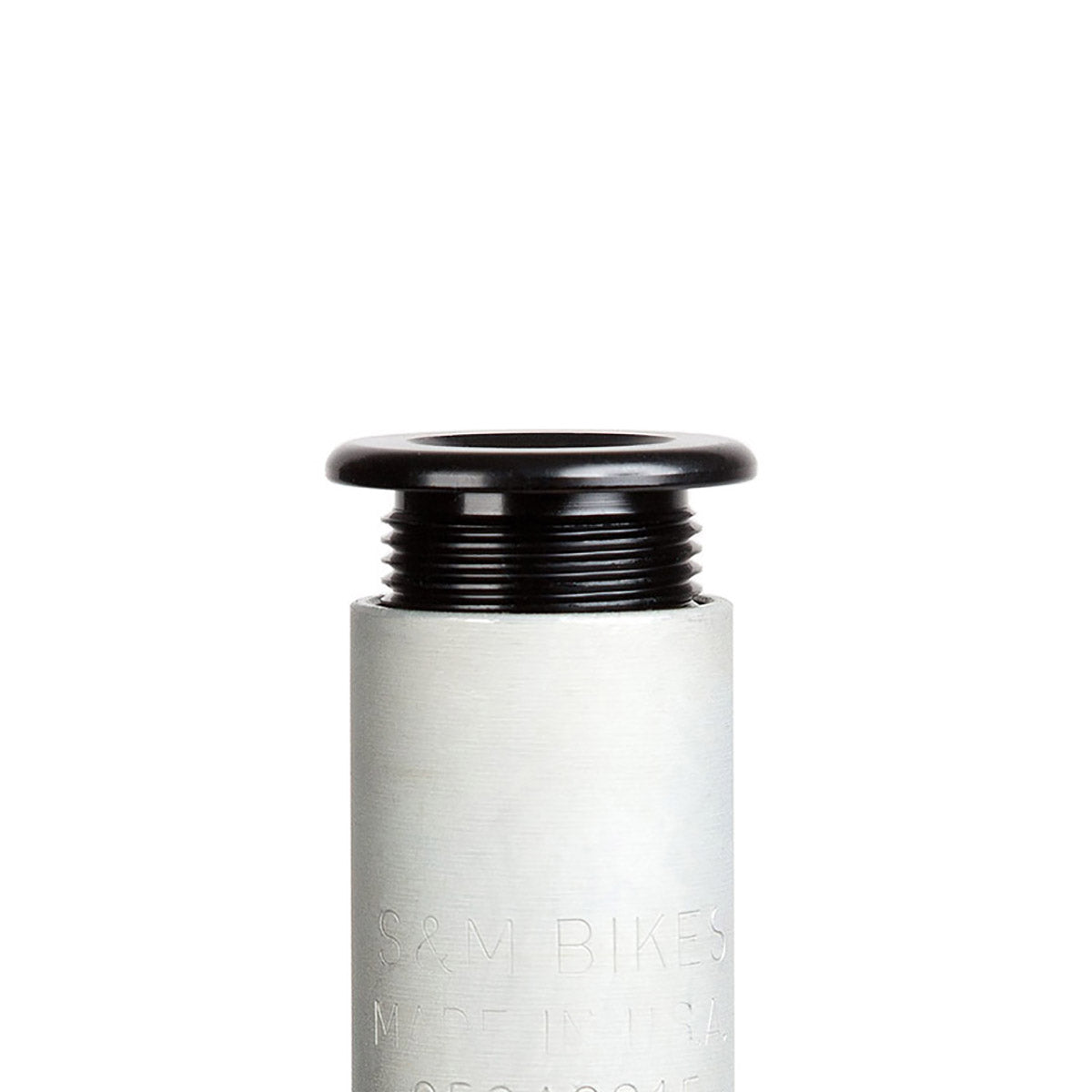

• M24 × 1.5 compression threading – Standard BMX race top cap threading with 6mm Allen slot for tool-free adjustments
• Multiple wheel size options – Four axle-to-crown heights accommodate 20″, 24″, 26″, and 26″ XL cruiser builds

Technical Specifications

• Legs: Double-butted, tapered 4130 chromoly
• Dropouts: Laser-cut 3/8-inch slot
• Steerer tube: Non-integrated, one-piece CNC-machined 4130 chromoly
• Steerer tube length: 172mm
• Compression: M24 × 1.5 thread with 6mm Allen slot
• Axle-to-crown height:
  • 20″: 315.5mm
  • 24″: 366mm
  • 26″: 395mm
  • 26″ XL: 415mm
• Offset: 33mm
• Weight:
  • 20″: 1.89 lbs (0.86 kg)
  • 24″: 2.14 lbs (0.97 kg)
  • 26″: 2.59 lbs (1.17 kg)
  • 26″ XL: 2.68 lbs (1.21 kg)
• Heat treatment: 4Q-Baked post-weld
• Material: 4130 chromoly steel

Corrected Product Title

S&M Race XLT Fork (20″/24″/26″/26″ XL)

Compatibility and Ideal Use Cases

This fork requires a frame with non-integrated head tube and standard headset with external bearing race. The 3/8-inch dropouts accommodate lightweight racing wheels and are not compatible with 14mm axles. Choose wheel size based on your frame: 20-inch for standard BMX, 24-inch for junior/cruiser class, 26-inch for cruiser, or 26-inch XL for taller riders needing additional clearance. Best suited for BMX racing where weight savings, precise steering, and durability under gate starts and jump impacts matter. The 33mm offset provides quick turn-in response ideal for navigating berms and technical track sections. Not recommended for street or park riding where 14mm axles and additional strength are typically preferred.
