S&M Widemouth (20″, 22″) (33mm Offset) Forks
Description

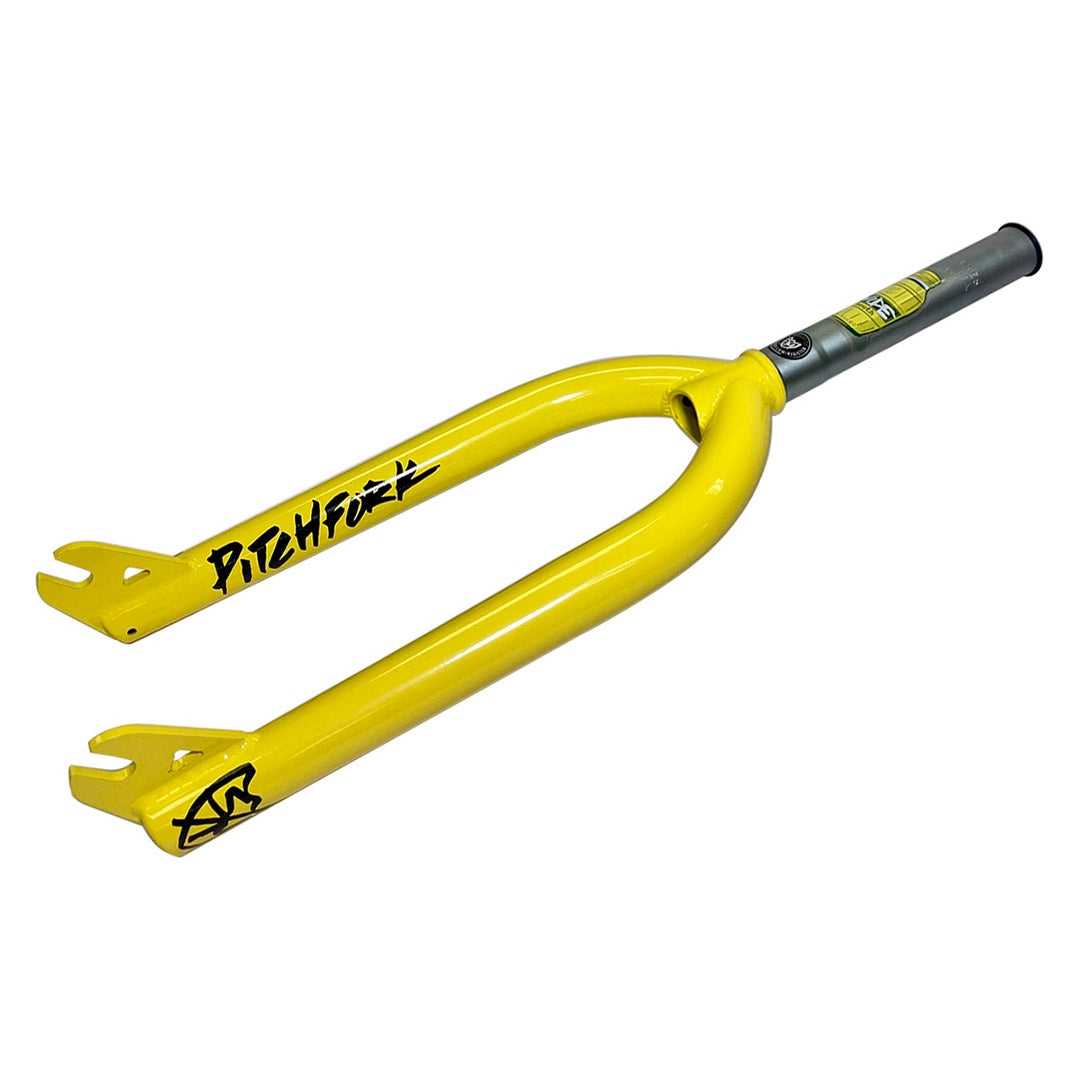

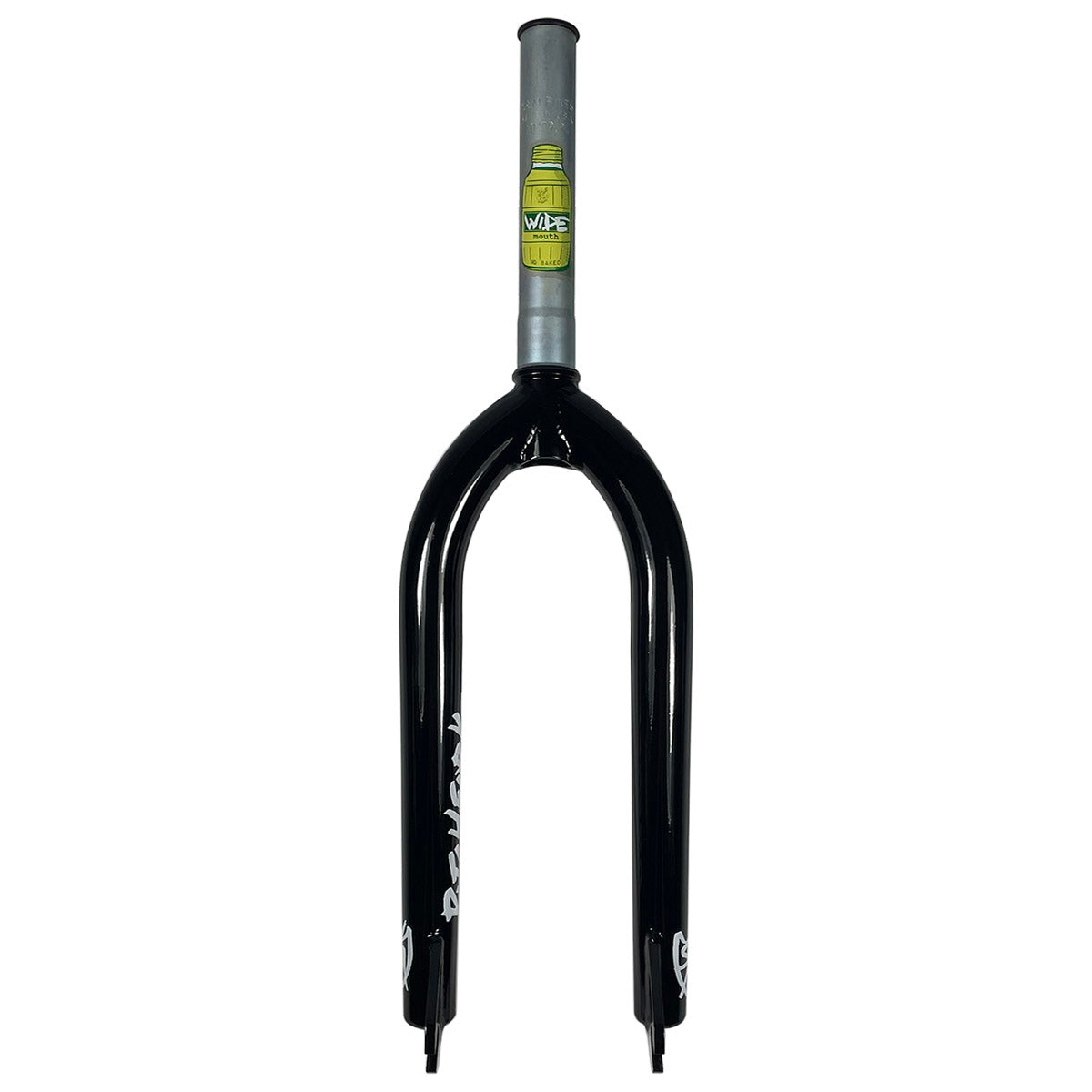

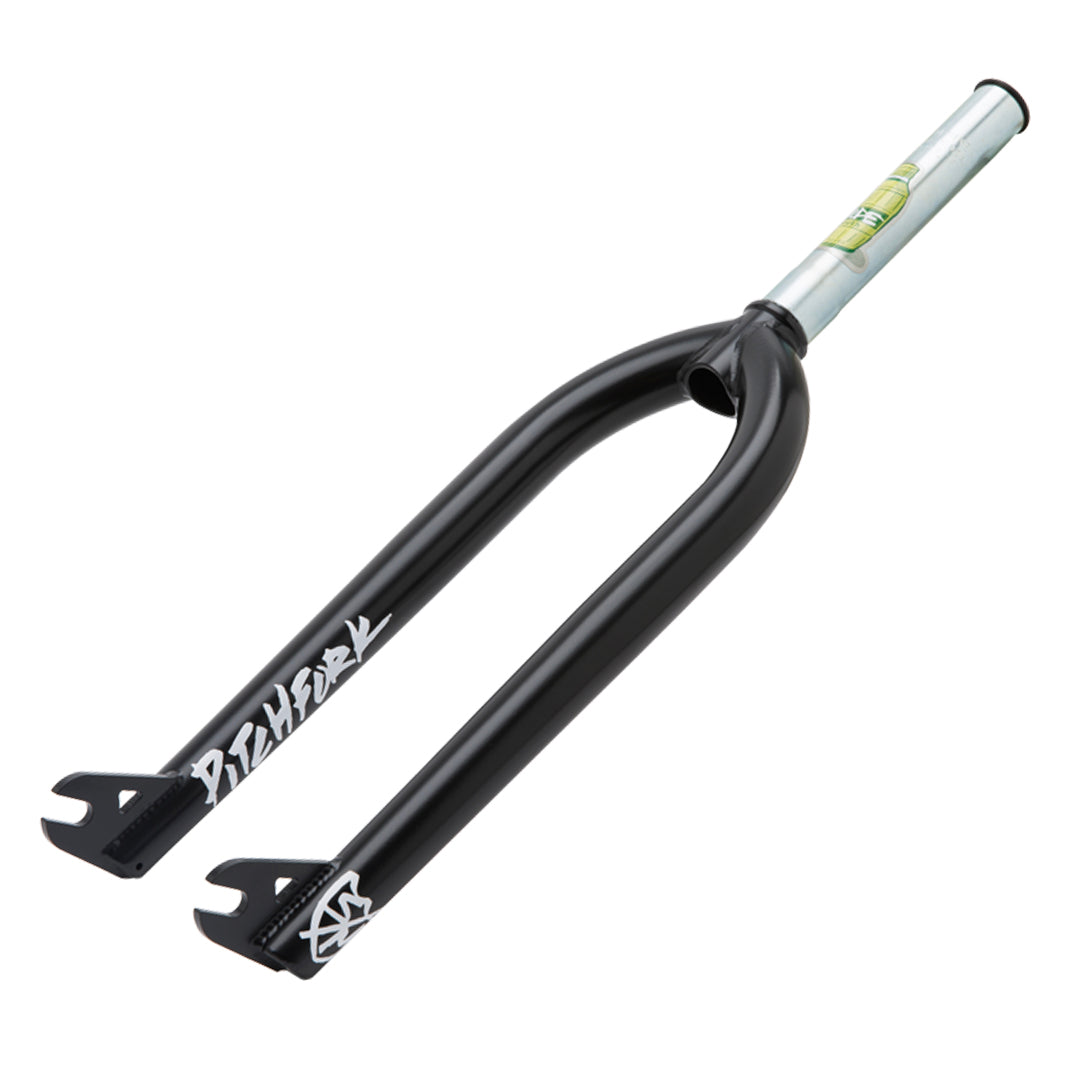

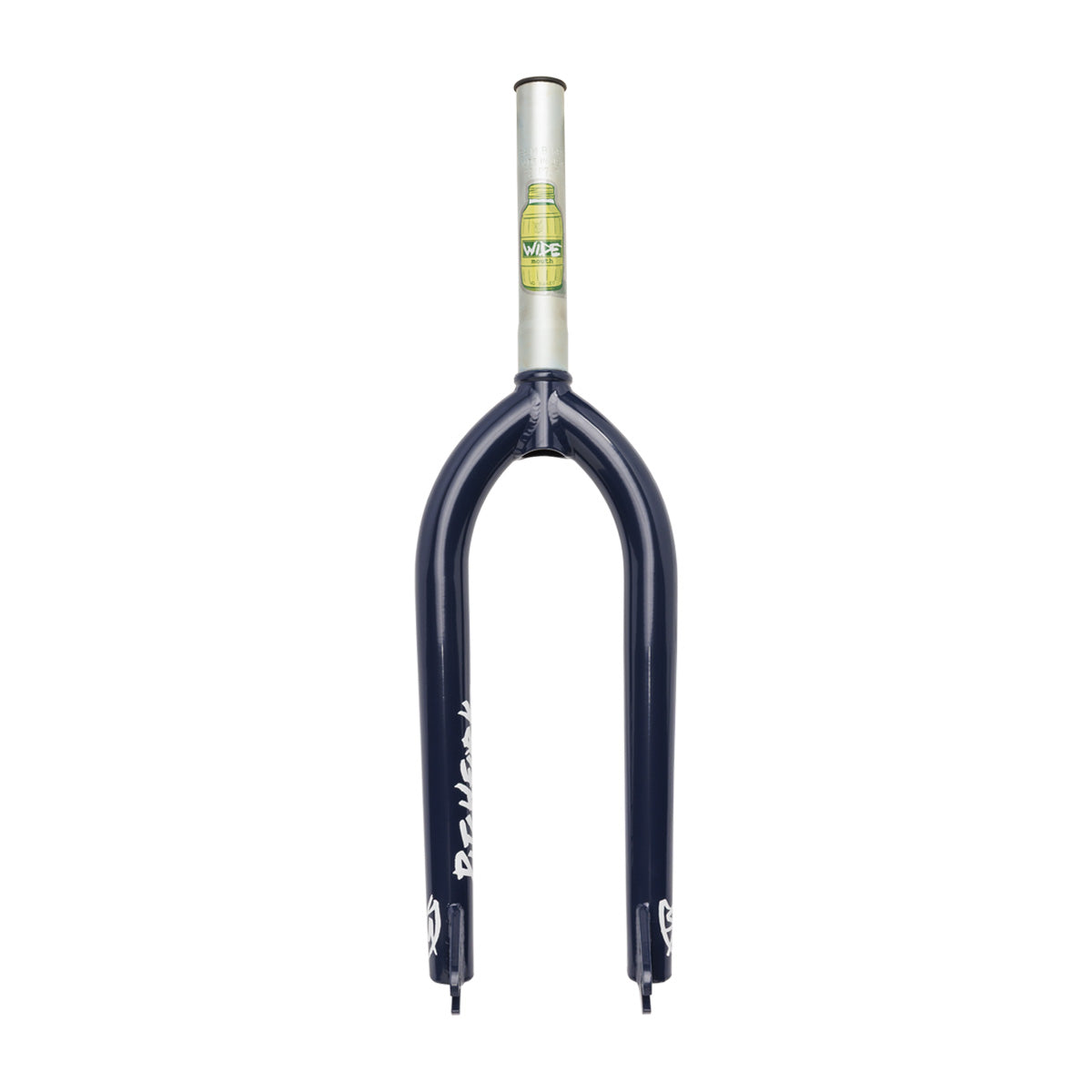

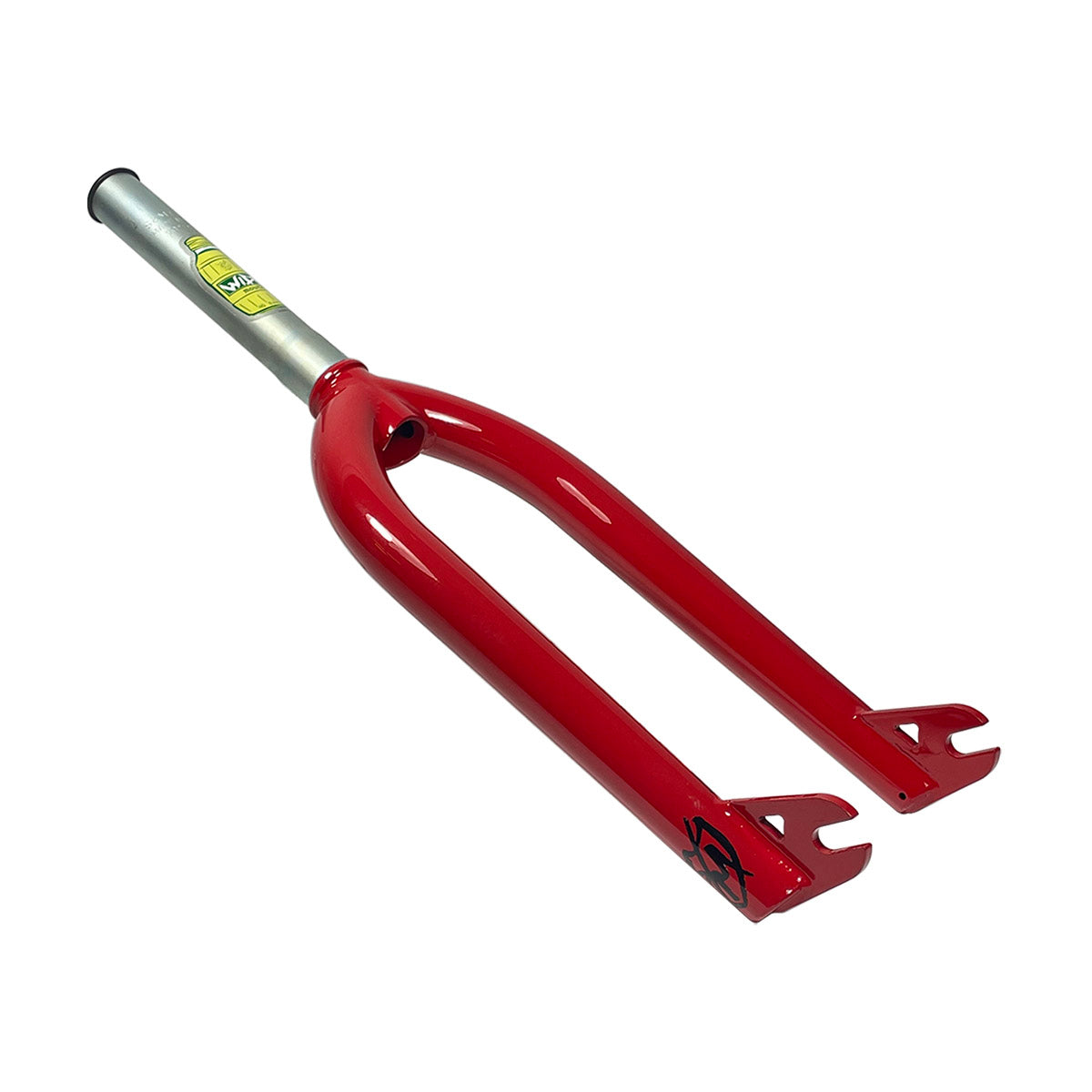

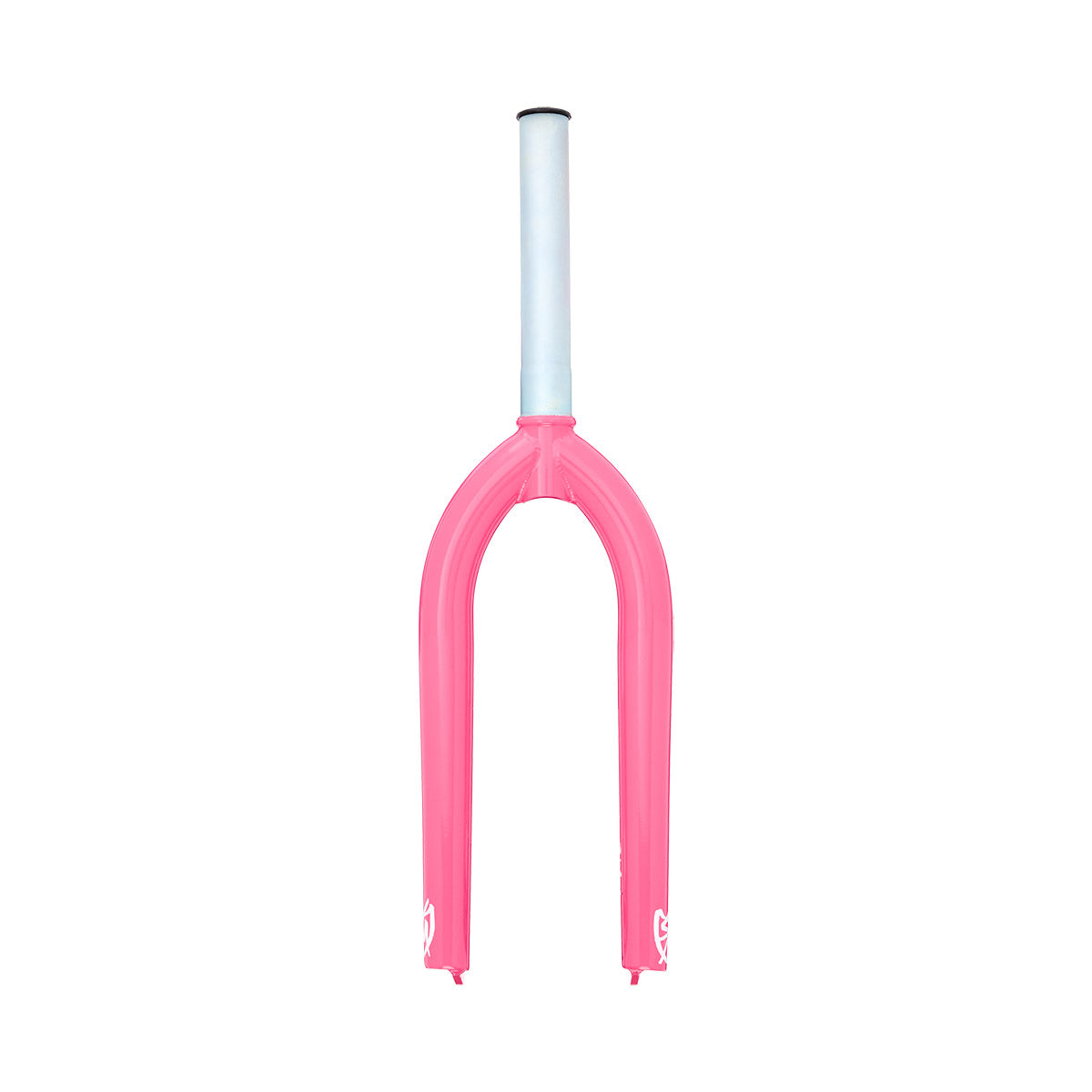

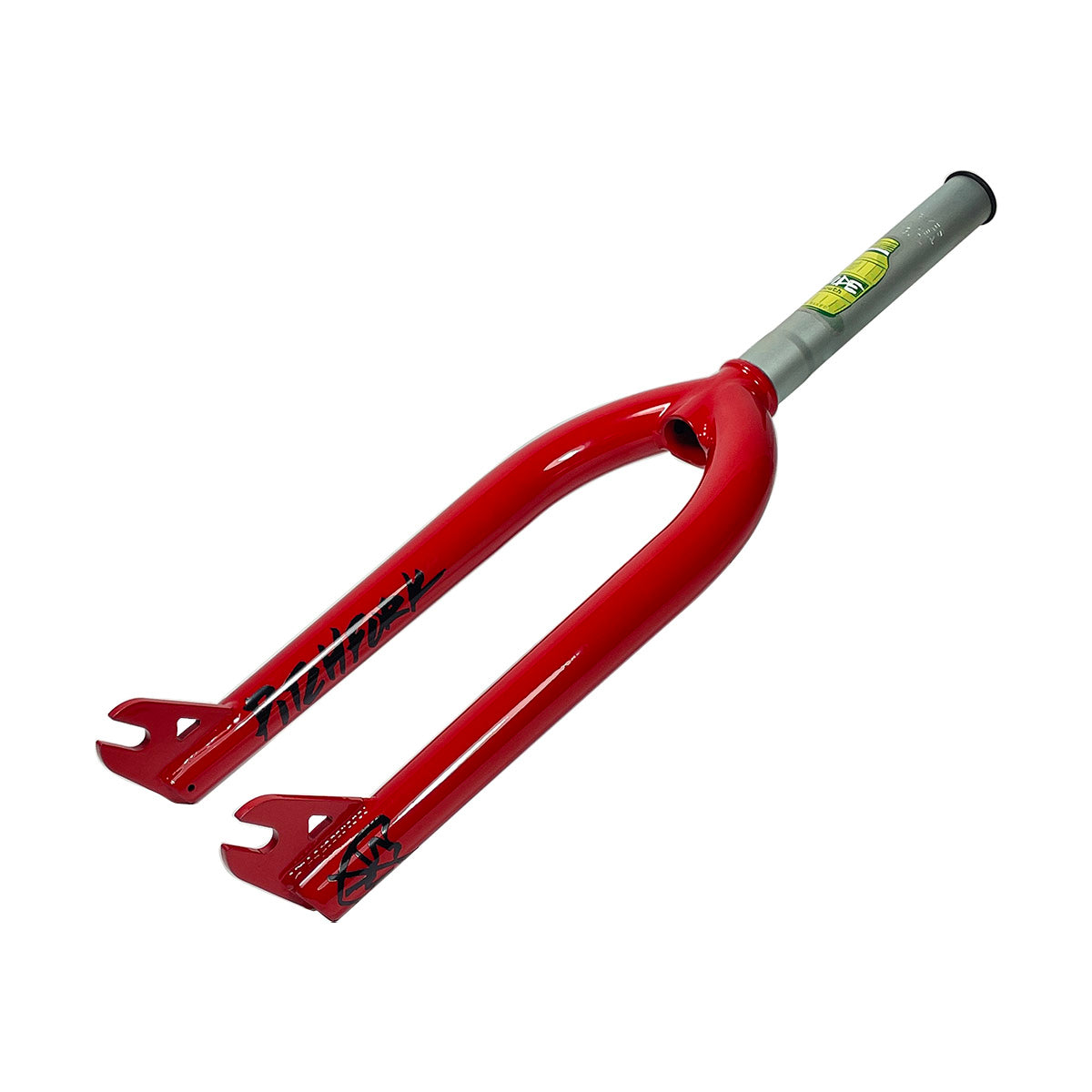

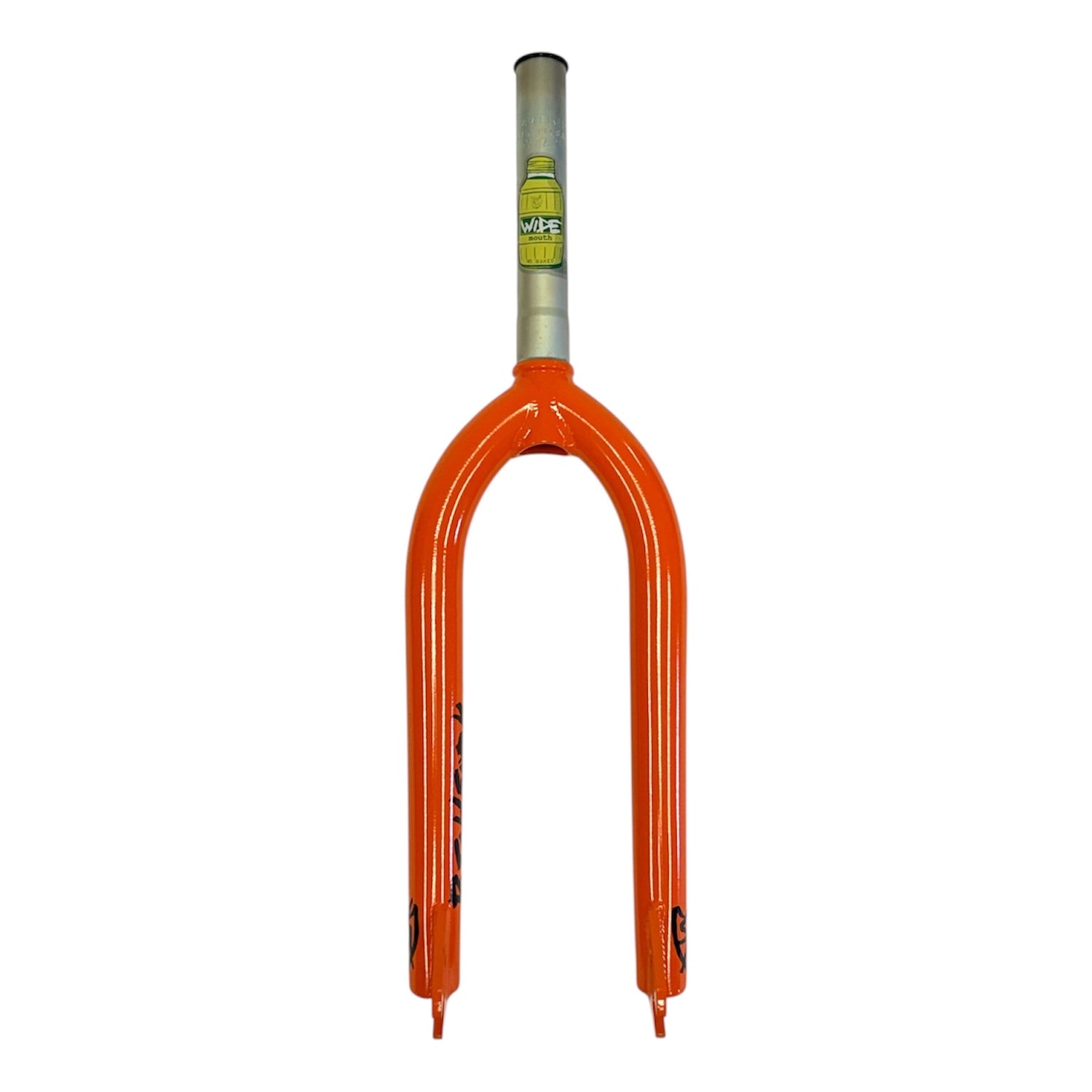

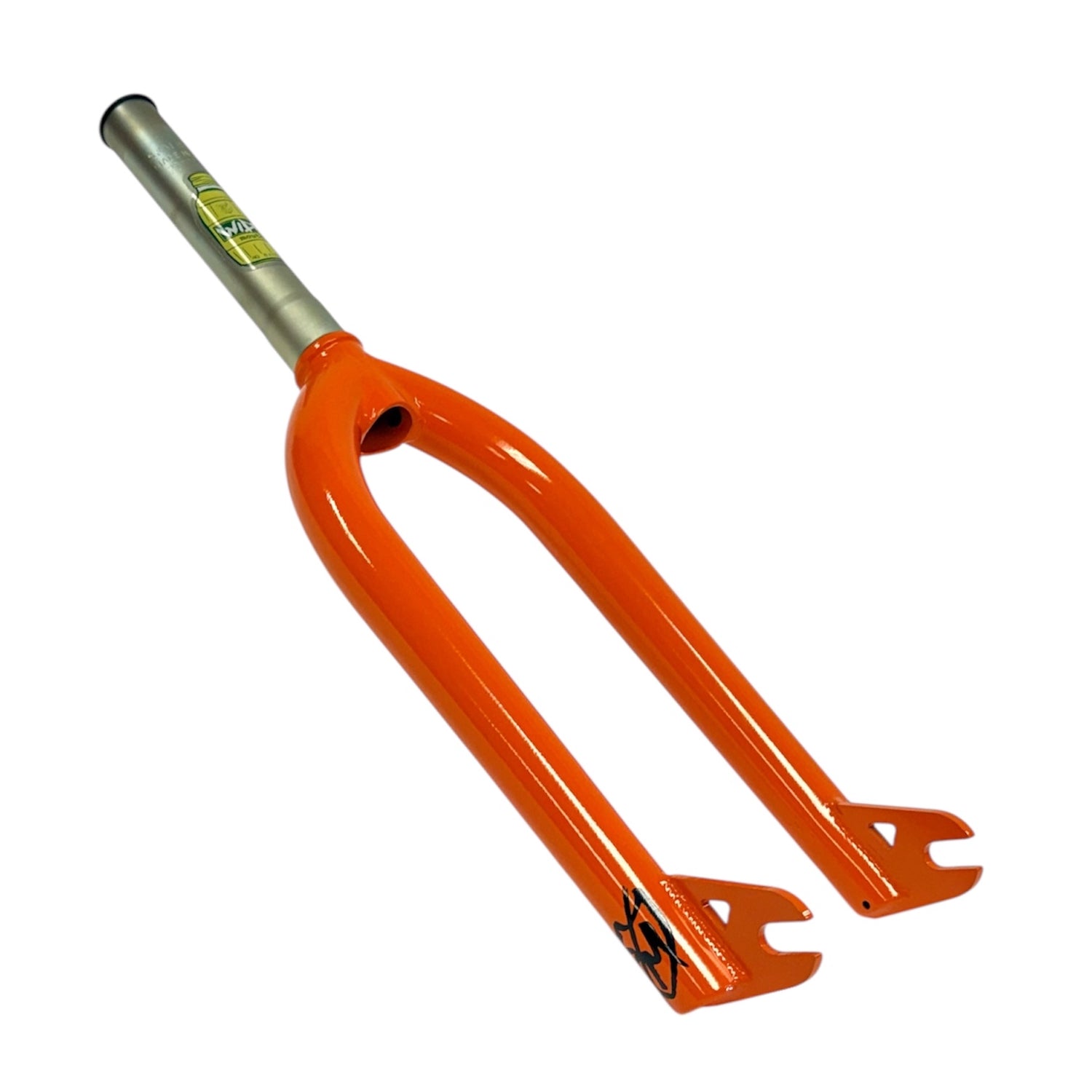

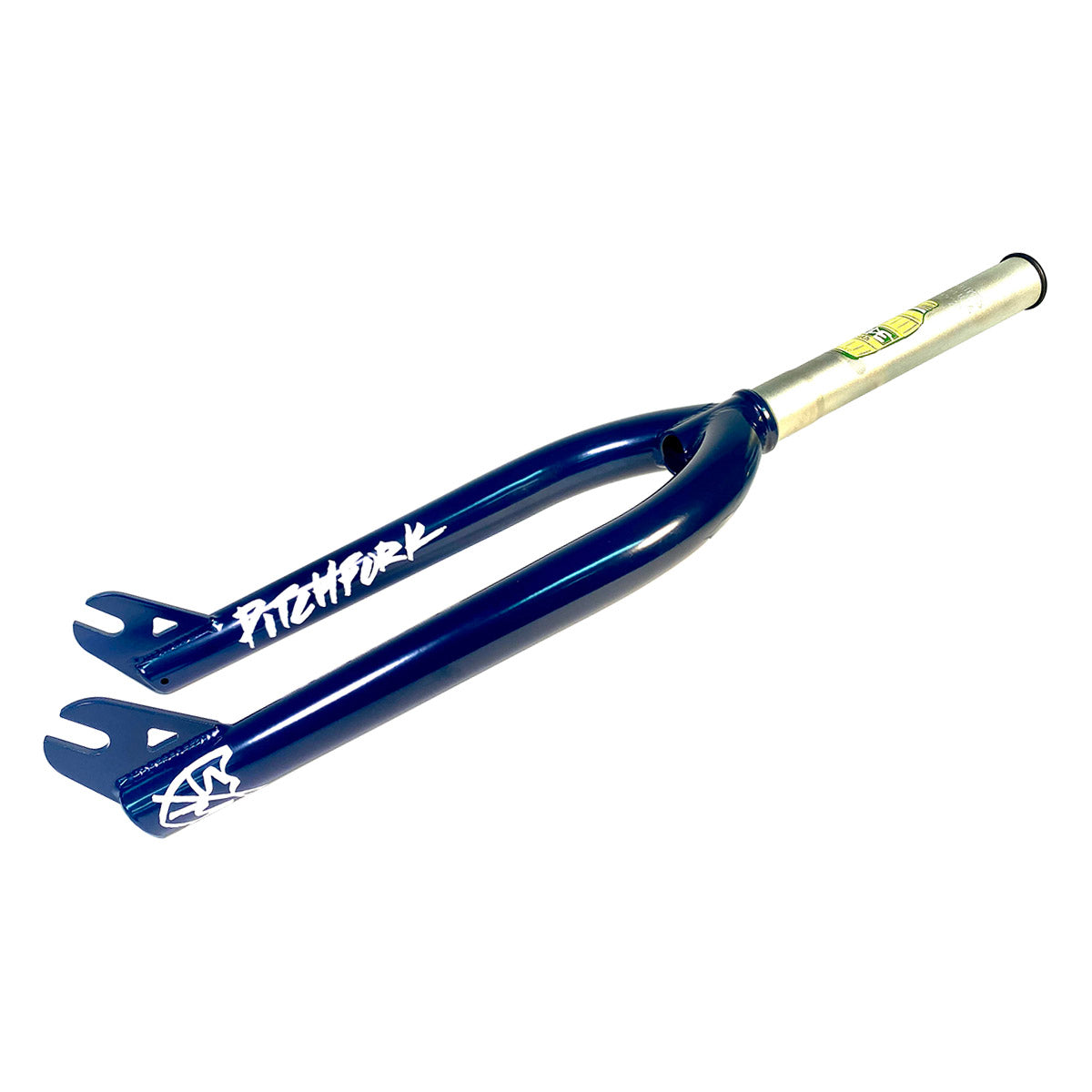

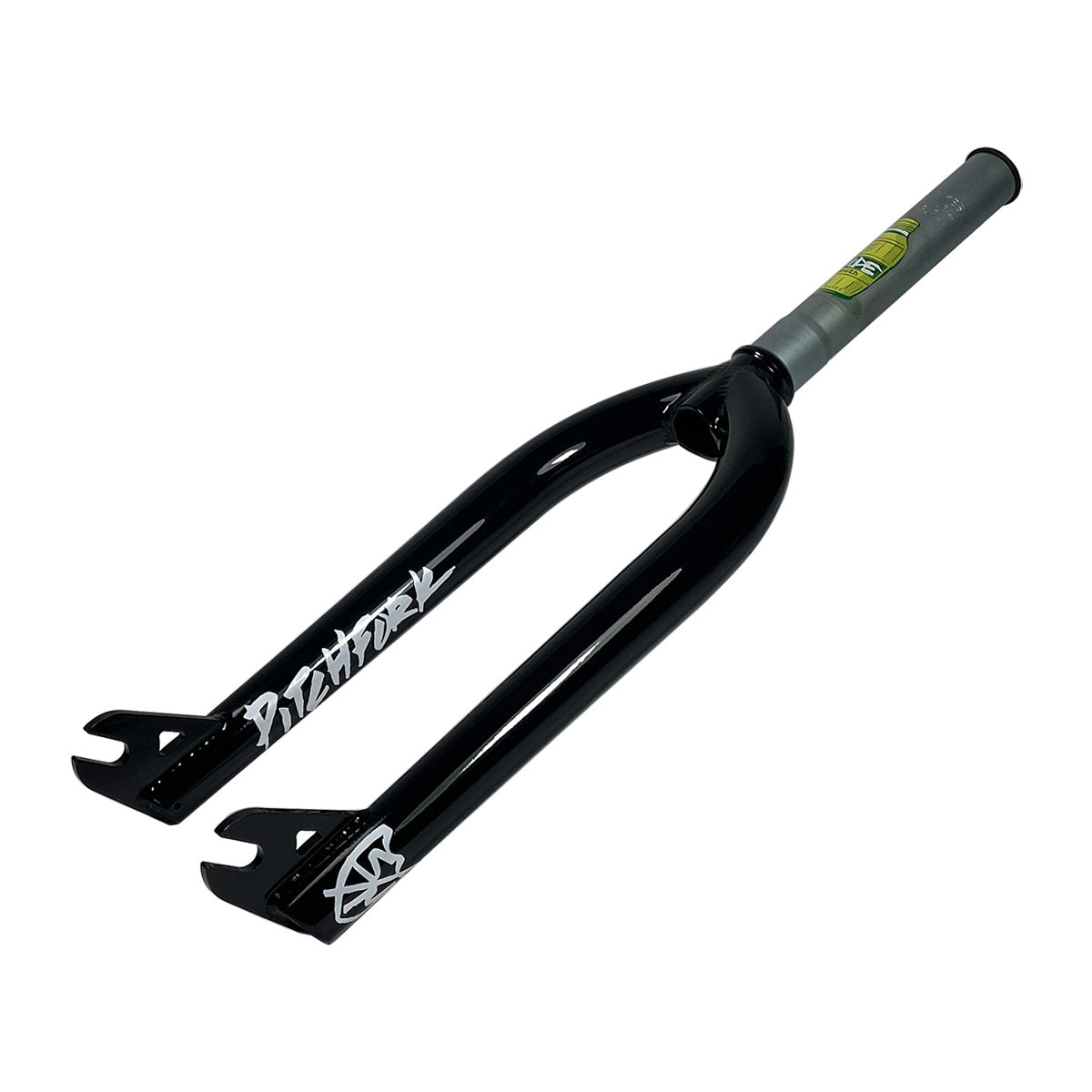

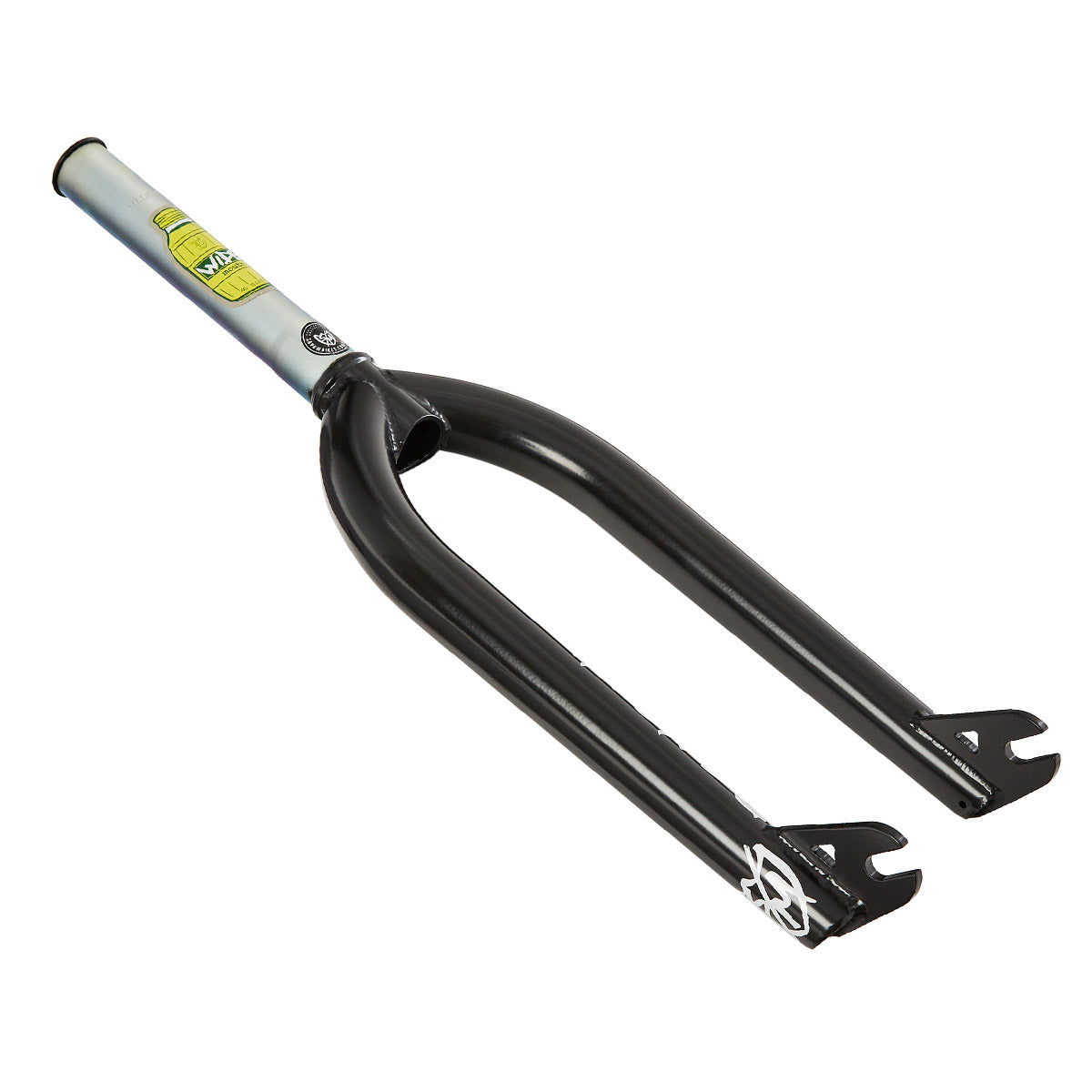

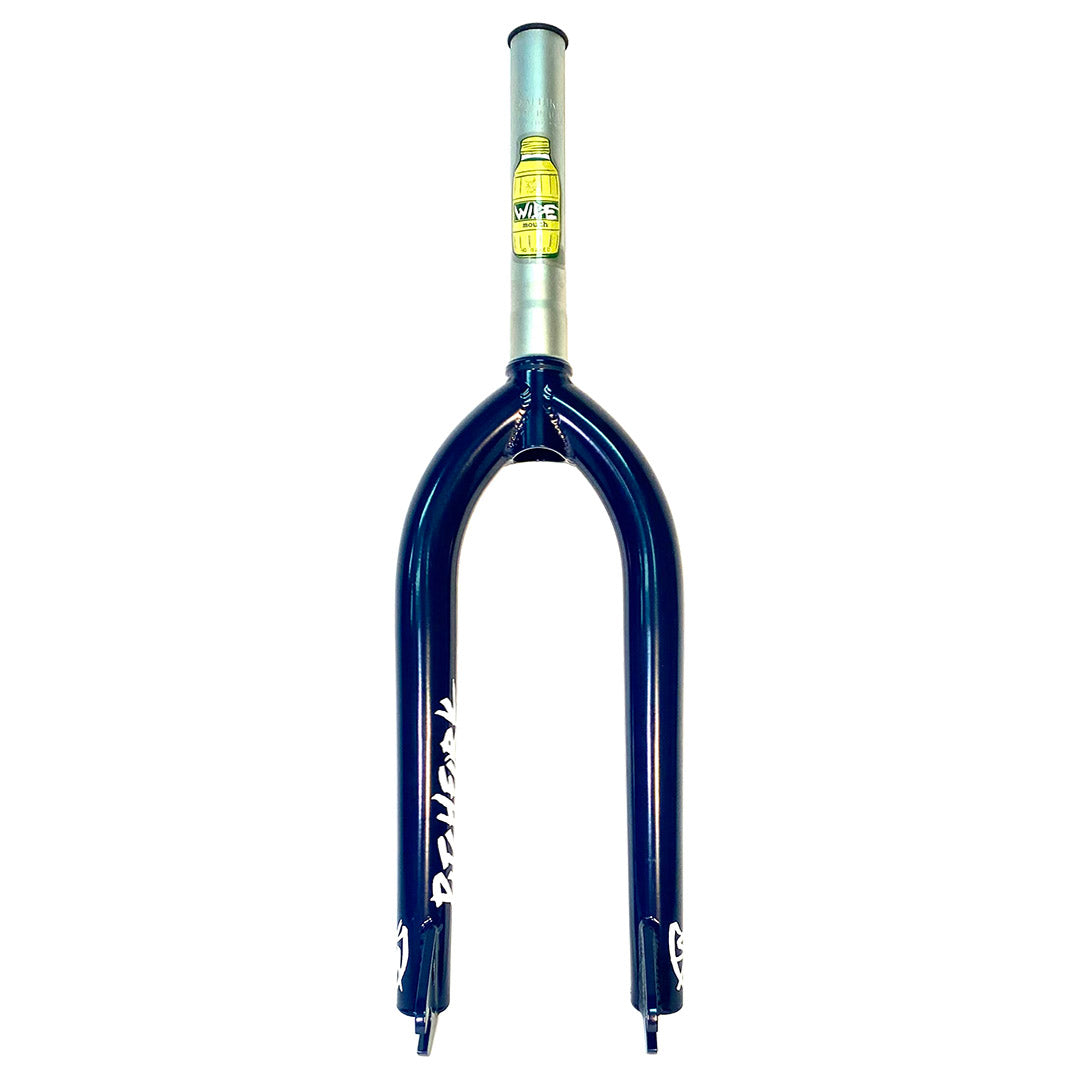

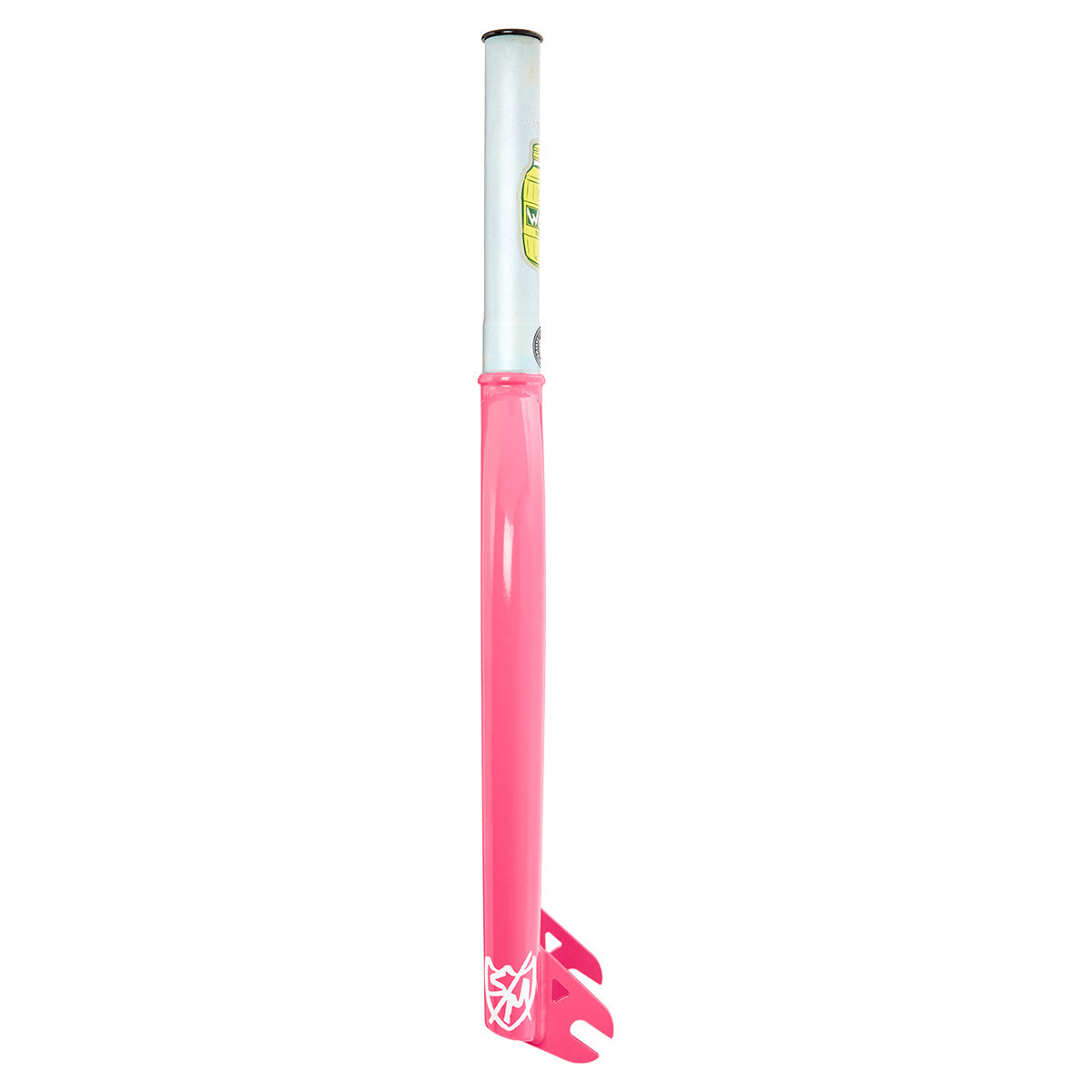

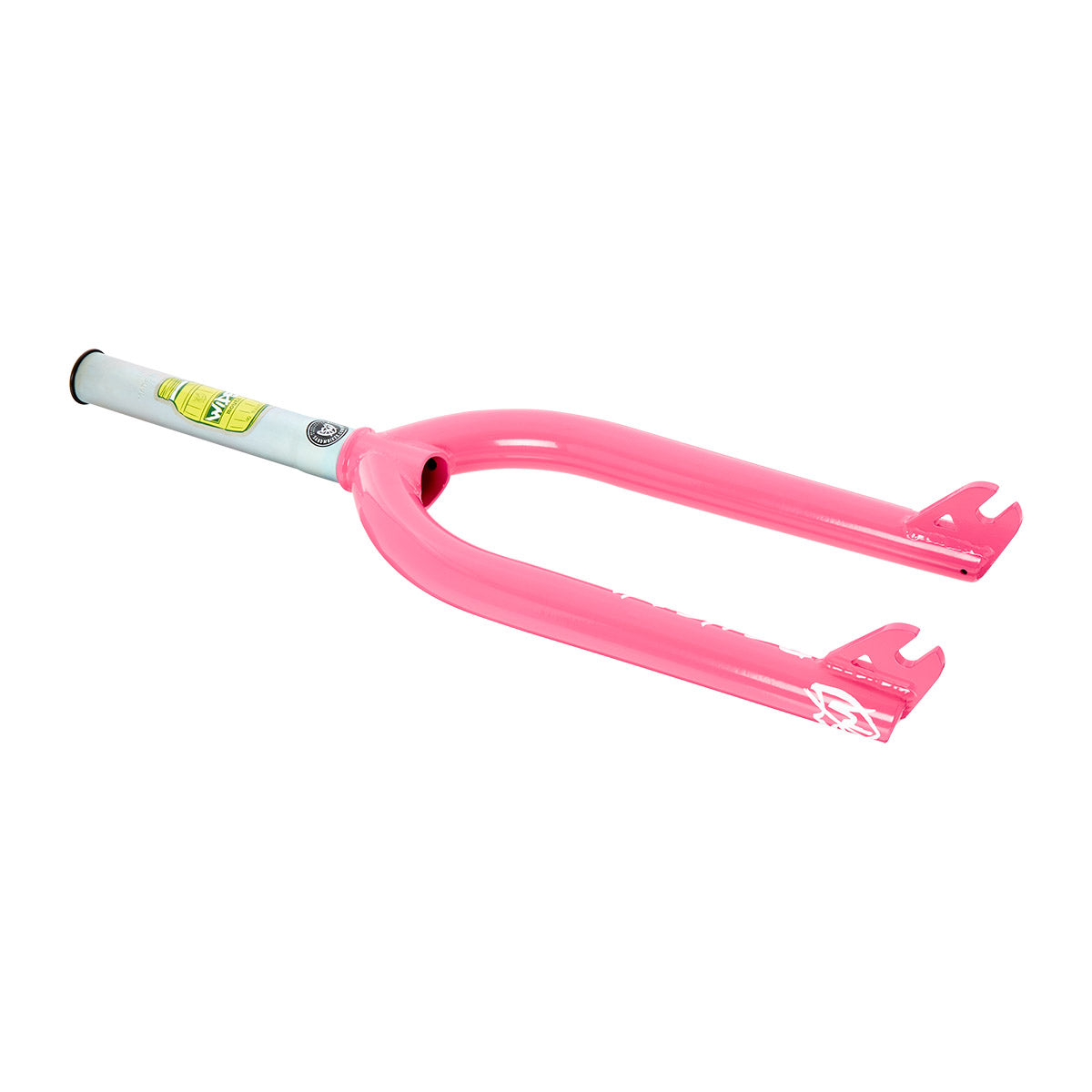

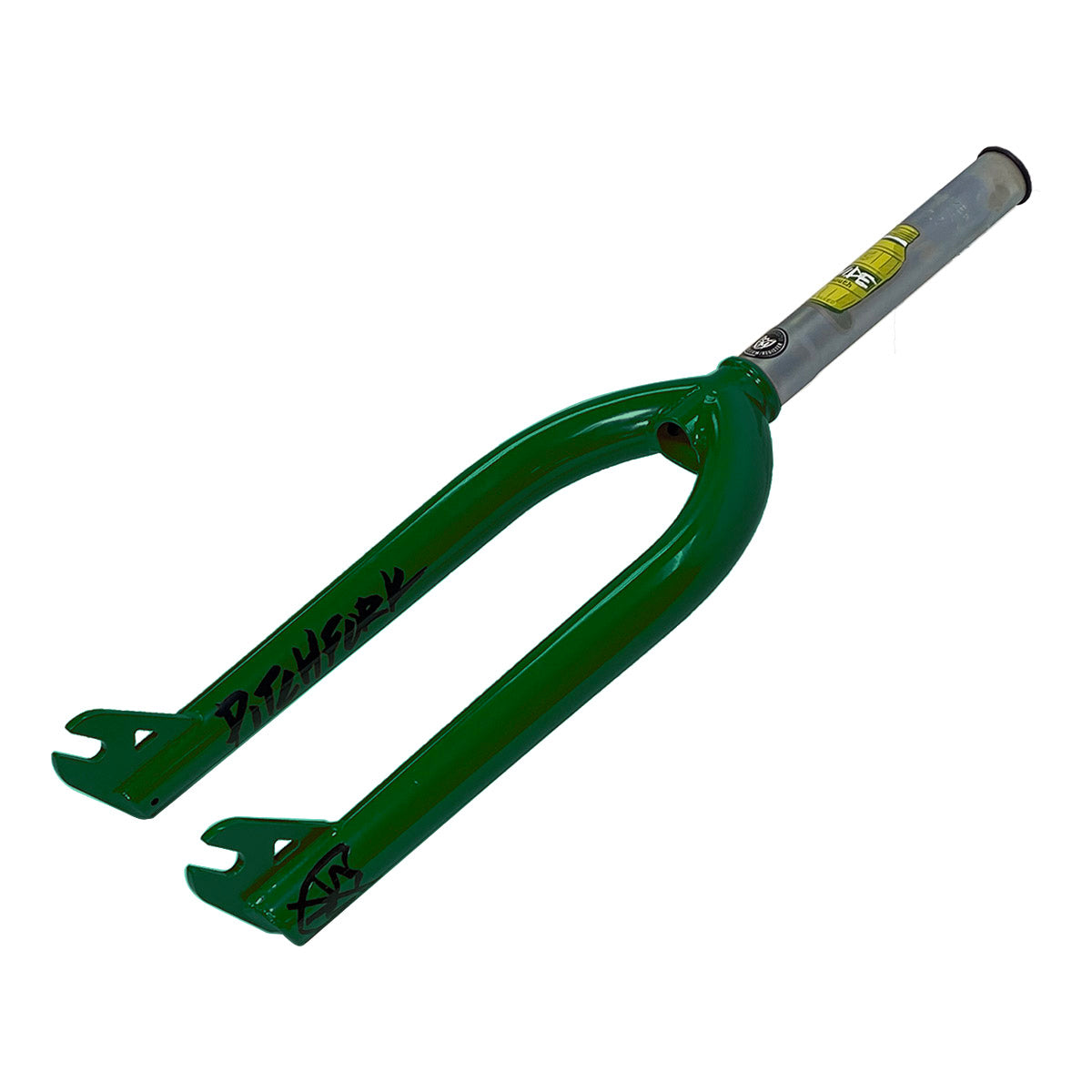

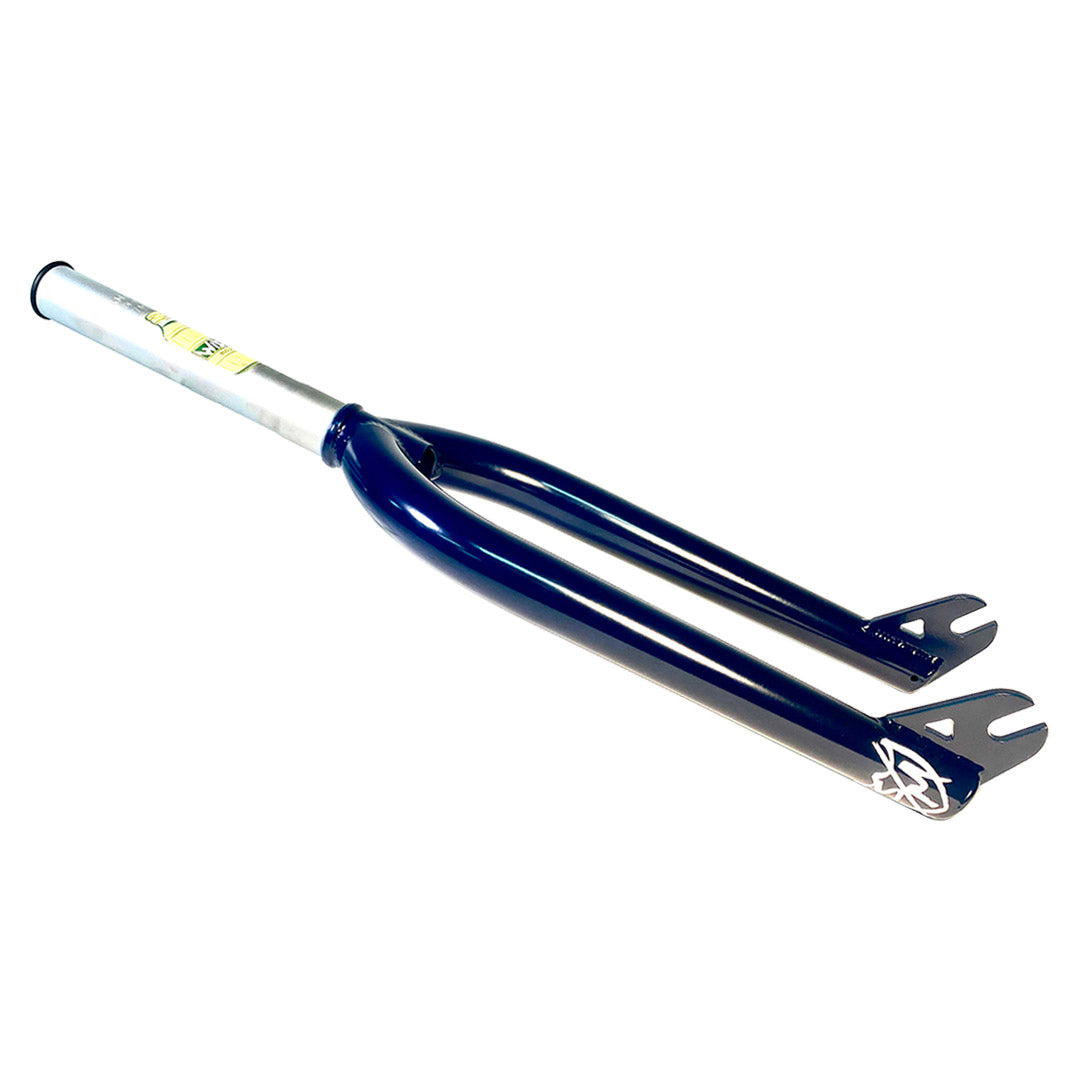

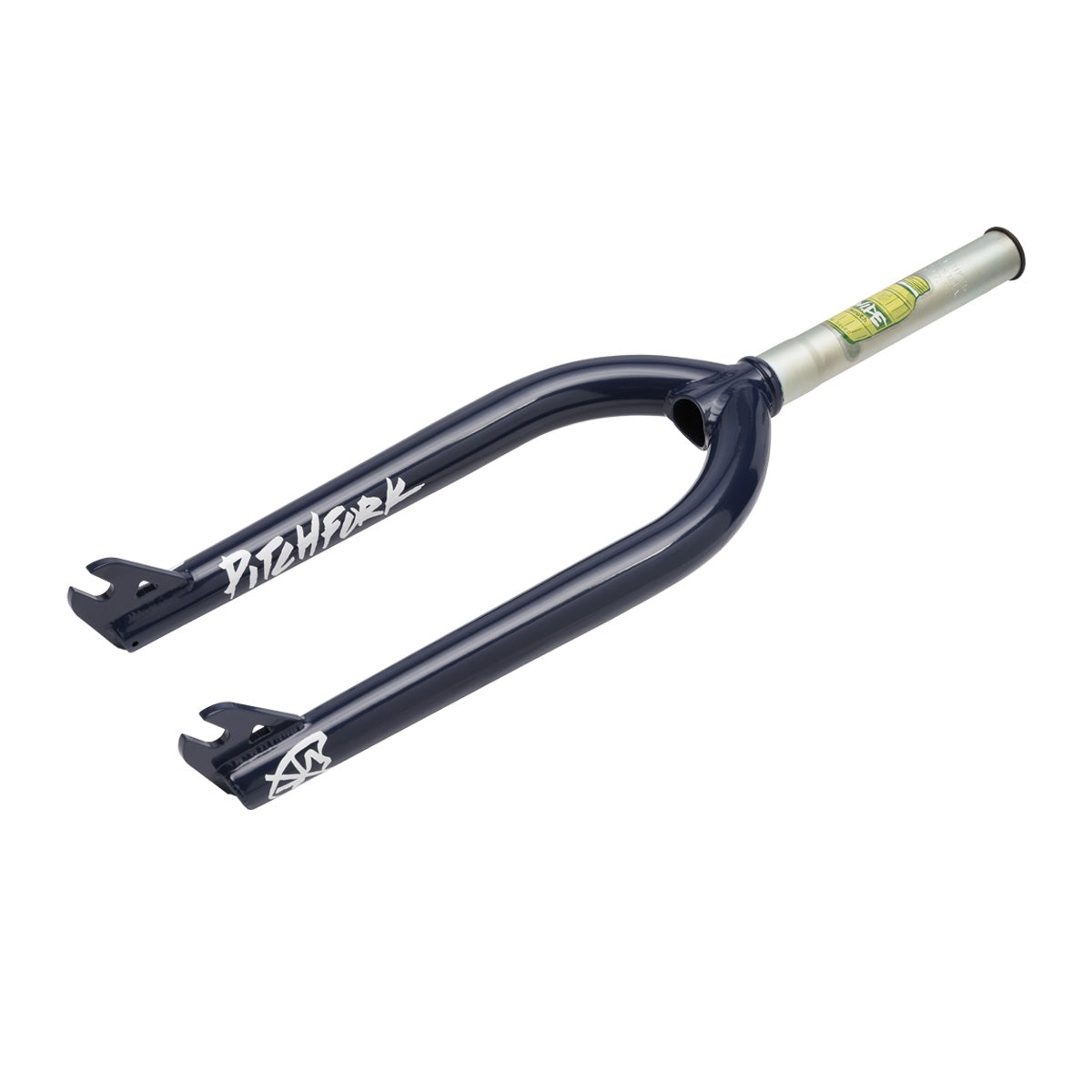

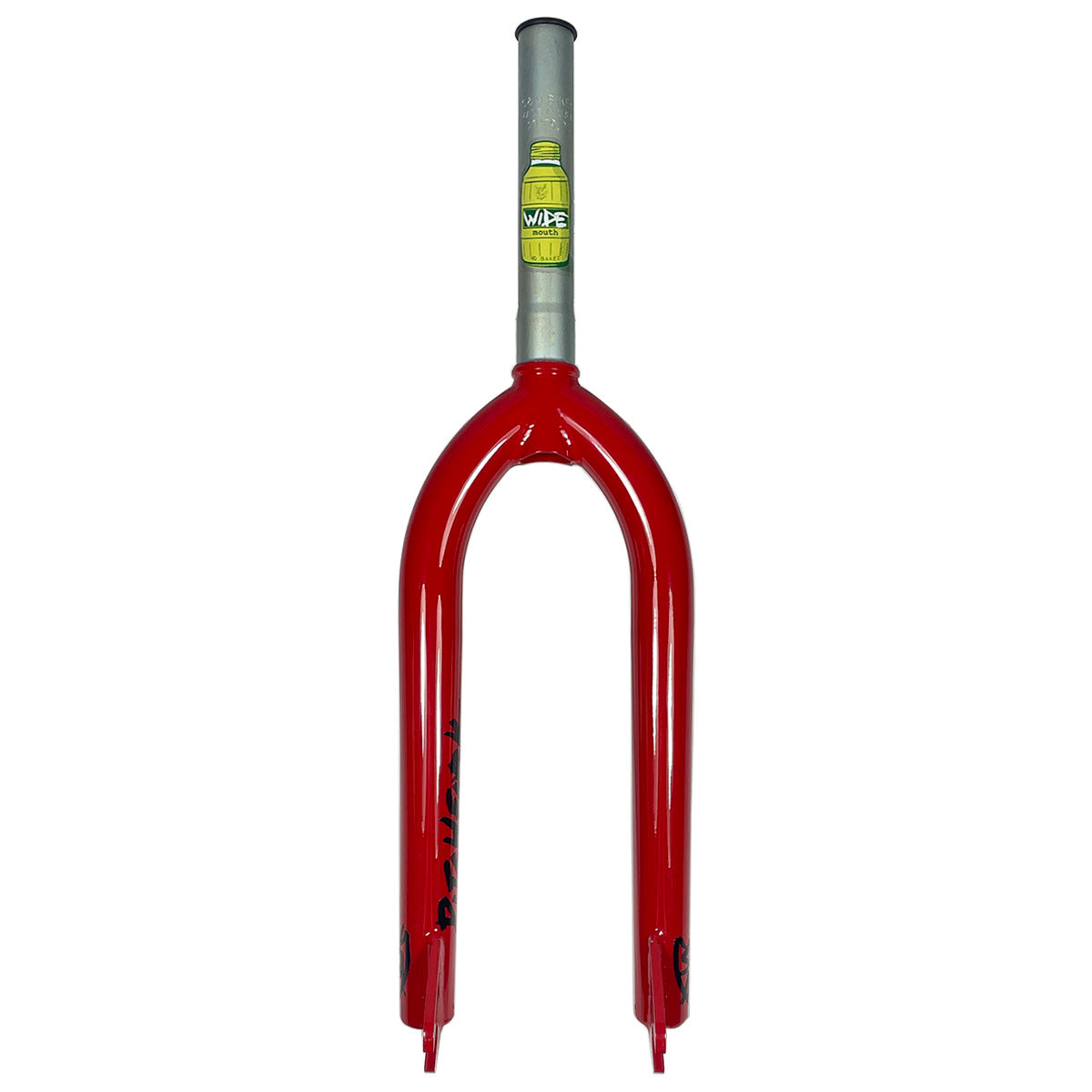

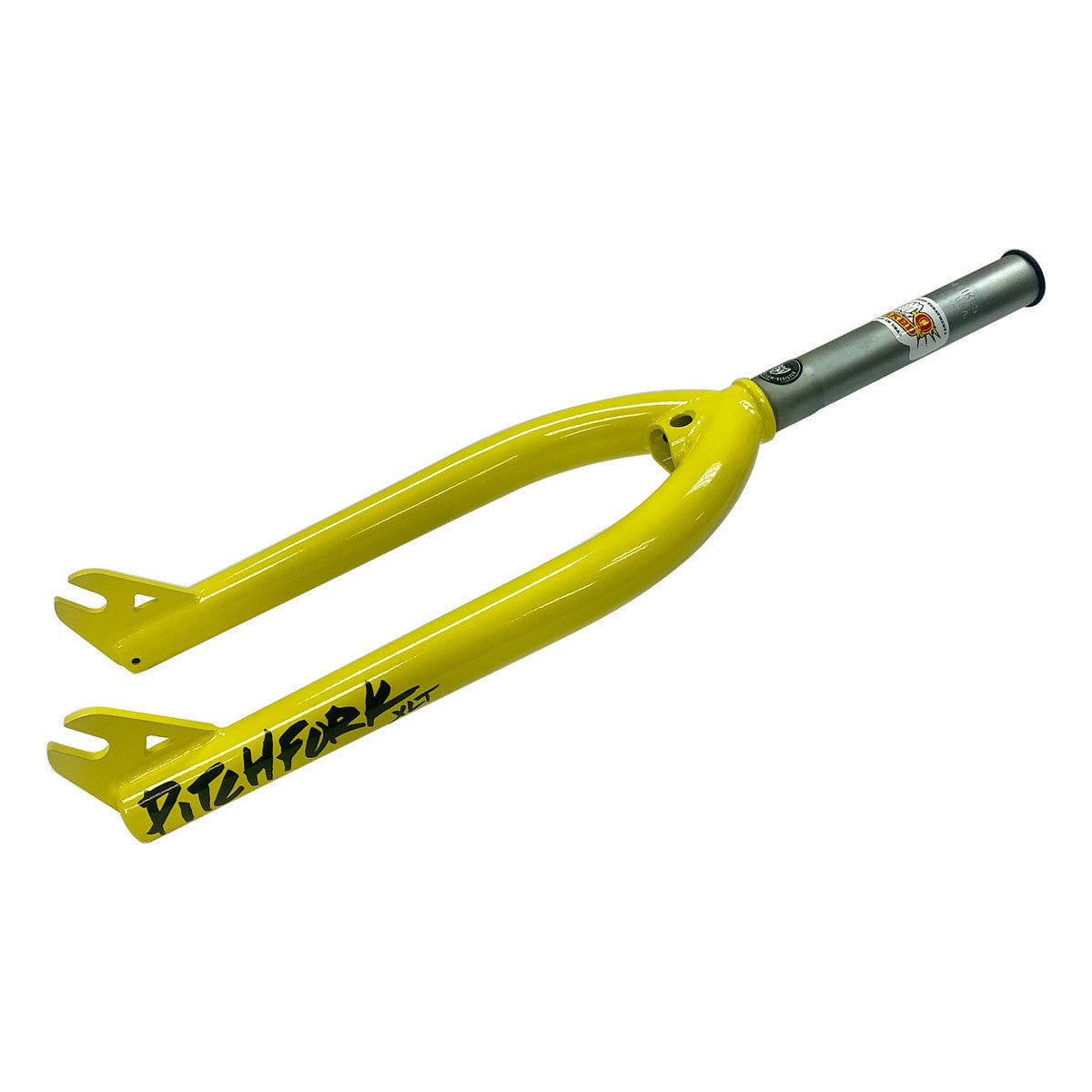

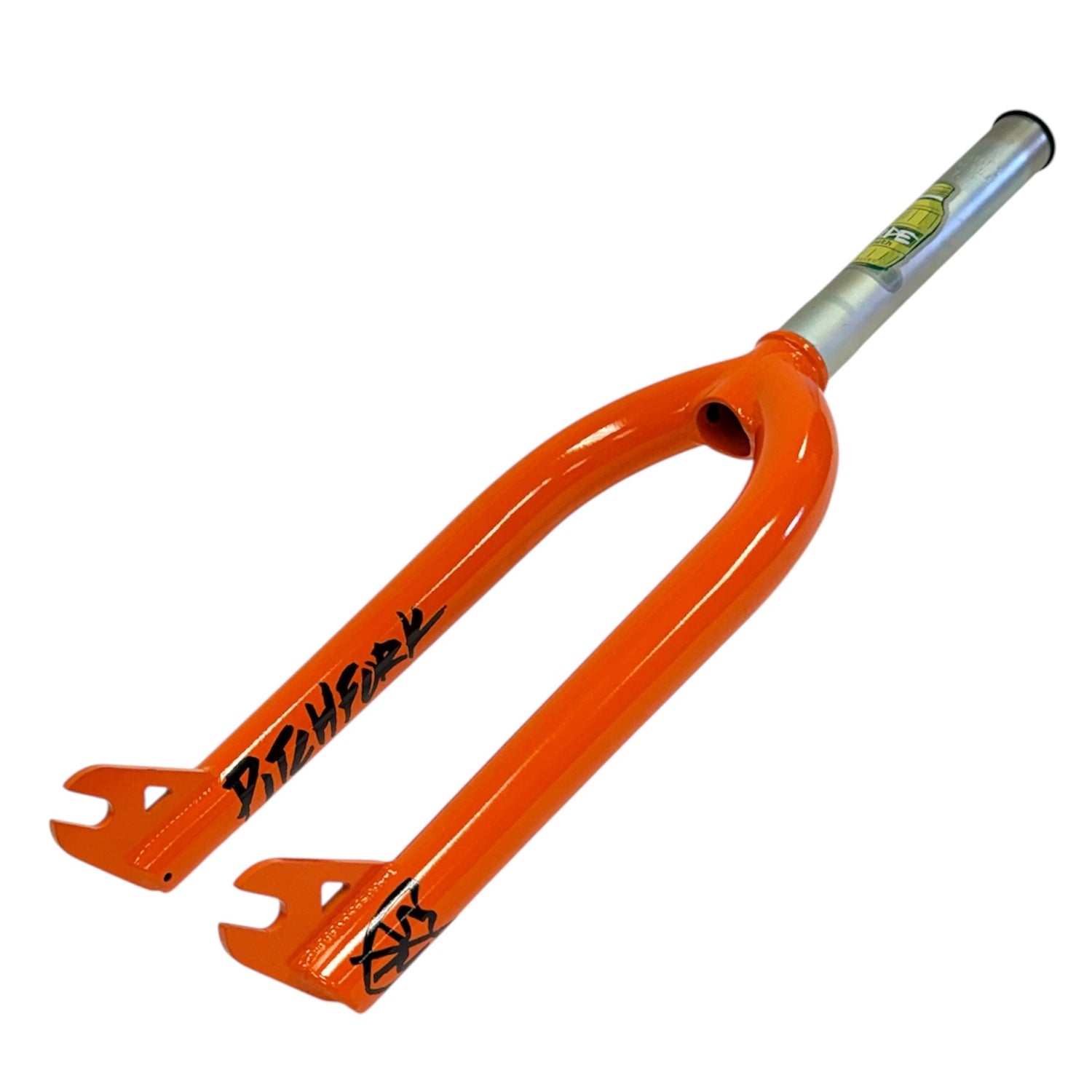

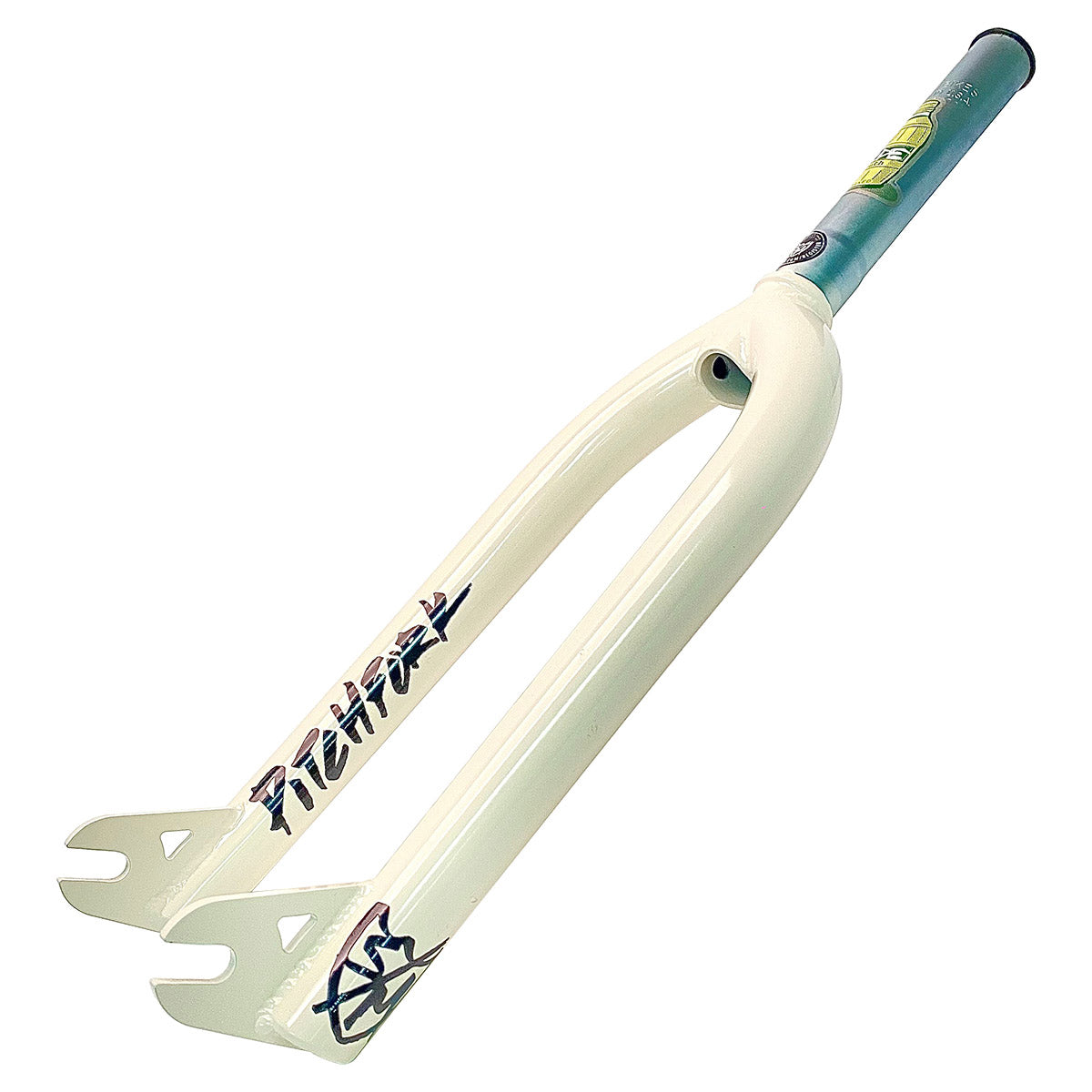

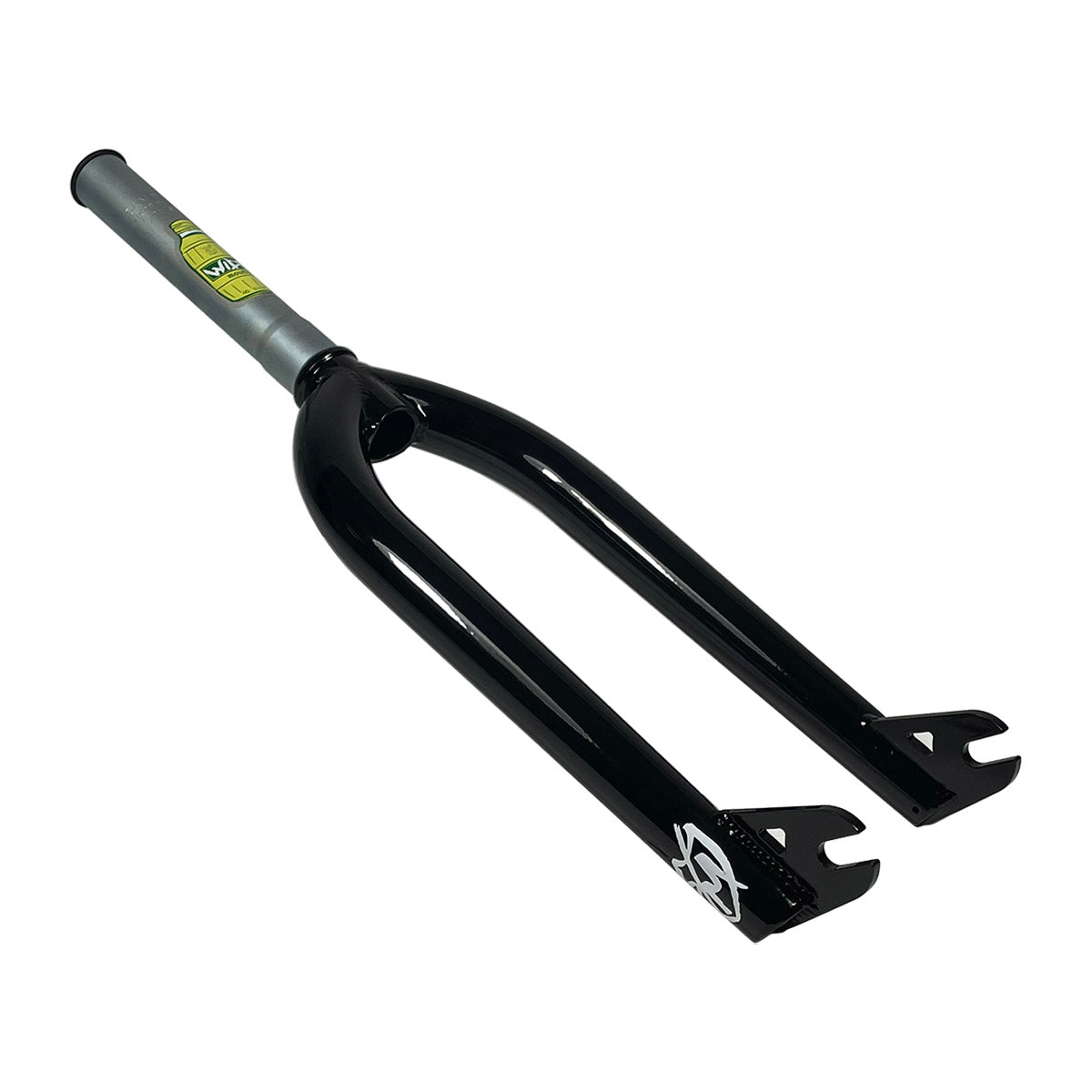

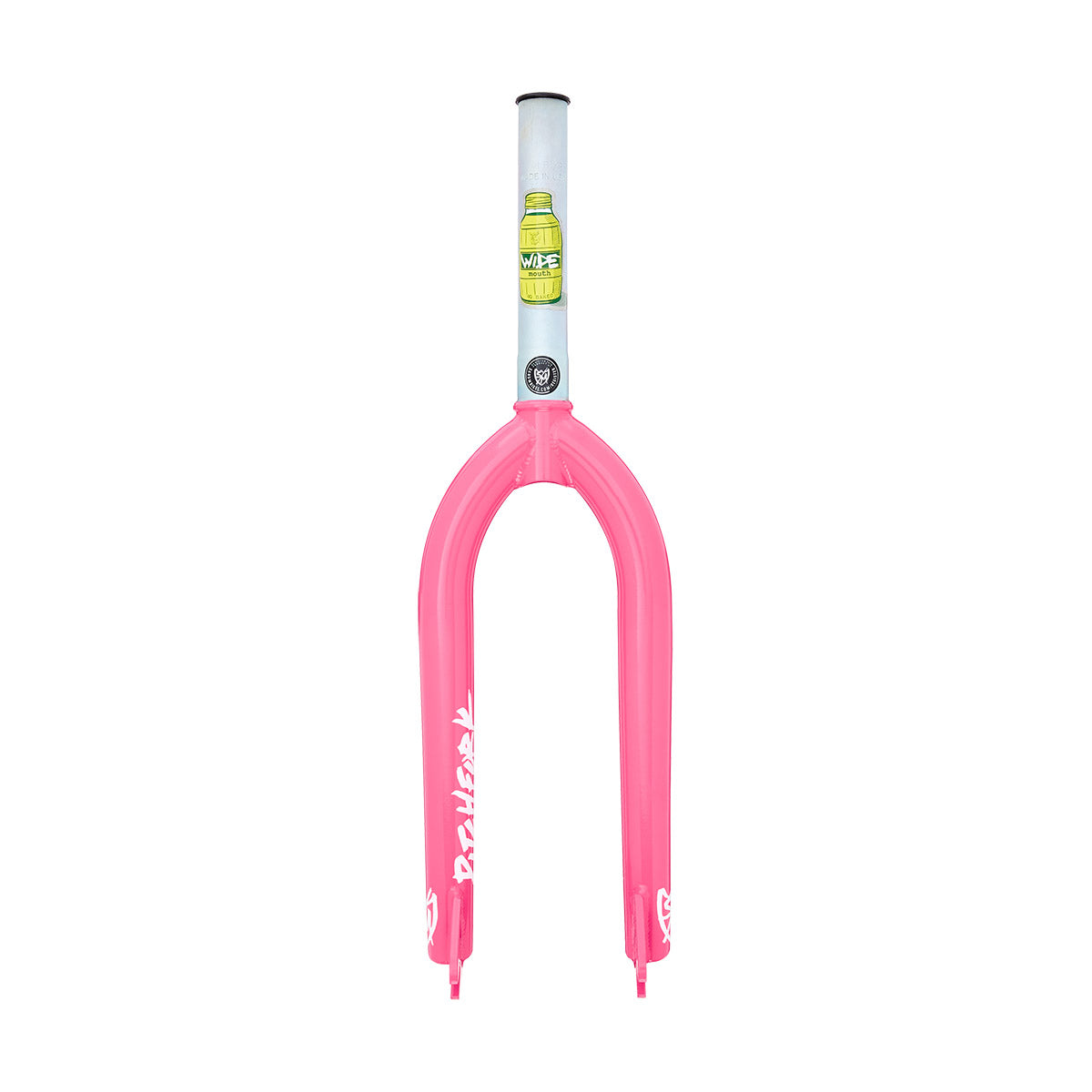

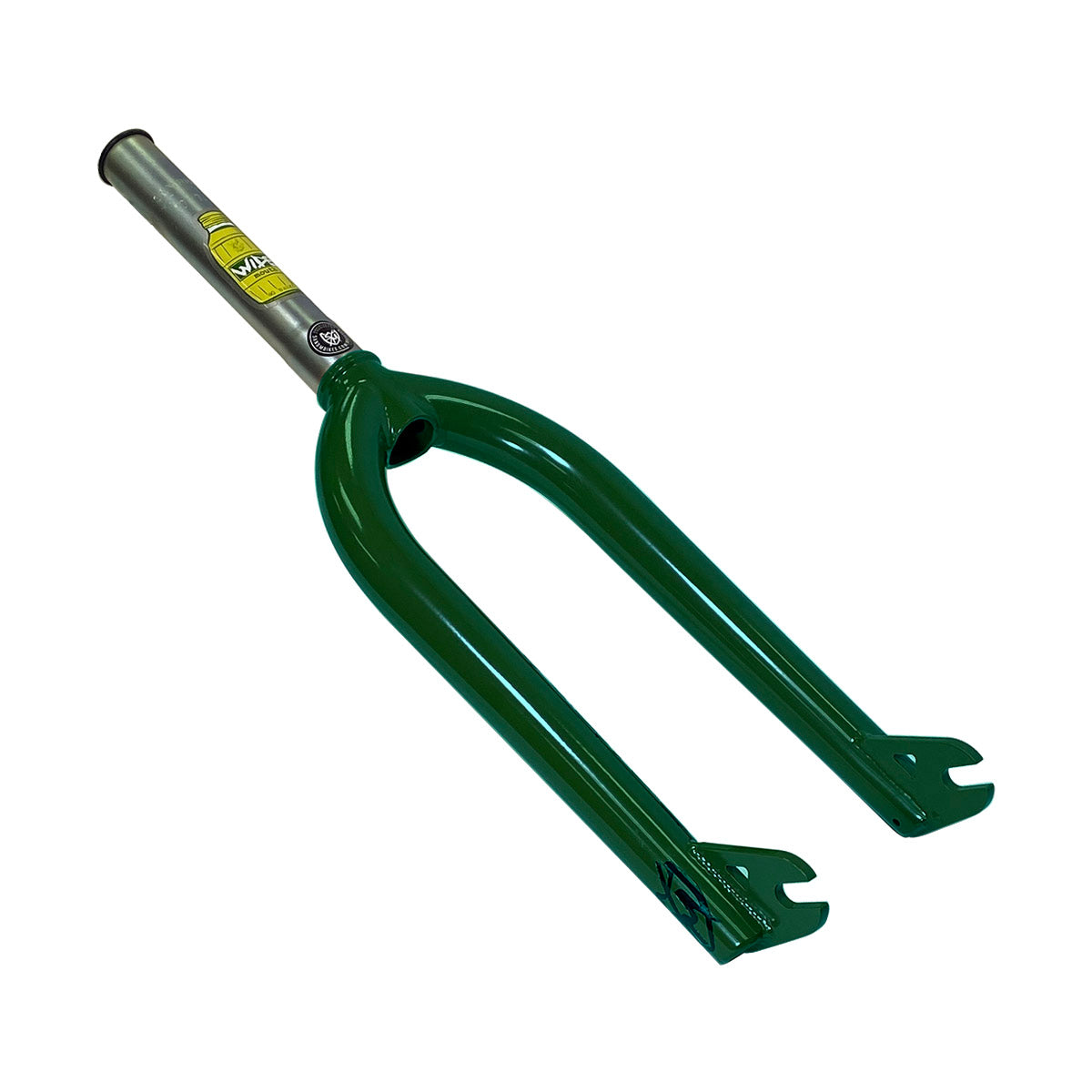

The S&M Widemouth is a full chromoly BMX fork with an enlarged crown radius that clears 2.45" tires without rubbing. Double-butted, tapered legs, a one-piece CNC-machined steerer and a traditional 33mm offset make it a stable fork for street, park, dirt and transition. Offered in 20" and 22" sizes and colors including Blue Groove, Cheeto Orange, Flat Black, Gloss Black, Hot Pink and Gloss White.
Features

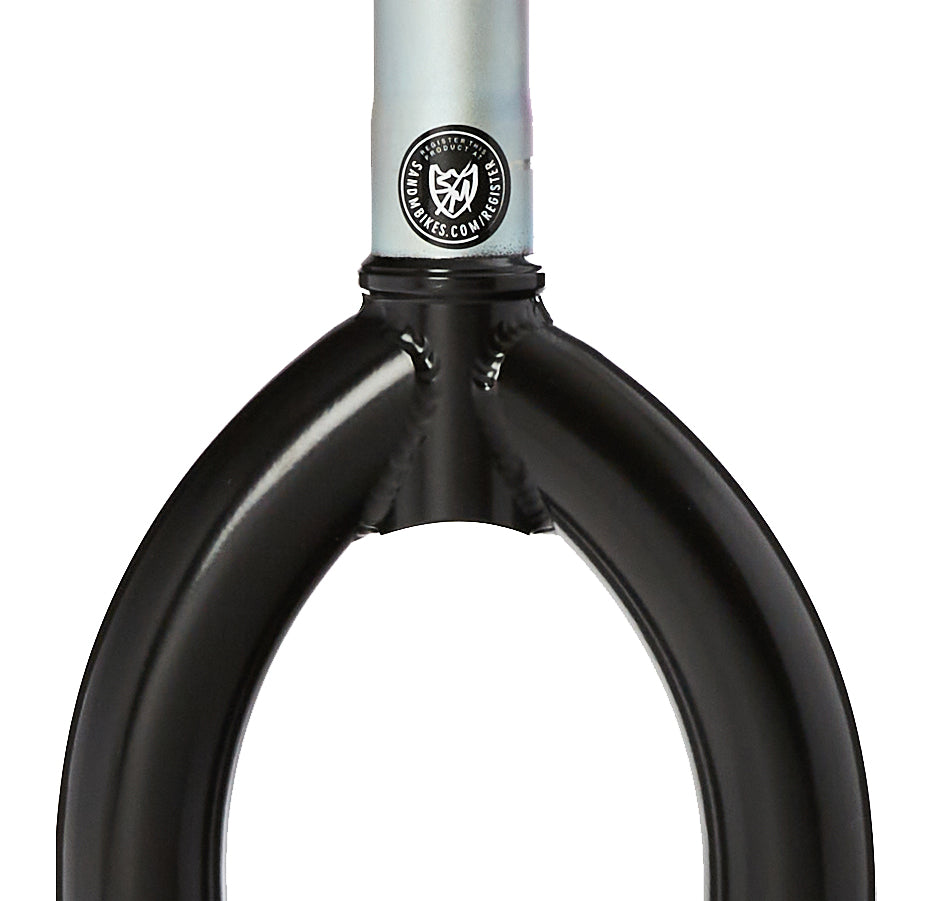

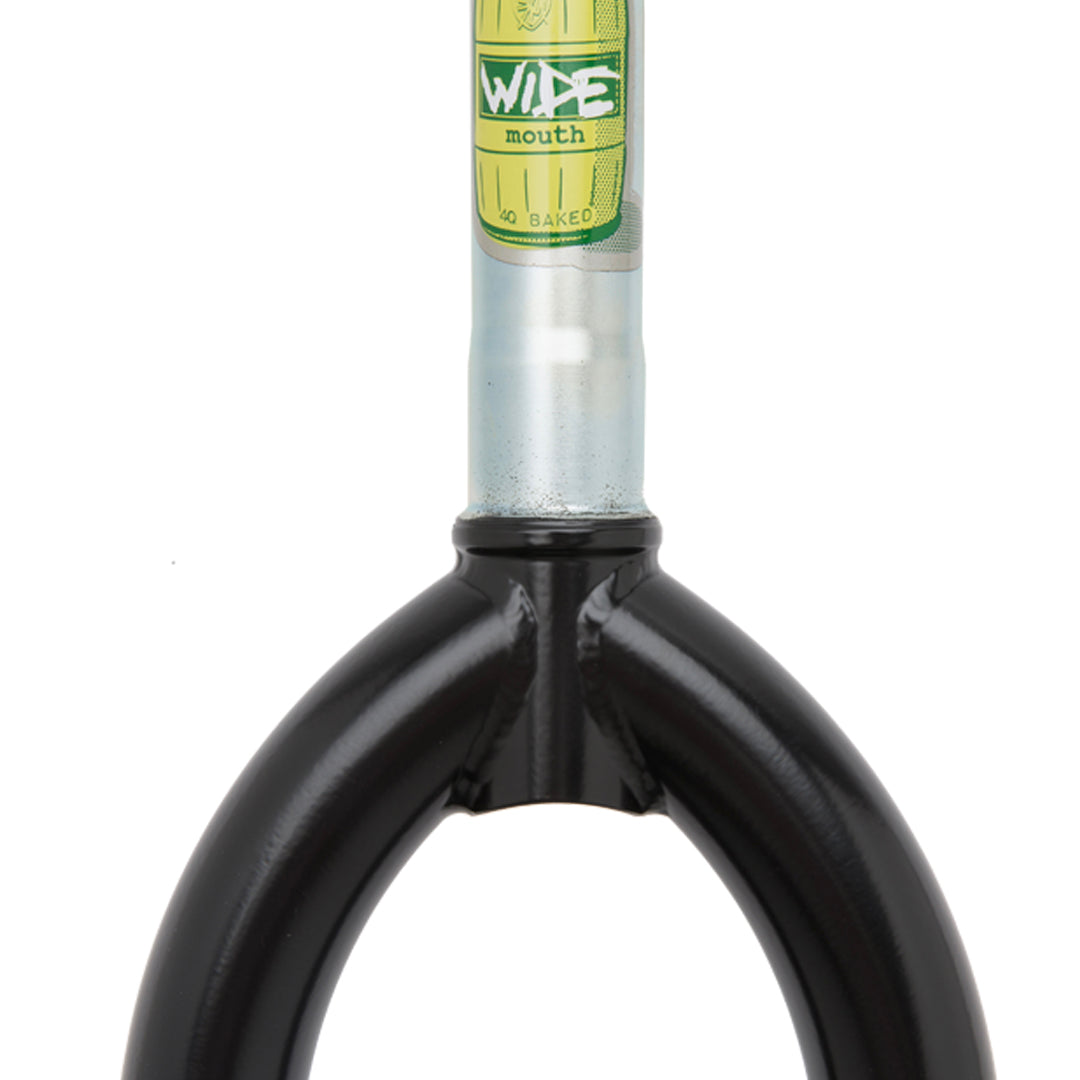

- Widemouth crown for 2.3"-2.45" tires, no rub on hard landings

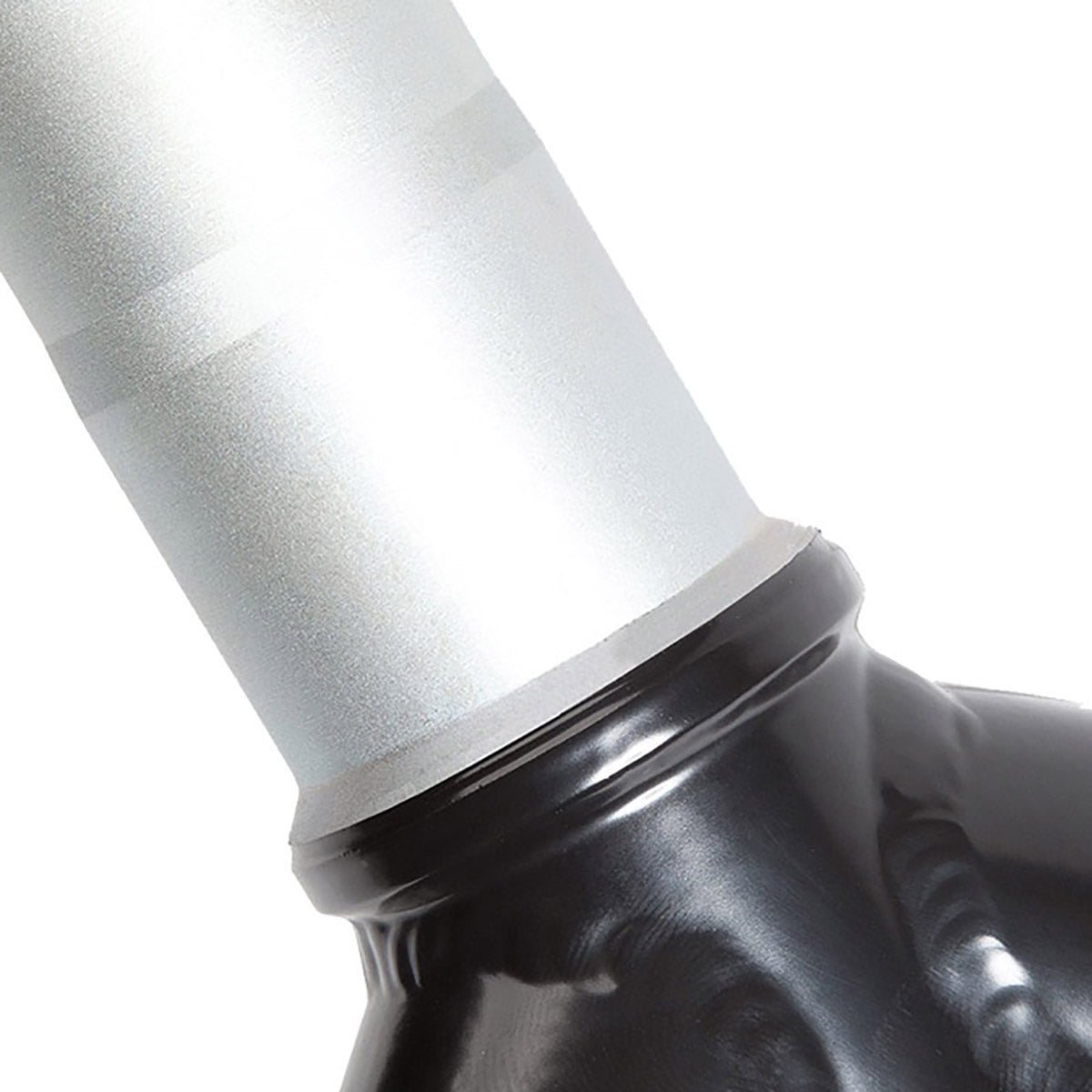

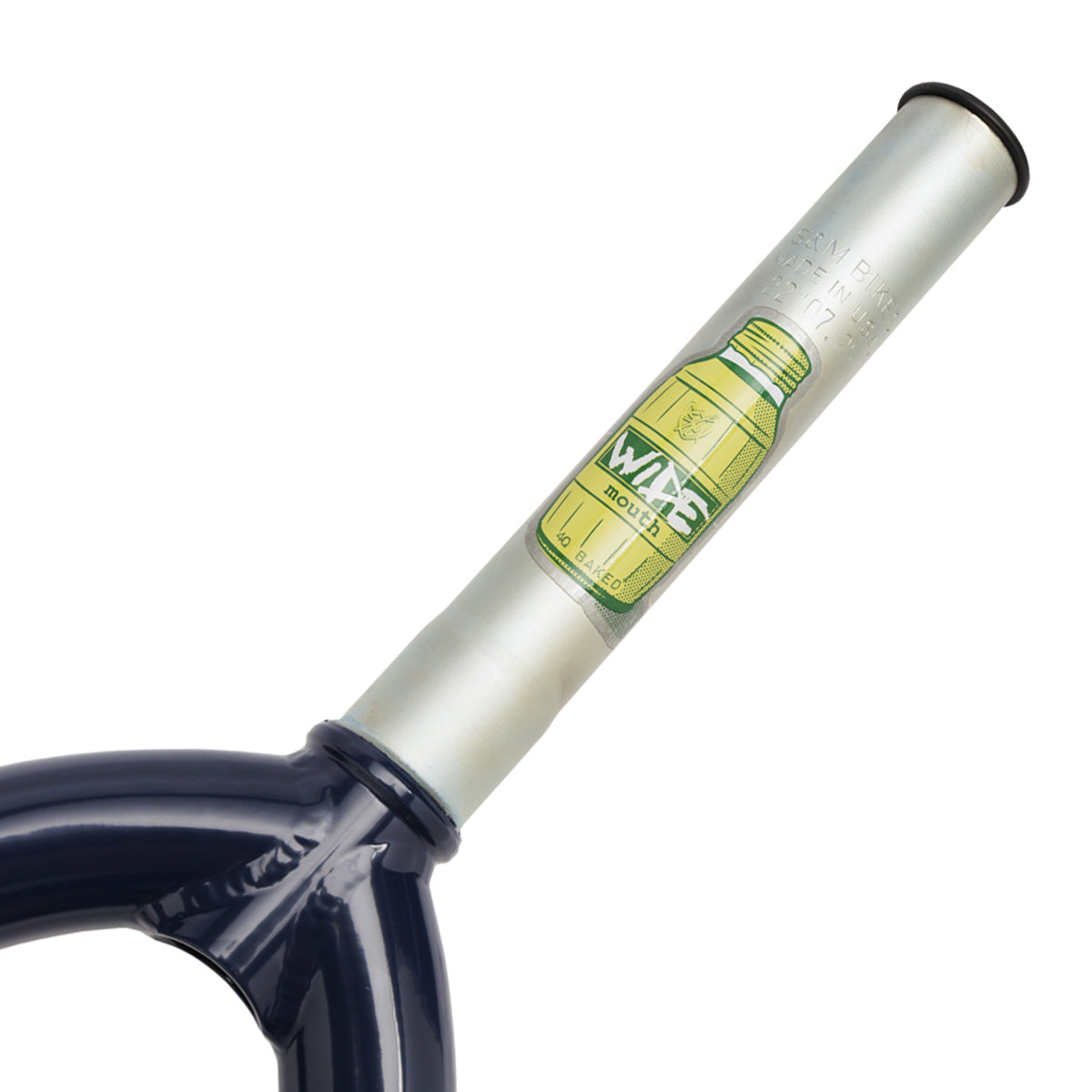

- One-piece CNC-machined 4130 steerer with integrated bearing race

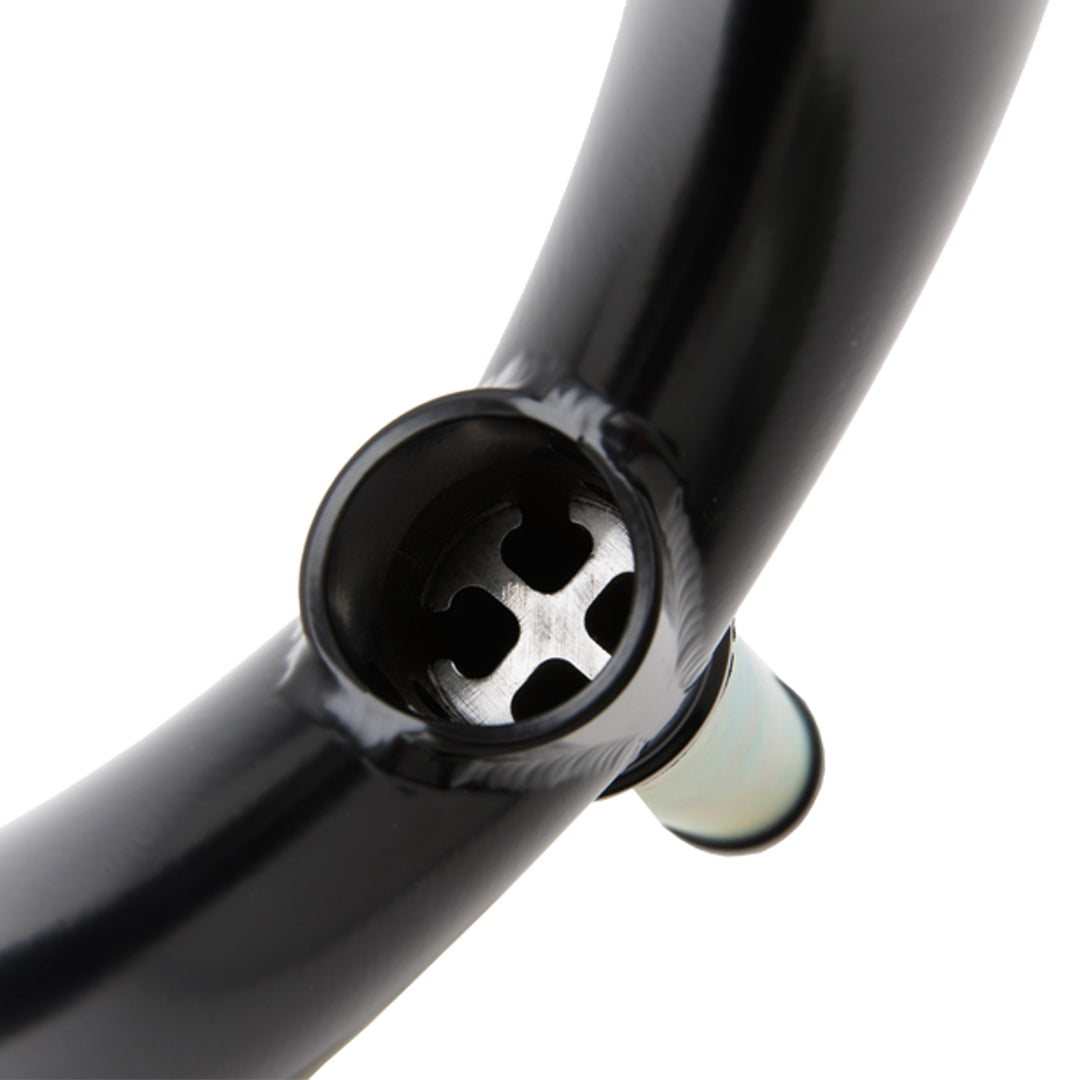

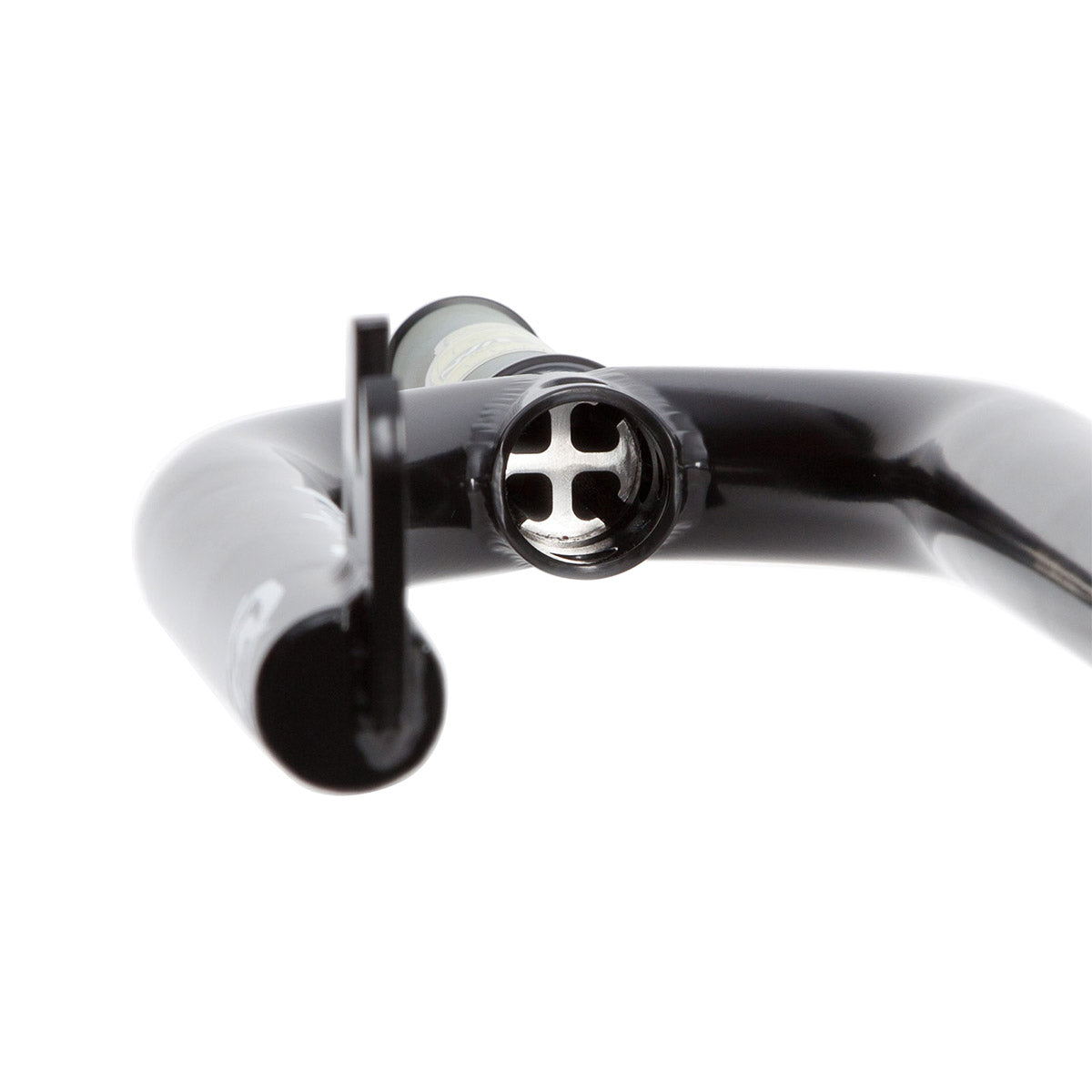

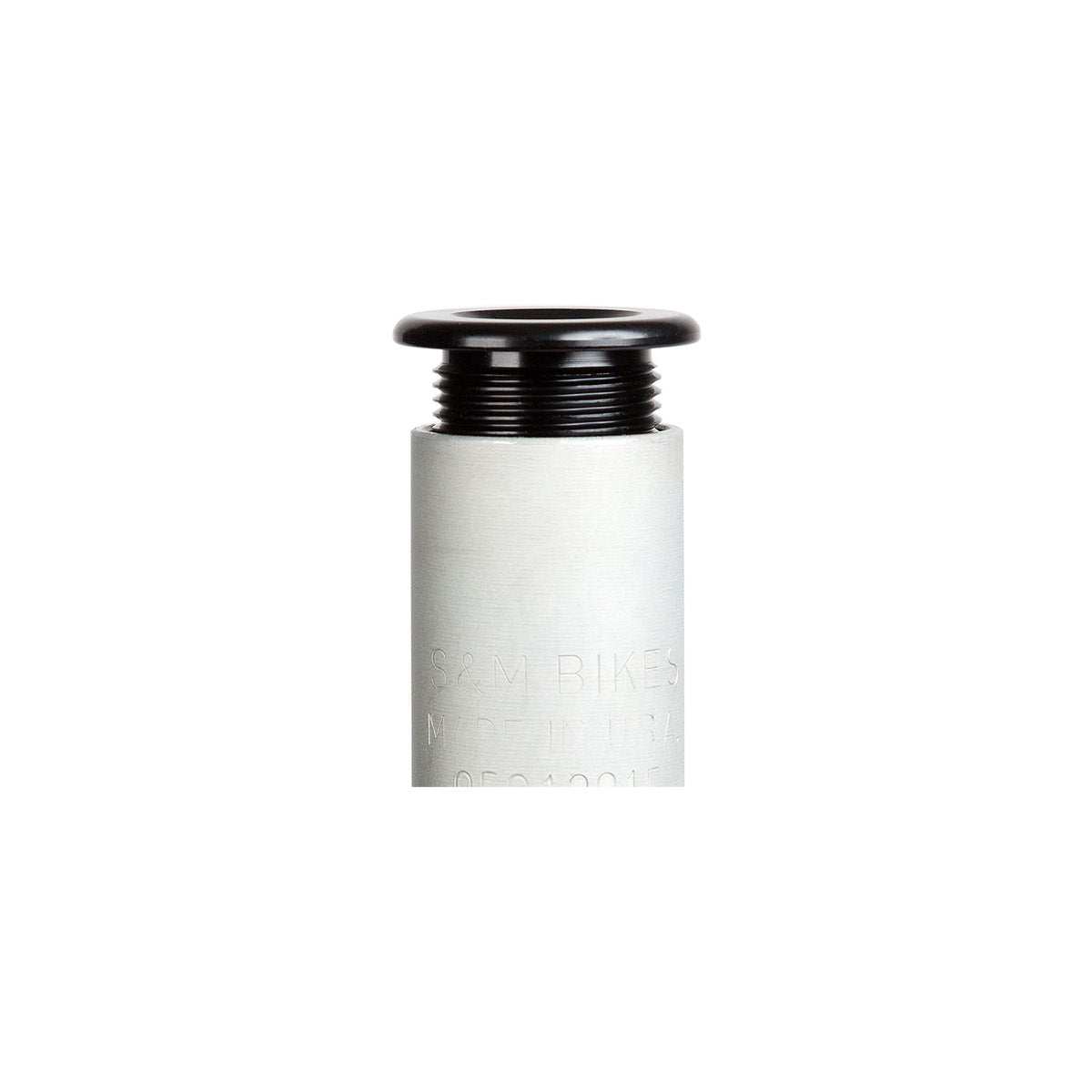

- Extruded 6061 aluminum steerer insert resists deformation under stem torque and impacts

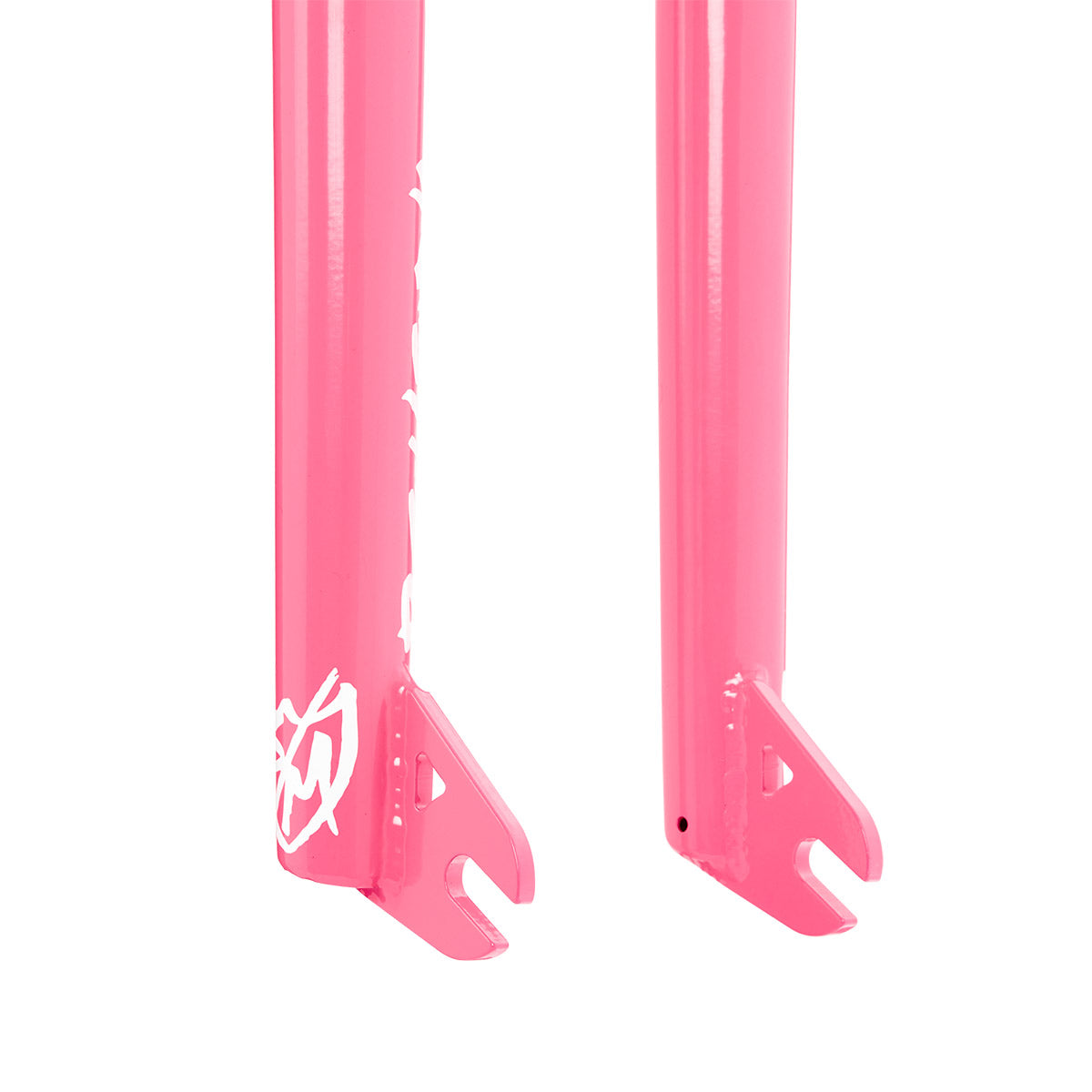

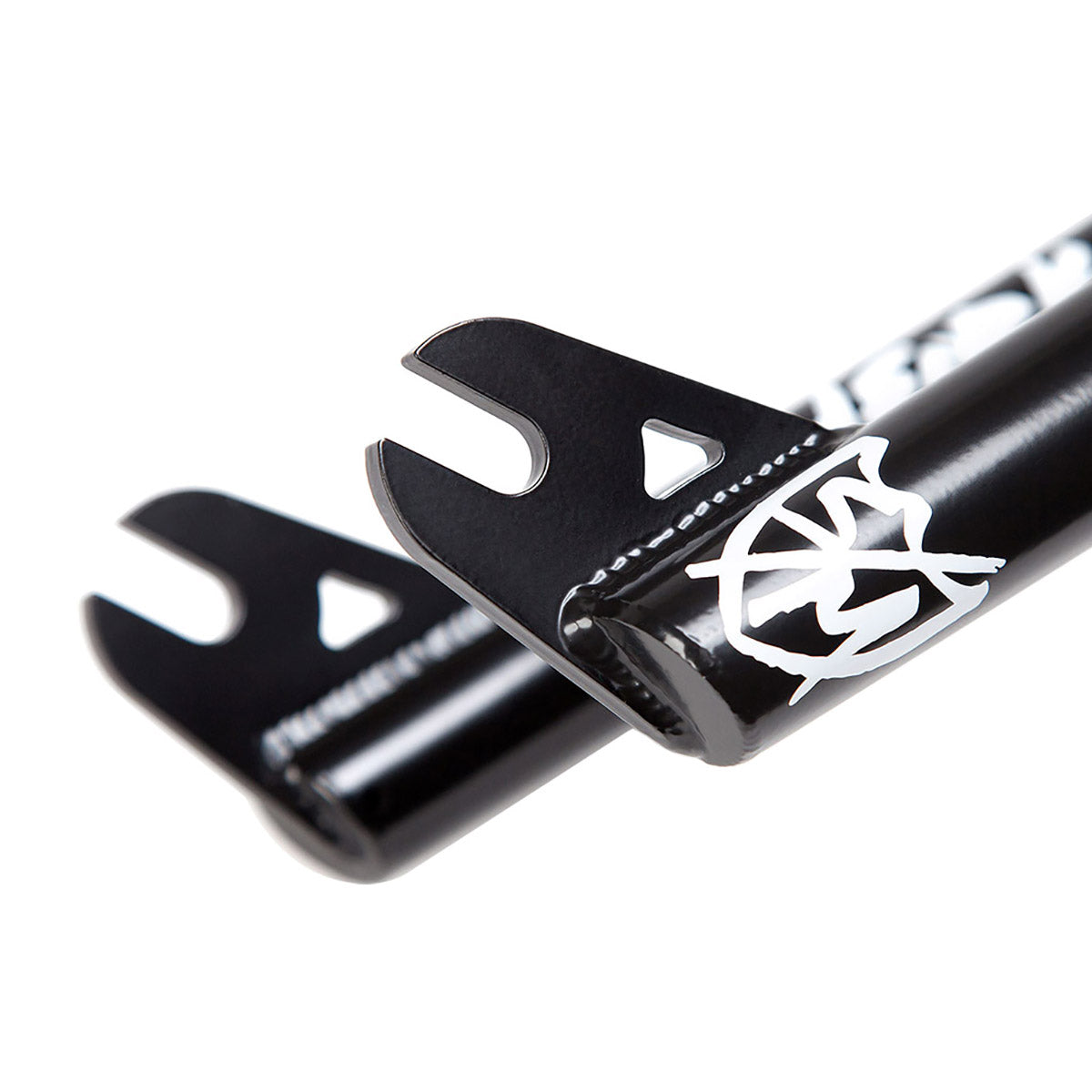

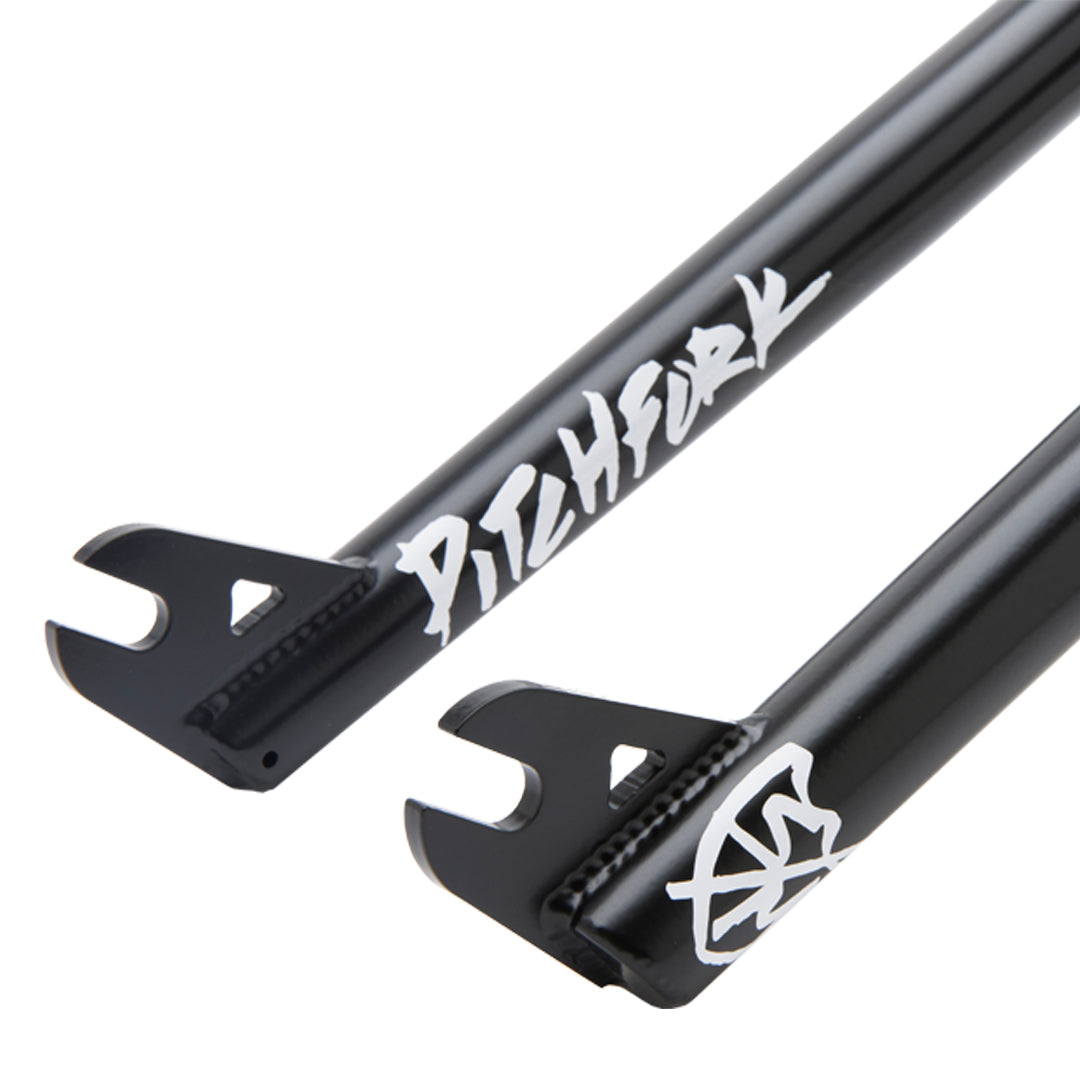

- Laser-cut 3/8" dropouts for accurate wheel alignment
- 4Q baked post-weld heat treatment
Specs
- Legs: Double-butted, tapered 4130 chromoly
- Steerer tube length: 173mm
- Offset: 33mm

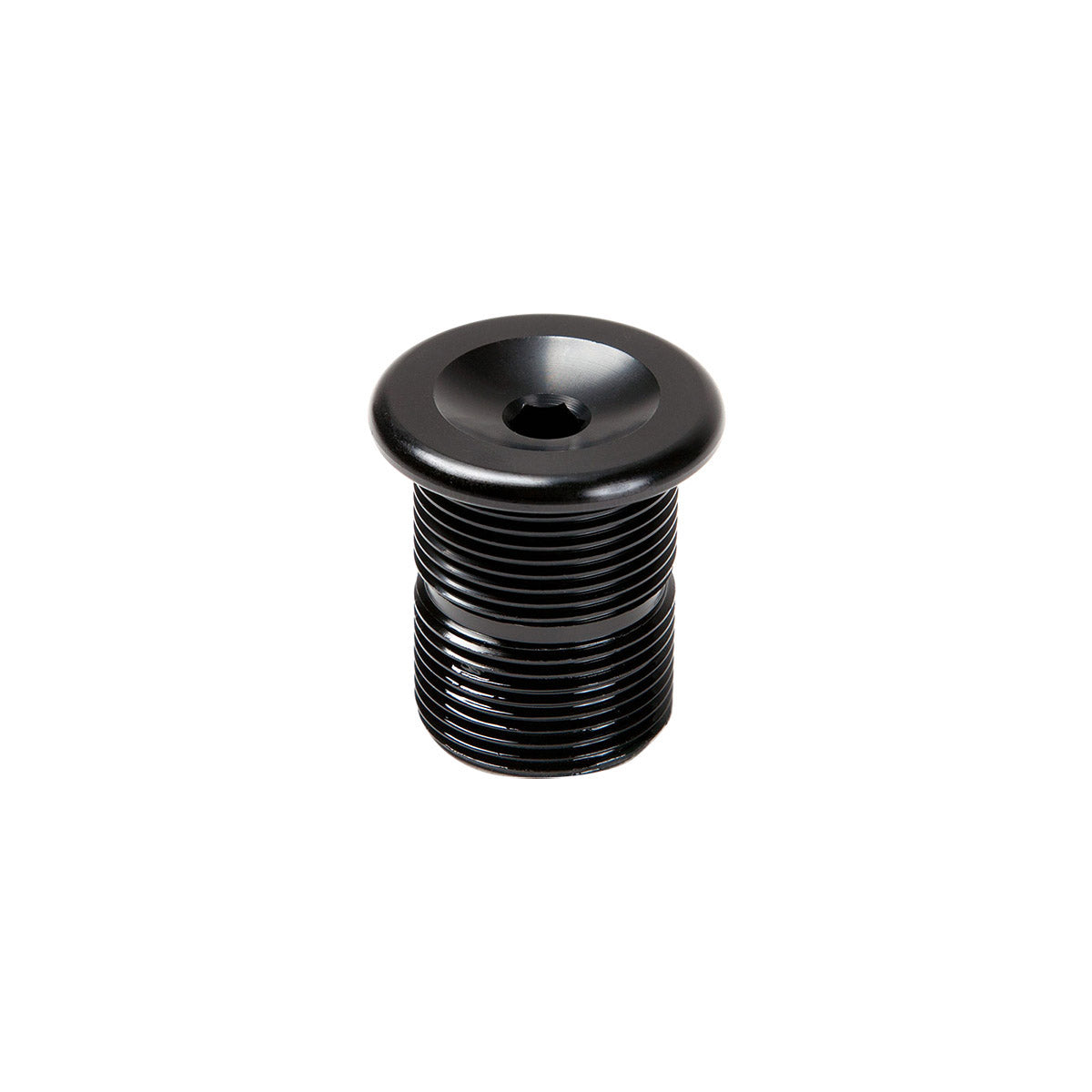

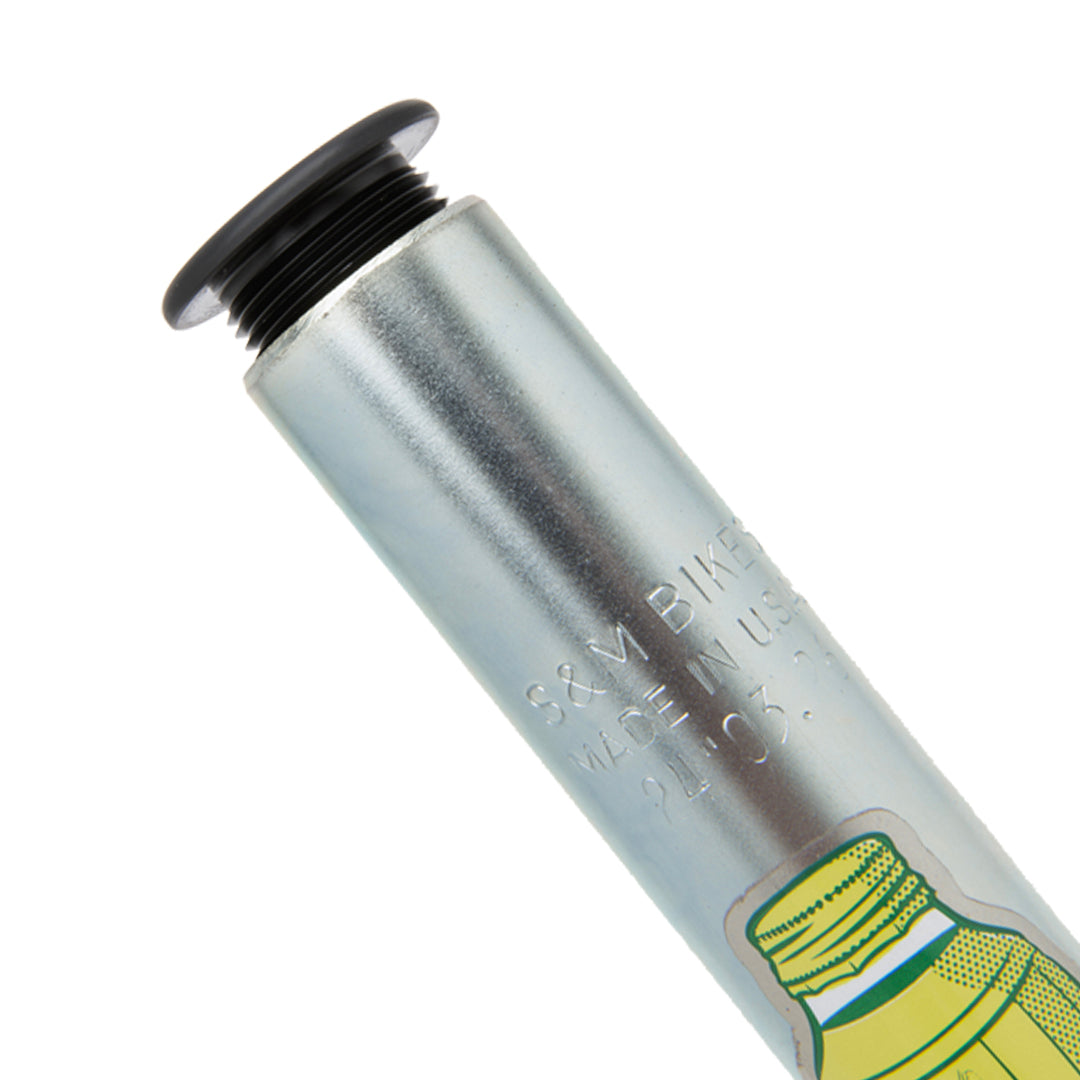

- Compression: M24 x 1.5 thread with 6mm allen slot
- Axle to crown: 320mm (20"), 345.9mm (22")
- Tire clearance: 2.45"
- Weight: 1.99 lb / 0.90 kg (20"), 2.35 lb / 1.06 kg (22")
Fitment
Fits frames with integrated or internal headsets (1-1/8" steerer) and 3/8" front axles. The 20" version is for standard BMX frames; the 22" version fits BMX cruiser frames.
