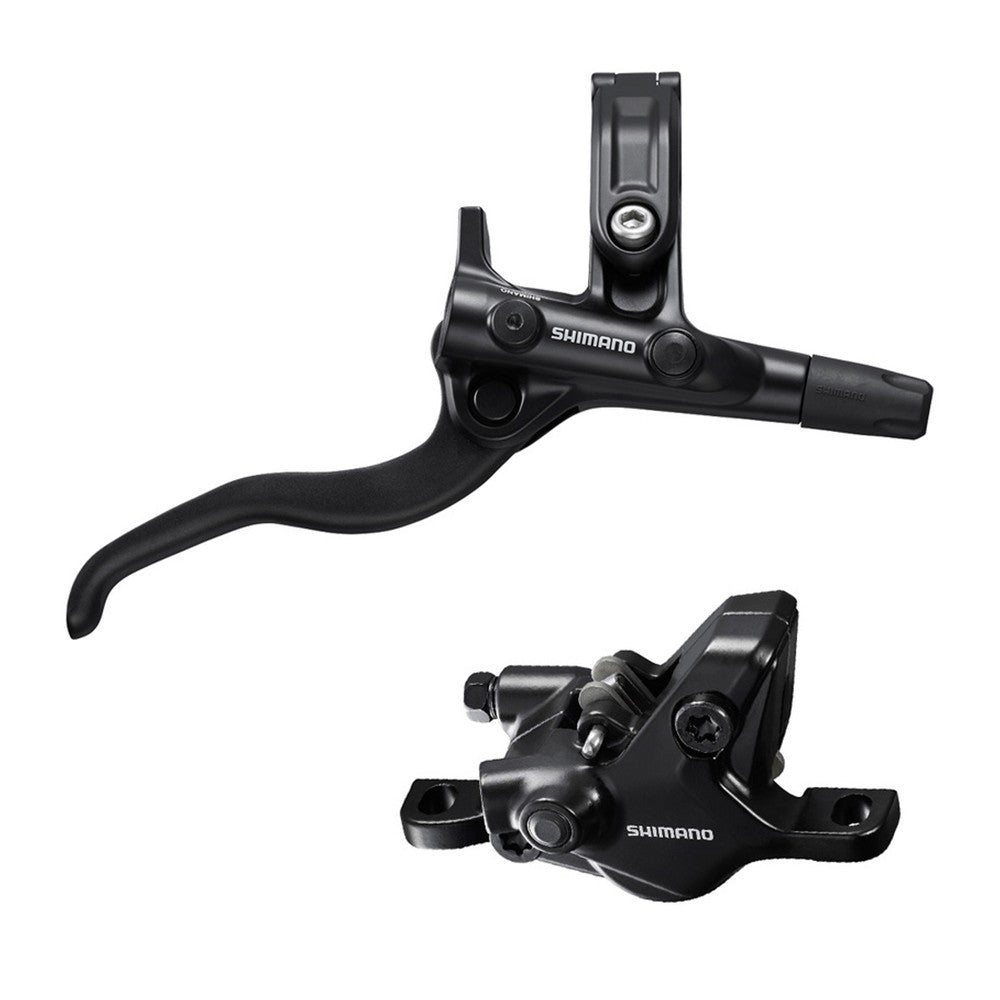

Shimano BL-M4100(R) / BR-M410(R) Hydraulic Brake Kit

Overview

The Shimano Deore BL-M4100 / BR-M410 is a mid-range hydraulic disc brake system designed for trail and cross-country riding. This complete kit includes a 2-piston caliper and ergonomic 2-finger lever with quick engagement, I-Spec EV compatibility, and one-way bleeding technology for intuitive, powerful braking control.

Key Features

• Quick Brake Engagement — Optimized shorter free stroke reduces lever travel before braking begins; delivers responsive, intuitive braking feel with less finger movement
• Intuitive and Powerful Braking — 2-piston caliper tuned for balanced stopping power and precise modulation; provides confident braking across varied terrain
• High-Performance Brake Control — Refined lever geometry and caliper design work together for superior control and consistent modulation across different riding inputs
• Optimized Ergonomic 2-Finger Lever — Compact lever designed for efficient thumb and finger engagement; reduces hand fatigue during extended riding and provides natural braking feel
• Additional Contact Point — Extra lever support contact increases structural stiffness; reduces lever flex and improves braking precision
• Rider-Tunable Cockpit — Adjustable reach and engagement characteristics allow personalization for different hand sizes and riding preferences
• I-Spec EV Compatible — 22.2mm clamp diameter enables integration with I-Spec EV shifter mounts; creates clean, integrated cockpit setup without separate shifter levers
• Post-Mount Caliper — Standard post-mount design ensures broad frame compatibility across modern trail and cross-country bikes
• One-Way Bleeding — Simplified Shimano one-way bleeding process; no complex procedures or special expertise required for maintenance
• Resin Brake Pads — Organic pad material delivers quiet, responsive braking with excellent modulation; produces minimal noise during operation
• JKit System — Complete integrated brake system with matched lever and caliper for seamless compatibility and optimal performance
• Lightweight Construction — Approximately 307g total weight (excluding rotor and adapter) keeps drivetrain mass minimal
• Included Hose — SM-BH59-SS 1700mm hose provided for straightforward rear brake installation

Technical Specifications

• Brake type: Hydraulic disc (2-piston)
• Mount type: Post-mount
• Lever: BL-M4100 (right-hand, 2-finger design)
• Caliper: BR-M410 (2-piston)
• Lever clamp: I-Spec EV compatible (22.2mm)
• Piston material: Synthetic resin
• Brake pads: Resin organic (included)
• Fluid type: Mineral oil (low-viscosity)
• Hose: SM-BH59-SS (1700mm, included)
• Rotor compatibility: Standard post-mount rotors (160mm, 180mm recommended)
• Bleeding method: One-way bleeding
• System: JKit (integrated lever and caliper)
• Weight: Approximately 307g (without rotor and adapter)
• Series: Shimano Deore (mid-range)

Compatibility & Ideal Use Cases

Compatible with post-mount frames and standard post-mount disc rotors (160mm and 180mm recommended). I-Spec EV compatibility enables integration with matching Shimano shifters for clean cockpit integration. Designed primarily for mountain biking, trail riding, and cross-country applications, not BMX use. Ideal for intermediate to advanced riders seeking responsive, powerful braking with quick engagement and excellent modulation. The 2-finger ergonomic lever and I-Spec EV compatibility suit riders prioritizing refined cockpit integration and efficient hand control. The lightweight construction and optimized geometry make this brake kit well-suited for trail and cross-country riding where responsive control and weight efficiency are priorities. The one-way bleeding system and resin pads provide straightforward maintenance and quiet operation. Well-suited for riders upgrading from entry-level brakes seeking improved performance and control. Not recommended for extreme downhill or gravity-focused riding where maximum stopping power of 4-piston systems is required.
