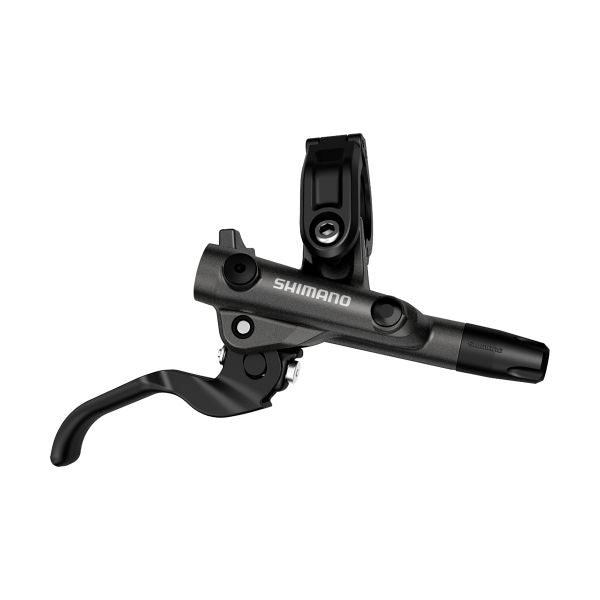

Shimano Brake Lever BL-M6100 Right Hydraulic Disc Brake

Overview

The Shimano BL-M6100 is a hydraulic disc brake lever engineered for the right hand with quick engagement and intuitive braking response. Featuring I-SPEC EV compatibility and SERVOWAVE technology, this lever delivers responsive modulation and rider-tunable cockpit integration for trail and cross-country riding.

Key Features

• Quick Brake Engagement — Optimized shorter free stroke reduces lever travel before braking begins; delivers responsive, intuitive braking feel with minimal finger movement
• Intuitive and Powerful Braking — Refined lever geometry provides natural, confident braking response across varied terrain and riding inputs
• High-Performance Brake Control — Advanced lever design works seamlessly with compatible brake calipers for superior control and precise modulation
• Additional Contact Point — Extra lever support contact increases structural stiffness; reduces flex and improves braking precision and response consistency
• Rider-Tunable Cockpit — I-SPEC EV with 10-degree rotation angle setting range allows customized shifting lever positioning and brake engagement tuning
• I-SPEC EV Compatible — 22.2mm clamp diameter enables integration with I-SPEC EV shifter mounts; creates clean, integrated cockpit setup without separate shifter levers
• Action-Optimized Design — Lever shape and pivot points refined for efficient braking and reduced hand fatigue during extended riding
• Right-Hand Configuration — Designed specifically for right-hand operation; pairs with left-hand lever for complete hydraulic disc brake system
• J-Kit Compatible — Works seamlessly with Shimano J-Kit Easy Hose Joint System for simplified hose installation and maintenance

Technical Specifications

• Brake type: Hydraulic disc
• Position: Right hand
• Lever clamp: I-SPEC EV compatible (22.2mm diameter)
• I-SPEC EV rotation range: 10 degrees
• Brake fluid: Low-viscosity mineral oil (SM-LVOIL)
• System: JKit compatible (Easy Hose Joint System)
• Hose compatibility: SM-BH90-SS and other compatible Shimano brake hoses
• Series: Shimano Deore (mid-range)
• Material: Aluminum and composite construction

Compatibility & Ideal Use Cases

Compatible exclusively with hydraulic disc brake calipers using low-viscosity mineral oil; incompatible with mechanical brakes or DOT fluid systems. I-SPEC EV clamp allows integration with matching Shimano shifters and bar-mounted accessories. Designed primarily for mountain biking, trail riding, and cross-country applications, not BMX use. Ideal for riders seeking responsive, quick-engaging braking with intuitive feel and rider customization options. The I-SPEC EV compatibility and 10-degree rotation range suit riders prioritizing integrated cockpit design and personalized brake engagement tuning. The additional contact point and stiff lever design benefit riders demanding precise control on technical terrain. Well-suited for intermediate to advanced trail and cross-country riders upgrading from entry-level brakes. The shorter free stroke provides noticeable improvement in braking response compared to budget lever designs. Pair with BR-M6100 or other compatible post-mount calipers for optimized system performance. Not suitable for BMX, road, or mechanical brake applications.
