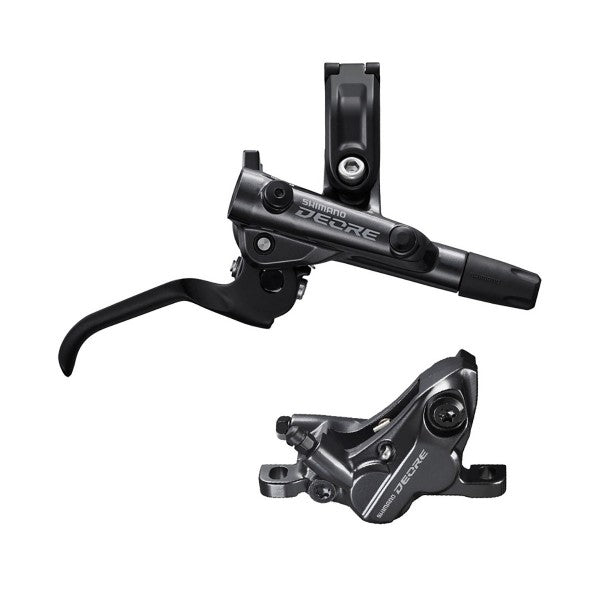

Shimano Deore BL-M6100/BR-M6120 Hydraulic Brake Kit

Product Overview

The Shimano Deore BL-M6100 and BR-M6120 form a complete hydraulic disc brake system engineered for enduro and downhill riding. This kit pairs a SERVOWAVE 2-finger brake lever with a powerful 4-piston caliper, delivering responsive modulation and reliable stopping power across technical terrain. The system features one-way bleeding, J-Kit easy hose joint technology, and I-Spec EV compatibility for integrated shifter mounting.

Key Features

• SERVOWAVE lever technology – Advanced cam profile delivers faster response by engaging brake pads early in the lever stroke; extends remaining lever travel for precise power modulation and shortened idle time
• 4-piston caliper design – Distributes braking force evenly across rotor; maximizes stopping power and heat dissipation for sustained descents and aggressive riding
• J-Kit easy hose joint system – Integrated olive in lever eliminates barbed fitting complexity; allows tool-free hose installation and removal for fast field maintenance
• One-way bleeding system – Simplified bleeding procedure reduces air entrapment and allows fast, clean maintenance without specialized equipment
• Angled clamp geometry – Non-parallel handlebar mounting creates dual contact points; significantly increases lever stiffness and reduces flex during hard braking
• 2-finger lever design – XTR/XT-inspired construction optimized for enduro and downhill performance; comfortable ergonomics across extended braking scenarios
• Tool-adjustable reach – Integrated reach adjustment accommodates different hand sizes and riding positions without lever removal
• I-Spec EV compatibility – Allows direct mounting of Shimano Deore SL-M6100-I shifting levers to brake lever; eliminates separate lever clamps and reduces handlebar clutter
• Ceramic pistons – Resists heat buildup and maintains consistent pressure across extended braking; delivers predictable feel without fade
• D03S resin pads included – Balanced friction material provides good modulation and reliable performance across variable conditions

Technical Specifications

• Brake system type: Hydraulic disc, 4-piston
• Mount type: Post-mount
• Lever model: BL-M6100
• Caliper model: BR-M6120
• Lever technology: SERVOWAVE
• Lever type: 2-finger
• Lever material: Aluminum (anodized)
• Lever interface: I-Spec EV
• Lever reach: Tool-adjustable
• Hose joint type: J-Kit (easy joint system)
• Caliper material: Aluminum (painted)
• Piston type: Ceramic, 4 total
• Pad specification (standard): D03S Resin
• Pad compatibility: D02S Metal, D03S Resin
• Included hose: SM-BH90-SS 2000mm
• Hydraulic fluid: Shimano Mineral Oil
• Master cylinder material: Aluminum (painted)
• Hardware: Stainless steel and steel fasteners
• Bleeding type: One-way (funnel bleeding)
• Rotor compatibility: 140mm–203mm (SM-RT54, SM-RT56, SM-RT64, SM-RT66)

Compatibility and Ideal Use Cases

• Compatible rotors: SM-RT54, SM-RT56, SM-RT64, SM-RT66 (Shimano recommended); 140mm–203mm standard rotors; 180mm–203mm rotors recommended to match 4-piston power
• Compatible shifters: Shimano Deore SL-M6100-I (direct I-Spec EV mount); compatible with other I-Spec EV shifters
• Frame requirement: Post-mount brake mounts (modern mountain bike standard)
• Hose requirement: SM-BH90-SS included (2000mm); can be cut to length
• Fluid type: Shimano Mineral Oil only; do not mix with DOT fluid systems
• Pad type: D03S Resin (standard); D02S Metal available for alternative friction characteristics
• Best for: Enduro riders, downhill enthusiasts, technical terrain specialists, and aggressive all-mountain riding
• Ideal conditions: Steep descents, sustained braking, technical terrain, racing applications, and conditions demanding maximum stopping power and precise control
• Rotor size recommendation: 180mm–203mm rotors recommended to fully utilize 4-piston power output and prevent rotor overheating
• Installation: Requires mechanical skill and one-way bleeding procedure; J-Kit hose joint simplifies hose installation
• Shifter integration: I-Spec EV compatibility allows clean, integrated brake/shifter setup; reduces handlebar complexity
• Note: 4-piston design delivers substantial stopping power—pair with larger rotors (180mm minimum, 203mm recommended) to prevent heat-induced fade; SERVOWAVE technology reduces initial braking delay; one-way bleeding simplifies maintenance compared to traditional systems; D03S resin pads balanced for modulation; metal pads (D02S) available if superior modulation preferred; monitor pad wear regularly and replace with compatible D-series pads; angled clamp geometry critical for stiffness—follow installation instructions for proper alignment
