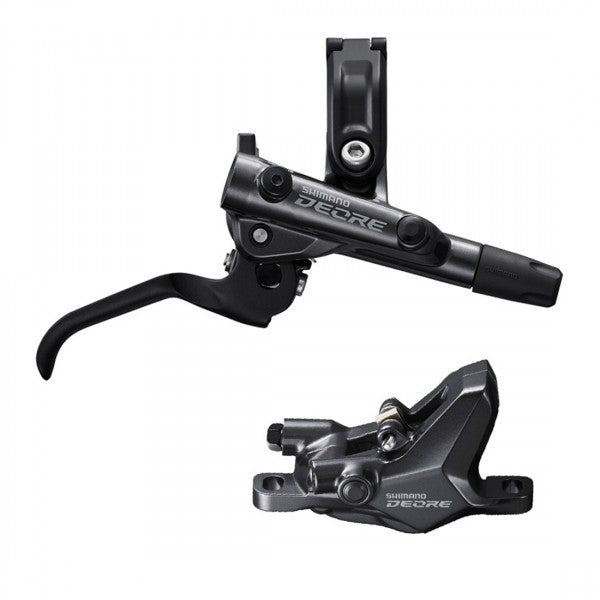

Shimano Deore BL-M6100 Hydraulic Brake Kit

Overview

The Shimano Deore M6100 brake kit pairs a SERVOWAVE lever with a lightweight 2-piston caliper for intuitive, powerful braking across trail and cross-country riding. This complete J-Kit system includes the BL-M6100 lever, BR-M6100 caliper, brake pads, and 1700mm hose for straightforward installation and trouble-free maintenance.

Key Features

• Quick Brake Engagement — Optimized shorter free stroke reduces lever travel before braking begins; delivers responsive, intuitive braking feel with minimal finger movement
• SERVOWAVE Technology — Refined power curve optimizes pad-to-rotor friction management; delivers superior modulation and consistent braking performance across varied inputs
• Intuitive and Powerful Braking — 2-piston caliper engineered for balanced stopping power and precision control; provides confident braking across varied terrain
• High-Performance Brake Control — Refined lever geometry and caliper design work together for superior control and responsive modulation
• Additional Contact Point — Extra lever support contact increases structural stiffness; reduces flex and improves braking precision
• Rider-Tunable Cockpit — I-SPEC EV with 10-degree rotation angle setting range allows customized shifting lever positioning and brake engagement tuning
• I-SPEC EV Compatible — 22.2mm clamp diameter enables integration with I-SPEC EV shifter mounts; creates clean, integrated cockpit without separate levers
• Quick Piston Retraction — Advanced piston design ensures fast return to neutral position; reduces drag and improves modulation
• Lightweight Construction — 2-piston design minimizes overall weight while maintaining reliable stopping power; benefits weight-conscious trail riders
• ICE TECHNOLOGIES — Advanced thermal management keeps caliper cool during sustained braking; maintains consistent performance on extended descents
• J-Kit Easy Hose Joint System — Integrated olive on lever simplifies hose installation and removal without additional tools or fittings; facilitates quick hose swaps and maintenance
• One-Way Bleeding — Simplified Shimano one-way bleeding process; straightforward maintenance without complex procedures
• Post-Mount Compatibility — Standard post-mount design ensures broad frame compatibility across modern trail and cross-country bikes
• Complete Kit — Includes lever, caliper, brake pads, and 1700mm hose for ready-to-install rear brake setup

Technical Specifications

• Brake type: Hydraulic disc (2-piston)
• Mount type: Post-mount
• Lever: BL-M6100 (right-hand, 2-finger design)
• Caliper: BR-M6100 (2-piston lightweight)
• Lever clamp: I-SPEC EV compatible (22.2mm)
• I-SPEC EV rotation range: 10 degrees
• Piston material: Synthetic resin
• Brake pads: Included (standard organic)
• Pad compatibility: D02S metal, D03S resin options
• Fluid type: Mineral oil (low-viscosity)
• Hose: SM-BH90-SS (1700mm, included)
• Hose system: J-Kit Easy Hose Joint (integrated olive)
• Rotor compatibility: SM-RT54, SM-RT56, SM-RT64, SM-RT66 (140–203mm, not included)
• Bleeding method: One-way bleeding
• System: JKit (integrated lever and caliper)
• Series: Shimano Deore (mid-range)
• Thermal technology: ICE TECHNOLOGIES

Compatibility & Ideal Use Cases

Compatible with post-mount frames and standard post-mount disc rotors (140–203mm; SM-RT54, SM-RT56, SM-RT64, SM-RT66 recommended). I-SPEC EV compatibility enables integration with matching Shimano shifters for clean cockpit integration. Designed primarily for mountain biking, trail riding, and cross-country applications, not BMX use. Ideal for intermediate to advanced riders seeking responsive, lightweight braking with excellent modulation and quick engagement. The SERVOWAVE technology, quick piston retraction, and ICE TECHNOLOGIES thermal management make this kit well-suited for extended trail riding and technical descents. The J-Kit Easy Hose Joint system simplifies maintenance and allows quick hose swaps without additional tools. The lightweight 2-piston design benefits trail riders prioritizing responsiveness and reduced rotating mass. The included pads and hose provide immediate installation capability. Well-suited for riders upgrading from entry-level brakes seeking improved performance, control, and maintenance simplicity. Not recommended for extreme downhill or gravity-focused riding where 4-piston maximum stopping power is required.
