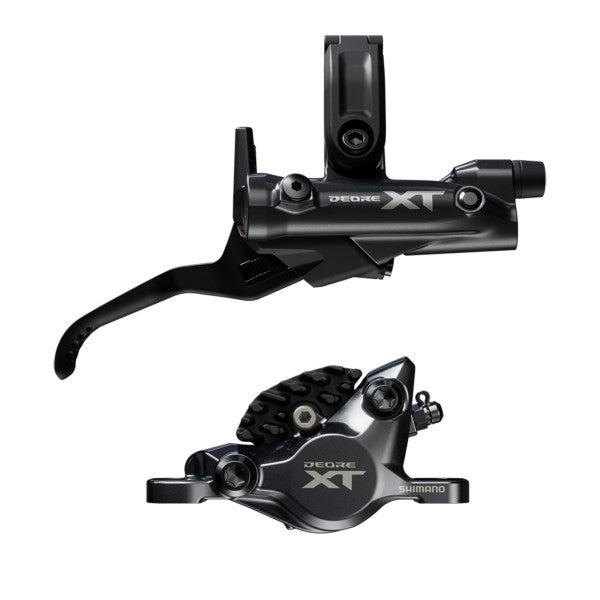

Shimano Deore XT Hydraulic Brake Kit BL-M8200(R) / BR-M8200(R)

Overview

The Shimano Deore XT hydraulic brake kit pairs a 2-piston caliper with a refined lever for lightweight, controlled braking across cross-country and trail riding. This complete J-kit includes the BL-M8200 lever and BR-M8200 caliper, delivering responsive modulation and consistent performance through ERGO FLOW and SERVO WAVE technologies.

Key Features

• Complete 2-Piston System — Lever and caliper pairing engineered for seamless compatibility; eliminates guesswork in component matching
• Lightweight Performance — 2-piston design prioritizes reduced weight without sacrificing adequate stopping power for XC and general trail use
• ERGO FLOW Technology — Ergonomic lever design with evolved shapes and closer pivot point follows the natural arc of the finger; delivers intuitive, powerful pulling motion
• SERVO WAVE ACTION — Optimized power curve manages pad-to-rotor friction throughout lever pull; delivers balanced braking and improved modulation
• Alloy Construction — Stamped aluminum lever blade and alloy caliper body combine strength with lightweight feel; proven durability across varied conditions
• Post-Mount Compatibility — Post-mount caliper standard ensures broad frame compatibility; straightforward installation
• Low-Viscosity Mineral Oil Formula — New formulation maintains consistent braking power across wider temperature range; improves performance in cold and hot conditions
• Updated Cable Routing — Clean hose routing reduces snagging and creates tidy aesthetic
• Flexible Pad Options — Compatible with multiple pad materials (D02S metal, D03S resin, N03A resin, N04C metal, P03A-RF resin, P04C-MF metal) allowing customization

Technical Specifications

• Brake type: Hydraulic disc (2-piston)
• Mount type: Post-mount

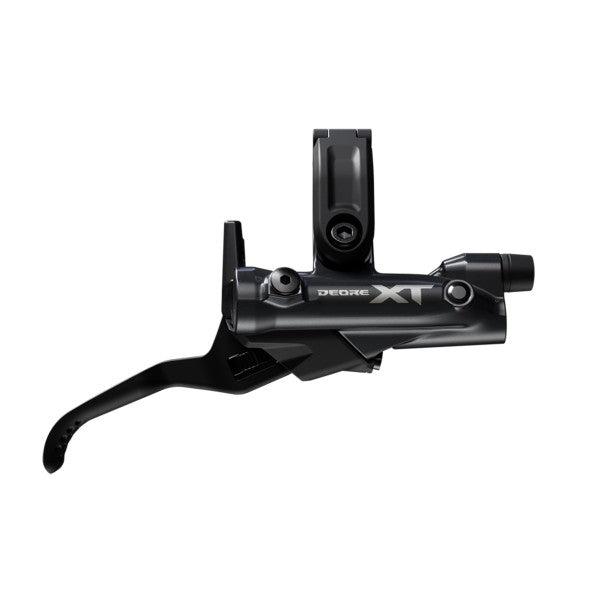

• Lever: BL-M8200 (right-hand configuration)

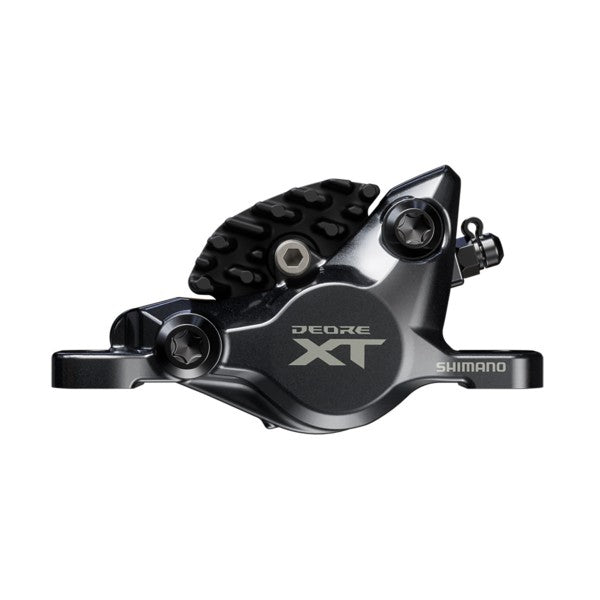

• Caliper: BR-M8200 (2-piston)
• Fluid type: Low-viscosity SM-LVOIL mineral oil (required; not included)
• Hose compatibility: SM-BH90-SBM
• Rotor compatibility: Standard 6-bolt mount
• Pad compatibility: D02S metal, D03S resin, N03A resin, N04C metal, P03A-RF resin, P04C-MF metal
• Series: Shimano Deore XT (mid-to-high-end)
• Configuration: J-kit (complete paired system)

Compatibility & Ideal Use Cases

Compatible exclusively with post-mount brake frames and forks and 6-bolt rotors. Requires low-viscosity SM-LVOIL mineral oil (sold separately); standard DOT or other mineral oils will damage seals and reduce performance. Designed primarily for mountain biking, not BMX use. Ideal for cross-country and trail riders seeking a complete, lightweight brake system engineered for balanced performance. The paired components deliver optimized modulation and consistent feel across varied terrain and weather conditions. Well-suited for riders prioritizing weight savings and responsive control without the stopping power demands of enduro or downhill riding. The flexible pad compatibility allows customization for specific trail conditions. Not suitable for BMX, road, or downhill applications requiring maximum stopping power.
