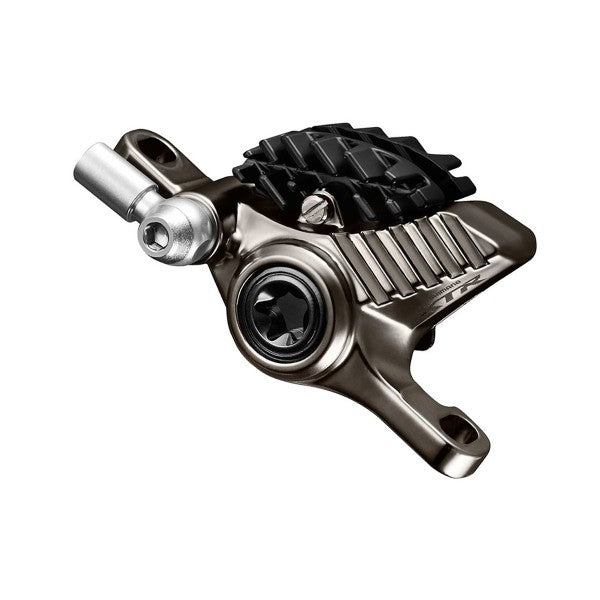

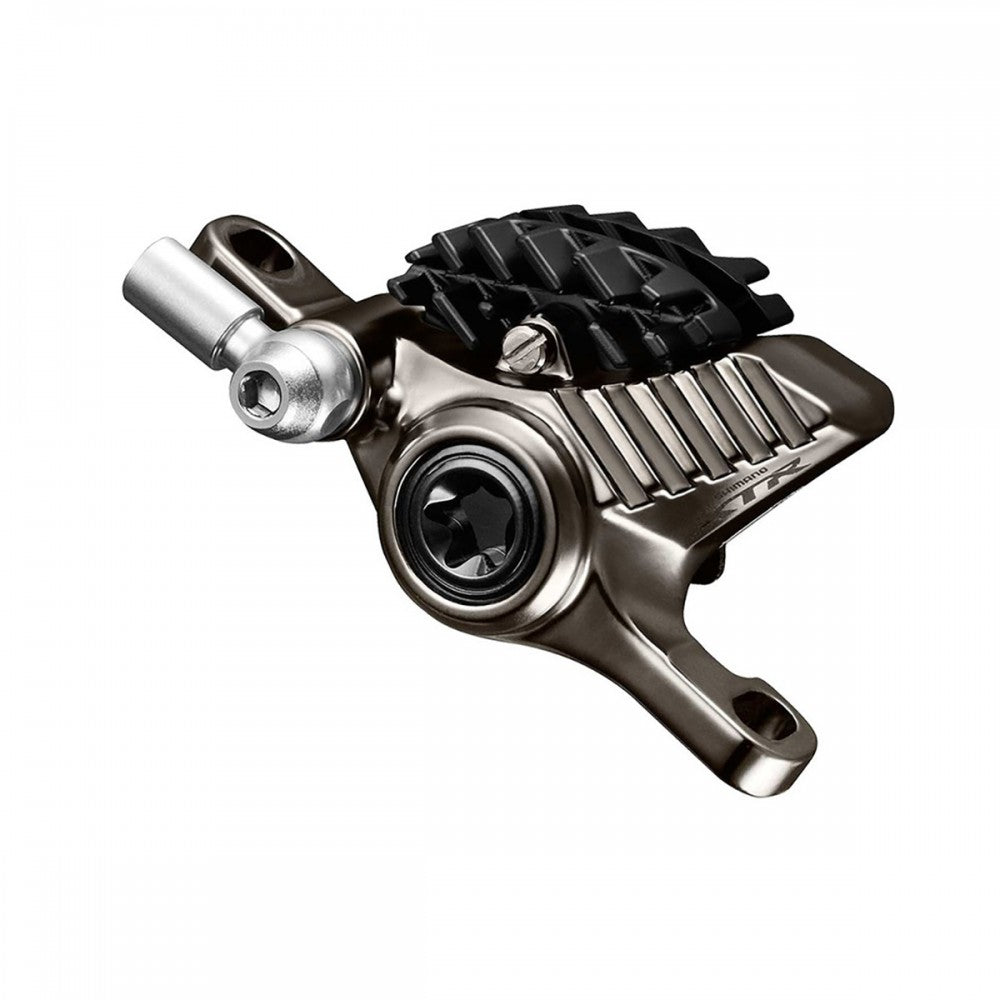

Shimano BR-M9020 XTR Hydraulic Disc Brake

Product Overview

The Shimano BR-M9020 XTR is a performance trail and enduro disc brake caliper engineered for technical terrain and sustained descents. This caliper combines advanced heat management with improved modulation through insulated pistons, new servo wave cam geometry, and ICE Technology radiator pads. At 110g with pads included, it delivers responsive braking control and stable performance across extreme conditions.

Key Features

• Advanced heat control system – ICE Technology radiator pads and insulated piston design (GFRP) maintain consistent braking power during extended descents and sustained braking; reduces temperature-induced performance fade
• Insulated piston (GFRP) – High-insulation resin construction resists thermal expansion and maintains predictable modulation across wide temperature ranges
• New servo wave with smooth cam – Improved piston geometry delivers smoother engagement and more linear modulation throughout the lever stroke; eliminates on/off characteristics
• Shorter free stroke – Reduced initial lever travel before brake engagement improves responsiveness and reduces fatigue on technical terrain
• New CFRP/alloy structure – Carbon fiber reinforced polymer combined with aluminum optimizes rigidity-to-weight ratio; delivers crisp power transfer without excess material
• High-rigidity aluminum caliper – Precision-machined design resists flex under heavy braking; maintains consistent rotor alignment and pad contact
• J04C metal pads with cooling fins – Superior friction material delivers excellent modulation and power; integrated cooling fins maximize heat dissipation during extended braking
• Improved modulation and response – Enduro/trail-focused power ratio balances stopping force with precise control for technical descents and varied terrain
• I-SPEC II compatibility – Narrow band design reduces handlebar clutter while maintaining ergonomic lever positioning
• New insulated pad coating – Proprietary coating resists water intrusion and maintains consistent performance in wet, muddy, and extreme conditions

Technical Specifications

• Brake type: Hydraulic disc, 2-piston
• Mount type: Post-mount
• Series: XTR M9020
• Weight: 110g (caliper and pads included)
• Caliper material: Aluminum alloy (high-rigidity design)
• Piston type: 2 pistons with GFRP high-insulation resin
• Piston insulation: GFRP (glass fiber reinforced polymer)
• Pad specification: J04C Metal with cooling fins
• Pad coating: New insulated coating for water resistance
• Servo wave: New geometry with smooth cam profile
• Structure: CFRP/alloy composite
• Hose connection: (Not specified in product data—confirm with Shimano documentation)
• Hydraulic fluid: Shimano Mineral Oil
• Lever interface: I-SPEC II
• Color: Silver/Anthracite
• Finish: Anodized
• Performance specification: Enduro/trail-related power ratio

Compatibility and Ideal Use Cases

• Compatible levers: BL-M9020 (Shimano recommended); I-SPEC II interface; works with XTR mineral oil hydraulic levers
• Compatible rotors: 140mm–180mm standard rotors; Shimano XTR rotors (SM-RT99, SM-RT86) recommended for optimal heat management
• Frame requirement: Post-mount brake mounts (modern mountain bike standard)
• Fluid type: Shimano Mineral Oil only; do not mix with DOT fluid systems
• Pad type: J04C Metal (standard); compatible with other XTR metal pad options
• Best for: Trail and enduro riders, technical terrain specialists, riders prioritizing heat management and modulation, and performance-focused mountain bikers
• Ideal conditions: Steep descents, sustained braking, muddy terrain, extreme temperatures, and technical trail riding where precise control is critical
• Installation: Requires mechanical skill and proper bleeding with Shimano mineral oil; I-SPEC II lever interface requires compatible shifter setup
• Note: Metal pads deliver superior modulation but produce more noise—normal for J04C material; cooling fins critical for heat dissipation on long descents; ICE Technology coating maintains performance in wet conditions; insulated piston design resists temperature-induced performance variation; monitor pad wear regularly and replace with J04C or compatible metal pads; servo wave geometry optimized for trail riding—not intended for XC racing applications
