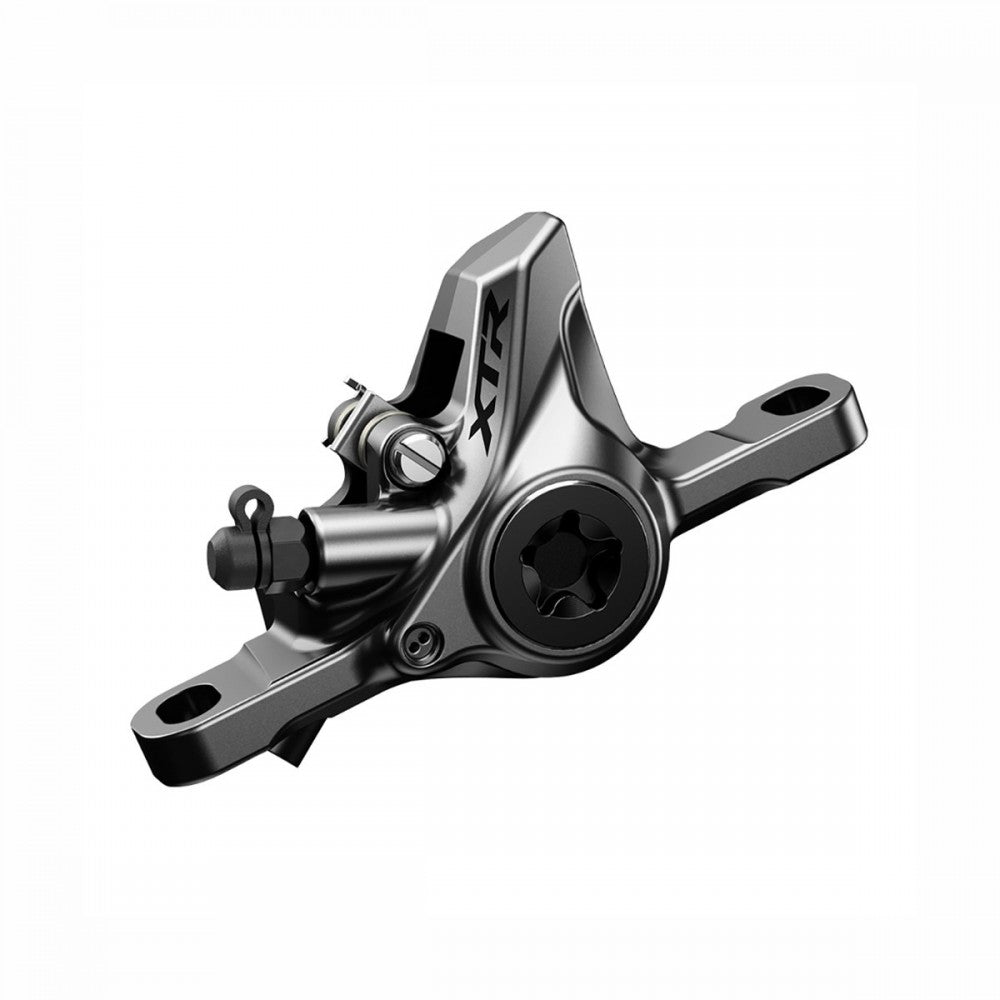

Shimano BR-M9100 XTR Hydraulic Disc Brake

Product Overview

The Shimano BR-M9100 XTR is a premium 2-piston hydraulic disc brake caliper engineered for high-performance mountain biking. This caliper features a mono-body design machined from a single cold-forged aluminum block, ceramic pistons, and straight hose connections for maximum rigidity and response. At 312g, it delivers superior braking power, reduced modulation lag, and precise control across all terrain and conditions.

Key Features

• Mono-body cold-forged design – Single-piece aluminum construction maximizes structural rigidity and eliminates assembly joints that reduce responsiveness; improves power transfer from lever to rotor
• Ceramic pistons (2-piston) – Advanced material resists heat buildup and maintains consistent pressure across extended braking; delivers predictable feel without fade
• 30% reduced time lag and input force – Optimized piston geometry and hose routing reduce brake engagement delay compared to M9000; requires less finger pressure for maximum stopping power
• High-rigidity brake hose – Reinforced hose construction minimizes expansion under pressure; maintains crisp lever feel and eliminates sponginess
• Straight hose connection – Direct fitting design (versus banjo) reduces connection points and improves hydraulic efficiency; cleaner integration with frame internal routing
• Lightweight construction – 26g lighter overall than M9000 brake system; minimal material without compromising durability or performance
• Highly linear response – Braking power scales smoothly with lever input; no on/off characteristics or dead zones across the full modulation range
• Advanced pad compatibility – Supports premium resin and titanium pad options for customization based on riding style and conditions

Technical Specifications

• Brake type: Hydraulic disc, 2-piston
• Mount type: Post-mount
• Series: XTR M9100
• Weight: 312g (caliper only)
• Caliper design: Mono-body, cold-forged aluminum
• Piston count: 2 ceramic
• Piston material: Ceramic with advanced thermal management
• Hose connection: Straight (1-piece)
• Hydraulic fluid: Shimano Mineral Oil
• Pad compatibility: K03S, K03Ti, K04S, K04Ti, K05S, K05Ti (Resin and Titanium options)
• Mounting bolt tool size: 5mm hex
• Caliper material: Aluminum alloy (mono-body construction)
• Finish: Black anodized
• Performance improvement vs. M9000: 30% reduction in time lag, stroke, and input force requirement

Compatibility and Ideal Use Cases

• Compatible levers: BL-M9100 (Shimano recommended); works with XTR and XT mineral oil hydraulic levers
• Compatible rotors: 140mm–180mm standard rotors; Shimano XTR/XT rotors (SM-RT86, SM-RT70) optimized for maximum performance
• Frame requirement: Post-mount brake mounts (modern mountain bike standard)
• Hose requirement: High-rigidity Shimano brake hose (sold separately); straight connection type
• Fluid type: Shimano Mineral Oil only; do not mix with DOT fluid systems
• Pad selection: Choose between K-series Resin (balanced modulation and power) or Titanium (maximum heat resistance and durability); titanium pads ideal for extended descents and extreme conditions
• Best for: Elite cross-country racers, enduro competitors, downhill and gravity riders, and performance-focused riders requiring maximum precision and responsiveness
• Ideal conditions: Technical terrain, extended descents, sustained braking, racing applications, and conditions demanding split-second braking adjustments
• Installation: Requires advanced mechanical skill and proper bleeding with Shimano mineral oil; straight hose fitting requires precision routing and alignment
• Note: Premium pricing reflects mono-body engineering and ceramic piston technology; 30% performance improvement most noticeable on technical terrain and racing; pad wear critical—inspect regularly and replace only with compatible K-series pads; straight hose connection requires careful frame routing planning during installation
