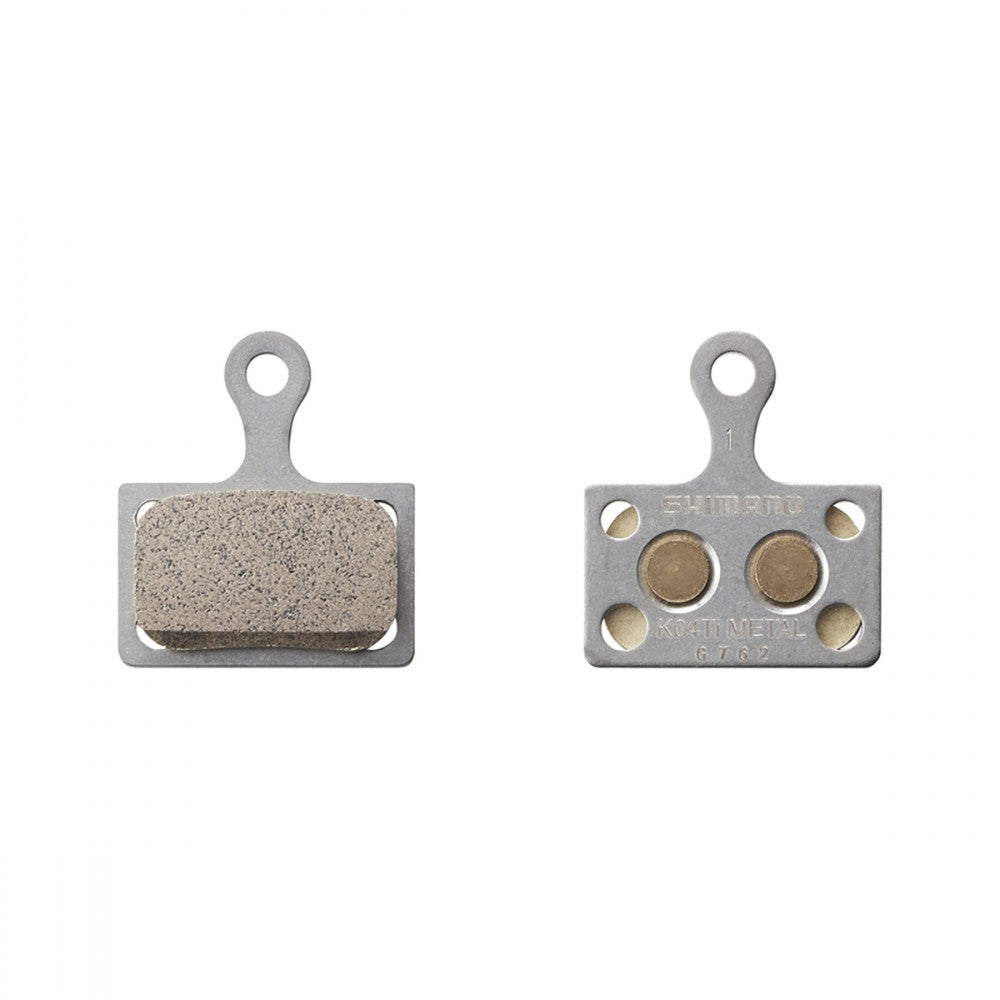

Shimano Metal Disc Brake Pads K04Ti

Overview

The Shimano K04Ti are premium sintered metal brake pads designed for high-performance hydraulic disc braking systems. Featuring a titanium carrier plate and sintered metal friction material, these pads deliver superior braking power, extended pad life, and excellent temperature stability across demanding cycling conditions.

Key Features

• Sintered Metal Friction Material — Metal lining delivers higher braking effect compared to resin alternatives; maintains consistent stopping power across varied temperatures and conditions
• Titanium Carrier Plate — Premium lightweight material reduces overall pad weight; provides superior heat insulation preventing thermal transfer to brake fluid and pistons
• Superior Temperature Stability — Metal composition resists thermal fade better than resin pads; maintains consistent braking performance during extended or aggressive descents
• Extended Pad Life — Sintered metal material resists wear better than resin linings; delivers longer service life before replacement becomes necessary
• Silver Carrier Plate — Aesthetic finish matches premium brake systems; maintains appearance across extended use
• Lightweight Construction — 16g per pad set minimizes rotating mass; improves overall bike responsiveness and braking efficiency
• High Braking Performance — Optimized friction coefficient delivers powerful, responsive stopping across all riding conditions
• Trade-Offs Understood — Metal pads generate slightly more noise and increase brake disc wear compared to resin alternatives; acceptable for riders prioritizing braking power and pad longevity

Technical Specifications

• Friction material: Sintered metal
• Carrier plate material: Titanium
• Carrier plate color: Silver
• Weight: 16g (per set)
• Brake compatibility: BR-M9100, BR-M9110, BR-M8110, BR-R9270, BR-R8170, BR-R7170, BR-R9170, BR-R8070, BR-R7070, BR-4770, BR-RS805, BR-RS505, BR-RS405, BR-RS305, BR-U5000, BR-RX810, BR-RX400, BR-RX820
• Compatible series: XTR M9100, Deore XT M8100, Dura-Ace R9150, Ultegra R8050, 105 R7100 Di2, 105 R7000, Tiagra 4700, Metrea U5000, GRX (11, 10, and 12-speed), Cyclocross/On-Road Disc Brake

Compatibility & Ideal Use Cases

Compatible with a broad range of Shimano hydraulic disc brake calipers across road, gravel, cyclocross, and mountain bike platforms. Designed primarily for road, gravel, and cyclocross applications, not BMX use. Ideal for riders prioritizing maximum braking power, extended pad life, and superior temperature stability over quiet operation. Well-suited for competitive road racers, endurance riders, and gravel cyclists demanding consistent stopping power across demanding terrain and extended efforts. The titanium carrier plate provides lightweight construction and superior heat management for high-performance applications. Metal friction material makes these pads best suited for riders willing to accept slightly increased noise and disc wear in exchange for superior braking performance and longevity. Not suitable for casual cycling or riders prioritizing quiet, low-maintenance braking systems.
