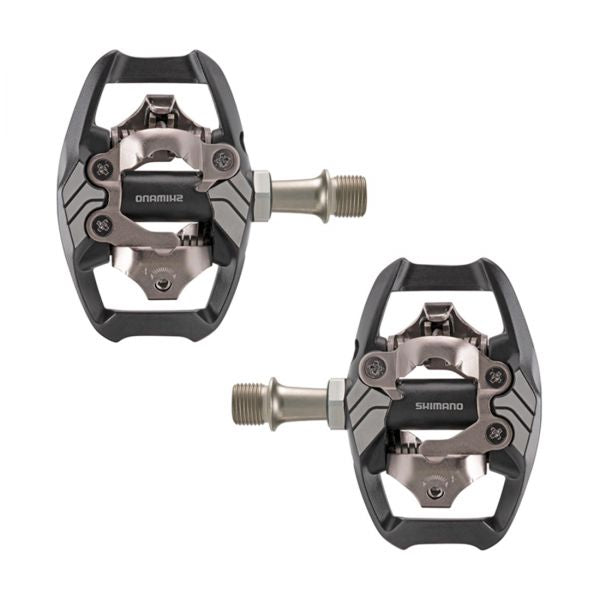

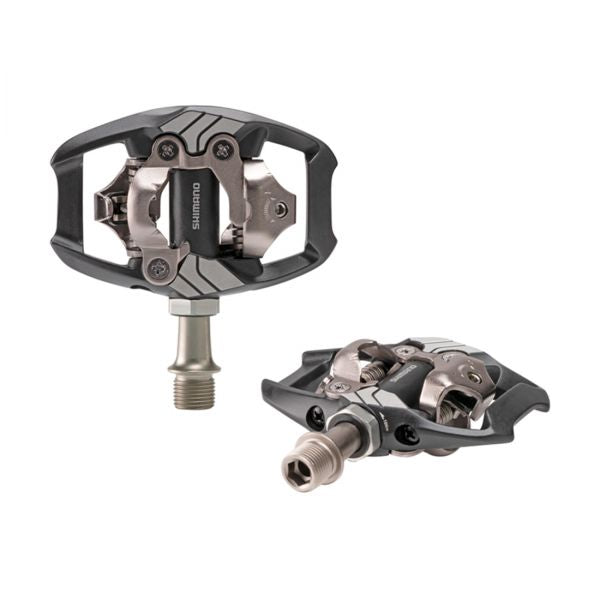

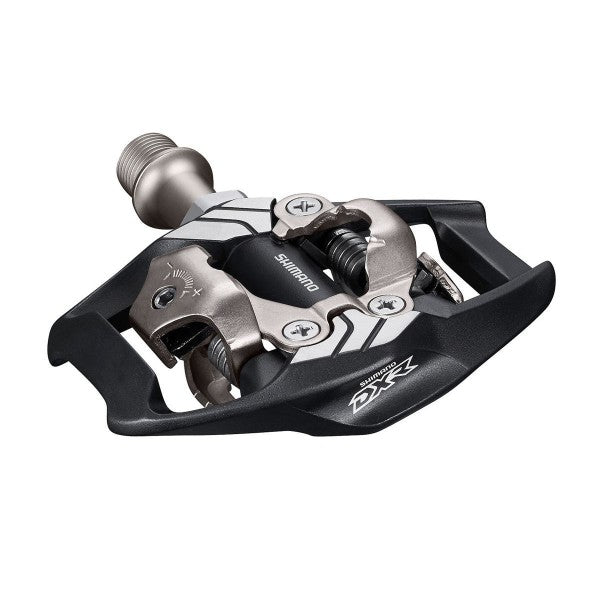

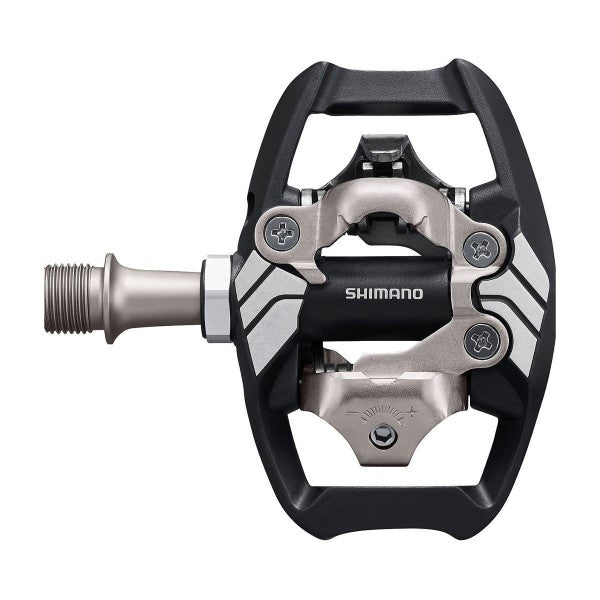

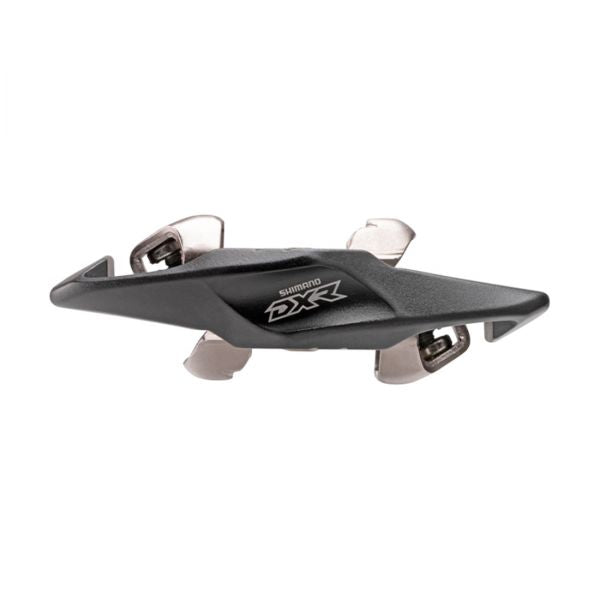

Shimano PD-MX70 DXR Clipless Pedals

Overview

The Shimano PD-MX70 DXR are dual-sided clipless pedals engineered for BMX and 4-cross racing. Designed with higher release tension and a smaller release angle than standard Shimano SPD pedals, these pedals deliver a secure connection and reliable foot retention during aggressive riding and technical terrain while allowing quick disengagement in emergency situations.

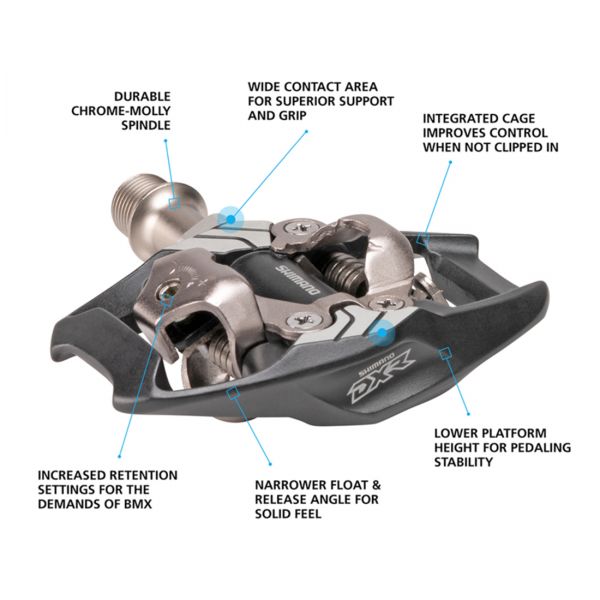

Key Features

• High-Strength Design — Reinforced construction resists impact and stress from BMX tricks, jumps, and 4-cross racing; built for demanding conditions
• Dual-Sided Binding — Both pedal sides accept cleats; eliminates need to flip pedals and allows immediate engagement from either side
• 9-Degree Release Angle — Reduced release angle compared to standard SPD pedals ensures quick foot disengagement in difficult situations without accidental unclipping during normal riding
• 2-Degree Free Float — Minimal lateral float provides a more fixed, stable foot position for improved control and power transfer
• Separately Adjustable Release Tension — Independent tension adjustment on each pedal allows fine-tuning for personal preference and riding style
• Anodized Aluminum Pedal Cage — Large contact surface distributes pressure evenly; improves control, efficiency, and comfort during extended rides
• CrMo Spindle — Chromoly steel axle provides superior strength and wear resistance under high loads
• Low-Maintenance Sealed Bearings — Compact sealed bearing system prevents dirt infiltration; extends component life and reduces service requirements
• 9/16" Axle — Standard BMX crank thread size

Technical Specifications

• Pedal type: Clipless
• Axle size: 9/16"
• Axle material: CrMo chromoly steel
• Release angle: 9 degrees
• Free float: 2 degrees
• Pedal cage: Anodized aluminum
• Bearing system: Low-maintenance sealed compact bearings
• Release tension: Separately adjustable per pedal
• Weight: 414g per pair
• Compatibility: Cranks with drilled-through pedal threads only
• Included: Cleats

Compatibility & Ideal Use Cases

Compatible only with BMX and 4-cross cranks featuring drilled-through pedal threads; standard threaded cranks are not compatible. The high release tension and smaller release angle make these pedals ideal for BMX racers and 4-cross competitors requiring secure foot retention during aggressive acceleration, jumps, and technical maneuvers. The dual-sided design and adjustable release tension suit riders seeking maximum control and customization. Essential for competitive BMX racing and 4-cross disciplines where foot security and quick disengagement are critical performance factors. Not suitable for casual or freestyle BMX riding.
