Shimano Saint M820 Hydraulic Brake Kit

Product Overview

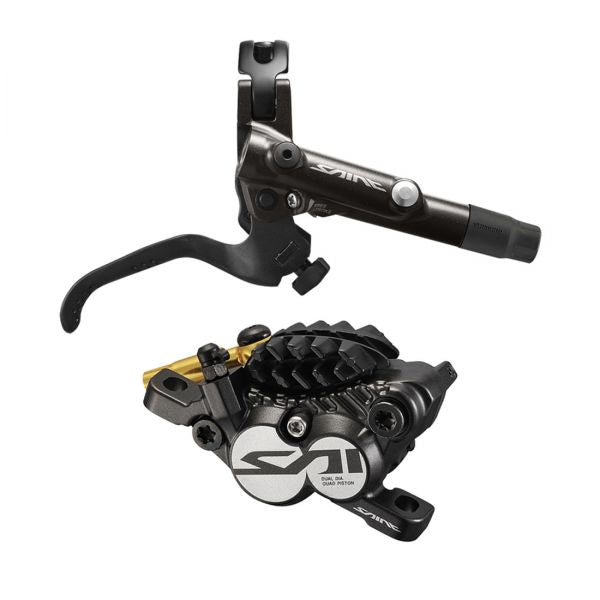

The Shimano Saint M820 is a complete hydraulic disc brake system engineered for gravity and downhill riding. The kit includes a 4-piston hydraulic caliper with ICE TECHNOLOGIES heat dissipation, a short-stroke Servo Wave lever with I-SPEC B compatibility, and H03C metal brake pads. Designed to deliver maximum stopping power and modulation in extreme terrain and high-speed conditions.

Key Features

• ICE TECHNOLOGIES heat management — Integrated cooling system dissipates brake heat rapidly, preventing fade during sustained hard braking on long descents

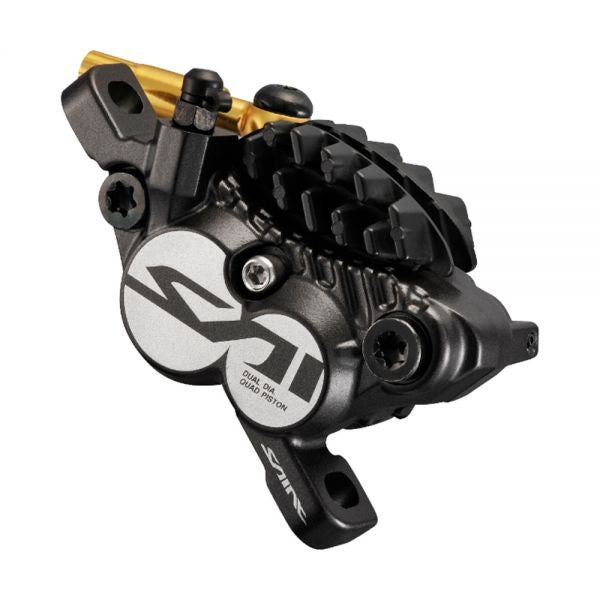

• 4-ceramic piston caliper — Four pistons distribute clamping force evenly across the rotor, maximizing power and reducing lever effort required for hard stops
• Servo Wave lever action — Progressive mechanical advantage provides light initial bite with increasing power as lever is pulled, enabling precise modulation and control
• One-Way Bleeding caliper — Simplified bleeding procedure reduces air entrapment and maintenance time compared to traditional two-way systems
• Funnel bleeding tool included — Dedicated tool eliminates spillage and simplifies the mineral oil refill process
• Ergonomic textured lever — Anti-slip surface improves grip security during aggressive braking and in wet conditions
• Tool-free reach adjustment — Lever position adjusts without tools, accommodating different hand sizes and riding positions
• Free Stroke adjustment — Fine-tunes the distance the lever travels before engaging the pistons, allowing customization for rider preference
• I-SPEC B compatible — Integrates with Shimano shifter clamp band systems for cleaner cable and hose routing
• H03C metal brake pads included — High-performance sintered pads provide superior stopping power and durability for extreme conditions

Technical Specifications

• Brake type: Hydraulic disc
• Caliper: 4-piston ceramic, post-mount
• Lever: BL-M820-B short Servo Wave
• Caliper weight: 206 grams (including pads)
• Lever weight: 103.2 grams
• Total system weight: 309.2 grams (excluding rotor and hose)
• Fluid: Shimano mineral oil only
• Hose compatibility: SM-BH90-SBLS
• Lever clamp band: I-SPEC B
• Rotor compatibility: SM-RT99, SM-RT86 (sold separately)
• Pad compatibility: H03A, H03C, D02S, D03S

Compatibility and Ideal Use Cases

Fits post-mount disc brake frames. Requires a separate rotor (SM-RT99 or SM-RT86 recommended) and brake disc mounting kit. Compatible with Shimano mineral oil systems only—using alternative mineral oils will damage seals and compromise performance. Best suited for gravity riders, downhill specialists, and riders prioritizing maximum stopping power over weight savings. Recommended for steep terrain, high-speed conditions, and situations requiring sustained hard braking and precise modulation. Not suitable for casual or cross-country riding where lower power requirements and weight savings are priorities.
