Shimano XT M8120 Hydraulic Brake Kit

Product Overview

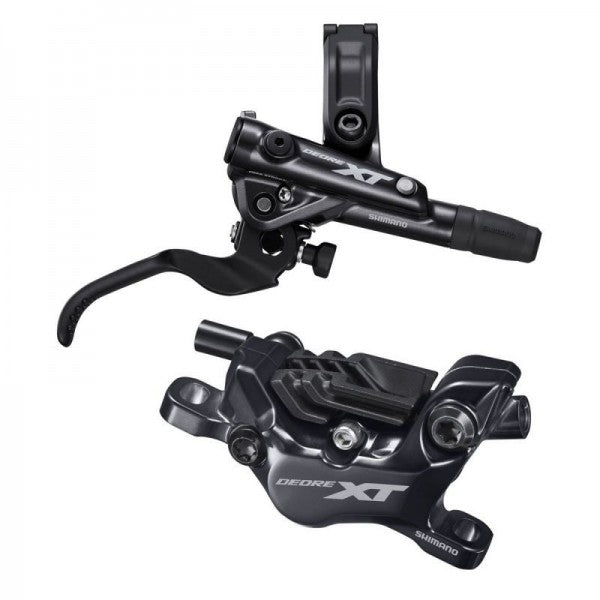

The Shimano XT M8120 is a complete 4-piston hydraulic disc brake system engineered for trail and all-mountain riding. This kit pairs a high-performance post-mount caliper with a 2-finger right-hand lever, pre-assembled with banjo hose and resin pads. At 410g, it delivers responsive stopping power and precise modulation across technical terrain and variable conditions. Rotor and mounting hardware sold separately.

Key Features

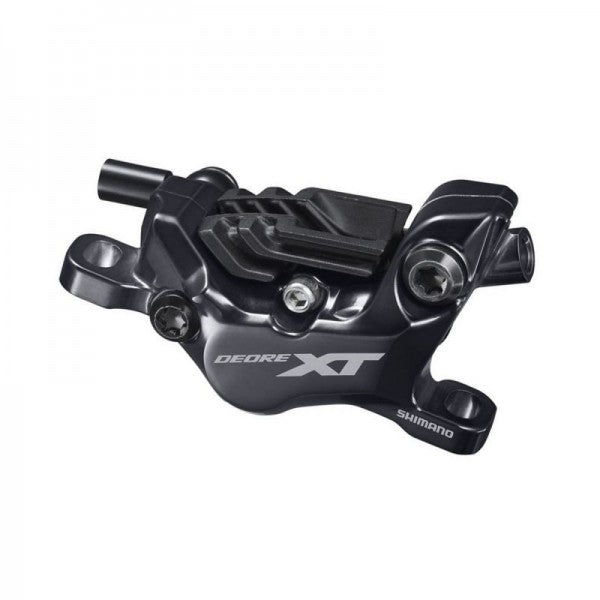

• 4-piston caliper design – Distributes braking force evenly across rotor; maximizes stopping power and heat dissipation for sustained descents and aggressive riding
• Post-mount standard fixation – Universal mounting interface compatible with modern frame designs; requires simple 5mm bolt installation

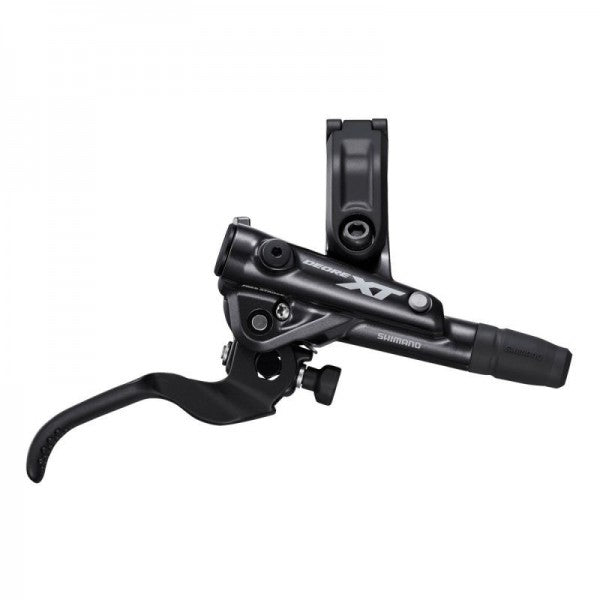

• 2-finger right-hand lever – Aluminum construction with 22.2mm clamp diameter; ergonomic design optimized for control and comfort across extended braking
• Banjo hose connection – Fast-connect fitting simplifies installation and hose routing; tool-free hose removal and repositioning for field adjustments
• 1.70m pre-assembled hose (SM-BH90-SBM) – Included brake line ready for installation; can be cut or routed through frame internal channels
• N03A resin pads (standard) – Balanced friction material provides good modulation and reliable performance across variable conditions
• Wide pad compatibility – Works with N03A Resin, D03S Resin, N04C Metal, and D02S Metal pads; allows customization based on riding style and conditions
• Mineral oil hydraulics – Shimano's proprietary mineral oil system provides reliable pressure transmission, easier maintenance than DOT fluid, and reduced environmental impact
• Lightweight construction – 410g system weight (lighter than M7120) without sacrificing power or rigidity; supports weight-conscious builds
• Complete ready-to-install system – All components pre-assembled; requires only frame mounting, hose routing, and bleeding before use

Technical Specifications

• Brake system type: Hydraulic disc, 4-piston
• Mount type: Post-mount
• Caliper model: M8120
• Lever model: M8100
• Lever type: 2-finger, right-hand
• Lever clamp diameter: 22.2mm (standard handlebar)
• Lever material: Aluminum
• Piston count: 4
• Pad specification (standard): N03A Resin
• Pad compatibility: N03A Resin, D03S Resin, N04C Metal, D02S Metal
• Hose included: SM-BH90-SBM (1.70m)
• Hose connection: Banjo (fast-connect)
• Hydraulic fluid: Shimano Mineral Oil (only)
• System weight: 410g (caliper, lever, hose, pads; rotor not included)
• Rotor compatibility: 140mm–203mm standard rotors (rotor sold separately)
• Finish: Anodized aluminum (lever and caliper)

Compatibility and Ideal Use Cases

• Frame requirement: Post-mount brake mounts (modern mountain bike standard); standard 22.2mm handlebar diameter
• Rotor requirement: Separate purchase needed; 160mm–203mm recommended to match 4-piston power output
• Rotor mounting: Requires separate disc brake rotor mounting kit for your specific frame (sold separately)
• Fluid type: Shimano Mineral Oil ONLY; other mineral oils will damage lever and caliper seals—do not substitute brands or types
• Pad type: Choose between N03A/D03S Resin (less noise, good modulation) or N04C/D02S Metal (superior modulation, higher friction); resin adequate for general trail riding
• Brake lever: Right-hand only; left-hand system requires separate purchase
• Best for: Trail riders, all-mountain biking, technical terrain specialists, performance-focused builds, and riders prioritizing lightweight components
• Ideal conditions: Variable terrain, sustained descents, technical trails, and conditions requiring reliable, predictable braking power with minimal weight penalty
• Installation: Requires mechanical skill; bleeding necessary after installation using only Shimano Mineral Oil and proper bleeding kit; banjo connection simplifies hose management
• Rotor selection: 180mm–203mm rotors recommended to fully utilize 4-piston power and prevent heat-induced fade on long descents
• Maintenance: Monitor pad wear regularly; replace only with compatible N03A, D03S, N04C, or D02S pads; use exclusively Shimano Mineral Oil for any fluid top-ups or bleeding procedures
• Weight comparison: 34g lighter than M7120 equivalent; supports lightweight XC and trail builds without performance compromise
• Critical note: Shimano Mineral Oil seals are specific to Shimano fluid—substituting other brand mineral oils will destroy internal seals and void warranty; always confirm fluid type before purchase and use only genuine Shimano Mineral Oil for maintenance and bleeding
