Shimano XTR BL-M9120 Hydraulic Brake Kit

Product Overview

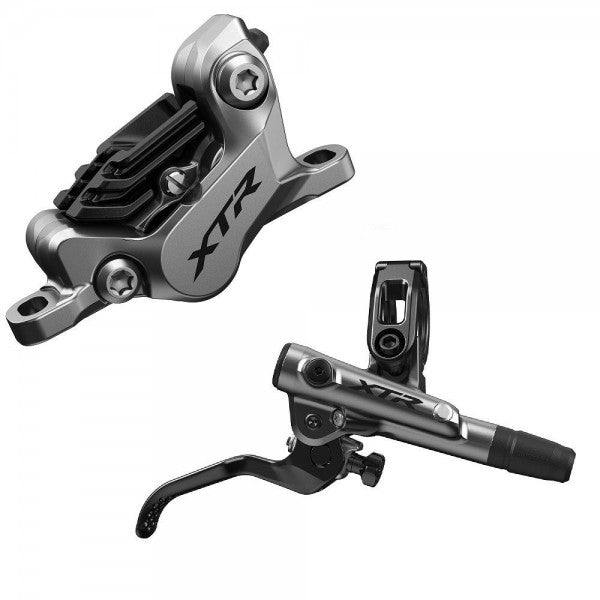

The Shimano XTR BL-M9120 is a premium 4-piston hydraulic disc brake system engineered for elite cross-country, enduro, and marathon racing. This kit pairs a lightweight magnesium master cylinder with a carbon-fiber brake lever, advanced Servo Wave technology, and a 4-piston aluminum caliper. At 260g, it delivers maximum stopping power with minimal weight and superior modulation for high-performance competition. Rotor and mounting hardware sold separately.

Key Features

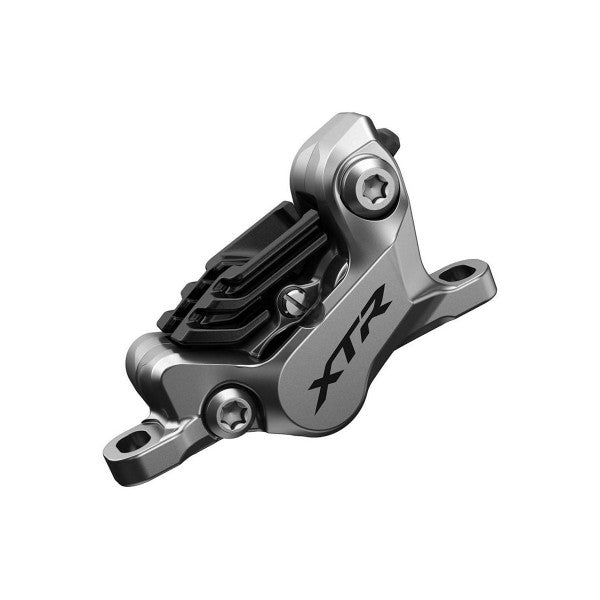

• 4-piston aluminum caliper design – Distributes braking force evenly across rotor; maximizes stopping power and heat dissipation for sustained descents without excess weight
• Magnesium master cylinder – Advanced lightweight material reduces brake system weight while maintaining rigidity and pressure consistency

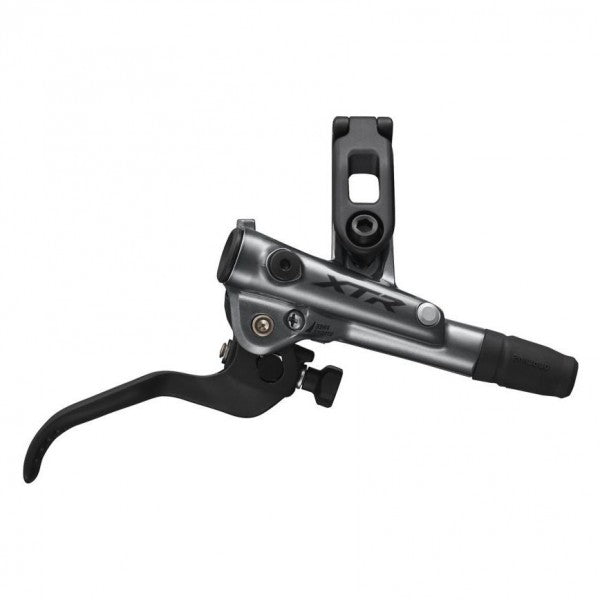

• Ergonomic carbon brake lever – Carbon-fiber construction minimizes lever weight; provides responsive feel and precision control across extended racing scenarios
• Servo Wave technology – Advanced cam profile delivers faster pad-to-disc contact point; reduces engagement lag and extends remaining lever travel for precise power modulation
• Centered collar fixing design – Optimized handlebar clamp geometry increases stiffness and reduces lever flex during aggressive braking; 10% stiffer than M9000
• J-Kit disconnected hose configuration – Hoses pre-assembled but disconnected to facilitate internal frame routing; simplifies installation and improves aesthetics
• I-Spec EV compatibility – Allows direct mounting of Shimano XTR shifters to brake lever; eliminates separate lever clamps and reduces handlebar clutter
• SM-BH90-SS straight hose connection – Direct fitting design improves hydraulic efficiency and enables clean internal frame routing
• N03A resin pads (standard) – Balanced friction material optimized for racing efficiency and responsive modulation with minimal noise
• Wide pad compatibility – Works with N03A Resin and N04C Metal pads; allows customization for different racing conditions
• Lightweight racing focus – 260g system weight (excluding rotor) represents elite-level weight optimization for competitive racing

Technical Specifications

• Brake system type: Hydraulic disc, 4-piston
• Mount type: Post-mount
• Caliper model: M9120
• Caliper material: Aluminum alloy
• Lever model: SL-M9100
• Lever type: 2-finger, right/rear hand
• Lever material: Carbon fiber
• Lever clamp: Centered collar design
• Lever interface: I-Spec EV compatible
• Master cylinder material: Magnesium alloy
• Piston type: 4 pistons (caliper specification)
• Pad specification (standard): N03A Resin
• Pad compatibility: N03A Resin, N04C Metal
• Hose configuration: J-Kit (disconnected for internal routing)
• Hose specification: SM-BH90-SS
• Hose connection: Straight (1-piece)
• Hydraulic fluid: Shimano Mineral Oil (only)
• System weight: 260g (caliper, lever, hose, pads; rotor not included)
• Rotor compatibility: 140mm–203mm standard rotors (rotor sold separately)
• Performance improvement: 10% stiffer than M9000
• Finish: Grey anodized (caliper and lever)

Compatibility and Ideal Use Cases

• Frame requirement: Post-mount brake mounts (modern mountain bike standard); standard 22.2mm handlebar diameter
• Shifter compatibility: I-Spec EV shifter integration; allows clean, integrated brake/shifter setup on compatible Shimano XTR shifters
• Rotor requirement: Separate purchase needed; 160mm–203mm recommended to match 4-piston power output
• Rotor mounting: Requires separate disc brake rotor mounting kit for your specific frame (sold separately)
• Fluid type: Shimano Mineral Oil ONLY; other mineral oils will damage lever and caliper seals—do not substitute brands or types
• Pad type: Choose between N03A Resin (balanced modulation, racing efficiency) or N04C Metal (maximum modulation, higher friction); resin optimized for XC racing
• Brake position: Right/rear hand configuration; left-hand system requires separate purchase
• Best for: Elite cross-country racers, marathon competition riders, enduro competitors, performance athletes, and riders prioritizing maximum weight savings with premium performance
• Ideal conditions: Fast XC trails, racing scenarios, climbing-heavy routes, technical descents, and competition environments demanding split-second precision and responsiveness
• Installation: Requires advanced mechanical skill; J-Kit disconnected hose requires proper connection before system use; bleeding necessary using only Shimano Mineral Oil and proper bleeding kit
• Internal routing: J-Kit design facilitates frame internal hose passage; plan hose routing carefully during installation for clean, protected integration
• Rotor selection: 160mm–203mm rotors recommended; larger rotors (180mm–203mm) optimized for 4-piston power output; confirm rotor adequately sized for rider weight and terrain
• Maintenance: Monitor pad wear regularly; replace only with compatible N03A or N04C pads; use exclusively Shimano Mineral Oil for any fluid top-ups or bleeding procedures
• Weight optimization: Magnesium master cylinder, carbon fiber lever, and 4-piston design combine for elite-level weight optimization at 260g; Servo Wave technology reduces mechanical complexity while improving response
• Critical note: Shimano Mineral Oil seals are specific to Shimano fluid—substituting other brand mineral oils will destroy internal seals and void warranty; always confirm fluid type before purchase and use only genuine Shimano Mineral Oil for maintenance and bleeding
