Spp Supersized™ Uhm Pro Carbon Fiber-ti 1-1/8"-1.5" X 20" Fork

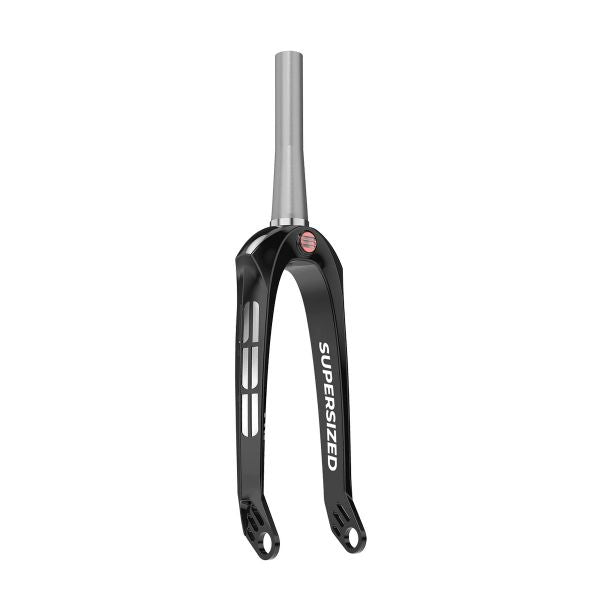

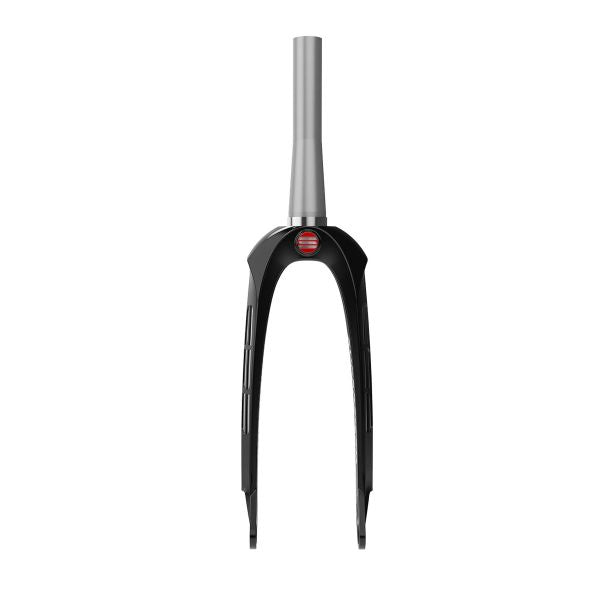

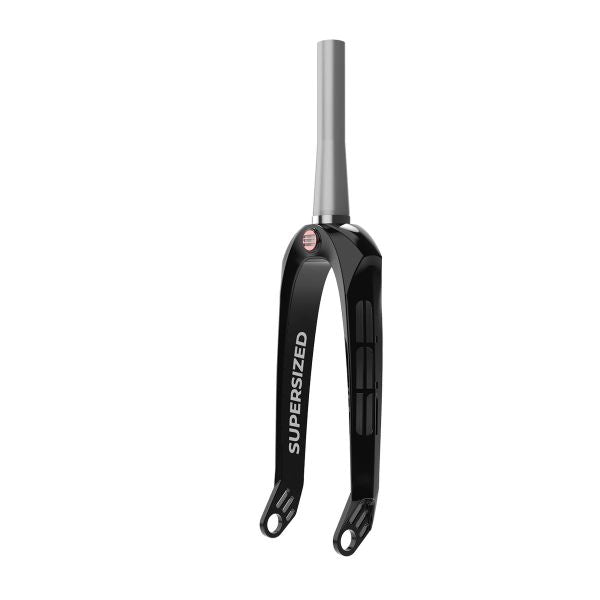

The SPP Supersized UHM Pro Ti is a 20" carbon BMX race fork with an ultralight 6Al-4V titanium steerer tapering from 1-1/8" to 1.5". Designed with BMX legend Toby Henderson, Supersized Technology uses larger cross-sections and muscular shoulders to put carbon where the biggest hits land, improving stiffness and tyre clearance. The titanium steerer brings minimal weight and reduced deflection; the Pro range is also offered with a 7075-T6 alloy steerer. Finished in black gloss carbon with molded SPP graphics.

Features

• Supersized Technology: enlarged crown and leg cross-sections for steering stiffness and precision
• High-modulus unidirectional carbon legs, vacuum moulded, keep 20" models to around 588g
• Fully integrated crown and titanium steerer for sharp steering
• Cold-forged aluminium 20mm thru-axle dropouts for responsiveness and stability
• Internal butterfly reinforcement at the steerer-crown interface distributes loads and reduces the chance of steerer failure
• Headset wedge replaces the star-nut, keeping the steerer intact and allowing precise headset adjustment
• Backed by SPP's quality guarantee, with CE certification for Category 2 BMX racing

Specs

• Model: Titanium steerer, 20"
• Legs: High-modulus unidirectional carbon fiber
• Steerer: 6Al-4V titanium, extruded and CNC-machined
• Dropouts and crown: 6061-T6 aluminium (cold-forged)
• Finish: Gloss carbon with molded SPP logos
• Wheel size: 20"
• Steerer type: 1-1/8" steerer tapering to 1.5"
• Fork offset: 32mm
• Dropouts: 20mm thru-axle
• Axle-to-crown: 302mm for 20"
• Weight: Ti 20" 625g (± 5%)
• Weight limit: 115 kg / 253 lb with limitations as per EN 16054:2012 Cat 2 standard
• Included hardware: Headset wedge

Fitment

Tapered steerer fits 1-1/8" to 1.5" head tubes.
