Srpnt X3 E-Moto Midnight Blue
Srpnt X3 E-Moto Midnight Blue is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Final sale — large items can’t be returned or exchanged once they ship. Arrived damaged or wrong? We’ll make it right. Returns policy
Complete your kit
Save 0% when you add items marked Ships together
Srpnt X3 E-Moto Midnight Blue
Description

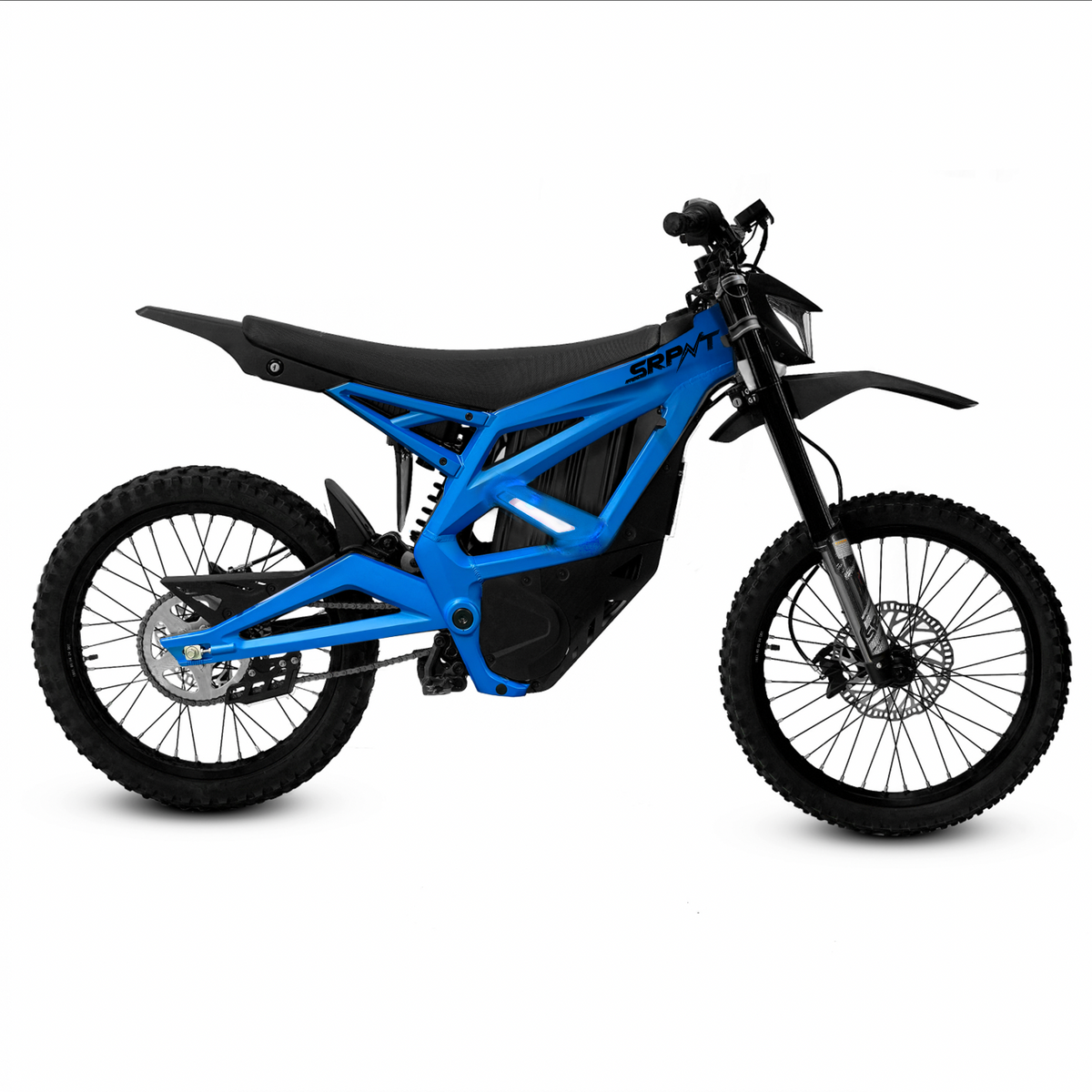

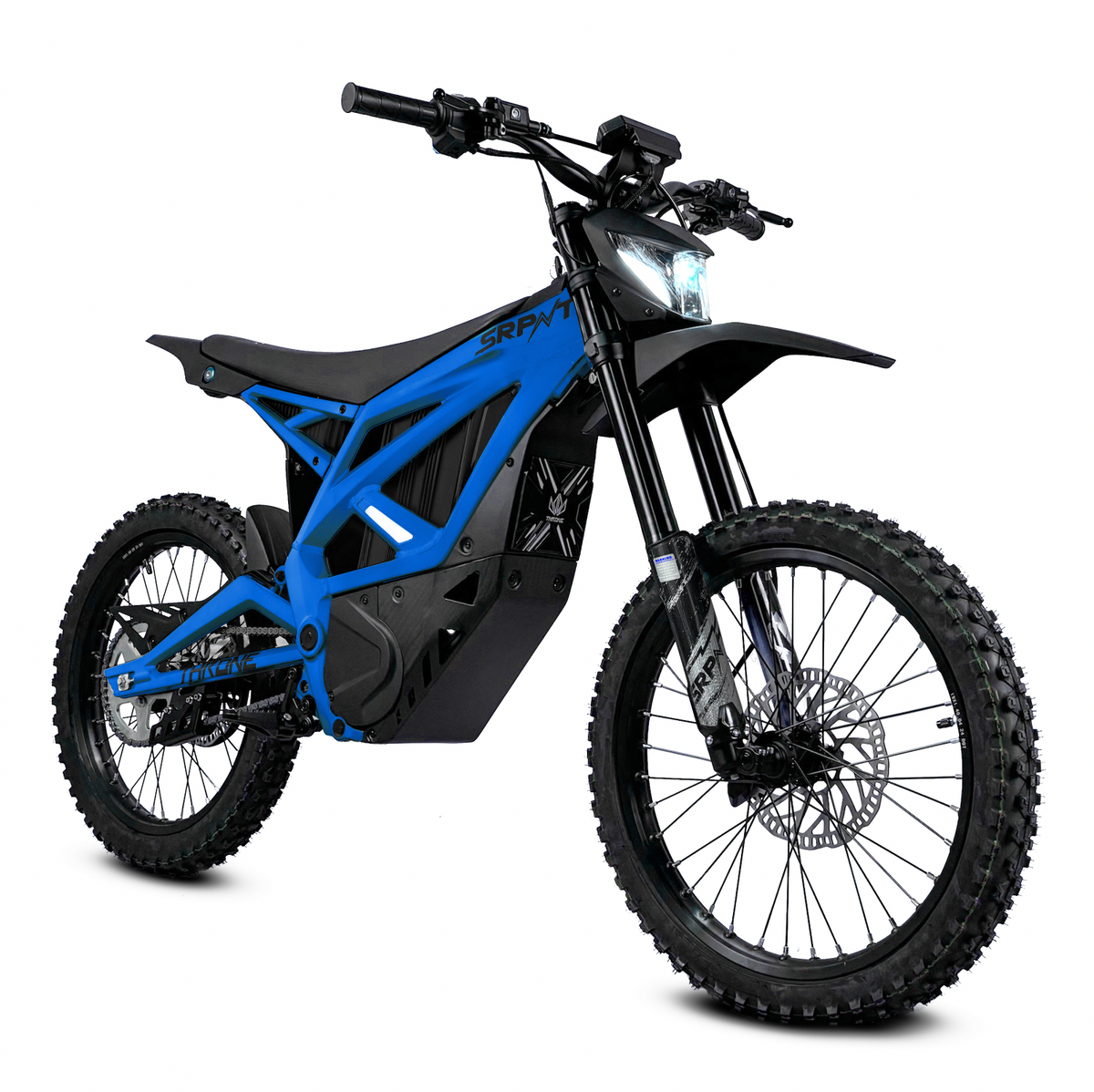

The Throne Cycles Srpnt X3 in Midnight Blue is a 72V, 13,000W peak electric motorcycle built for advanced off-road riders. A mid-mounted PMSM motor, FOC controller and 200mm inverted fork sit in a forged 6061 aluminum chassis, finished in Midnight Blue baked paint. It is not street-legal and is designed for off-road use only, on private property or designated off-road trails.
Features
- 72V 13,000W peak PMSM motor: 115Nm peak torque, 95Nm rated torque
- Mid-mount motor position for centralized weight distribution
- 72V 40Ah lithium battery with 176 LG cells and integrated LCD charge display
- FOC controller at 98.5% efficiency with Eco, High and Sport power modes
- Primary belt drive (German Continental 8M CXA) plus 420 drive chain, 13:51 gear ratio
- Inverted fork with 200mm travel and KKE rear suspension link system
- 19" alloy wheels: 1.4-19" front, 1.6-19" rear
- Two kill switches: side stand and handlebar
- LED headlight and rear light, TFT speedometer, USB Type C port
- 9A charger with a 3.5-hour full charge
- Top speed 90 km/h (56 mph), net weight 73kg (161 lbs), 280 lb carry capacity
Specs
| MOTOR | |
| Motor Type: | PMSM |
| Mounting Position: | Mid |
| Weight / Motor External Diameter: | 9.55kg / 155mm |
| Motor Axial Length: | 130mm |
| Peak Efficiency: | 94% |
| Cooling Method: | Air-Cooled |
| CONTROLLER | |
| Controller Type: | FOC |
| Dimensions: | 160mm x 142mm x 79mm |
| Peak Efficiency: | 98.50% |
| Power Modes: | Eco, High, and Sport |
| MOTOR POWER SYSTEM | |
| Rated Voltage: | 72V (DC) |
| Rated Torque / Peak Torque: | 95115Nm |
| Motor Shaft Output Torque @ 1000RPM: | 49Nm |
| Rated Rotation Speed: | 5400rpm |
| Peak Efficiency: | 94% |
| Range of Efficiency (≥80): | 3Nm - 45Nm |
| TRANSMISSION | |
| Gear Ratio: | 13:51 |
| Transmission: | Primary Belt & 420 Drive Chain |
| Belt Brand & Model: | German Continental Brand, 8M CXA |
| ELECTRICAL COMPONENTS | |
| Horn: | CQC |
| Battery: | 72V 40AH Lithium Battery with 176 LG Cells |
| Battery Life Time: | 500 Cycles |
| Battery Charge Level: | Integrated Battery LCD Display |
| Charger: | 9A |
| Charging Time: | 3.5 Hours |
| USB Connection: | Type C |
| Speedometer: | TFT |
| LED Headlight & Rear Light: | Yes |
| FRAME DETAILS | |
| Chassis - Swing Arm Material: | No.6061 T4&T6 Aluminum |
| Chassis Construction Method: | Forged by 3000 Tons of Pressure |
| Chassis Surface & Color Processing: | Baked Paint |
| Front Suspension: | Inverted Suspension Fork with 200mm Travel |
| Rear Shock Absorber: | KKE Suspension Link System |
| Wheel Type & Size: | Front/Rear :1.4-19 , 1.6-19 Alloy Hubs |
| DIMENSIONS | |
| Ground Clearance: | 270mm |
| Wheelbase: | 1250mm |
| Seat Height: | 85cm |
| Vehicle Dimensions: | 1880mmX805x1130mm |
| DRIVE | |
| Top Speed: | 90km/h |
| Net Weight | 73kg |
| Rear Sprocket | 51T |
| Side Stand | Yes with Kill Switch |
| Battery Usage | 600 Uses |
| Carry Capacity | 280lb |
