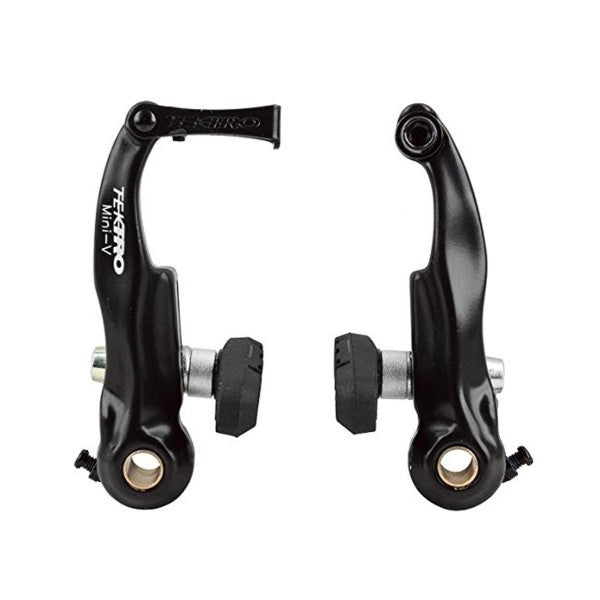

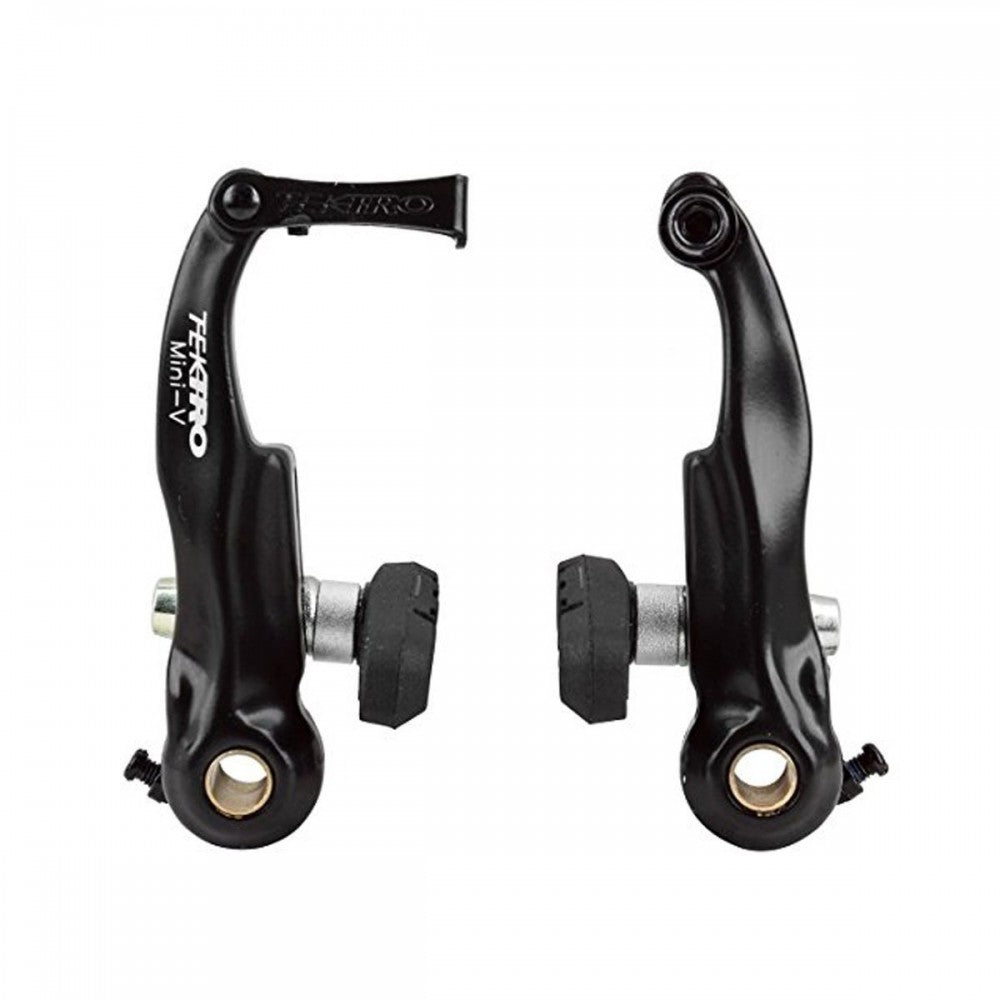

Tektro 926AL Mini V-Brake Caliper

The Tektro 926AL is a rear V-brake caliper engineered for 20-inch BMX wheels with rim sizes of 1-1/8" to 1-3/8". Built with forged aluminum construction and soft rubber pads, it delivers reliable stopping power in a compact package designed specifically for small-format bikes.

Key Features

• Forged aluminum arms – Lightweight yet rigid construction resists flex under braking load
• Soft rubber pads – Increased friction and contact surface for consistent, predictable braking
• Compact design – 80mm total height fits mini V-brake frame spacing on 20" wheels
• Vertical pad adjustment – 25mm adjustment range allows fine-tuning of pad-to-rim clearance
• Complete hardware – Includes brake runners, bellows, and 90° elbow connector for straightforward installation

Technical Specifications

• Weight: 161g
• Material: Forged aluminum
• Mounting type: Rear V-brake only
• Caliper height: 80mm
• Pad adjustment range: 25mm vertical
• Compatible rim widths: 1-1/8" to 1-3/8" (20-inch wheels)

Compatibility and Ideal Use Cases

Best for: 20-inch BMX bikes, small-wheel cruisers, and compact frame geometries requiring mini brake calipers

Rim compatibility: Works with 20x1-1/8" and 20x1-3/8" rim sizes only

Mounting: Rear position only—front mounting requires a separate front V-brake caliper

Rider level: Suitable for beginners through experienced riders seeking a dependable, lower-maintenance braking solution
