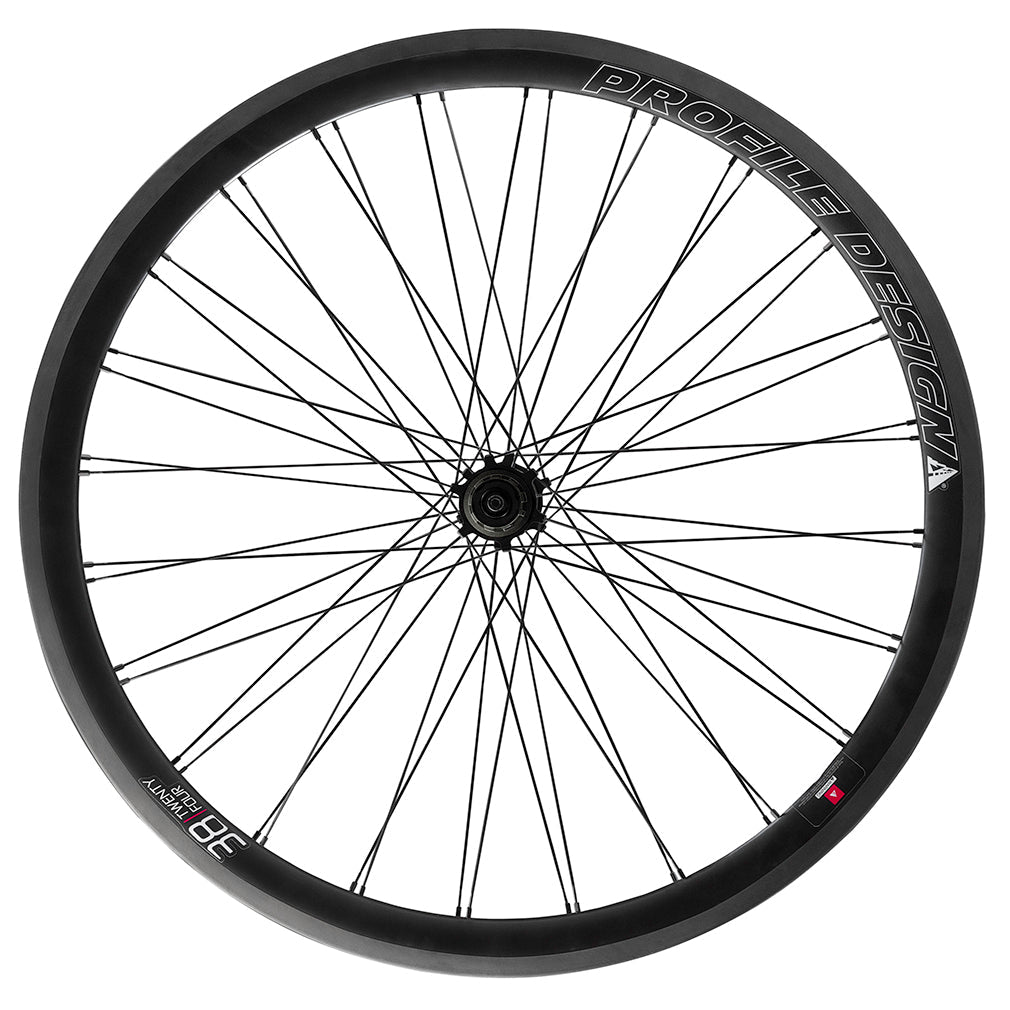

38/Twentyfour Tubular Rear

Overview

Brake Performance

Specifically formulated to withstand the same heat our rims can take on, our brake pad compound is exclusive for TwentyFour Series wheels. Using a specially formulated rubber compound, durometer and friction agent, we developed a proprietary brake pad and reduced braking distances over that of other carbon fiber wheelsets.

Specifications

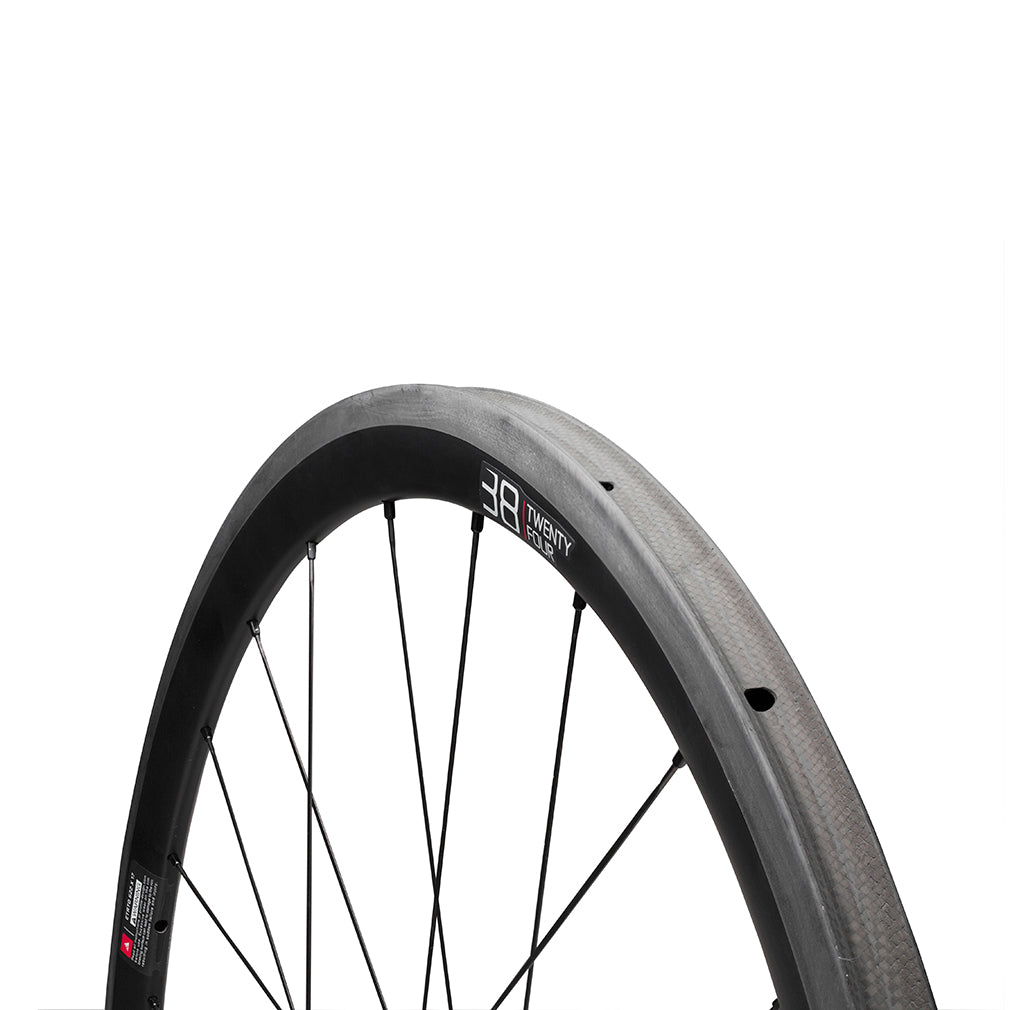

• CFD and wind tunnel developed proprietary carbon fiber 38mm low profile tubular rim.
• High TG resin.
• Extra stiff hub shell design.
• Proprietary precision machined alloy hubs.
• Sapim CX-Ray Spokes with Polyax double square nipples.
• Sealed cartridge bearings.
• Hand-built assembly.
• 11/10S Shimano compatible.

Each 38/TwentyFour Wheel Includes

• Profile Design quick-release skewers.
• Profile Design Carbon-Specific P220 TwentyFour Series brake pads.
• 2 Spokes & 2 Nipples (extra).

Specs

Rear Wheel

• Weight: 915g
• Size: 700c
• Hub: 6061-T6 Alloy
• Bearing Size: 6802
• Rim Depth: 38mm
• Rim Width: 24.5mm
• Rim Width (Inside): 17mm
• Color: UD Carbon
• Spokes: Sapim® CX-Ray Aero Spoke
• Spoke Shape: Straight Pull, Bladed
• Spoke Count: 24
• Spoke Pattern Non-Drive: Radial
• Spoke Pattern Drive: 2 cross
• Nipples: 7075 Alloy Polyax Double Square
• External Nipples: Yes
• 11-Speed Compatible Hub: Yes
• Max Tire Pressure: 125psi

Wheelset

• Max Recommended Rider Weight (lbs): 220lb
