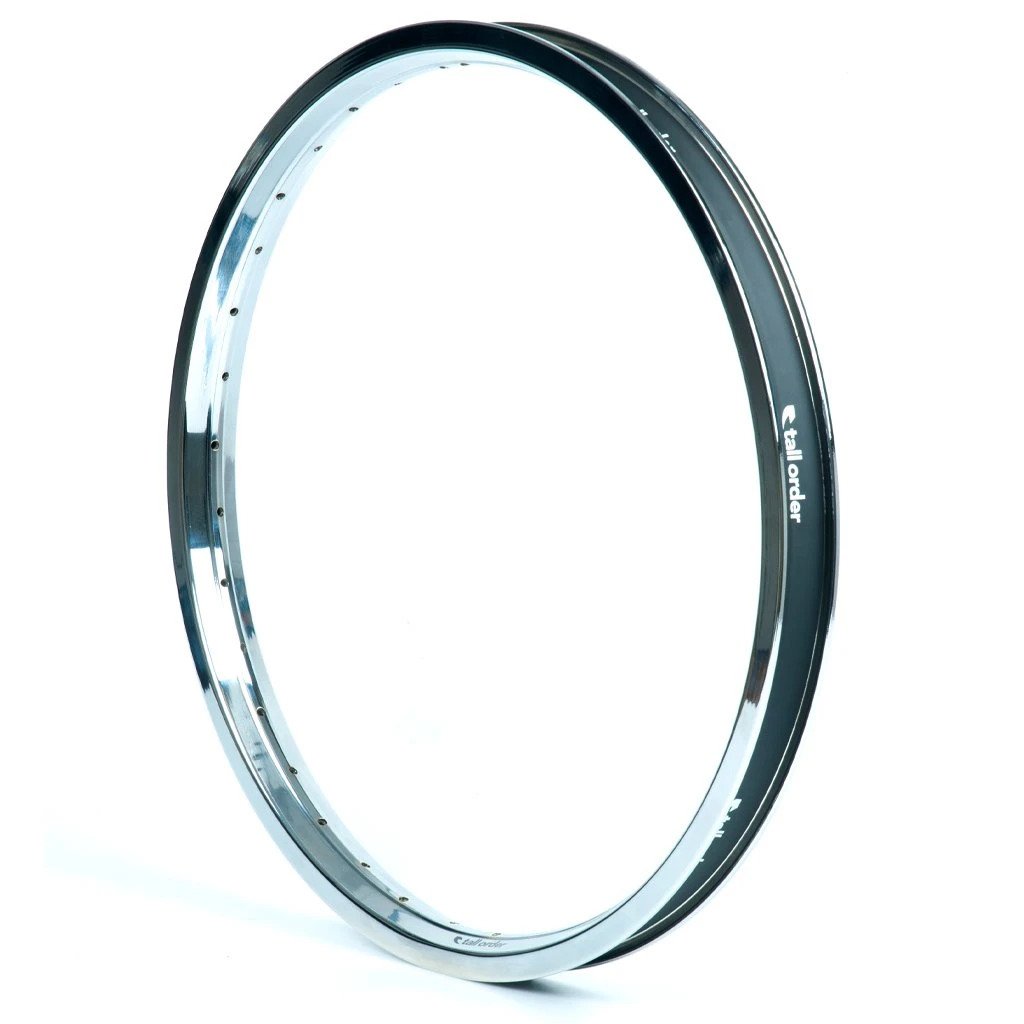

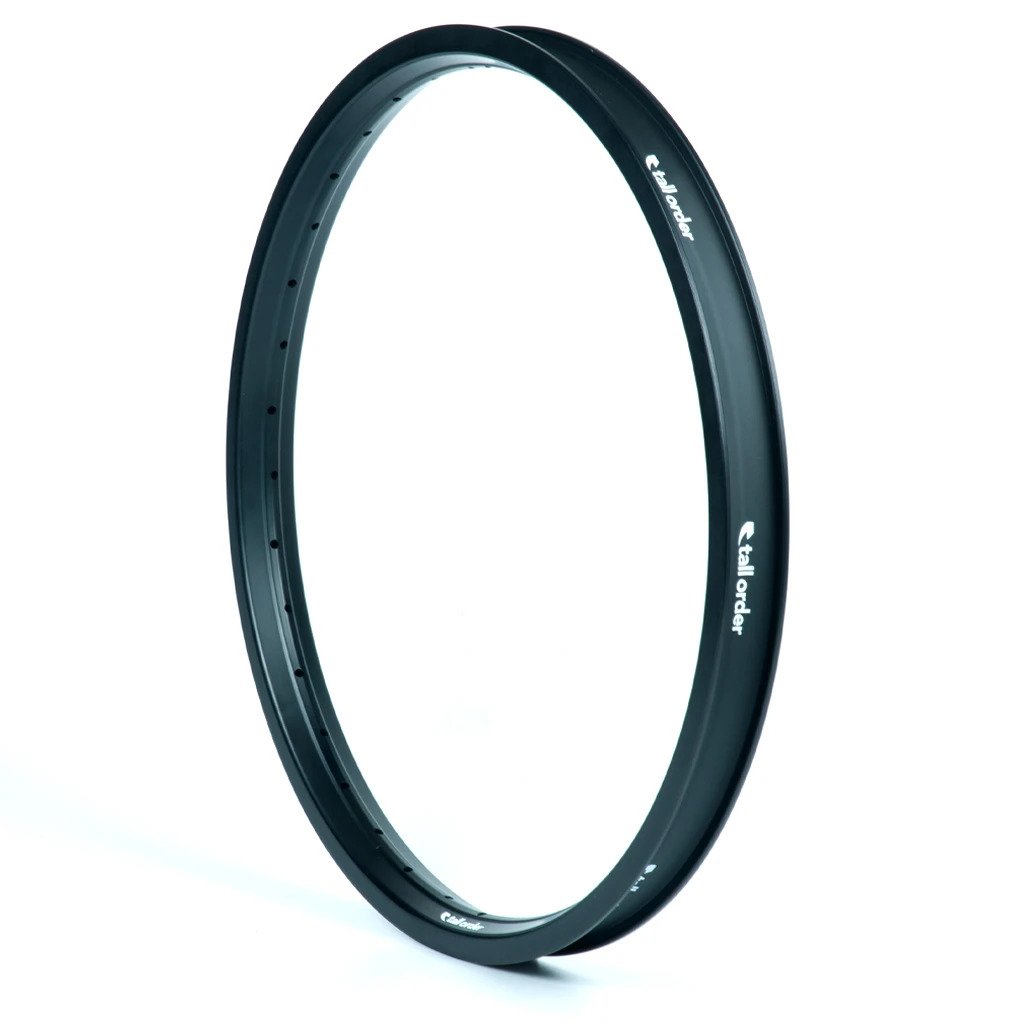

Air Rim

The Air rim has been designed specifically for park and trails riding to be both light and strong. An enormous amount of research and design work has gone into making this one of the best rims on the market, below is a full list of the specifications:

• Custom extruded triple box section profile
• 33mm wide x 19.4mm deep rim (11mm Sidewall)
• Aluminium 6066-T6 material
• Increased wall thickness around spoke holes
• Flash welded seam joint
• Centralized spoke layout for increased spoke angle
• Internally drilled to reduce weight
• V-shaped internal rim bed for easier tyre installation or removal
• Larger flattened bead profile to resist dents and reduce pinch flats
• Large corner radius to reduce hang ups during grinds
• Box section walls are continuous with no cut-outs to maintain strength around the entire rim
• ERD 388mm
• Weight 515g
