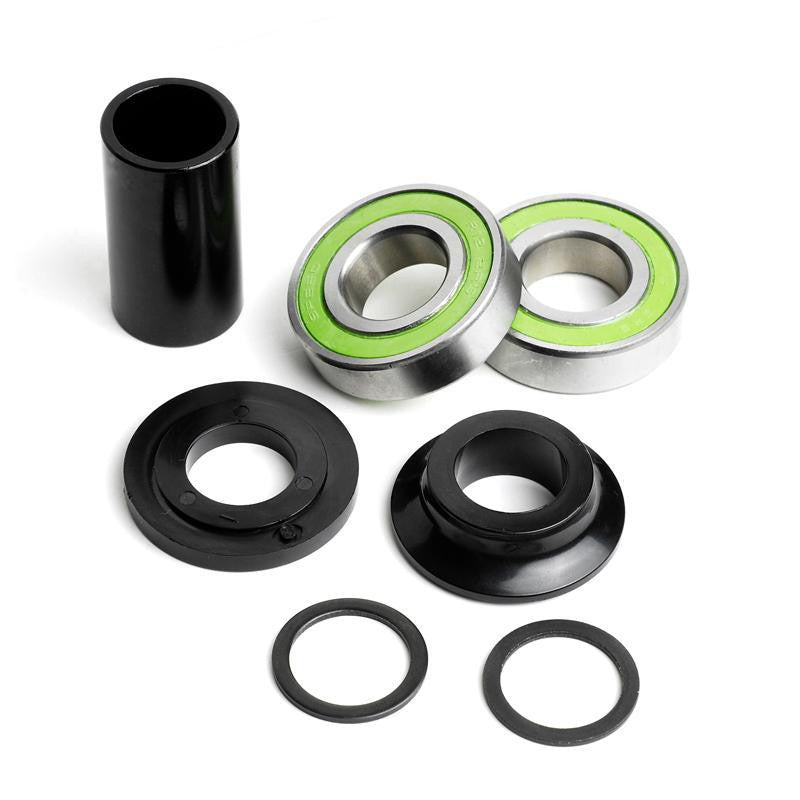

Verde Mid Bottom Bracket

Product Overview

The Verde Mid Bottom Bracket is a sealed cartridge-style bottom bracket with high-quality sealed bearings designed for smooth, low-friction operation. Available for 19mm or 22mm spindles, it includes a full spacer kit for precise frame-to-crank alignment across different frame geometries.

Key Features

• Sealed Mid Bearings (x2) – Cartridge-style sealed bearings eliminate water, dirt, and debris ingress. Sealed construction extends bearing life and reduces maintenance compared to loose-ball designs. Mid-bracket design positions bearings inside the frame for protection and lower stack height.

• High-Quality Sealed Bearings – Precision bearings deliver smooth, fast cranking with minimal drag. Quality seals maintain performance through wet conditions and extended riding without regular repacking.

• Complete Spacer Kit – Includes multiple alloy spacers (44mm internal, 12mm non-drive, 7mm non-drive, 3mm universal, and 1mm washers) to adjust crank position and eliminate play. Proper spacer selection ensures crisp, responsive power transfer without lateral movement.

• Spindle Compatibility Options – Available for 19mm or 22mm spindles, matching most modern BMX cranks (Verde, Sunday, Cult, etc.).

• Lightweight – At 5.4 oz, it adds minimal weight to your drivetrain without sacrificing durability.

Technical Specifications

• Type: Sealed mid cartridge bottom bracket
• Spindle Options: 19mm or 22mm
• Bearings: Sealed mid cartridge (x2)
• Internal Spacer: 44mm alloy (x1)
• Non-Drive Side Spacers: 12mm alloy, 7mm alloy (x1 each)
• Universal Spacer: 3mm alloy (x1)
• Washers: 1mm spacer washers (x1)
• Material: Alloy spacers and cartridge housing
• Weight: 5.4 oz

Compatibility and Ideal Use Cases

Compatible With: Any BMX crank with 19mm or 22mm spindle (confirm spindle size before purchasing). Works with standard BMX frames using mid-bracket bottom bracket shells.

Best For:

• Street, park, and trick riding
• Riders seeking sealed-bearing reliability and low maintenance
• Any riding style where weather resistance matters
• General all-around BMX use
• Beginners through experienced riders

Installation Note: Spacer selection depends on frame spacing and crank spindle diameter. Use included spacers to dial in proper crank position and eliminate play. Consult frame or crank manufacturer specs if unsure about spacer setup.
