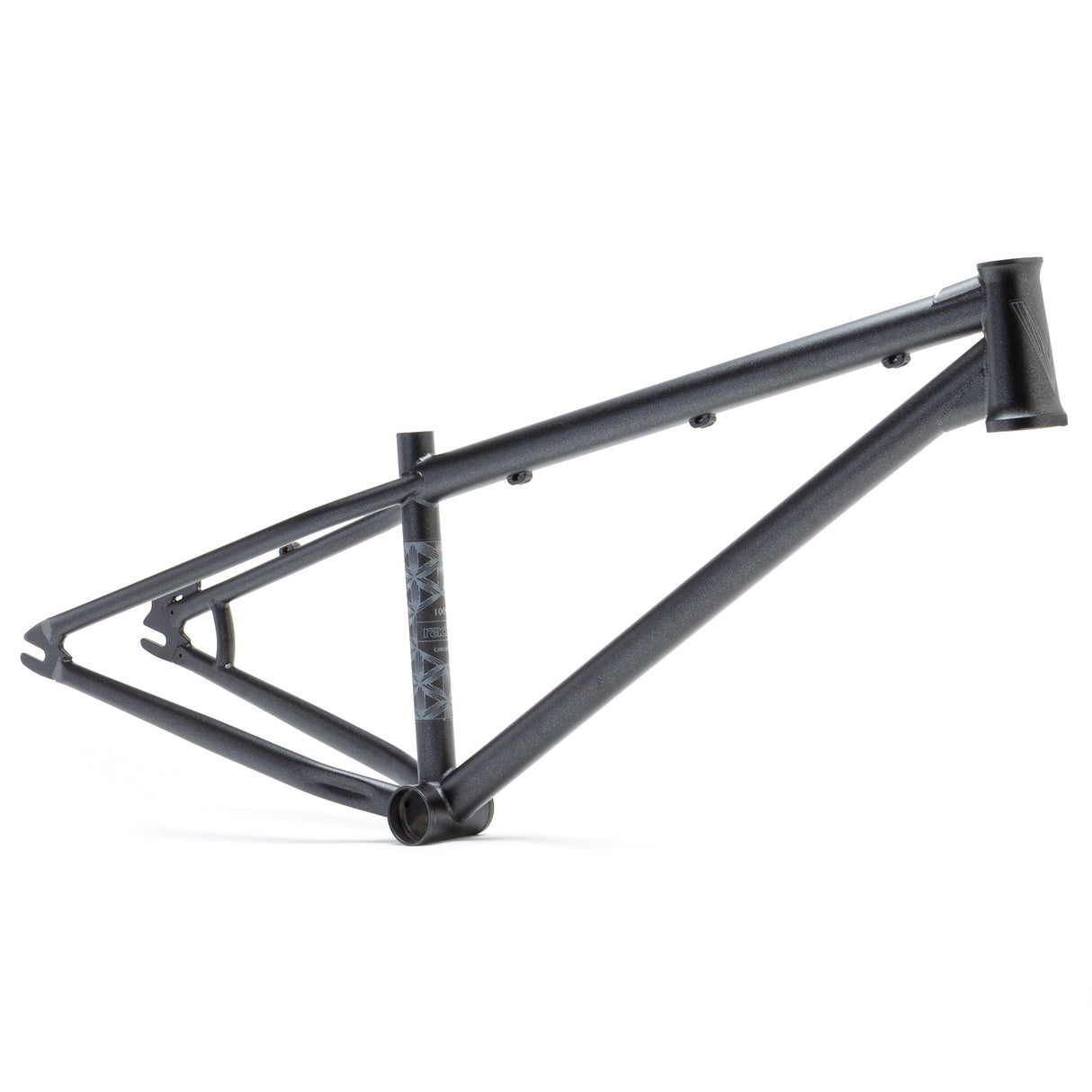

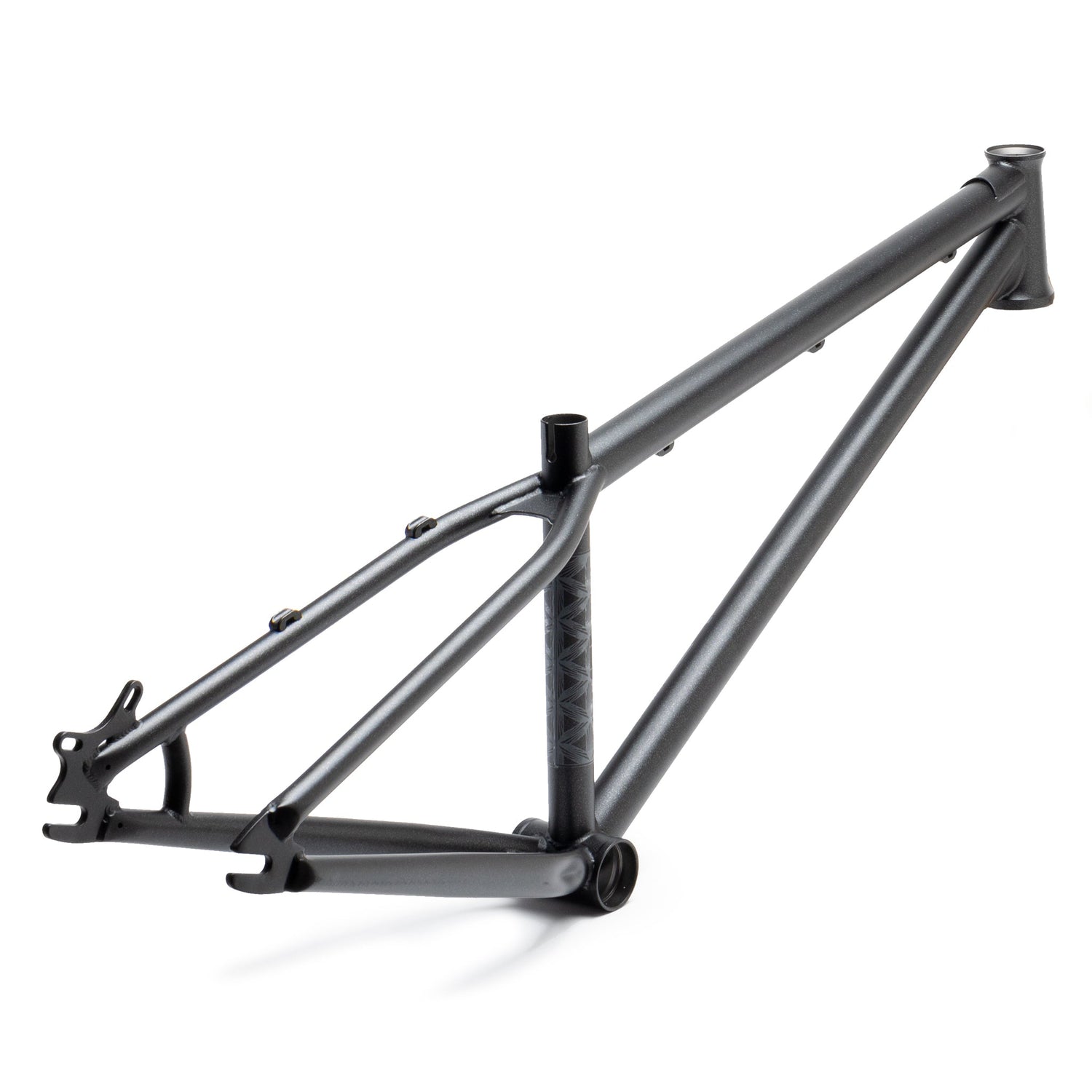

Verde Radix DJ Frame

Product Overview

The Verde Radix DJ Frame is a full-chromoly dirt jump frame built with CNC-machined integrated 1.5" tapered head tube and mid bottom bracket. Slack geometry and clearance-focused design deliver stability and control through technical terrain, jumps, and trick riding.

Key Features

• 100% Chromoly Construction – Full-chromoly tubing throughout frame and head tube provides durability, impact resistance, and fatigue strength essential for dirt jump and technical riding. Chromoly absorbs shock from impacts and landings without cracking or permanent deformation.

• CNC-Machined Integrated 1.5" Tapered Head Tube – Precision-machined head tube eliminates weak points and improves steering precision. 1.5" tapered upper bearing provides increased stiffness and responsiveness. Integrated design simplifies fork compatibility and improves aesthetic integration.

• Mid Bottom Bracket – Bottom bracket positioned inside the frame shell for lower stack height and improved weight distribution. Mid BB geometry enhances maneuverability and centers the rider's balance point.

• Slack Head Tube Angle (69°) – Slack geometry slows steering response and increases stability through descents, jumps, and technical sections. Longer wheelbase improves control and predictability at speed and over rough terrain.

• Proportionate Seat Tube Angle (71°) – Balanced seat angle maintains proper rider positioning and power delivery. Complements slack head tube geometry for responsive, controlled riding dynamics.

• Optimized BB Height (13") – Raised bottom bracket clears obstacles and improves ground clearance during tricks, jumps, and technical maneuvers. Prevents pedal strike on terrain.

• Compact Standover Height (11.5") – Low standover clearance allows riders to dismount and remount quickly, essential for technical terrain and trick setup transitions.

• Quick-Release Alloy Seat Clamp – Tool-free seat height adjustment. Allows rapid positioning and height changes between riding sessions or when sharing the frame.

Technical Specifications

Frame & Geometry:

• Material: 100% chromoly
• Top Tube Length: 22.34" (23.22" effective)
• Chain Stay Length: 15.3"
• Head Tube Angle: 69°
• Seat Tube Angle: 71°
• BB Height: 13"
• Standover Height: 11.5"

Head Tube & BB:

• Head Tube: 1.5" tapered, CNC-machined, integrated
• Bottom Bracket: Mid BB (inside frame shell)
• Head Tube Type: Integrated 45/45 (standard tapered compatibility)

Seat Hardware:

• Seat Clamp: Alloy, quick-release

Compatibility:

• Fork: 1.5" tapered steerer (standard modern forks)
• Bottom Bracket: Mid BB (19mm or 22mm spindle options)
• Headset: 1.5" tapered headset (ZS44/EC44 or IS45/IS52 standards)

Ideal Use Cases

Best For:

• Dirt jump and slopestyle riding
• Technical terrain and obstacle navigation
• Jump progression and air tricks
• Downhill-focused riders seeking stable, slack geometry
• Riders prioritizing control over pure speed

Geometry Summary: The slack 69° head tube and compact 11.5" standover deliver stability and quick dismount capability. Mid BB positioning improves weight distribution and maneuverability. 13" BB height provides ample ground clearance for technical tricks and obstacles.

Frame Setup: Pair with a modern 1.5" tapered fork and mid BB crankset. Quick-release seat clamp allows rapid adjustment for different rider heights or riding preferences.
