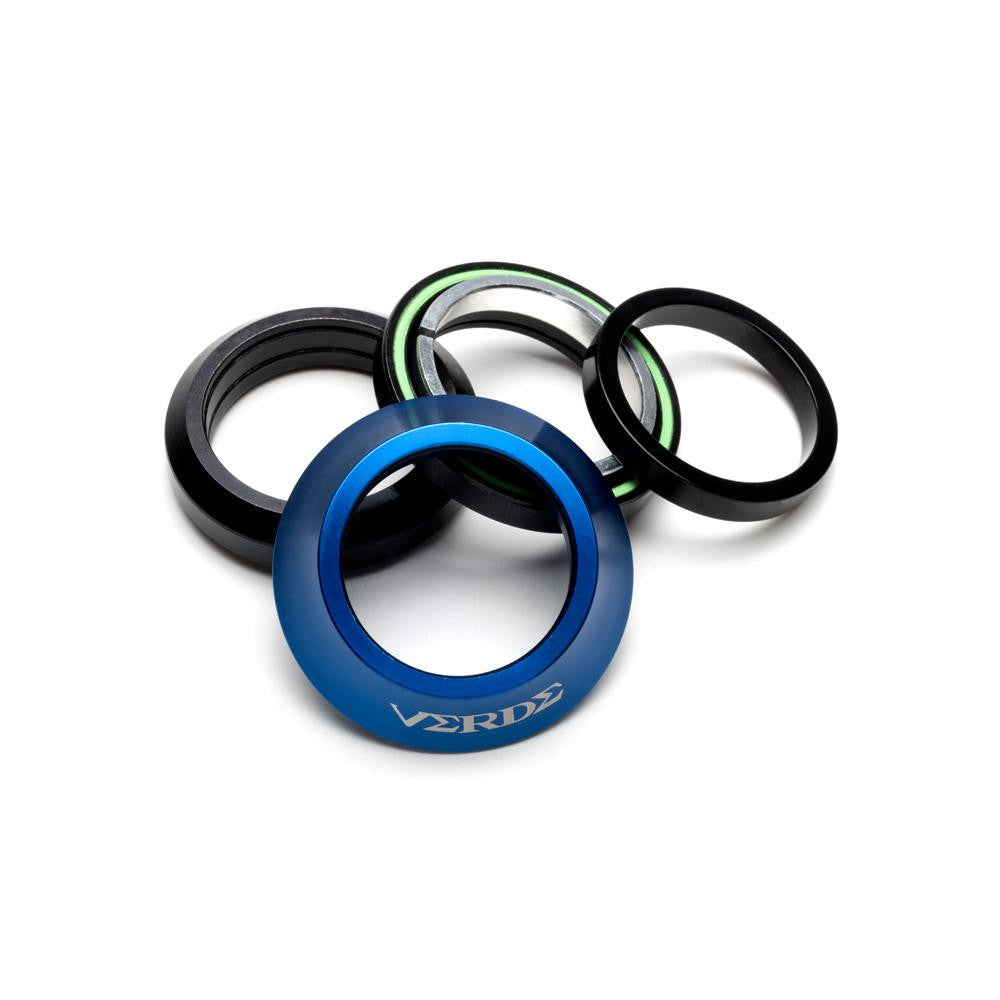

Verde Regent 10 Integrated Headset

Product Overview

The Verde Regent 10 is a sealed cartridge headset designed for BMX bikes with 1-1/8" integrated head tubes. Built to Campy specification, it uses two precision sealed bearings for smooth steering with minimal maintenance. Includes an alloy top cap, compression ring, and spacer for complete headset setup and stem height adjustment.

Key Features

• Two precision sealed cartridge bearings – Sealed design keeps dirt and water out of bearing races, extending service life and reducing maintenance intervals. Cartridge bearings are pre-packed with grease and roll smoothly, providing responsive steering feel. Campy specification ensures compatibility with standard BMX integrated head tubes.

• Alloy compression ring – Lightweight ring distributes clamping force evenly across the upper bearing race, preventing denting and ensuring consistent bearing preload. Alloy construction keeps weight minimal while maintaining adequate stiffness.

• 10mm alloy top cap (8mm stack height) – Precision-machined cap applies preload to the headset system. The 10mm height accommodates standard stem top caps while maintaining low stack height (8mm) for clean geometry. Laser-etched Verde logo provides durable branding without decal application.

• Rubber O-ring – Seals the top cap against the steerer tube, reducing dirt and water intrusion. Creates a tight fit that prevents movement or creaking during riding.

• 5mm alloy spacer – Allows fine-tuning of stem height without adding excessive stack. Useful for dialing in cockpit geometry and accommodating different stem designs.

• Integrated bearing race – Works with integrated head tube design, eliminating separate race cups and simplifying fork/frame assembly.

• Minimal weight at 2.25 oz – Low-mass components reduce overall bike weight and rotational inertia at the front end, improving steering response and maneuverability.

Technical Specifications

• Headset type: Integrated, sealed cartridge
• Bore specification: 1-1/8" (Campy spec)
• Bearing cartridges: Two sealed precision bearings
• Compression ring: Alloy
• Top cap: 10mm alloy with laser-etched Verde logo
• Top cap stack height: 8mm
• Spacer: 5mm alloy (x1)
• Bearing race: Integrated
• O-ring: Rubber seal
• Weight: 2.25 oz (complete headset)
• Finish: Machined alloy

Compatibility and Ideal Use Cases

Compatible with:

• BMX frames with 1-1/8" integrated head tubes (Campy spec)
• Standard BMX forks with tapered steerer tubes
• Any BMX stem with standard 1-1/8" top cap bore

Ideal for:

• Builders assembling complete BMX bikes
• Replacement headsets on existing frames with integrated tubes
• Riders seeking sealed, low-maintenance steering
• Street, park, and freestyle setups requiring precise headset adjustment
• Any BMX discipline using integrated head tube design
