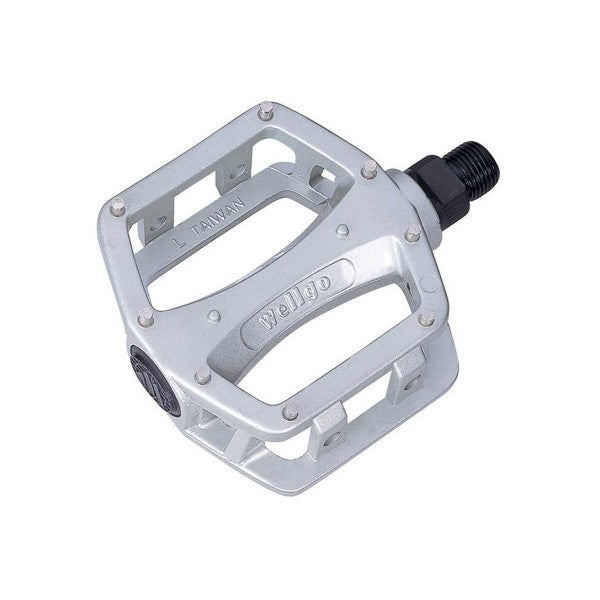

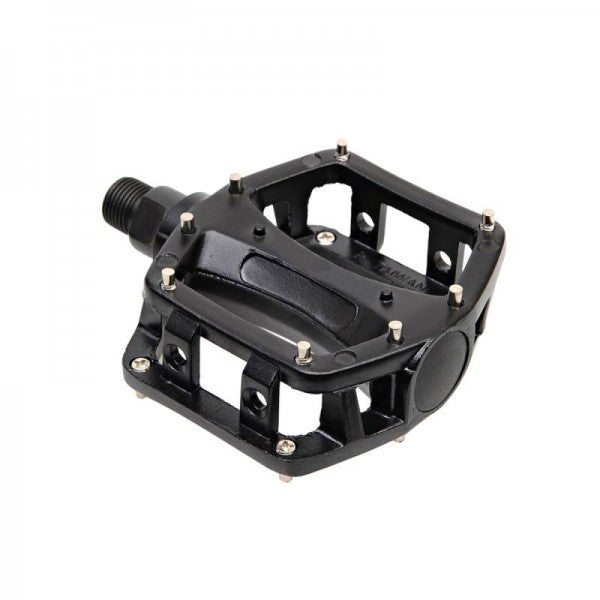

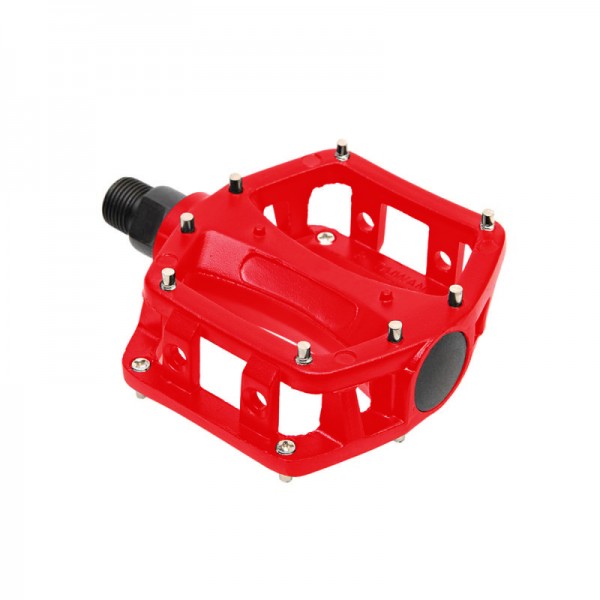

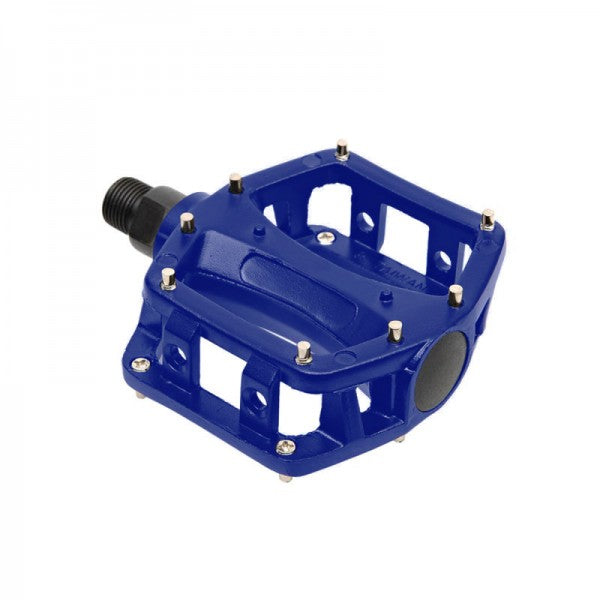

Wellgo LU-204U 9/16" Mini Pedals

Product Overview

The Wellgo LU-204U are compact platform pedals designed for young BMX racers. Built with an aluminum body and 9/16" steel axle, they feature ball bearings for smooth rotation and replaceable threaded pins for adjustable grip. Sized for Mini class riders with smaller feet.

Key Features

• Aluminum body construction – Lightweight alloy platform provides durable structure for race applications while keeping overall pedal weight manageable

• Ball bearing system – Loose ball bearings reduce rotational friction for smooth pedal spinning during races and practice

• Replaceable threaded pins – Screwed-in pins can be removed, replaced, or adjusted for customized grip levels based on shoe type and rider preference

• Compact Mini sizing – 94.2mm × 84.2mm platform dimensions match the foot size and proportions of Mini class riders without excess material

Technical Specifications

• Weight: 416 g per pair
• Material: Aluminum (body), steel (axle)
• Pedal type: Platform
• Axle thread: 9/16"
• Bearings: Ball bearings
• Pins: Replaceable threaded pins
• Dimensions: 94.2mm × 84.2mm × 29.8mm (L × W × H)
• Pedal size category: Mini

Compatibility and Ideal Use Cases

Designed for BMX race bikes with 9/16" threaded crank arms (standard on two-piece and three-piece cranks). Not compatible with one-piece cranks using 1/2" pedal threads. Best suited for Mini class competitive racing where compact platform dimensions match younger riders' foot sizes. Replaceable pins allow riders to dial in grip based on conditions—use more pins for wet weather, fewer for easier foot repositioning. Sized appropriately for riders with smaller feet who don't need full-size platform contact area. Verify crank arm pedal thread size before ordering.
